ReadiUse™ Preactivated PE-Cy5 Tandem

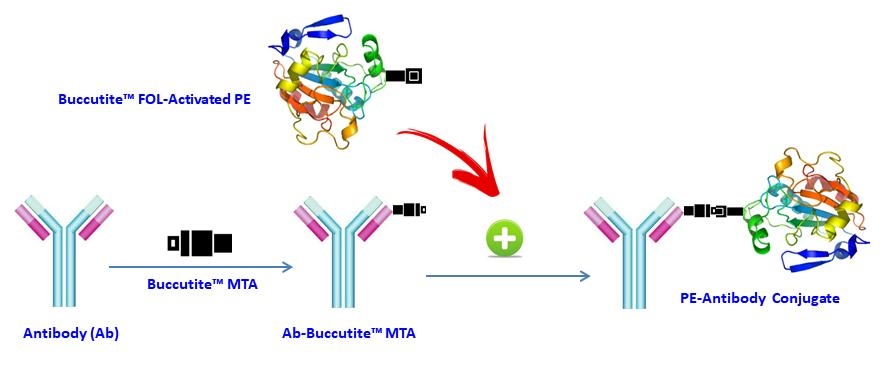

Our preactivated PE-Cy5 Tandem was premodified with our Buccutite™ FOL (provided). Your antibody (or other proteins) is modified with our Buccutite™ MTA (provided as free sample) to give MTA-modified protein (such as antibody). The MTA-modified protein readily reacts with FOL-modified PE-Cy5 Tandem (provided) to give the desired PE-Cy5 Tandem-antibody conjugate in much higher yield than the SMCC chemistry. In addition our preactivated PE-Cy5 Tandem reacts with MTA-modified biopolymers at much lower concentrations than the SMCC chemistry.
Our preactivated PE-Cy5 Tandem was premodified with our Buccutite™ FOL (provided). Your antibody (or other proteins) is modified with our Buccutite™ MTA (provided as free sample) to give MTA-modified protein (such as antibody). The MTA-modified protein readily reacts with FOL-modified PE-Cy5 Tandem (provided) to give the desired PE-Cy5 Tandem-antibody conjugate in much higher yield than the SMCC chemistry. In addition our preactivated PE-Cy5 Tandem reacts with MTA-modified biopolymers at much lower concentrations than the SMCC chemistry.
Our preactivated PE-Cy5 Tandem was premodified with our Buccutite™ FOL (provided). Your antibody (or other proteins) is modified with our Buccutite™ MTA (provided as free sample) to give MTA-modified protein (such as antibody). The MTA-modified protein readily reacts with FOL-modified PE-Cy5 Tandem (provided) to give the desired PE-Cy5 Tandem-antibody conjugate in much higher yield than the SMCC chemistry. In addition our preactivated PE-Cy5 Tandem reacts with MTA-modified biopolymers at much lower concentrations than the SMCC chemistry.
Ordering information
Price
Catalog Number
Unit Size
Quantity
Add to cart
Additional ordering information
Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
ShippingStandard overnight for United States, inquire for international
Request quotation
Physical properties
Molecular weight~240000
SolventWater
Spectral properties
Extinction coefficient (cm -1 M -1)1960000
Excitation (nm)565
Emission (nm)666
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageRefrigerated (2-8 °C); Minimize light exposure
UNSPSC12171501
Related products
ReadiUse™ Preactivated APC-iFluor® 700 Tandem
ReadiUse™ Preactivated APC-iFluor® 750 Tandem
ReadiUse™ Preactivated PE-iFluor® 750 Tandem
ReadiUse™ ABTS Substrate Solution *Optimized for ELISA Assays with HRP Conjugates*
ReadiUse™ TMB Substrate Solution *Optimized for ELISA Assays with HRP Conjugates*
ReadiUse™ hydrogen peroxide solution *50 mM calibrated and stabilized solution*
ReadiUse™ Preactivated HRP NHS ester
ReadiUse™ NADPH Regenerating Kit
ReadiUse™ NADP Regenerating Kit
ReadiUse™ TCA Deproteinization Sample Preparation Kit
ReadiUse™ microscope mounting solution
ReadiUse™ 4% formaldehyde fixation solution
ReadiUse™ mammalian cell lysis buffer *5X*
ReadiUse™ probenecid, sodium salt *Water-soluble*
ReadiUse™ probenecid *25 mM stabilized aqueous solution*
ReadiUse™ CFSE [5-(and 6)-Carboxyfluorescein diacetate, succinimidyl ester] *CAS 150347-59-4*
ReadiUse™ Preactivated PE
ReadiUse™ Preactivated APC
ReadiUse™ Preactivated PE-Cy5.5 Tandem
ReadiUse™ Preactivated PE-Texas Red Tandem
ReadiUse™ Preactivated APC-Cy5.5 Tandem
ReadiUse™ Preactivated APC-Cy7 Tandem
ReadiUse™ TCEP removal solution
ReadiUse™ WST-8 *50 mM aqueous solution*
ReadiUse™ Rapid Luminometric ATP Assay Kit
ReadiUse™ PE [R-Phycoerythrin] *Ammonium Sulfate-Free*
ReadiUse™ CL-APC [Cross linked-Allophycocyanin] *Ammonium Sulfate-Free*
ReadiUse™ Preactivated PE-iFluor® 594 Tandem
ReadiUse™ Cell Detaching Buffer
ReadiUse™ DRAQ5 Staining Solution *5 mM in Water*
ReadiUse™ Staurosporine * 1 mM DMSO stock solution*
ReadiUse™ Bio-Gel P-6 spin column
ReadiUse™ bacterial cell lysis buffer *5X*
ReadiUse™ 10% Triton X-100 *Hydrogen Peroxide-and Carbonyl-Free*
ReadiUse™ Preactivated PE-iFluor® 700 Tandem
ReadiUse™ dNTP Mix *10 mM*
ReadiUse™ Viral RNA Lysis Buffer
ReadiUse™ Tyramide (TSA)/Styramide (PSA) Optimized Reaction Buffer
ReadiUse™ Preactivated PerCP
ReadiUse™ Preactivated PerCP-Cy5.5 Tandem
ReadiUse™ Preactivated PE-iFluor® 660 Tandem
ReadiUse™ 10KD Spin Filter
ReadiUse™ Preactivated APC-iFluor® 800 Tandem
ReadiUse™ 1 Kb Plus DNA Ladder
ReadiUse™ GeneRuler 1 kb DNA Ladder
ReadiUse™ 100 bp DNA Ladder
ReadiUse™ ddNTP Terminator Mix *10 mM*
ReadiUse™ dNTP Mix Set *10 mM PCR Grade*
ReadiUse™ Preactivated HRP maleimide
ReadiUse™ Stayright™ Purple *HRP Chromogen Premixed with Hydrogen Peroxide*
ReadiUse™ Disposable PD-10 Desalting Column
ReadiUse™ Preactivated APC Maleimide [Activated Allophycocyanin]
ReadiUse™ Preactivated PE Maleimide [Activated R-Phycoerythrin]
ReadiUse™ 6-Color Human TBNK Antibody Kit *Dry Reagent Format*
ReadiUse™ MTS Reagent *5 mM aqueous solution*
ReadiUse™ Preactivated PE-Texas Red Maleimide
ReadiUse™ Preactivated PE-Cy5.5 Maleimide
ReadiUse™ Preactivated PE-Cy7 Maleimide
ReadiUse™ Preactivated APC-AF700 Maleimide
ReadiUse™ Preactivated APC-Cy5.5 Maleimide
ReadiUse™ Preactivated APC-Cy7 Maleimide
ReadiUse™ Preactivated PerCP Maleimide
ReadiUse™ Preactivated PerCP-Cy5.5 Maleimide
ReadiUse™ Preactivated PerCP-Cy7 Maleimide
ReadiUse™ PCR Reaction Buffer
ReadiUse™ Universal Kinase Reaction Stopping Buffer
ReadiUse™ Yeast Cell Lysis Buffer *5X*
Show More (57)

OverviewpdfSDSpdfProtocol


Molecular weight
~240000
Extinction coefficient (cm -1 M -1)
1960000
Excitation (nm)
565
Emission (nm)
666
PE-Cy5 is a popular color used in flow cytometry. Its primary absorption peak is at 565 nm with emission peak at 666 nm. The filter sets of 682/33 nm and 695/40 nm are recommended for this tandem color. AAT Bioquest offers this preactivated PE-Cy5 to facilitate the PE-Cy5 tandem conjugations to antibodies and other proteins such as streptavidin and other secondary reagents. Our preactivated PE-Cy5 tandem is ready to conjugate, giving much higher yield than the conventionally tedious SMCC-based conjugation chemistry. In addition, our preactivated PE-Cy5 tandem is conjugated to a protein via its amino group that is abundant in proteins while SMCC chemistry targets the thiol group that has to be regenerated by the reduction of antibodies.

Components


Example protocol


AT A GLANCE

Important      PE-Cy5 Tandem was premodified with our Buccutite™ FOL. Your antibody (or other proteins) is modified with our Buccutite™ MTA to give MTA-modified protein. The MTA-modified protein readily reacts with FOL-modified PE-Cy5 Tandem (provided) to give the desired PE-Cy5 Tandem-antibody conjugate.

SAMPLE EXPERIMENTAL PROTOCOL

Preparation of pre-activated Antibody with Buccutite™ MTA
  1. Reconstitute Buccutite™ MTA in DMSO at ~10 mg/mL.
    Note     Store unused MTA at -20 °C; it can be used for up to two freeze and thaw cycles.
  2. Prepare target antibody (Ab) in pH = 8.5 - 9.0 buffer at a concentration above 1 mg/ml.
  3. Add the MTA to Ab solution at the ratio of 8 - 10 µg MTA/100 µg Ab.
  4. Mix well and react at room temperature for 60 minutes, rotating during the reaction.
  5. Purify the reaction mixture with a desalting column to remove any unreacted MTA. Exchange the buffer to PBS or another buffer of your choice.
  6. Collect the MTA-activated Ab. Estimate the concentration by 70% yield of the original starting amount.

Conjugate with Pre-activated PE-Cy5 Tandem
  1. Reconstitute pre-activated PE-Cy5 Tandem in 100 µL ddH2O to 10 mg/mL.
    Note     Reconstituted pre-activated PE-Cy5 Tandem is not stable and can not be stored for more than one month.
  2. Add pre-activated PE-Cy5 Tandem directly to MTA-activated target Ab solution at the ratio of 300 µg PE-Cy5 Tandem/100 µg MTA-activated Ab.
  3. Rotate the mixture for 1 - 2 hours at room temperature.
  4. The Ab/PE-Cy5 Tandem conjugates are now ready to use.
    Note     The antibody conjugate should be stored at >0.5 mg/mL in the presence of a carrier protein (e.g., 0.1% bovine serum albumin) and 0.02-0.05% sodium azide.
    Note     The Ab/PE-Cy5 Tandem can be stored at 4 °C for two months.
  5. Optional: Ab/PE-Cy5 Tandem can be further purified through size exclusion chromatography to get better performance.

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Extinction coefficient (cm -1 M -1)1960000
Excitation (nm)565
Emission (nm)666

Product Family


NameExcitation (nm)Emission (nm)Extinction coefficient (cm -1 M -1)
ReadiUse™ Preactivated PE-Cy7 Tandem5657781960000
ReadiUse™ Preactivated PE-Cy5 Maleimide5656661960000
