Enzyme-Linked Immunosorbent Assay (ELISA)

ELISA, or enzyme-linked immunosorbent assay, is a plate-based immunoassay used to detect and quantify biomolecules such as antibodies, proteins, hormones or peptides, as well as for the characterization of protein-protein and protein-nucleic acid interactions. In an ELISA, the target of interest, typically an antigen, is immobilized onto a solid surface and subsequently probed with an antibody conjugated to an enzyme such as horseradish peroxidase (HRP) or alkaline phosphatase (AP). Quantification is achieved by incubation with a substrate, which is catalyzed by the enzyme, resulting in a measurable byproduct.





Overview of ELISA (enzyme-linked immunosorbent assay)


ELISA assays are traditionally performed in 96-well polystyrene microtiter plates. These plates are designed to passively bind and immobilize antigens, typically through direct adsorption to the surface of the microtiter plate or indrectly via pre-coated "capture" antibodies. Once immobilized, primary antibodies are introduced to the sample, forming an immune complex with the antigens. Primary antibodies can either be covalently labeled to an enzyme, such as HRP, or can itself be indirectly detected using enzyme-labeled secondary antibodies or streptavidin conjugates if the primary antibody is labeled with biotin. Detection is achieved by evalutating the conjugated enzyme activity via incubation with the appropriate substrate, which produces a measurable byproduct. Substrates vary in sensitivity and compatability with imaging equipment, and should be considered carefully when designing an ELISA.

Direct vs. Indirect Detection


The method for detecting a primary antibody-antigen complex in an ELISA, can be either direct or indirect. In direct detection methods, a single primary antibody conjugated to a reporter enzyme (e.g. HRP or AP) is used in a single-step procedure to directly detect a target antigen. With indirect detection, a dual antibody system is used sequentially to detect the target of interest. First, the sample is incubated with an unlabeled primary antibody directed against the target antigen. Then, an enzyme-labeled secondary antibody specific for the primary antibody is used to detect its presence, and thus the target antigen. If using a biotinylated primary antibody to detect the antigen, then use an enzyme-labeled streptavidin conjugate as your secondary detection reagent.

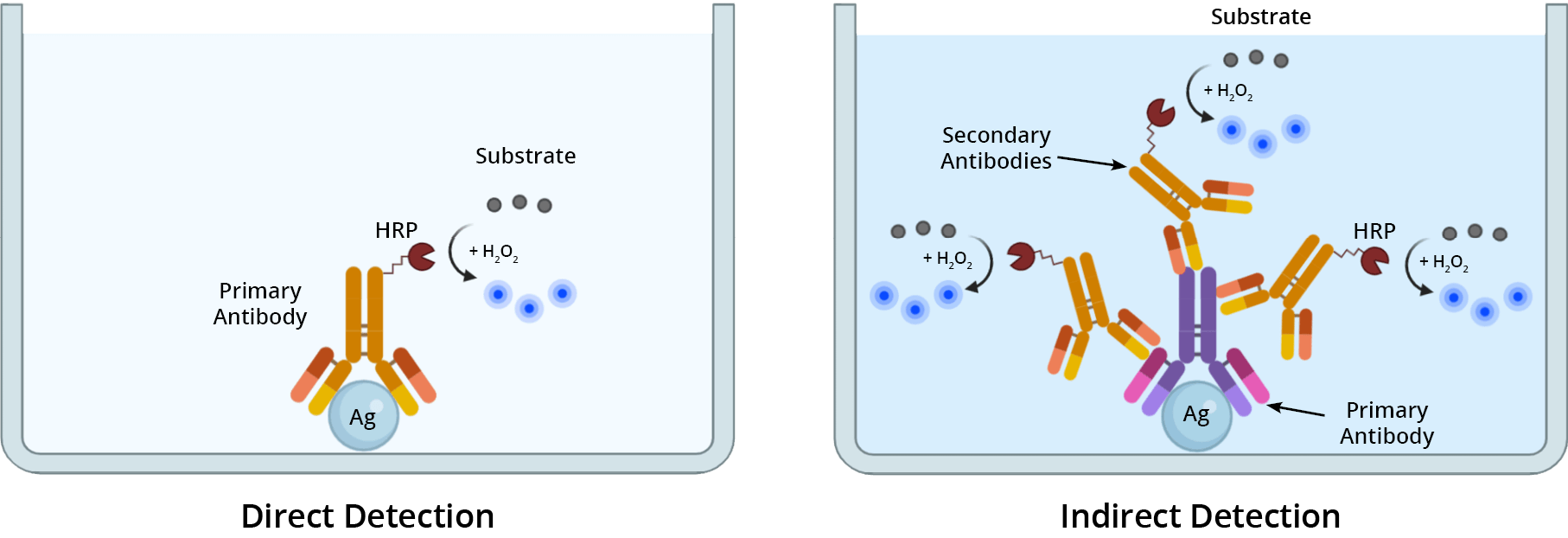

Direct and indirect antigen detection

Representation of direct and indirect antigen detection using target specific antibodies.


Determining which detection method to use depends upon the expression level of the target antigen. For detecting highly-expressed antigens, direct detection is a suitable method. When sensitivity is paramount, such as detecting low-abundance targets or poorly-expressed antigens, use an indirect detection method to elevate the signal.



ELISA Formats


Although there are several variations of ELISA that exist, they share a similar key first step, antigen immobilization. This is achieved either through direct adsoprtion of the antigen to the well's surface or indirectly using "capture" antibodies. In the latter method, "capture" antibodies immobilized to the well's surface bind and retain the antigen. After immobilization, enzyme-linked antibodies are used to detect and quantify the target of interest. All things considered, ELISA are generally grouped into three categories: the direct ELISA, indirect ELISA and the sandwich ELISA.

Direct ELISA


In a direct ELISA, antigens are immobilized directly onto the plate's surface via passive adsorption and detected using HRP-labeled primary antibodies. A coloreless substrate is introduced to the sample, which reacts with the enzyme conjugate, and produces a measurable byproduct. Depending on the choice of substrate, this byproduct can be either colorimetric, chemiluminescent or fluorescent. The magnitude of signal production is proportional to the amount of antigen in the sample. Of all the ELISA formats, direct ELISA assays are the simplest and quickest to perform, however, they are the least sensitive.

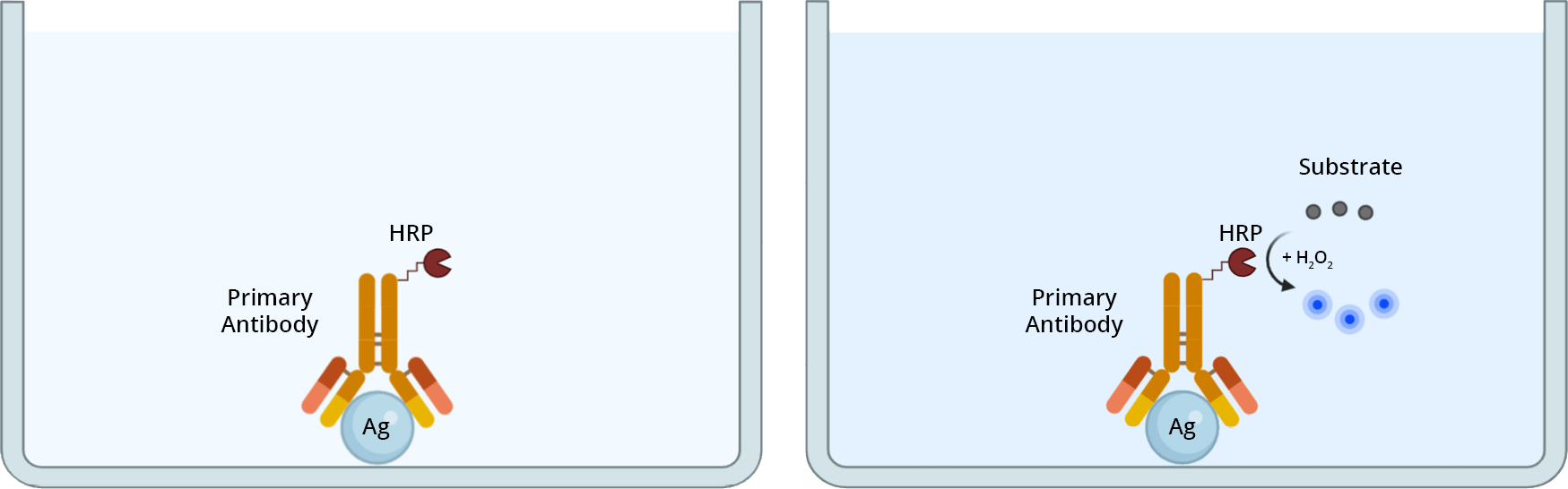

Colorimetric direct Elisa

Protocol: Colorimetric Direct ELISA
  1. Coat ELISA plate with testing antigens, seal plate and incubate overnight at 4°C
  2. Remove coating solution and wash plate 2 times with desired buffer
  3. Block plate with desired blocking solution for 1 hour at 4°C
  4. Wash plate 3 times with buffer
  5. Incubate with HRP-labeled primary antibody at room temperature for 1 hour
  6. Wash plate 4 times with buffer
  7. Incuabte plate with ReadiUse™ TMB Substrate Solution (Cat No. 11012) at room temperature for 15-30 minutes.
  8. Measure the absorbance signal at 650 nm with an ELISA microplate reader


Direct ELISA at-a-glance
Applications
  • Used to evalutate antibody affinity and specificity
  • Used to examine blocking/inhibitory interactions
Advantages
  • Simple and quick requiring less reagents and fewer steps
  • Cross-reactivity of secondary antibody is eliminated
Disadvantages
  • Antigen immobilization is not specific resulting in potentially high background interference
  • Primary antibody must be labeled individually, which is time-consuming and expensive
  • Immunoreactivity of primary antibody conjugate may be adversely affected by enyzme
  • Low flexibility as the primary antibody must be conjugated
  • No signal amplification


Indirect ELISA


An indirect ELISA is essentially a modified version of a direct ELISA. In an indirect ELISA, the primary antibody used to detect the antigen is unconjugated. Instead an enzyme-labeled secondary antibody, reactive against the host-species of the primary antibody, is used to detect the primary antibody-antigen complex (indirectly detecting the antigen). A colorless substrate is introduced to the sample, which reacts with the enzyme conjugate, and produces a measurable byproduct. Depending on the choice of substrate, this byproduct can be either colorimetric, chemiluminescent or fluroescent. The magnitude of signal production is proportional to the amount of antigen in the sample. Use of a secondary detection reagents has significant advantages over direct ELISA, namely signal amplification.

Colorimetric Indirect Elisa

Protocol: Colorimetric Indirect ELISA
  1. Coat ELISA plate with testing antigens, seal plate and incubate overnight at 4°C
  2. Remove coating solution and wash plate 2 times with desired buffer
  3. Block plate with desired blocking solution for 1 hour at 4°C
  4. Wash plate 2 times with buffer
  5. Incubate with unconjugated primary antibody at room temperature for 1 hour
  6. Wash plate 4 times with buffer
  7. Incubate with HRP-labeled secondary antibody (in blocking buffer) at room temperature for 1 hour
  8. Wash plate 4 times with buffer
  9. Incuabte plate with ReadiUse™ TMB Substrate Solution (Cat No. 11012) at room temperature for 15-30 minutes.
  10. Measure the absorbance signal at 650 nm with an ELISA microplate reader


Indirect ELISA at-a-glance
Applications
  • Used to measure endogenous antibodies
Advantages
  • Accessible - A wide selection of pre-labeled secondary antibodies are commercially available
  • Economical - Fewer labeled antibodies are needed
  • Highly Sensitive - Primary antibodies contain various epitopes for binding several labeled secondary antibodies resulting in signal amplification
  • Very Flexible - A single secondary antibody can be used to detect different primary antibodies
  • Maximum immunoreactivity of the primary antibody is retained
  • Different visualization markers can be used with the same primary antibody (e.g. biotin/streptavidin)
Disadvantages
  • Potential cross-reactivity from secondary antibody, resulting in non-specific staining
  • Lengthier protocol compared to direct ELISA format as an extra incubation step is required in the procedure


Sandwich ELISA


Sandwich ELISA assays are the most commonly used ELISA format. It requires the use of matched antibody pairs whereby each antibody is specific for different non-overlapping epitopes on the antigen. One of the antibodies, known as the capture antibody, is first coated onto the surface of a multi-well microtiter plate to facilitate the immobilization of the target antigen. Then the second antibody, known as the detection antibody, binds to the capture antibody-antigen complex (hence the term "sandwich" as the antigen is bound between the matched antibody pairs). Finally, an enzyme-labeled secondary antibody conjugate specific for the detection antibody (and not the capture antibody) is added. Once the secondary binds to the detection antibody, the enzyme-labeled secondary antibody catalyzes a reaction with its respective substrate to produce a measurable signal.

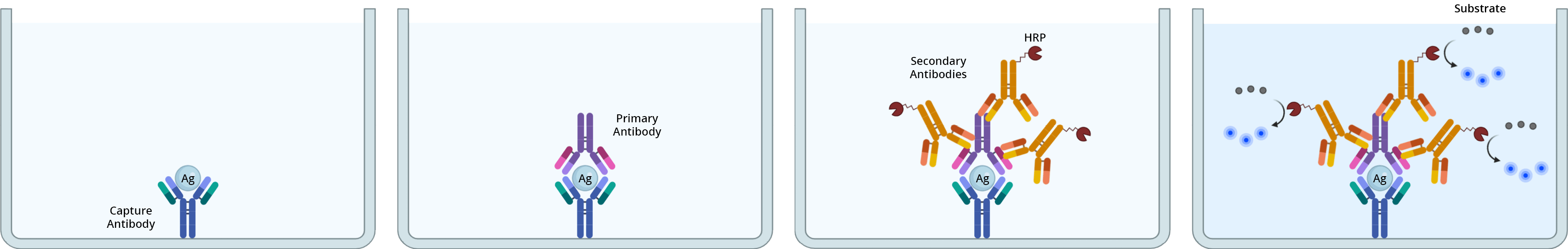

Colorimetric Sandwich Elisa

Protocol: Colorimetric Sandwich ELISA
  1. Coat wells of a PCV microtiter plate with capture antibody, seal plate and incubate overnight at 4°C
  2. Remove coating solution and wash plate 2 times with desired buffer
  3. Block plate with desired blocking solution for 1 hour at 4°C
  4. Wash plate 2 times with desired buffer
  5. Add samples to each well, incubate for 2 hours at 37°C
  6. Remove samples and wash plate 2 times with desired buffer
  7. Incubate with unconjugated detection antibody at room temperature for 1 hour
  8. Wash plate 4 times with desired buffer
  9. Incubate with HRP-labeled secondary antibody (in blocking buffer) at room temperature for 1 hour
  10. Wash plate 4 times with desired buffer
  11. Incuabte plate with ReadiUse™ TMB Substrate Solution (Cat No. 11012) at room temperature for 15-30 minutes.
  12. Measure the absorbance signal at 650 nm with an ELISA microplate reader


Sandwich ELISA at-a-glance
Applications
  • Used to measure analyte concentration in a biological sample
Advantages
  • Highly Sensitive - 2 to 5 fold more sensitive than direct or indirect ELISA formats
  • Very Flexible - Both direct and indirect detection can be used
  • High Specificity - Since matched antibody pairs are utilized, the antigen is specifically captured and detected
  • Suitable For Complex, Crude or Impure Samples - The antigen does not require purification prior to measurement
Disadvantages
  • Optimization of matched antibody pairs can be difficult - cross-reactivity of the capture and detection antibodies may occur



Antibodies and Other Probes for ELISA


Monoclonal antibodies, polyclonal antibodies or a combination of both are typically used in ELISA assays as either detection or capture antibodies. Monoclonal antibodies are inherently monovalent, with specificity towards a single epitope per antigen. In all ELISA formats, monoclonal antibodies are commonly used as detection antibodies. Because they seldom cross-react with other proteins and are less likely to generate non-specific signals. In contrast, polyclonal antibodies, which are a complex mixture of antibodies, recognize multiple epitopes found in a single antigen. While they are often used in sandwich ELISA assays as 'capture antibodies' to pull down as much of the antigen as possible, they can also be used as detection antibodies. Polyclonal antibodies are highly susceptible to batch-to-batch variation, and should be thoroughly tested and validated prior to using.

Secondary Conjugates for ELISA


Enzyme conjugated secondary antibodies or streptavidin conjugates are frequently used in both indirect and sandwich ELISA assays. Their capacity to amplify weak signals makes them advantageous at detecting poorly-expressed antigens.

HRP and Poly-HRP Secondary Antibodies


The enzyme horseradish peroxidase ((HRP, Cat No. 11025) is commonly conjugated to secondary antibodies or streptavidin, and used in either indirect or sandwich ELISA assays. The widespread adoption of HRP as a reporter in ELISA is primarly due to three factors. First, HRP has the capacity to amplify weak signal and enhance the detectability of poorly-expressed antigens. Second, the relatively small size of HRP (~44 kDa) compared to other reporter enzymes (e.g. alkaline phosphatase (~140 kDa)) further improves intracellular penetration into samples, reduces steric hindrance and minimizes immunoreactivity loss. Third, is the high turnover rate and good stability of HRP that enables rapid and strong signal generation. AAT Bioquest offers highly purified and cross-adsorbed secondary antibodies conjugated to HRP and poly-HRP. MegaWox™ poly-HRP secondary conjugates are designed to deliver high levels of sensitivity and low background in ELISA assays. Use MegaWox™ poly-HRP conjugates in immunoassays where sample volume is limited or when the target molecule is poorly-expressed.


Table 1. Ordering Info for HRP secondary antibodies Products



HRP and AP Streptavidin Conjugates


Enzyme-labeled streptavidin conjugates are used in an ELISA when the primary antibody used to detect the antigen is labeled with biotin molecules. The tetrameric conformation of streptavidin allows it to bind up to four biotin molecules with high affinity and selectivity. This multiplicity enables the amplification of weak signals and improves the detection sensitivity for medium- and low-abundance targets. Streptavidin is offered conjugated to either HRP or AP in ready-to-use formats.


Table 2. Ordering Info for Enzyme Streptavidin Conjugates Products



ELISA Substrates and Detection Strategies


The final step in all ELISA assays is the detection step by addition of an enzyme substrate. The enzyme (e.g. HRP or AP) catalyzes the substrate into a measurable byproduct, and the magnitude of the signal produced is proportional to the amount of antigen in the sample. ELISA substrates vary in ease-of-use, sensitivity and compatability with imaging equipment such as spectrophotometers, fluorometers and luminometers.

Colorimetric ELISA Substrates


Colorimetric (or chromogenic) substrates react with enzymes to generate an observable colored byproduct that can be measured using an absorbance plate reader. AAT Bioquest provides colorimetric substrates for horseradish peroxidase (HRP) and alkaline phosphatase (AP) ranging in sensitivity and optical densities.


Table 3. Available Colorimetric Enzyme Substrates for ELISA

Enzyme
Substrate
Absorbance (nm)
Color
Detection Limit
Unit Size
Cat No.
APpNPP405Yellow∼10 ng/well (100 ng/mL)25 mg11619
HRPABTS420Blue-Green∼250 pg/well (2.5 ng/mL)1 L11001
HRPTMB650, 450Blue, Yellow4∼12.5 pg/well (40-120 pg/mL)100 mL11012
HRPTMB650, 450Blue, Yellow4∼12.5 pg/well (40-120 pg/mL)1 L11003


Fluorimetric ELISA Substrates


Fluorimetric (or fluorogenic) substrates react with enzymes to generate highly fluorescent byproducts that can be measured using a fluorescence plate reader. The degree of photon emission following light excitation is proportional to the amount of antigen in the sample. AAT Bioquest provides fluorimetric substrates for horseradish peroxidase (HRP) and alkaline phosphatase (AP) ranging in sensitivity and fluorescence properties.


Table 4. Available Fluorimetric Enzyme Substrates for ELISA

Enzyme
Substrate
Ex (nm)
Em (nm)
Unit Size
Cat No.
APMUP, disodium salt360 nm448 nm25 mg11610
APMUP, disodium salt360 nm448 nm10 g11612
APMUP, free acid360 nm448 nm25 mg11614
APMUP, free acid360 nm448 nm5 g11617
APDiFMUP360 nm450 nm5 mg11627
APFDP497 nm516 nm5 mg11600
APPhosLite™ Green345 nm520 nm1 mg11630
APSunRed™ Phosphate652 nm660 nm5 mg11629
HRPAmplite® Blue324 nm409 nm25 mg11005
HRPAmplite® ADHP570 nm583 nm25 mg11000
HRPAmplite® Red570 nm583 nm1000 Assays11011
HRPAmplite® IR646 nm667 nm1 mg11009


Chemiluminescent ELISA substrates


Chemiluminescent substrates react with enzymes to generate luminescent byproducts that can be measured using a luminometer. Since the emission of a photon is a result of a chemical reaction and not light excitation, there is minimal background interference. AAT Bioquest provides chemiluminescent substrates for horseradish peroxidase (HRP) and alkaline phosphatase (AP) ranging in sensitivity and chemiluminescence properties.


Table 5. Chemiluminescent ELISA substrates For ELISA substrates and detection strategies

Enzyme
Substrate
Em (nm)
Unit Size
Cat No.
APD-Luciferin phosphate 1 mg12512
HRPLuminol410 nm1 mg11050



Product Ordering Information




Table 6. General ELISA Kits For Product Ordering Information

Cat#
Product Name
Ex (nm)
Em (nm)
Size
11540Amplite® Fluorimetric Goat Anti-Mouse IgG-HRP Conjugate ELISA Assay Kit *Red Fluorescence*5715851000 Tests
11541Amplite® Fluorimetric Goat Anti-Rabbit IgG-HRP Conjugate ELISA Assay Kit *Red Fluorescence*5715851000 Tests
36370Screen Quest™ Colorimetric ELISA cAMP Assay Kit650 1 plate
36371Screen Quest™ Colorimetric ELISA cAMP Assay Kit650 10 plates
36373Screen Quest™ Fluorimetric ELISA cAMP Assay Kit5715851 plate
36374Screen Quest™ Fluorimetric ELISA cAMP Assay Kit57158510 plates
36379Screen Quest™ TR-FRET No Wash cAMP Assay Kit3906501 plate
36380Screen Quest™ TR-FRET No Wash cAMP Assay Kit39065010 plates
36381Screen Quest™ TR-FRET No Wash cAMP Assay Kit39065050 plates
V101000Amplite® Human Apolipoprotein A1 (ApoA1) Kit *Optimized For ELISA Development with ALP* 96 Tests
V101005Amplite® Human Apolipoprotein A1 (ApoA1) Kit *Optimized For ELISA Development with HRP* 96 Tests
V101010Amplite® Human Apolipoprotein A1 (ApoA1) Kit *Optimized For ELISAPro Automated ELISA Processing* 96 Tests
V101015Amplite® Human Apolipoprotein H (ApoH) Kit *Optimized For ELISAPro Automated ELISA Processing* 96 Tests
V101020Amplite® Human Apolipoprotein E (ApoE) Kit *Optimized For ELISA Development with HRP* 96 Tests
V101025Amplite® Human Apolipoprotein E (ApoE) Kit *Optimized For ELISAPro Automated ELISA Processing* 96 Tests
V101040Amplite® Human Apolipoprotein J (Clusterin) Kit *Optimized For ELISAPro Automated ELISA Processing* 96 Tests
V101045Amplite® Human Apolipoprotein D (ApoD) Kit *Optimized For ELISAPro Automated ELISA Processing* 96 Tests
V101050Amplite® Human Apolipoprotein B (ApoB) Kit *Optimized For ELISA Development with ALP* 96 Tests
V101055Amplite® Human Apolipoprotein B (ApoB) Kit *Optimized For ELISA Development with HRP* 96 Tests
V101060Amplite® Human Apolipoprotein B (ApoB) Kit *Optimized For ELISAPro Automated ELISA Processing* 96 Tests
V101065Amplite® Human Apolipoprotein M (ApoM) Kit *Optimized For ELISAPro Automated ELISA Processing* 96 Tests
V101030Amplite® Monkey Apolipoprotein E (ApoE) Kit *Optimized For ELISA Development with ALP* 96 Tests
V101035Amplite® Monkey Apolipoprotein E (ApoE) Kit *Optimized For ELISA Development with HRP* 96 Tests
V101070Amplite® Mouse Apolipoprotein A1 (ApoA1) Kit *Optimized For ELISAPro Automated ELISA Processing* 96 Tests
V101075Amplite® Mouse Apolipoprotein E (ApoE) Kit *Optimized For ELISAPro Automated ELISA Processing* 96 Tests

Table 7. Conjugates used for developing ELISA assays.

Cat No.
Product Name
Unit Size
11023DIG-HRP Conjugate1 mg
16070Crotonaldehyde BSA Conjugate100 ug
16072Crotonaldehyde HSA (Human Serum Albumin) Conjugate100 ug
50000Chloramphenicol-Ovalbumin Conjugate1 mg
50001Chloramphenicol-BSA Conjugate1 mg
50002Chloramphenicol-KLH Conjugate1 mg
50003Chloramphenicol-HRP Conjugate1 mg
500043-Amino-2-oxazolidine (AOZ)-BSA Conjugate1 mg
500053-Amino-2-oxazolidine (AOZ)-KLH Conjugate1 mg
500063-Amino-2-oxazolidine (AOZ)-HRP Conjugate1 mg
50007Semicarbazide (SEM)-BSA Conjugate1 mg
50008Semicarbazide (SEM)-KLH Conjugate1 mg
50009Semicarbazide (SEM)-HRP Conjugate1 mg
500101-Aminohydantoin (AHD)-BSA Conjugate1 mg
500111-Aminohydantoin (AHD)-KLH Conjugate1 mg
500121-Aminohydantoin (AHD)-HRP Conjugate1 mg
500133-Amino-5-morpholinomethyl-2-oxazolidinone (AMOZ)-BSA Conjugate1 mg
500143-Amino-5-morpholinomethyl-2-oxazolidinone (AMOZ)-KLH Conjugate1 mg
500153-Amino-5-morpholinomethyl-2-oxazolidinone (AMOZ)-HRP Conjugate1 mg
50016Danofloxacin-HRP Conjugate1 mg
50017Danofloxacin-BSA Conjugate1 mg
50018Danofloxacin-KLH Conjugate1 mg
50019Ofloxacin-HRP Conjugate1 mg
50020Ofloxacin-BSA Conjugate1 mg
50021Ofloxacin-KLH Conjugate1 mg
50022Cinoxacin-HRP Conjugate1 mg
50023Cinoxacin-BSA Conjugate1 mg
50024Cinoxacin-KLH Conjugate1 mg
50025Sulfadimidine-HRP Conjugate1 mg
50026Sulfadimidine-BSA Conjugate1 mg
50027Sulfadimidine-KLH Conjugate1 mg
50028Sulfathiazol-HRP Conjugate1 mg
50029Sulfathiazol-BSA Conjugate1 mg
50030Sulfathiazol-KLH Conjugate1 mg
50031Sulfacetamide-HRP Conjugate1 mg
50032Sulfacetamide-BSA Conjugate1 mg
50033Sulfacetamide-KLH Conjugate1 mg
50034Florfenicol-HRP Conjugate1 mg
50035Florfenicol-BSA Conjugate1 mg
50036Florfenicol-KLH Conjugate1 mg
50037Spectinomycin-HRP Conjugate1 mg
50038Spectinomycin-BSA Conjugate1 mg
50039Spectinomycin-KLH Conjugate1 mg
50550Estradiol-HRP conjugate1 mg
50552Estradiol-BSA conjugate5 mg
50554Estradiol-KLH conjugate5 mg
50564Fentanyl-HRP conjugate1 mg
50565Fentanyl-BSA conjugate1 mg
50567Fentanyl-KLH conjugate1 mg
50568Salinomycin-BSA conjugate1 mg
50569Salinomycin-KLH conjugate1 mg
50571Salinomycin-HRP conjugate1 mg
