Amplite™ Colorimetric NAD/NADH Ratio Assay Kit

Image Viewer
Analyze with Quest Graph™Plan a serial dilution
Close (X)
10.11e-210- Dose-responseData legend Generated with Quest Graph™ NADH (uM) Absorbance Hover mouse to interact
Amplite™ Colorimetric NAD/NADH Ratio Assay Kit is used to measure total NAD/NADH amount and in a white/clear 96-well microplate using a SpectraMax microplate reader (Molecular devices).


Loading...

Unit Size: Cat No: Price (USD): Qty:
250 Tests 15273 $345


Export item/cart as Excel file

Send item/cart as email
EXPORT TO EXCEL X

Export:
EXPORT TO EMAIL X
Important: We request your email address to ensure that the recipient(s) knows you intended for them to see the email, and that it is not junk mail.
Export:
Your Name*:
Your Email*:
Recipient Email*:
Your Personal Message:
Additional Ordering Information
Telephone: 1-800-990-8053
Fax: 1-408-733-1304
Email: sales@aatbio.com
International: See distributors





Overview

Ex/Em (nm)460/None
Storage Freeze (<-15 °C)
Minimize light exposure
InstrumentsAbsorbance microplate reader
Category Cell Biology
Cell Metabolism
Related Redox Enzymes
Nicotinamide adenine dinucleotide (NAD+) and nicotinamide adenine dinucleotide phosphate (NADP+) are two important cofactors found in cells. NADH is the reduced form of NAD+, and NAD+ is the oxidized form of NADH. It forms NADP with the addition of a phosphate group to the 2' position of the adenyl nucleotide through an ester linkage. NADP is used in anabolic biological reactions, such as fatty acid and nucleic acid synthesis, which require NADPH as a reducing agent. The traditional NAD/NADH and NADP/NADPH assays are done by monitoring of NADH or NADPH absorption at 340 nm. This method suffers low sensitivity and high interference since the assay is done in the UV range that requires expensive quartz microplate. Our Amplite™ NAD/NADH Ratio Assay Kit provides a convenient method for sensitive detection of NAD, NADH and their ratio. The NADH probe is a chromogenic sensor that has its maximum absorbance at ~460 nm upon NADH reduction. The absorbance increase at ~460 nm is directly proportional to the concentration of NADH in the solution. The NADH probe can recognize NADH in an enzyme-free reaction, and the signal can be easily read by an absorbance microplate reader at ~460 nm. The Amplite™ Colorimetric NADH Assay Kit provides a sensitive assay to detect as little as 3 µM NADH in a 100 µL assay volume. The assay can be performed in a convenient 96-well or 384-well microtiter-plate format.




Protocol


Quick Preview

This protocol only provides a guideline, and should be modified according to your specific needs.
At a glance

Protocol summary

  1. Prepare 25 µL of NADH standards and/or test samples
  2. Add 25 µL of NAD Extraction Solution
  3. Incubate at 37oC for 15 minutes
  4. Add 25 µL of Neutralization Solution
  5. Add 75 µL of NAD/NADH working solution
  6. Incubate at RT for 15 minutes to 2 hours
  7. Monitor Absorbance at 460 nm

Important notes
It is highly recommended to incubate the cells with Lysis Buffer (Component G) at 37oC and use the supernatant for the experiment.


Thaw one of each kit component at room temperature before starting the experiment.

Key parameters
Instrument:Absorbance microplate reader
Absorbance:460 nm
Recommended plate:Clear bottom
Preparation of stock solution
Unless otherwise noted, all unused stock solutions should be divided into single-use aliquots and stored at -20 °C after preparation. Avoid repeated freeze-thaw cycles.

1. NADH standard solution (1 mM):
Add 200 µL of 1X PBS buffer into the vial of NADH standard (Component C) to make 1 mM (1 nmol/µL) NADH standard solution.

Preparation of standard solution
NADH standard

For convenience, use the Serial Dilution Planner: https://www.aatbio.com/tools/serial-dilution/15273

Add 50 µL of 1 mM (1 nmol/µL) NADH standard solution into 450 µL 1X PBS buffer (pH 7.4) to generate 100 µM (100 pmols/µL) NADH standard solution. Then take 100 µM NADH standard solution and perform 1:2 serial dilutions in 1X PBS buffer to get serially diluted NADH standards (NS7 - NS1). Note: Diluted NADH standard solution is unstable, and should be used within 4 hours.

Preparation of working solution

1. Add 8 mL of NADH Probe Buffer (Component B-II) to the bottle of NAD/NADH Recycling Enzyme Mix (Component A), and mix well.

2. Add 2 mL NADH Probe (Component B-I) into the bottle of Component A+B-II and mix well to make NAD/NADH working solution. Note: This NAD/NADH working solution is enough for 125-200 assays. The working solution is not stable, use it promptly and avoid direct exposure to light. Note:       One can try to use ddH2O such as 500 uL to dissolve the Component A, and then mix with B-II and B-I proportionally to make the NAD/NADH working solution for enough use only.

For guidelines on cell sample preparation, please visit
https://www.aatbio.com/resources/guides/cell-sample-preparation.html

Sample experimental protocol

TOTAL NAD/NADH Assay (avail. 400 assays/kit):

Table 1. Layout of NADH standards and test samples in a white/clear bottom 96-well microplate. NS= NADH Standards (NS1 - NS7, 1.56 to 100 µM), BL=Blank Control, TS=Test Samples.

BL BL TS TS
NS1 NS1 ... ...
NS2 NS2 ... ...
NS3 NS3
NS4 NS4
NS5 NS5
NS6 NS6
NS7 NS7

Table 2. Reagent composition for each well. High concentration of NADH (e.g., >100 µM, final concentration) will cause saturated signal and make the calibration curve non-linear.

Well Volume Reagent
NS1 - NS7 50 µL Serial Dilutions (0.078 to 5 µM)
BL 50 µL 1X PBS
TS 50 µL Test Sample
  1. Prepare NADH standards (NS), blank controls (BL), and test samples (TS) according to the layout provided in Tables 1 and 2. Note: Prepare cells or tissue samples as desired. Lysis Buffer (Component G) can be used for lysing the cells for convenience and incubate the cells with Lysis Buffer at 37oC for 15 minutes and use the supernatant for the experiment.

  2. Add 50 µL of NAD/NADH working solution into each well of NADH standard, blank control, and test samples to make the total NAD/NADH assay volume of 100 µL/well.

  3. Incubate the reaction at room temperature for 15 minutes to 2 hours, protected from light.

  4. Monitor the absorbance increase with an absorbance plate reader at 460 nm.

NAD/NADH RATIO Assay (avail. 250 assays/kit):

Table 3. Layout of NADH standards and test samples in a white/clear 96-well microplate. NS= NAD/NADH Standards (NS1 - NS7, 0.078 to 5 µM); BL=Blank Control; TS=Test Samples; TS (NAD) = Test Samples treated with NAD Extraction Solution (Component D) for 10 to 15 minutes, then neutralized by Neutralization Solution (Component E).

BL BL TS TS TS (NAD) TS (NAD)
NS1 NS1 ... ...
NS2 NS2 ... ...
NS3 NS3
NS4 NS4
NS5 NS5
NS6 NS6
NS7 NS7

Table 4. Reagent compositions for each well. High concentration of NADH (e.g., >100 µM, final concentration) will cause saturated signal and make the calibration curve non-linear.

NADPH Standard Blank Control Test Sample (NAD/NADH) Test Sample (NAD Extract)
Serial Dilutions: 25 µL 1X PBS: 25 µL Test Sample: 25 µL Test Sample: 25 µL
Component F: 25 µL Component F: 25 µL Component F: 25 µL Component D: 25 µL
Incubate at room 37oC for 10 to 15 minutes
Component F: 25 µL Component F: 25 µL Component F: 25 µL Component E: 25 µL
Total: 75 µL Total: 75 µL Total: 75 µL Total: 75 µL
  1. Refer to Tables 3 & 4 for compositions of each well.

    1. For NAD Extraction (NAD amount): Add 25 µL of NAD Extraction Solution (Component D) into the wells of NAD/NADH containing test samples. Incubate at 37oC for 10 to 15 minutes, then add 25 µL of Neutralization Solution (Component E) to neutralize the NAD extracts as described in Tables 3 & 4.

    2. For Total NAD and NADH (Total amount): Add 25 µL of Extraction Control Solution (Component F) into the wells of NADH standards and NAD/NADH containing test samples. Incubate at room 37oC for 10 to 15 minutes, and then add 25 µL of Extraction Control Solution (Component F) as described in Tables 3 and 4. Note: Prepare cells or tissue samples as desired. Lysis Buffer (Component G) can be used for lysing the cells for convenience.

  2. Add 75 µL of NAD/NADH working solution into each well of NADH standard, blank control, and test samples (NAD/NADH), and test sample (NAD Extract) to make the total assay volume of 150 µL/well.

  3. Incubate the reaction at room temperature for 15 minutes to 2 hours (We tested 60 minutes in the figure shown), protected from light.

  4. Monitor the absorbance increase with an absorbance plate reader at 460 nm.
Example data analysis and figures

The reading (Absorbance) obtained from the blank standard well is used as a negative control. Subtract this value from the other standards' readings to obtain the base-line corrected values. Then, plot the standards' readings to obtain a standard curve and equation. This equation can be used to calculate NADH samples. We recommend using the Online Linear Regression Calculator which can be found at:

https://www.aatbio.com/tools/linear-logarithmic-semi-log-regression-online-calculator

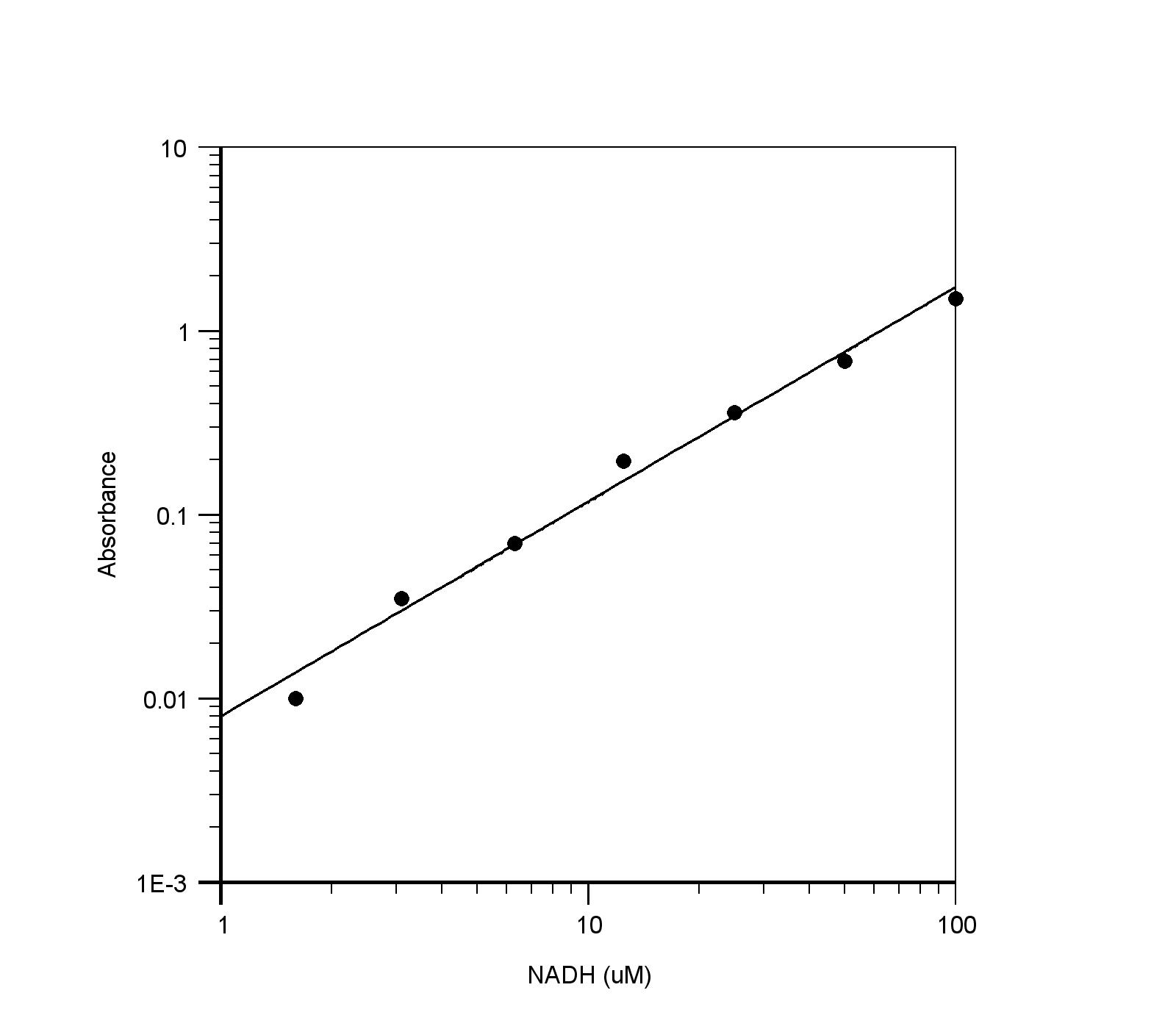

Figure 1. Amplite™ Colorimetric NAD/NADH Ratio Assay Kit is used to measure total NAD/NADH amount and in a white/clear 96-well microplate using a SpectraMax microplate reader (Molecular devices).

Disclaimer
AAT Bioquest provides high-quality reagents and materials for research use only. For proper handling of potentially hazardous chemicals, please consult the Safety Data Sheet (SDS) provided for the product. Chemical analysis and/or reverse engineering of any kit or its components is strictly prohibited without written permission from AAT Bioquest. Please call 408-733-1055 or email info@aatbio.com if you have any questions.





References & Citations

β-Lapachone protects against doxorubicin-induced nephrotoxicity via NAD+/AMPK/NF-kB in mice
Authors: Davoud Sanajou, Saeed Nazari Soltan Ahmad, Vahid Hosseini, Ashkan Kalantary-Charvadeh, Yasser Marandi, Leila Roshangar, Saman Bahrambeigi, Mehran Mesgari-Abbasi
Journal: Naunyn-Schmiedeberg's archives of pharmacology (2019): 1--8

Enhanced NADH Metabolism Involves Colistin-Induced Killing of Bacillus subtilis and Paenibacillus polymyxa
Authors: Zhiliang Yu, Yuyi Zhu, Jianv Fu, Juanping Qiu, Jianhua Yin
Journal: Molecules (2019): 387

Engineering Corynebacterium crenatum for enhancing succinic acid production
Authors: Xiaoju Chen, Yaojie Zhou, Di Zhang
Journal: Journal of Food Biochemistry (2018): e12645

Influence of Boric Acid on Energy Metabolism and Stress Tolerance of Candida albicans
Authors: Martin Schmidt, Dominic Tran-Nguyen, Patrick Chizek
Journal: Journal of Trace Elements in Medicine and Biology (2018)

Loss of sirtuin 1 and mitofusin 2 contributes to enhanced ischemia/reperfusion injury in aged livers
Authors: Sung Kook Chun, Sooyeon Lee, Joseph Flores-Toro, Rebecca Y U, Ming-Jim Yang, Kristina L Go, Thomas G Biel, Catherine E Miney, Schiley Pierre Louis, Brian K Law
Journal: Aging Cell (2018): e12761

Norisoboldine, a natural AhR agonist, promotes Treg differentiation and attenuates colitis via targeting glycolysis and subsequent NAD+/SIRT1/SUV39H1/H3K9me3 signaling pathway
Authors: Qi Lv, Kai Wang, Simiao Qiao, Ling Yang, Yirong Xin, Yue Dai, Zhifeng Wei
Journal: Cell death & disease (2018): 258

Optically-controlled bacterial metabolite for cancer therapy
Authors: Di-Wei Zheng, Ying Chen, Zi-Hao Li, Lu Xu, Chu-Xin Li, Bin Li, Jin-Xuan Fan, Si-Xue Cheng, Xian-Zheng Zhang
Journal: Nature communications (2018)

Stochastic expression of lactate dehydrogenase A induces Escherichia coli persister formation
Authors: Naoki Yamamoto, Rino Isshiki, Yuto Kawai, Daiki Tanaka, Tetsushi Sekiguchi, Shinya Matsumoto, Satoshi Tsuneda
Journal: Journal of Bioscience and Bioengineering (2018)

Celastrol attenuates angiotensin II mediated human umbilical vein endothelial cells damage through activation of Nrf2/ERK1/2/Nox2 signal pathway
Authors: Miao Li, Xin Liu, Yongpeng He, Qingyin Zheng, Min Wang, Yu Wu, Yuanpeng Zhang, Chaoyun Wang
Journal: European Journal of Pharmacology (2017): 124--133

Cytosolic Redox Status of Wine Yeast (Saccharomyces Cerevisiae) under Hyperosmotic Stress during Icewine Fermentation
Authors: Fei Yang, Caitlin Heit, Debra L Inglis
Journal: Fermentation (2017): 61


View More Citations
