APC-XFD750 Tandem

Ordering information

Price
Catalog Number
Unit Size
Quantity

Add to cart

Additional ordering information

Telephone	1-800-990-8053
Fax	1-800-609-2943
Email	sales@aatbio.com
International	See distributors
Bulk request	Inquire
Custom size	Inquire
Shipping	Standard overnight for United States, inquire for international

Physical properties

Solvent

Water

Spectral properties

Absorbance (nm)	754
Extinction coefficient (cm ^-1 M ^-1)	700000
Excitation (nm)	651
Emission (nm)	776

Storage, safety and handling

H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
Storage	Refrigerated (2-8 °C); Minimize light exposure
UNSPSC	12171501

Direct upgrades

Overview SDS Protocol

Upgrade: APC-iFluor® 750 Tandem

Absorbance (nm)

754

Extinction coefficient (cm ^-1 M ^-1)

700000

Excitation (nm)

651

Emission (nm)

776

Tandem dyes are a unique class of fluorescent molecules that consist of two different covalently linked fluorophores, a donor (e.g. PE or APC) and a longer-wavelength emitting fluorescence acceptor (e.g. Texas Red, Cy5, Cy7, iFluor® 594 or iFluor® 750). APC-XFD750 tandem has the structure and properties to the commonly used APC-Alexa Fluor® 750. Its primary absorption peak is at 651 nm with emission peak at ~780 nm.

Spectrum

Open in Advanced Spectrum Viewer

Spectral properties

Absorbance (nm)	754
Extinction coefficient (cm ^-1 M ^-1)	700000
Excitation (nm)	651
Emission (nm)	776

Product Family

Name	Excitation (nm)	Emission (nm)	Extinction coefficient (cm ^-1 M ^-1)
APC-Cy7 Tandem	651	779	700000
APC-XFD700 Tandem	651	707	700000

Images

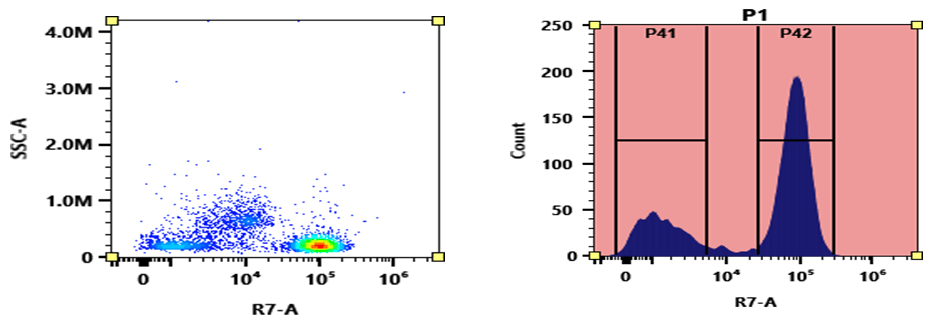

Figure 1. Flow cytometry analysis of PBMC stained with APC-XFD750 anti-human CD3 *SK7* conjugate. The fluorescence signal was monitored using an Aurora spectral flow cytometer in the APC-XFD750 specific R7-A channel. XFD750 is the same structure as Alexa Fluor® 750.

Figure 2. Flow cytometry analysis of whole blood stained with APC-XFD750 anti-human CD4 *SK3* conjugate. The fluorescence signal was monitored using an Aurora spectral flow cytometer in the APC-XFD750 specific R7-A channel. XFD750 is the same structure as Alexa Fluor® 750.

References

View all 5 references: Citation Explorer

Comparison between photostability of Alexa Fluor 448 and Alexa Fluor 647 with conventional dyes FITC and APC by flow cytometry.
Authors: Rai, S and Bhardwaj, U and Misra, A and Singh, S and Gupta, R
Journal: International journal of laboratory hematology (2018): e52-e54

Dual-Color Fluorescence Imaging of EpCAM and EGFR in Breast Cancer Cells with a Bull's Eye-Type Plasmonic Chip.
Authors: Izumi, Shota and Yamamura, Shohei and Hayashi, Naoko and Toma, Mana and Tawa, Keiko
Journal: Sensors (Basel, Switzerland) (2017)

[Changes of monocyte and monocyte-platelet aggregates in different subgroups of thrombotic events in patients with acute myocardial infarction during PCI].
Authors: Wang, Sheng and Sun, Cuifang and Liao, Wang and Wu, Zhongwei and Wang, Yudai and Huang, Xiuxian and Lu, Sijia and Dong, Xiaoli and Shuai, Fujie and Li, Bin
Journal: Xi bao yu fen zi mian yi xue za zhi = Chinese journal of cellular and molecular immunology (2017): 959-965

Antigen processing of glycoconjugate vaccines; the polysaccharide portion of the pneumococcal CRM(197) conjugate vaccine co-localizes with MHC II on the antigen processing cell surface.
Authors: Lai, Zengzu and Schreiber, John R
Journal: Vaccine (2009): 3137-44

Investigating the role of Natural Killer T-cells in Gram negative infections of patients with type 2 diabetes mellitus.
Authors: Karagianni, P and Polyzos, S A and Bougiouklis, D and Tsapas, A and Paletas, K
Journal: Hippokratia : 231-4
