BCECF, AM

Image Viewer
Chemical structure for BCECF, AM
Roll over image to zoom in
Loading...

Unit Size: Cat No: Price (USD): Qty:
1 mg 21202 $145


Export item/cart as Excel file

Send item/cart as email
EXPORT TO EXCEL X

Export:
EXPORT TO EMAIL X
Important: We request your email address to ensure that the recipient(s) knows you intended for them to see the email, and that it is not junk mail.
Export:
Your Name*:
Your Email*:
Recipient Email*:
Your Personal Message:
Additional Ordering Information
Telephone: 1-800-990-8053
Fax: 1-408-733-1304
Email: sales@aatbio.com
International: See distributors





Overview

Ex/Em (nm)503/528
MW808.69
SolventDMSO
Storage F/D/L
Category Cell Biology
pH and Ion Indicators
Related Cell Metabolism
Secondary Reagents
Intracellular pH plays an important modulating role in many cellular events, including cell growth, calcium regulation, enzymatic activity, receptor-mediated signal transduction, ion transport, endocytosis, chemotaxis, cell adhesion and other cellular processes. pH-sensitive fluorescent dyes have been widely applied to monitor changes in intracellular pH in recent years. Imaging techniques that use fluorescent pH indicators also allow researchers to investigate these processes with much greater spatial resolution and sampling density that can be achieved using other technologies such as microelectrode. Among them, 2',7'-bis-(2-carboxyethyl)-5-(and-6)-carboxyfluorescein (BCECF) is the most popular pH probe since it can be used to monitor cellular pH ratiometrically. BCECF AM is the cell-permeable version of BCECF.




Calculators
Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of BCECF, AM to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.



Molarity calculator

Table 2. Enter any two values (mass, volume, concentration) to calculate the third.

Mass Molecular weight Volume Concentration Moles
/ = x =

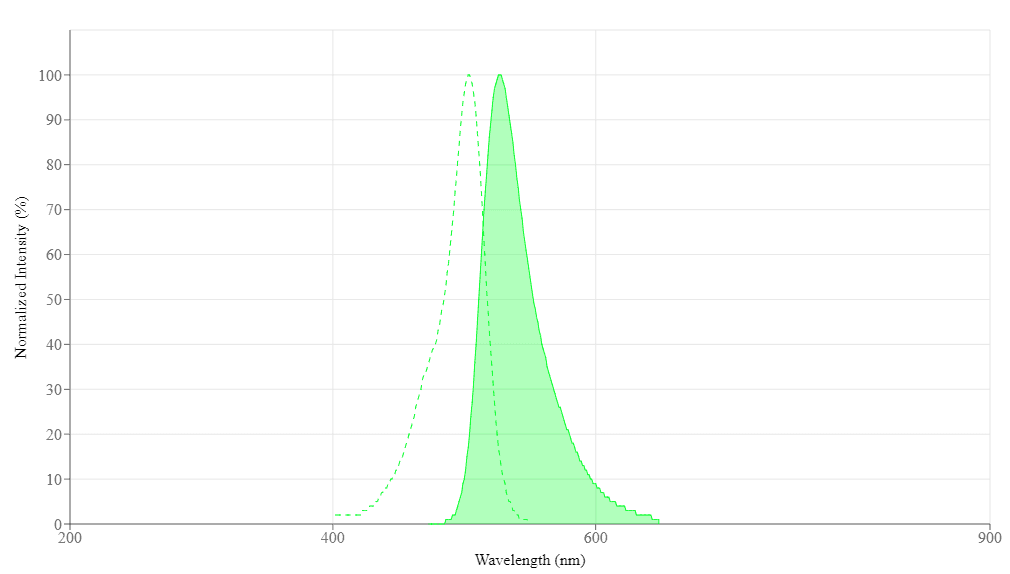

Spectrum Advanced Spectrum Viewer

Sorry, your browser does not support inline SVG. Relative Intensity (%) 100 80 60 40 20 0 Sorry, your browser does not support inline SVG.
Sorry, your browser does not support inline SVG. Sorry, your browser does not support inline SVG.
Move mouse over grid to display wavelength & intensity values.

300
400
500
600
700
800
900
Wavelength (nm)





Protocol


Quick Preview

This protocol only provides a guideline, and should be modified according to your specific needs.

1. Prepare cells as desired. For example, plate adherent cells overnight in growth medium at 40,000 to 80,000 cells/well/100µL for

       96-well or 10,000 to 20,000 cells/well/25µL for 384-well plates.

Note:  Each cell line should be evaluated on an individual basis to determine the optimal cell density.

2. Prepare BCECF, AM dye-loading solution:

2.1    Prepare a 2 to 20 mM stock solution of BCECF, AM in high-quality, anhydrous DMSO. The stock solution should be used promptly. Any unused solution need to be aliquoted and refrozen at < -20 oC.

Note: Avoid repeated freeze-thaw cycles, and protect from light.

2.2    Prepare a 5-50 uM BCECF, AM dye-loading solution in Hanks and 20 mM Hepes buffer (HHBS).



3.  Run pH Assay

3.1    Add 100 µL/well (96-well plate) or 25 µL/well (384-well plate) BCECF, AM dye-loading solution into the cell plate (from Step 2.3).

Note:  It is important to replace the growth medium with HHBS buffer (100 µL/well for 96-well plate or 25 µL/well for 384-well plate before dye-loading) if your compounds interfere with the serum.

3.2    Incubate the dye-loading plate at cell incubator for 30 to 60 minutes.

3.3    Wash and replace the dye-loading solution with HHBS.

3.4    Prepare the compound plates by using HHBS or your desired buffer.

3.5    Run the pH assay by monitoring the fluorescence at Ex/Em = 490/535 nm (cut off at 515 nm) or 505/535 nm and 430/535 nm (cut off at 515 nm) for ratio measurements. The compound addition is 50 µL/well (96-well plate) or 25 µL/well (384-well plate).

Note: The assay should be complete within 3 to 5 min after compound addition, however a minimum of 8 min data collection are recommended for during assay development.






References & Citations

The F0F1 ATP synthase regulates human neutrophil migration through cytoplasmic proton extrusion coupled with ATP generation
Authors: Jun Gao, Tian Zhang, Zhanfang Kang, Weijen Ting, Lingqing Xu, Dazhong Yin
Journal: Molecular Immunology (2017): 219--226

Oxidative Stress-Activated NHE1 Is Involved in High Glucose-Induced Apoptosis in Renal Tubular Epithelial Cells
Authors: Yiqing Wu, Min Zhang, Rui Liu, Chunjie Zhao
Journal: Yonsei Medical Journal (2016): 1252--1259






Additional Documents


Safety Data Sheet (SDS)


Catalogs
1. Physiological Probes & Assay Kits

Application Notes
1. AssayWise Letters 2013, Vol 2(2)

Certificate of Analysis
