Calcein UltraBlue™ sodium salt

Ordering information

Price
Catalog Number
Unit Size
Quantity

Add to cart

Additional ordering information

Telephone	1-800-990-8053
Fax	1-800-609-2943
Email	sales@aatbio.com
International	See distributors
Bulk request	Inquire
Custom size	Inquire
Shipping	Standard overnight for United States, inquire for international

Physical properties

Molecular weight	566.35
Solvent	DMSO

Spectral properties

Excitation (nm)	359
Emission (nm)	458

Storage, safety and handling

H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
Storage	Freeze (< -15 °C); Minimize light exposure
UNSPSC	12352200

Overview SDS Protocol

Molecular weight

566.35

Excitation (nm)

359

Emission (nm)

458

Calcein UltraBlue™ has similar spectral properties to those of Calcein Blue. However, compared with Calcein Blue, Calcein UltraBlue™ has higher photostability and stronger fluorescence intensity at physiological pH, making it a more robust fluorescent probe than Calcein Blue.

Calculators

Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of Calcein UltraBlue™ sodium salt to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

	0.1 mg	0.5 mg	1 mg	5 mg	10 mg
1 mM	176.569 µL	882.846 µL	1.766 mL	8.828 mL	17.657 mL
5 mM	35.314 µL	176.569 µL	353.139 µL	1.766 mL	3.531 mL
10 mM	17.657 µL	88.285 µL	176.569 µL	882.846 µL	1.766 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)		Molecular weight		Volume (Calculate)		Concentration (Calculate)		Moles
	/		=		x		=

Spectrum

Open in Advanced Spectrum Viewer

Spectral properties

Excitation (nm)	359
Emission (nm)	458

Product Family

Name	Excitation (nm)	Emission (nm)
Calcein Red™ sodium salt	562	576
Calcein Orange™ sodium salt	531	545

Images

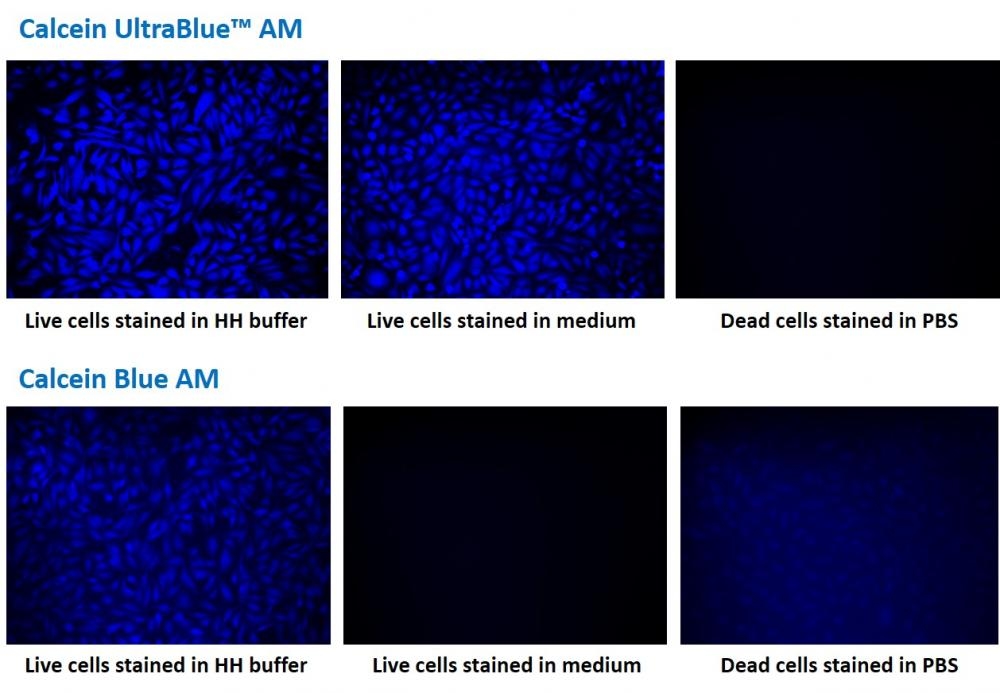

Figure 1. Fluorescence images of HeLa cells stained with Calcein UltraBlue™ AM (upper row) or Calcein Blue AM (lower row) in a Costar black wall/clear bottom 96-well plate. Left: Live HeLa cells in HH buffer; Middle: Live HeLa cells in medium; Right: Fixed HeLa cells.

Citations

View all 17 citations: Citation Explorer

Functional imaging of neuronal activity of auditory cortex by using Cal-520 in anesthetized and awake mice
Authors: Li, Jingcheng and Zhang, Jianxiong and Wang, Meng and Pan, Junxia and Chen, Xiaowei and Liao, Xiang
Journal: Biomedical Optics Express (2017): 2599--2610

NINJ2--A novel regulator of endothelial inflammation and activation
Authors: Wang, Jingjing and Fa, Jingjing and Wang, Pengyun and Jia, Xinzhen and Peng, Huixin and Chen, Jing and Wang, Yifan and Wang, Chenhui and Chen, Qiuyun and Tu, Xin and others, undefined
Journal: Cellular Signalling (2017)

Influence of hypothermia and subsequent rewarming upon leukocyte-endothelial interactions and expression of Junctional-Adhesion-Molecules A and B
Authors: Bogert, Nicolai V and Werner, Isabella and Kornberger, Angela and Meybohm, Patrick and Moritz, Anton and Keller, Till and Stock, Ulrich A and Beiras-Fern, undefined and ez, Andres
Journal: Scientific reports (2016)

Inhibition of ABC transport proteins by oil sands process affected water
Authors: Alharbi, Hattan A and Saunders, David MV and Al-Mousa, Ahmed and Alcorn, Jane and Pereira, Alberto S and Martin, Jonathan W and Giesy, John P and Wiseman, Steve B
Journal: Aquatic Toxicology (2016): 81--88

Rapid generation of collagen-based microtissues to study cell--matrix interactions
Authors: Brett, Marie-Elena and Crampton, Alex and ra L , undefined and Wood, David K
Journal: Technology (2016): 1--8

Toxicokinetics and toxicodynamics of chlorpyrifos is altered in embryos of Japanese medaka exposed to oil sands process-affected water: evidence for inhibition of P-glycoprotein
Authors: Alharbi, Hattan A and Alcorn, Jane and Al-Mousa, Ahmed and Giesy, John P and Wiseman, Steve B
Journal: Journal of Applied Toxicology (2016)

Flexible Endoscopic Spray Application of Respiratory Epithelial Cells as Platform Technology to Apply Cells in Tubular Organs
Authors: Thiebes, Anja Lena and Reddemann, Manuel Armin and Palmer, Johannes and Kneer, Reinhold and Jockenhoevel, Stefan and Cornelissen, Christian Gabriel
Journal: Tissue Engineering Part C: Methods (2016): 322--331

Erythropoietin Stimulates Endothelial Progenitor Cells to Induce Endothelialization in an Aneurysm Neck After Coil Embolization by Modulating Vascular Endothelial Growth Factor
Authors: Liu, Peixi and Zhou, Yingjie and An, Qingzhu and Song, Yaying and Chen, Xi and Yang, Guo-Yuan and Zhu, Wei
Journal: MEDICINE (2016): 1--8

Spraying respiratory epithelial cells to coat tissue-engineered constructs
Authors: Thiebes, Anja Lena and Albers, Stefanie and Klopsch, Christian and Jockenhoevel, Stefan and Cornelissen, Christian G
Journal: BioResearch open access (2015): 278--287

Visualization of adherent cell monolayers by cryo-electron microscopy: A snapshot of endothelial adherens junctions
Authors: Le Bihan, Olivier and Decossas, Marion and Gontier, Etienne and Gerbod-Giannone, Marie-Christine and Lambert, Olivier
Journal: Journal of structural biology (2015): 470--477

References

View all 84 references: Citation Explorer

Functional evidence that the self-renewal gene NANOG regulates esophageal squamous cancer development
Authors: Li, Deng and Xiang, Xiaocong and Yang, Fei and Xiao, Dongqin and Liu, Kang and Chen, Zhu and Zhang, Ruolan and Feng, Gang
Journal: Biochemical and Biophysical Research Communications (2017)

Localized functional chemical stimulation of TE 671 cells cultured on nanoporous membrane by calcein and acetylcholine
Authors: Zibek S, Stett A, Koltay P, Hu M, Zengerle R, Nisch W, Stelzle M.
Journal: Biophys J. (2006)

A vaccination and challenge model using calcein marked fish
Authors: Klesius PH, Evans JJ, Shoemaker CA, Pasnik DJ.
Journal: Fish Shellfish Immunol (2006): 20

Novel fluorescence assay using calcein-AM for the determination of human erythrocyte viability and aging
Authors: Bratosin D, Mitrofan L, Palii C, Estaquier J, Montreuil J.
Journal: Cytometry A (2005): 78

Cytotoxic effects of 100 reference compounds on Hep G2 and HeLa cells and of 60 compounds on ECC-1 and CHO cells. I mechanistic assays on ROS, glutathione depletion and calcein uptake
Authors: Schoonen WG, Westerink WM, de Roos JA, Debiton E.
Journal: Toxicol In Vitro (2005): 505

Calcein AM release-based cytotoxic cell assay for fish leucocytes
Authors: Iwanowicz LR, Densmore CL, Ottinger CA.
Journal: Fish Shellfish Immunol (2004): 127

Calcein-AM is a detector of intracellular oxidative activity
Authors: Uggeri J, Gatti R, Belletti S, Sc and roglio R, Corradini R, Rotoli BM, Orl and ini G., undefined
Journal: Histochem Cell Biol (2004): 499

Comparison of the usefulness of the MTT, ATP, and calcein assays to predict the potency of cytotoxic agents in various human cancer cell lines
Authors: Mueller H, Kassack MU, Wiese M.
Journal: J Biomol Screen (2004): 506

In vitro assay of mineralized-tissue formation on titanium using fluorescent staining with calcein blue
Authors: Goto T, Kajiwara H, Yoshinari M, Fukuhara E, Kobayashi S, Tanaka T.
Journal: Biomaterials (2003): 3885

The effects of calcium chloride and sodium chloride on the electroporation-mediated skin permeation of fluorescein isothiocyanate (FITC)-dextrans in vitro
Authors: Tokudome Y, Sugibayashi K.
Journal: Biol Pharm Bull (2003): 1508
