Cell Meter™ Annexin V Binding Apoptosis Assay Kit *Green Fluorescence Optimized for Flow Cytometry*

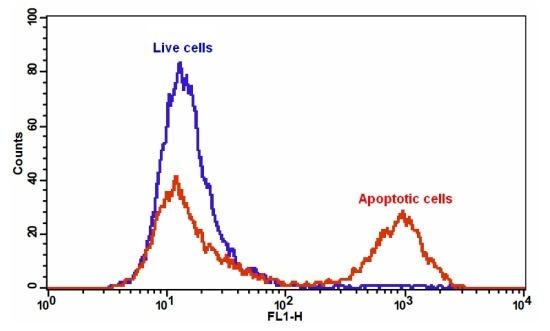

The detection of binding activity of Annexin V-iFluor® 488 and phosphatidylserine in Jurkat cells. Jurkat cells were treated without (Blue) or with 20 µM camptothecin (Red) in a 37 °C, 5% CO2 incubator for 4-5 hours, and then dye loaded with Annexin V-iFluor® 488 for 30 minutes. The fluorescence intensity of Annexin V-iFluor® 488 was measured with a FACSCalibur (Becton Dickinson) flow cytometer using the FL1 channel.
The detection of binding activity of Annexin V-iFluor® 488 and phosphatidylserine in Jurkat cells. Jurkat cells were treated without (Blue) or with 20 µM camptothecin (Red) in a 37 °C, 5% CO2 incubator for 4-5 hours, and then dye loaded with Annexin V-iFluor® 488 for 30 minutes. The fluorescence intensity of Annexin V-iFluor® 488 was measured with a FACSCalibur (Becton Dickinson) flow cytometer using the FL1 channel.
Effect of FSS on apoptosis and necrosis in tubular cells. Confluent monolayers of HK-2 cells were submitted to FSS 0 (static) or FSS 0.5 Pa (FSS 0.5) for 48h. A/ Cells were stained with Annexin-V and then immediately subjected to analysis of phosphatidylserine externalization (Annexin-V fluorescence, X-axis) and Propidium Iodure (PI) uptake (PI fluorescence, Y-axis) using flow cytometry. Living, early apoptotic or necrotic (primary or secondary) cells were distinguished by the criteria of Annexin-V−/PI−(bottom left quadrant), Annexin-V+/PI− (bottom right quadrant) and Annexin-V+/PI+ (upper right quadrant), respectively. B/ Proportions of early apoptosis and necrosis cells were quantified and results are expressed as a percentage of the total population of cells. Data represent mean ± SEM of 7 experiments. *HK-2 cells were assessed for apoptosis and necrosis using Cell Meter Annexin V Binding Apoptosis Assay Kit (AAT Bioquest), according to the manufacturer's instructions. Source: Graph from <strong>Shear Stress-Induced Alteration of Epithelial Organization in Human Renal Tubular Cells</strong> by Damien Maggiorani, et al., <em>PLoS ONE</em>, July 2015.
Ordering information
Price ()
Catalog Number22824
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Spectral properties
Correction Factor (260 nm)0.21
Correction Factor (280 nm)0.11
Extinction coefficient (cm -1 M -1)750001
Excitation (nm)491
Emission (nm)516
Quantum yield0.91
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
UNSPSC12352200

OverviewpdfSDSpdfProtocol


Correction Factor (260 nm)
0.21
Correction Factor (280 nm)
0.11
Extinction coefficient (cm -1 M -1)
750001
Excitation (nm)
491
Emission (nm)
516
Quantum yield
0.91
Our Cell Meter™ assay kits are a set of tools for monitoring cell viability. There are a variety of parameters that can be used for monitoring cell viability. This particular kit is designed to monitor cell apoptosis through measuring the translocation of phosphatidylserine (PS). In apoptosis, PS is transferred to the outer leaflet of the plasma membrane. The appearance of phosphatidylserine on the cell surface is a universal indicator of the initial/intermediate stages of cell apoptosis and can be detected before morphological changes can be observed. This kit uses a fluorescent Annexin V that specifically binds PS. Annexin V conjugates have been demonstrated to selectively bind PS. This particular assay kit is optimized to monitor cell apoptosis using a flow cytometer with the FITC channel (green fluorescence).

Platform


Flow cytometer

Excitation488 nm laser
Emission530/30 nm filter
Instrument specification(s)FITC channel

Components


Component A: Annexin V-iFluor® 488 (100X stock solution)1 vial (200 µL/vial)
Component B: Assay Buffer (4 °C)1 bottle (50 mL)
Component C: 100X Propidium Iodide1 vial (100 µL)

Example protocol


AT A GLANCE

Protocol summary

  1. Prepare cells with test compounds (200 µL/sample)
  2. Add Annexin V-iFluor™ 488 stock solution
  3. Incubate at room temperature for 30 - 60 mintues
  4. Analyze cells using flow cytometer with 530/30 nm filter (FITC channel)

Important notes
Thaw 100X Propidium Iodide (Component C) at room temperature before starting the experiment.

SAMPLE EXPERIMENTAL PROTOCOL

  1. Treat cells with test compounds for a desired period of time (4 - 6 hours for Jurkat cells treated with camptothecin) to induce apoptosis. Note: Annexin V flow cytometric analysis on adherent cells is not routinely tested since specific membrane damage may occur during cell detachment or harvesting. However, methods for utilizing Annexin V for flow cytometry on adherent cell types have been previously reported by Casiola-Rosen et al. and van Engelend et al.

  2. Centrifuge the cells to get 1 - 5 × 105 cells/tube.

  3. Resuspend cells in 200 µL of Assay Buffer (Component B).

  4. Add 2 µL of Annexin V-iFluor™ 488 (Component A) into the cells.

  5. Optional: Add 2 µL of 100X Propidium Iodide (Component C) for necrosis cells.

  6. Incubate at room temperature for 30 to 60 minutes, protected from light.

  7. Optional: Add 200 to 300 µL of Assay Buffer (Component B) to increase volume before analyzing the cells with a flow cytometer.

  8. Monitor the fluorescence intensity of Annexin V-iFluor™ 488 using a flow cytometer with 530/30 nm filter (FITC channel). Measure the cell viability using the 610/20 nm filter (PE-Texas Red channel) when propidium iodide is added into the cells.

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Correction Factor (260 nm)0.21
Correction Factor (280 nm)0.11
Extinction coefficient (cm -1 M -1)750001
Excitation (nm)491
Emission (nm)516
Quantum yield0.91

Product family


NameExcitation (nm)Emission (nm)Extinction coefficient (cm -1 M -1)Quantum yieldCorrection Factor (260 nm)Correction Factor (280 nm)
Cell Meter™ Annexin V Binding Apoptosis Assay Kit *Orange Fluorescence Optimized for Flow Cytometry*55757010000010.6410.230.14
Cell Meter™ Annexin V Binding Apoptosis Assay Kit *Red Fluorescence Optimized for Flow Cytometry*58860418000010.5310.050.04
Cell Meter™ Annexin V Binding Apoptosis Assay Kit *Deep Red Fluorescence Optimized for Flow Cytometry*65667025000010.2510.030.03

Citations


View all 8 citations: Citation Explorer
Itraconazole improves survival outcomes in patients with colon cancer by inducing autophagic cell death and inhibiting transketolase expression
Authors: Shen, Pei-Wen and Chou, Yu-Mei and Li, Chia-Ling and Liao, En-Chih and Huang, Hung-Sen and Yin, Chun-Hao and Chen, Chien-Liang and Yu, Sheng-Jie
Journal: Oncology letters (2021): 1--11
NGF-and BDNF-dependent DRG sensory neurons deploy distinct degenerative signaling mechanisms
Authors: de Le{\'o}n, Andr{\'e}s and Gibon, Julien and Barker, Philip A
Journal: Eneuro (2020)
Combined Treatments of Magnetic Intra-Lysosomal Hyperthermia with Doxorubicin Promotes Synergistic Anti-Tumoral Activity.
Authors: El, D Hajj Diab and Clerc, P and Serhan, N and Fourmy, D and Gigoux, V
Journal: Nanomaterials (Basel, Switzerland) (2018)
In situ polymerizable hydrogel incorporated with specific pathogen-free porcine platelet-rich plasma for the reconstruction of the corneal endothelium
Authors: Lin, Yung-Kai and Sharma, Ruchi and Ma, Hsu and Chen, Wen-Shyan and Yao, Chao-Ling
Journal: Journal of the Taiwan Institute of Chemical Engineers (2017)
Novel regulations of MEF2-A, MEF2-D, and CACNA1S in the functional incompetence of adipose-derived mesenchymal stem cells by induced indoxyl sulfate in chronic kidney disease
Authors: Do, Duyen Thi and Phan, Nam Nhut and Wang, Chih-Yang and Sun, Zhengda and Lin, Yen-Chang
Journal: Cytotechnology (2016): 2589--2604
Shear stress-induced alteration of epithelial organization in human renal tubular cells
Authors: Maggiorani, Damien and Dissard, Romain and Belloy, Marcy and Saulnier-Blache, Jean-Sébastien and Casemayou, Audrey and Ducasse, Laure and Grès, S and ra , undefined and Bellière, Julie and Caubet, Cécile and Basc, undefined and s, Jean-Loup and others, undefined
Journal: PloS one (2015): e0131416
Shear stress-induced alteration of epithelial organization in human renal tubular cells
Authors: Maggiorani, Damien and Dissard, Romain and Belloy, Marcy and Saulnier-Blache, Jean-S{\'e}bastien and Casemayou, Audrey and Ducasse, Laure and Gr{\`e}s, Sandra and Belli{\`e}re, Julie and Caubet, C{\'e}cile and Bascands, Jean-Loup and others,
Journal: PLoS One (2015): e0131416
Targeting a G-protein-coupled receptor overexpressed in endocrine tumors by magnetic nanoparticles to induce cell death
Authors: Sanchez, Claire and El Hajj Diab, Darine and Connord, Vincent and Clerc, Pascal and Meunier, Etienne and Pipy, Bernard and Payré, Bruno and Tan, Reasmey P and Gougeon, Michel and Carrey, Julian and others, undefined
Journal: Acs Nano (2014): 1350--1363
