CYTO-13

Images of HeLa cells stained with CYO-13 at 5 uM (Left) and 2.5 uM (Right) for 20 minutes at 37°C incubator. Images were acquired using fluorescence microscope with FITC filter
Images of HeLa cells stained with CYO-13 at 5 uM (Left) and 2.5 uM (Right) for 20 minutes at 37°C incubator. Images were acquired using fluorescence microscope with FITC filter
Ordering information
Price ()
Catalog Number17554
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Physical properties
Molecular weight524.42
SolventDMSO
Spectral properties
Excitation (nm)486
Emission (nm)511
Storage, safety and handling
Intended useResearch Use Only (RUO)
StorageFreeze (< -15 °C); Minimize light exposure
Alternative formats
CYTO-13 *5 mM DMSO solution*

OverviewpdfSDSpdfProtocol


Molecular weight
524.42
Excitation (nm)
486
Emission (nm)
511
CYTO-13 is a fluorogenic, DNA-selective and cell-permeant dye for analyzing DNA content in living cells. CYTO-13 has its green fluorescence significantly enhanced upon binding to DNA. It can be used in fluorescence imaging, microplate and flow cytometry applications. This DNA-binding dye might be used for multicolor analysis of live cells with proper filter sets. Based on our in-house evaluations, it has equivalent DNA staining properties almost identical to SYTO-13™ DNA stain (SYTO-13™ is the trade mark of ThermoFisher).

Platform


Fluorescence microscope

ExcitationFITC filter set
EmissionFITC filter set
Recommended plateBlack wall/clear bottom
Instrument specification(s)FITC filter set

Calculators


Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of CYTO-13 to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM190.687 µL953.434 µL1.907 mL9.534 mL19.069 mL
5 mM38.137 µL190.687 µL381.374 µL1.907 mL3.814 mL
10 mM19.069 µL95.343 µL190.687 µL953.434 µL1.907 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

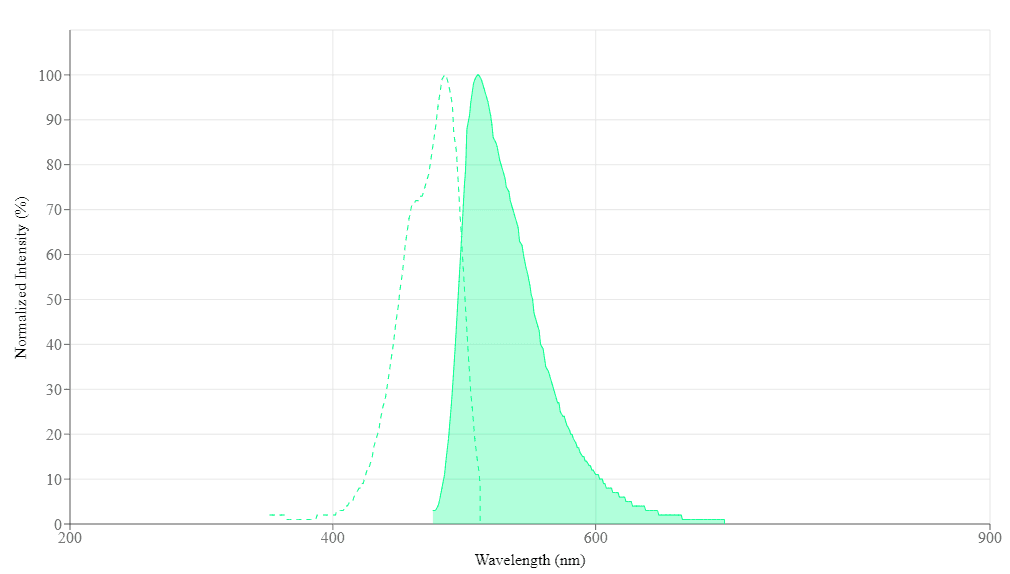

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Excitation (nm)486
Emission (nm)511
