Plasma Membrane


Plasma membrane
The plasma membrane is a thin semi-permeable membrane that separates the interior of all cells from their extracellular environment. It is comprised of a phospholipid bilayer that is embedded throughout with proteins, such as ion channels, carrier proteins and receptor proteins, that are responsible for carrying out specific membrane. It provides structural support and protection for all cells, is responsible for maintaining ionic homeostasis, and is an integral component in cell adhesion, cell-cell communication, ion conductivity and cell signaling pathways.

AAT Bioquest offers a wide range of plasma membrane labeling kits, fluorescent wheat germ agglutinin conjugates and lipophilic tracers - DiI, DiO, DiD and DiR tracers - for investigating lipid metabolism, imaging cell structures, and analyzing biophysical and cell signaling processes.





Live Cell Plasma Membrane Staining


AAT Bioquest Cell Navigator® Plasma Membrane Staining kits are designed to rapidly and uniformly label the plasma membrane in living cells without the cell-type differences exhibited by lectins. These kits, which employ our novel Cellpaint™ plasma membrane stains, may be used as a segmentation tool for high-content screening (HCS) or to stain cellular plasma membranes for standard fluorescence microscopy. The fluorescence staining in cell membranes is well-preserved after fixation with formaldehyde, enabling multiplexing with other fluorescent conjugates or proteins.

Key Features of Cell Navigator® Plasma Membrane Staining Kits

  • Bright fluorescence with high signal-to-noise ratios
  • High photostability for stable signal generation
  • Suitable for staining plasma membranes in suspended or attached live cells
  • Uniform staining of plasma membrane across a broad range of mammalian cell types
  • Staining well-retained in plasma membrane after fixation
  • Available in green, orange and red fluorescence to facilitate multicolor staining

Cellpaint™ Orange
Cellpaint™ Green
Cellpaint™ Red

Live HeLa cells were stained with Cellpaint™ Orange, then fixed in 4% formaldehyde and costained with Nuclear Green™ DCS1. Live HL-60 cells were stained with Cellpaint™ Green. Live HeLa cells were stained with Cellpaint™ Red.



Table 1. Cell Navigator® Plasma Membrane Staining kits for live cells.

Product Name
Probe
Ex/Em (nm)
Filter Set
Unit Size
Cat No.
Cell Navigator® Cell Plasma Membrane Staining Kit *Green Fluorescence*Cellpaint™ Green497/505FITC500 tests22682
Cell Navigator® Cell Plasma Membrane Staining Kit *Orange Fluorescence*Cellpaint™ Orange555/573TRITC500 tests22680
Cell Navigator® Cell Plasma Membrane Staining Kit *Red Fluorescence*Cellpaint™ Red648/671Cy5500 tests22681



Fluorescent WGA for Live and Fixed Cells


Wheat germ agglutinin (WGA) is a ~36 kDa lectin used extensivly in cell biology. Its high affinity for N-acetyl-D-glucosamine and sialic acid residues on glycoconjugates is routinely exploited for labeling the cell membranes of mammalian cells, gram-positive bacteria and yeast bud scars, as well as, skeletal and cardiac sacrolemma and fibrotic scar tissue. When conjugated to AAT Bioquest iFluor® dyes, fluorescent WGA conjugates exhibit superior brightness, photostability and water-solubility, outperforming Alexa Fluor® WGA conjugates and other spectrally similar conjugates. iFluor® dye-labeled WGA are suitable for immunoassays, IHC, ELISA and Western Blot.

Key Features of iFluor® WGA Conjugates

  • Bright fluorescence with high signal-to-noise ratios and resistance to photobleaching and pH change
  • Conjugates useful in live and fixed cells that have not been permeabilized
  • Withstands fixations and permeabilization
  • Can serve as a anterograde or retrograde neuronal tracer for neuronal mapping studies
  • Available in a range of colors to support multiplex and colocalization studies with other fluorescent conjugates or proteins

iFluor® 488 WGA Conjugate
iFluor® 647 WGA Conjugate

Live HeLa cells were stained with iFluor® 488 WGA conjugate (green) and Hoechst 33342 (blue). Live HeLa cells were stained with iFluor® 647 WGA conjugate (red) and Hoechst 33342 (blue).



Table 2. iFluor® wheat germ agglutinin conjugates for live and fixed cells.

Product name
Permeability
Ex/Em (nm)
Filter Set
Unit Size
Cat No.
iFluor® 488-Wheat Germ Agglutinin ConjugateMembrane-impermeant491/516FITC1 mg25530
iFluor® 555-Wheat Germ Agglutinin ConjugateMembrane-impermeant557/570Cy3/TRITC1 mg25539
iFluor® 594-Wheat Germ Agglutinin ConjugateMembrane-impermeant588/604Texas Red1 mg25550
iFluor® 647-Wheat Germ Agglutinin ConjugateMembrane-impermeant656/670Cy51 mg25559

Table 3. Alexa Fluor® wheat germ agglutinin conjugates for live and fixed cells.

Product name
Cell Permeability
Ex/Em (nm)
Filter Set
Unit Size
Cat No.
Wheat Germ Agglutinin, AF488 LabeledMembrane-impermeant499/520FITC1 mg25500
Wheat Germ Agglutinin, AF594 LabeledMembrane-impermeant590/618Texas Red1 mg25509



Lipophilic Tracers - DiO, DiI, DiA, DiD, DiR and DiS


DiA, DiI, DiO, DiD and DiR are a family of dialkylcarbocyanines dyes used extensivly for labeling hydrophobic structures such as cell membranes, and as an anterograde or retrograde neuronal tracer in living and fixed cells and tissues. Once applied to cells, these dyes diffuse rapidly and laterally within the plasma membranes resulting in detailed uniform staining of the entire cell surface. Staining is specific as these dyes do not transfer via gap junctions or to unlabeled cells, unless the membrane of the labeled cell is disturbed. In addition to membrane staining and neuronal tracing, lipophilic carbocyanines have been successfully used in cytotoxicity assays, labeling lipoproteins, cell adhesion studies, tracing cell migration and fluorescence recovery after photobleaching (FRAP) assays.

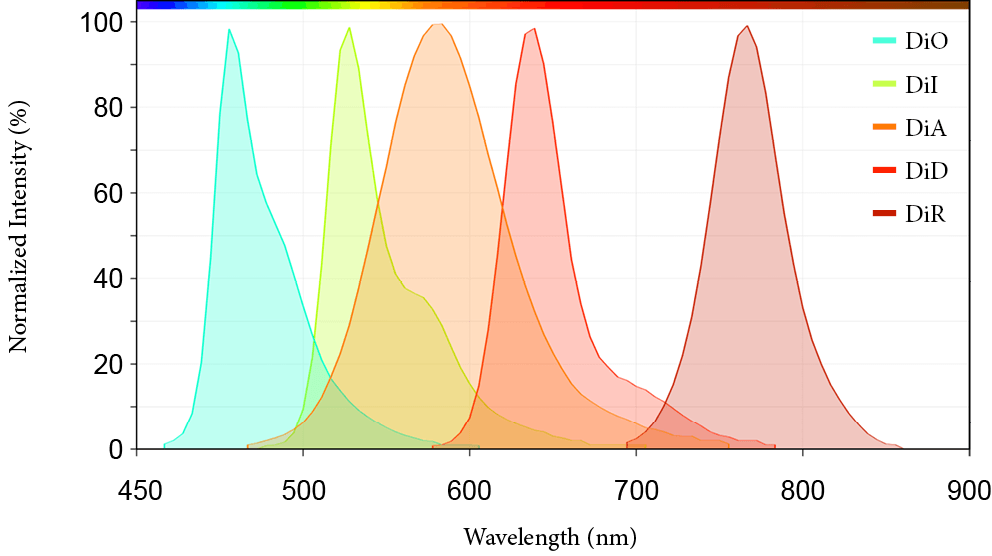

Emission spectra of DiO, DiI, DiA, DiD and DiR.

Spectroscopic properties of dialkylcarbocyanines:

  • Extremely high extinction coefficients
  • Polarity-dependent fluorescence
  • Short excited-state lifetimes
  • DiO, DiI, DiD and DiR exhibit distinct green, orange, red and infrared fluorescence, respectively, to support multicolor imaging and flow cytometric analysis of live cells



Table 4. Lipophilic tracers for labeling cell membranes in live and fixed cells and tissues.

Product Name
Ex/Em (nm)
Filter Set
Unit Size
Cat No.
DiOC2(3) iodide [3,3-Diethyloxacarbocyanine iodide]482/500FITC25 mg22038
DiOC3(3) iodide [3,3-Dipropyloxacarbocyanine iodide]482/500FITC25 mg22039
DiOC7(3) iodide [3,3-Diheptyloxacarbocyanine iodide]482/500FITC25 mg22040
DiOC16(3) perchlorate [3,3-Dihexadecyloxacarbocyanine perchlorate]482/500FITC25 mg22042
DiOC5(3) iodide [3,3-Dipentyloxacarbocyanine iodide]482/500FITC25 mg22045
DiOC6(3) iodide [3,3-Dihexyloxacarbocyanine iodide]482/500FITC25 mg22046
DiO perchlorate [3,3-Dioctadecyloxacarbocyanine perchlorate]482/500FITC25 mg22066
DiIC12(3) perchlorate [1,1-Didodecyl-3,3,3,3-tetramethylindocarbocyanine perchlorate]549/563TRITC25 mg22035
DiIC16(3) perchlorate [1,1-Dihexadecyl-3,3,3,3-tetramethylindocarbocyanine perchlorate]549/563TRITC25 mg22044
DiIC12(3)-DS [1,1-Diododecyl-3,3,3,3-tetramethylindocarbocyanine-5,5-disulfonic acid]549/563TRITC5 mg22050



Product Ordering Information




Table 5. Ordering Info for Cell Nav. Cell Plamsa Membrane Products

Cat#
Product Name
Unit Size
Price
22680Cell Navigator® Cell Plasma Membrane Staining Kit *Orange Fluorescence*500 Tests217
22681Cell Navigator® Cell Plasma Membrane Staining Kit *Red Fluorescence*500 Tests217
22682Cell Navigator® Cell Plasma Membrane Staining Kit *Green Fluorescence*500 Tests217
22700CellPaint™ TSP membrane stain500 Tests217
