AATOM™ 514 NHS ester

AATOM™ 514 NHS ester is an amine‑reactive, green fluorescent dye with an excitation/emission of 510/531 nm that is used for FACS and FISH applications.

Rapid Amine Reactivity: Forms stable amide bonds with peptides, amine‑modified oligonucleotides, and surface aminosilanes
Superior Brightness & Photostability: Delivers sustained fluorescence for high‑resolution techniques
Moderate Hydrophilicity: Prevents unwanted aggregation in aqueous environments

Chemical structure for AATOM™ 514 NHS ester.

Protocol

SDS

Catalog	Size	Price	Quantity
2863	1 mg	Price

Overview

AATOM™ 514, a hydrophilic rhodamine-based fluorophore, is known for its excellent water solubility, strong absorption, high fluorescence quantum yield, and thermal and photo-stability. It is well-suited for single-molecule detection and high-resolution microscopy techniques like PALM, dSTORM, and STED. Additionally, it finds applications in flow cytometry (FACS), fluorescence in-situ hybridization (FISH), and other scientific methodologies. AATOM™ 514 exhibits optimal fluorescence efficiency when excited within the 510-535 nm range, making it a match for the 514 nm line of an Argon-Ion laser. AATOM™ 514 NHS ester is a popular tool used to label the primary amines of peptides, and amino-modified oligonucleotides. For labeling antibodies and other proteins, we highly recommend our iFluor® dyes that are highly water soluble and are optimized for labeling proteins. This product is manufactured by AAT Bioquest and is not affiliated with ATTO-TEC GmbH.

Calculators

Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of AATOM™ 514 NHS ester to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

	0.1 mg	0.5 mg	1 mg	5 mg	10 mg
1 mM	105.052 µL	525.26 µL	1.051 mL	5.253 mL	10.505 mL
5 mM	21.01 µL	105.052 µL	210.104 µL	1.051 mL	2.101 mL
10 mM	10.505 µL	52.526 µL	105.052 µL	525.26 µL	1.051 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)		Molecular weight		Volume (Calculate)		Concentration (Calculate)		Moles
mg	÷	951.91 g/mol	=	mL	x	mM	=	mmol

References

View all 50 references: Citation Explorer

Improved enzymatic labeling of fluorescent in situ hybridization probes applied to the visualization of retained introns in cells.

Authors:

Xiao, Wen and Yeom, Kyu-Hyeon and Lin, Chia-Ho and Black, Douglas L

Journal:

RNA (New York, N.Y.) (2023)

Measuring Photophysical Transition Rates with Fluorescence Correlation Spectroscopy and Antibunching.

Authors:

Sakhapov, Damir and Gregor, Ingo and Karedla, Narain and Enderlein, Jörg

Journal:

The journal of physical chemistry letters (2022): 4823-4830

Combining Fluorescence Fluctuations and Photobleaching to Quantify Surface Density.

Authors:

Sefkow-Werner, Julius and Migliorini, Elisa and Picart, Catherine and Wahyuni, Dwiria and Wang, Irène and Delon, Antoine

Journal:

Analytical chemistry (2022): 6521-6528

A Model of F-actin Organization in Granuloreticulopodia in Foraminifera: Morphogenetic and Evolutionary Implications from Novel Fluorescent and Polarised Light Observations.

Authors:

Goleń, Jan and Tyszka, Jarosław and Godos, Karolina and Janse, Max

Journal:

Protist (2022): 125886

Fractional CO2 laser ablation leads to enhanced permeation of a fluorescent dye in healthy and mycotic nails-An imaging investigation of laser-tissue effects and their impact on ungual drug delivery.

Authors:

Ortner, Vinzent Kevin and Nguyen, Nhi and Brewer, Jonathan R and Solovyeva, Vita and Haedersdal, Merete and Philipsen, Peter Alshede

Journal:

Lasers in surgery and medicine (2022): 861-874

Physical properties

Molecular weight	951.91
Solvent	DMSO

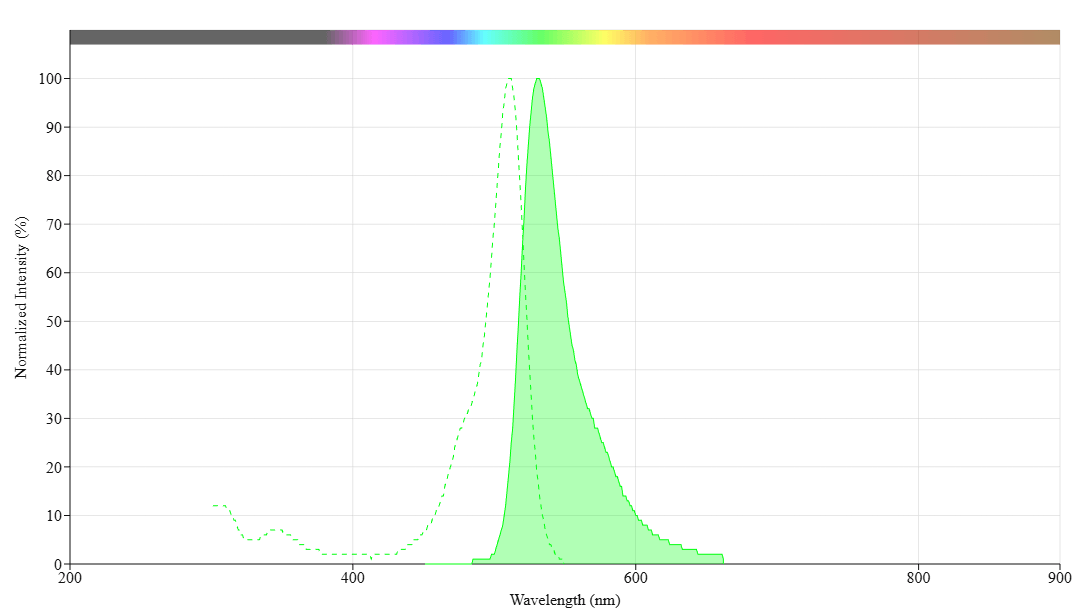

Spectral properties

Correction factor (260 nm)	0.21
Correction factor (280 nm)	0.08
Extinction coefficient (cm ^-1 M ^-1)	115,000
Excitation (nm)	511
Emission (nm)	531
Quantum yield	0.85

Storage, safety and handling

H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
Storage	Freeze (< -15 °C); Minimize light exposure
UNSPSC	12352200
