ABY Dye qPCR Calibration Solution *10,000X*
Ordering information
| Price | |
| Catalog Number | |
| Unit Size | |
| Quantity |
Additional ordering information
| Telephone | 1-800-990-8053 |
| Fax | 1-800-609-2943 |
| sales@aatbio.com | |
| International | See distributors |
| Bulk request | Inquire |
| Custom size | Inquire |
| Shipping | Standard overnight for United States, inquire for international |
Physical properties
| Solvent | Water |
Spectral properties
| Extinction coefficient (cm -1 M -1) | 1200001 |
| Excitation (nm) | 559 |
| Emission (nm) | 570 |
| Quantum yield | 0.581 |
Storage, safety and handling
| H-phrase | H303, H313, H333 |
| Hazard symbol | XN |
| Intended use | Research Use Only (RUO) |
| R-phrase | R20, R21, R22 |
| Storage | Freeze (< -15 °C); Minimize light exposure |
| UNSPSC | 12171501 |
| Overview |  SDSProtocol |
Extinction coefficient (cm -1 M -1) 1200001 | Excitation (nm) 559 | Emission (nm) 570 | Quantum yield 0.581 |
Real-time thermal cyclers require calibration to generate a spectral profile for the fluorescence signal. Since instruments can differ in fluorescence detection sensitivity, the concentrations needed to calibrate any dye, such as ABY, will depend on the device used. The AAT Bioquest ABY dye qPCR Calibration Solution supplied as a 10,000X concentrate is compatible with a wide variety of qPCR instruments, including the ABI7500 Fast, QuantStudio™, and ViiA™ 7 systems. Calibration and verification should be run every six months or as needed. Please refer to the instrument maintenance guide for complete instructions on use.
Platform
qPCR
| Recommended plate | PCR Microplate |
| Instrument specification(s) | ABY Filter |
Example protocol
SAMPLE EXPERIMENTAL PROTOCOL
This generic protocol is suitable for the ABI7500 FAST qPCR instrument. For complete instructions on use, refer to the maintenance guide for your instrument.
Prepare a ABY calibration plate:
Prepare a ABY Dye qPCR Calibration working solution by mixing 1 µL of the 10,000X ABY Dye qPCR Calibration Solution with 10 mL of nuclease-free water or qPCR buffer.
Note: The final dye concentration must be optimized based on the calibration requirements for your instrument. Refer to the manufacturer’s maintenance guide for detailed instructions.
Add 20 µL of the ABY Dye qPCR Calibration working solution to all wells of a reaction plate.
Note: The volume may vary depending on your instrument. Refer to the manufacturer’s maintenance guide for detailed instructions.
Seal the plate with an optical adhesive cover.
Centrifuge the plate for 2 minutes at < 1500 rpm.
Check that the liquid in each well of the plate is at the bottom of the well. If not, centrifuge the plate again at a slightly higher rpm and for a longer period of time.
For complete calibration instructions, refer to the maintenance guide for your instrument.

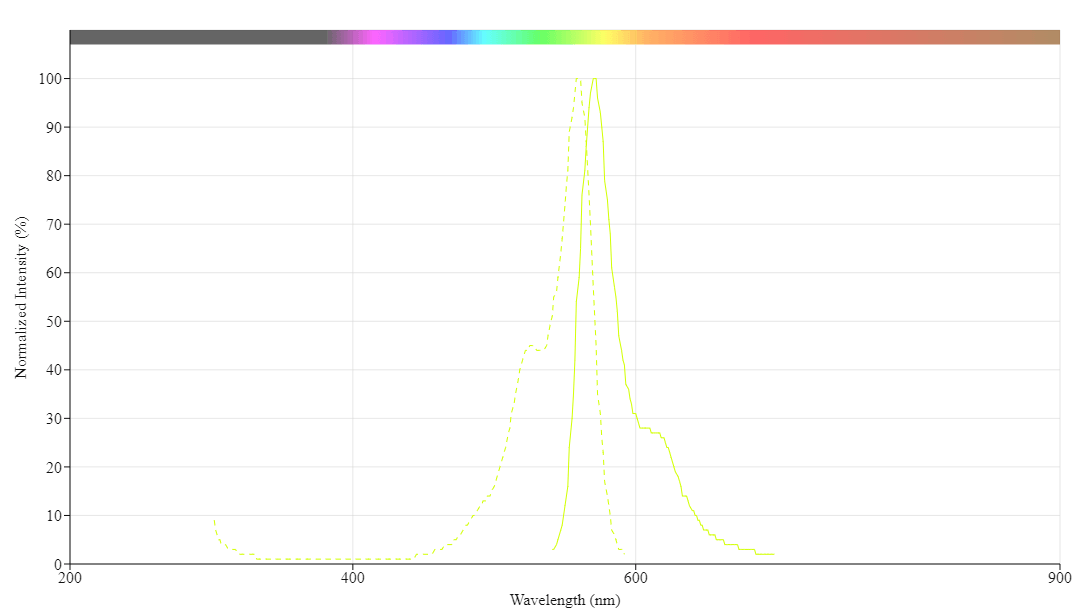

Spectrum
Open in Advanced Spectrum Viewer
Spectral properties
| Extinction coefficient (cm -1 M -1) | 1200001 |
| Excitation (nm) | 559 |
| Emission (nm) | 570 |
| Quantum yield | 0.581 |
Product Family
| Name | Excitation (nm) | Emission (nm) | Extinction coefficient (cm -1 M -1) |
| VIC Dye qPCR Calibration Solution *10,000X* | 526 | 543 | - |
| NED Dye qPCR Calibration Solution *10,000X* | 545 | 567 | 740001 |
| FAM Dye qPCR Calibration Solution *10,000X* | 493 | 517 | 83000 |
| Cy5 Dye qPCR Calibration Solution *10,000X* | 651 | 670 | 2500001 |
| ROX Dye qPCR Calibration Solution *10,000X* | 578 | 595 | - |
| SYBR Dye qPCR Calibration Solution *10,000X* | 498 | 522 | - |
| TAMRA Dye qPCR Calibration Solution *10,000X* | 552 | 578 | 90000 |
| JUN Dye qPCR Calibration Solution *10,000X* | 610 | 628 | 1100001 |
| MP650 Dye qPCR Calibration Solution *10,000X* | 639 | 653 | 2500001 |
Show More (1) | |||
Images

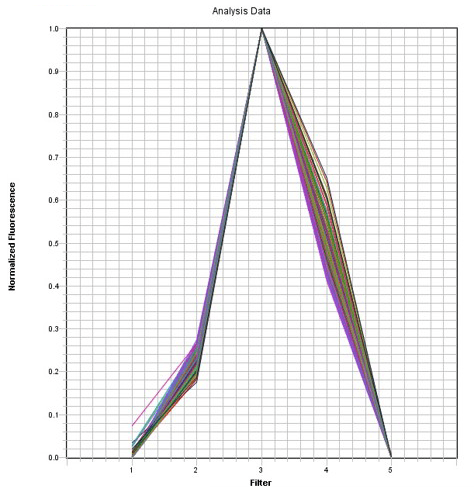

Figure 1. ABI 7500 FAST system ABY dye spectrum.
