Amplite® Colorimetric Hexokinase Assay Kit

The Amplite® Colorimetric Hexokinase Assay Kit is designed to accurately measure the activity of hexokinases from various sources using a simple and quick protocol. This kit utilizes a coupled enzyme assay, where glucose is phosphorylated to glucose-6-phosphate and subsequently oxidized to produce NADH. The resulting NADH reduces a colorless substrate to a colored product, with absorbance measured at 450 nm, which is proportional to the hexokinase present in the samples. One unit (U) is the amount of enzyme that catalyzes the reaction of 1 µmol of substrate per minute. Hexokinases are intracellular enzymes that mediate ATP-dependent phosphorylation of hexoses (e.g., glucose, mannose, and fructose) to their respective hexose 6-phosphates. These phosphate esters can either be broken down to pyruvate by glycolysis or used for different biochemical/biosynthesis pathways. There are four isozymes of hexokinase known in vertebrates, Hexokinase I (A), II (B), III (C), and IV (D), which have different intracellular and tissue distribution, and kinetic characteristics. Changes in hexokinase level and activity are associated with diseases like X-linked muscular dystrophy, chronic non-spherocytic hemolytic anemia, insulin resistance, and cancer.

Example protocol

AT A GLANCE

Protocol Summary
  1. Prepare the test samples and the serially diluted NADPH standards (50 μL).

  2. Add the HK working solution (50 μL).

  3. Incubate at room temperature for 10-30 minutes.

  4. Measure the absorbance at 450 nm.

PREPARATION OF STOCK SOLUTIONS

Unless otherwise noted, all unused stock solutions should be divided into single-use aliquots and stored at -20 °C after preparation. Avoid repeated freeze-thaw cycles

NADPH Standard
  1. Add 200 µL of PBS buffer to the vial of NADPH standard (Component G) to make a 2 mM (2 nmol/µL) NADPH stock solution. Store the solution at -80°C. Avoid repeated freeze/thaw cycles.

HK Positive Control
  1. To reconstitute the Hexokinase Positive Control (Component F), add 50 µL of ddH2O to prepare a 100 µg/mL stock solution. Mix well by pipetting and store at –20 °C.

    Note: Must be used within 2 months of reconstitution.

100X HK Substrate Stock Solution
  1. To prepare a 100X HK Substrate stock solution, add 100 µL of ddH2O to the vial containing the HK Substrate (Component D). After mixing, store the solution at -20°C. Avoid repeated freezing and thawing.

HK Coenzyme Stock Solution
  1. Add 100 µL of ddH2O to the vial containing HK Coenzyme (Component E) to create a 100X stock solution. Store this solution at -20°C, and avoid repeated freeze/thaw cycles.

PREPARATION OF STANDARD SOLUTIONS

For convenience, use the Serial Dilution Planner:
https://www.aatbio.com/tools/serial-dilution/11319

NADPH Standard
Prepare a 200 μM NADPH solution (STD7) by adding 30 μL of a 2 mM standard solution to 270 μL of PBS Buffer. Then, take 150 μL of the STD7 solution and perform 1:2 serial dilutions with PBS Buffer to create a series of diluted NADPH standards (STD7 to STD1).

PREPARATION OF WORKING SOLUTION

HK Working Solution
  1. Add 1 mL of HK Probe (Component B) to 4 mL HK Assay Buffer (Component A), and mix well.

  2. Transfer 5 mL of the above-prepared buffer mixture into the HK Enzyme Mix bottle (Component C) and mix thoroughly.

  3. Add 50 µL of the HK Substrate stock solution to the same bottle and mix well.

  4. Add 50 µL of the HK Coenzyme stock solution to the same bottle and mix well.

    Note: This HK working solution should be freshly prepared before each experiment and protected from light. A 5.0 mL solution is enough for 100 tests. Please prepare the necessary amount of HK working solution based on this proportion.

    Note: Alternatively, one can make a 50X HK Enzyme Mix stock solution by adding 100 μL of ddH2O into the bottle of HK Enzyme Mix (Component C) and then prepare the HK working solution by mixing the HK Enzyme Mix stock solution with other components listed above in the 'HK Working Solution' proportionally.



SAMPLE EXPERIMENTAL PROTOCOL

HK Positive Control
  1. Prepare one or more HK positive control samples along with the test sample. The recommended concentration for the HK positive control is between 0.25 and 0.025 μg/ml in PBS.

Table 1. Layout of NADPH standards and test samples in a 96-well solid black microplate. (STD = NADPH Standards (STD1-STD7, 3.125~200 µM), BL= Blank Control, TS = Test Samples.)

BL
BL
HK Positive Control
TS
STD 1
STD 1
...
...
STD 2
STD 2
...
...
STD 3
STD 3
STD 4
STD 4
STD 5
STD 5
STD 6
STD 6
STD 7
STD 7

Table 2. Reagent composition for each well.

Well
Volume
Reagent
STD 1-STD 7
50 µL
Serial Dilutions (3.125 to 200 µM)
BL
50 µL
PBS
HK Positive Control
50 µL
HK Positive Control
TS
50 µL
Test Sample
  1. Prepare NADPH standards (STD1-7), blank controls (BL), HK Positive Control, and test samples (TS) as outlined in Tables 1 and 2. For a 384-well plate, use 25 µL of reagent per well instead of 50 µL.

  2. Add 50 µL of HK Working Solution to each well containing the NADPH standard, blank control, HK Positive Control, and test samples. For a 384-well plate, add 25 µL of HKNE Working Solution to each well instead.

  3. Incubate at room temperature for 10-30 minutes, protected from light.

  4. Monitor the absorbance intensity with an absorbance microplate reader at 450 nm.

References

View all 49 references: Citation Explorer
The Role of Hexokinases in Epigenetic Regulation: Altered Hexokinase Expression and Chromatin Stability in Yeast.
Authors: Karri, Srinivasu and Dickinson, Quinn and Jia, Jing and Gan, Haiyun and Wang, Zhiquan and Deng, Yibin and Yu, Chuanhe
Journal: Research square (2024)
A gain of function mutation in AKT1 increases hexokinase 2 and diminishes oxidative stress in meningioma.
Authors: Singh, Swati and Lathoria, Kirti and Umdor, Sonia B and Singh, Jyotsna and Suri, Vaishali and Sen, Ellora
Journal: Cytokine (2024): 156535
Glioma hexokinase 3 positively correlates with malignancy and macrophage infiltration.
Authors: Liang, Tingyu and Zhou, Xingang and Wang, Yu and Ma, Wenbin
Journal: Metabolic brain disease (2024)
LC/MS/MS and GC/MS/MS metabolic profiling of Leontodon hispidulus, in vitro and in silico anticancer activity evaluation targeting hexokinase 2 enzyme.
Authors: Abd-El-Aziz, Noha Mokhtar and Hifnawy, Mohamed Saeed and Lotfy, Rehab Ahmed and Younis, Inas Youssef
Journal: Scientific reports (2024): 6872
Abatement of the binding of human hexokinase II enzyme monomers by in-silico method with the design of inhibitory peptides.
Authors: Karamifard, Faranak and Mazaheri, Mahta and Dadbinpour, Ali
Journal: In silico pharmacology (2024): 30
Page updated on June 9, 2025

Ordering information

Price
Unit size
Catalog Number11319
Quantity
Add to cart

Additional ordering information

Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
Technical SupportContact us
Purchase orderSend to sales@aatbio.com
ShippingStandard overnight for United States, inquire for international
Request quotation

Physical properties

Solvent

DMSO

Storage, safety and handling

H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22

Storage

Freeze (< -15 °C); Minimize light exposure
UNSPSC12352200

Platform

Absorbance microplate reader

Absorbance450 nm
Recommended plateClear bottom

Components

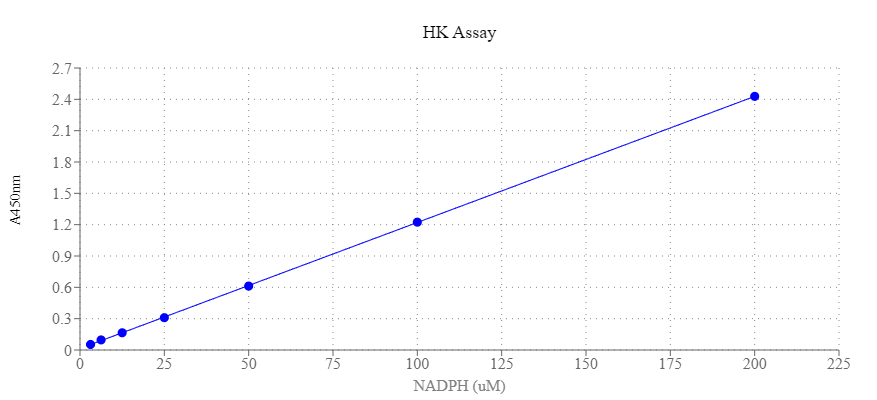

The NADPH dose response was measured using the Amplite® Colorimetric Hexokinase Assay Kit on a 96-well clear-bottom microplate. After a 10-minute incubation, readings were taken at 450 nm with a ClarioStar microplate reader (BMG).
The NADPH dose response was measured using the Amplite® Colorimetric Hexokinase Assay Kit on a 96-well clear-bottom microplate. After a 10-minute incubation, readings were taken at 450 nm with a ClarioStar microplate reader (BMG).
The NADPH dose response was measured using the Amplite® Colorimetric Hexokinase Assay Kit on a 96-well clear-bottom microplate. After a 10-minute incubation, readings were taken at 450 nm with a ClarioStar microplate reader (BMG).
