Amplite® Colorimetric Total NADP and NADPH Assay Kit

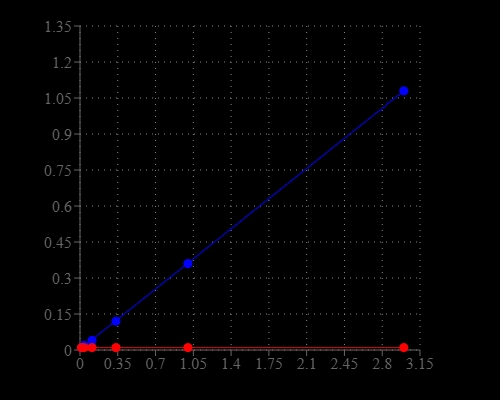

NADPH dose response was measured with Amplite® Colorimetric Total NADP and NADPH Assay Kit in a white/clear bottom 96-well plate using a NOVOStar microplate reader (BMG Labtech).
NADPH dose response was measured with Amplite® Colorimetric Total NADP and NADPH Assay Kit in a white/clear bottom 96-well plate using a NOVOStar microplate reader (BMG Labtech).
NADPH dose response was measured with Amplite® Colorimetric Total NADP and NADPH Assay Kit in a white/clear bottom 96-well plate using a NOVOStar microplate reader (BMG Labtech).
Ordering information
Price
Catalog Number
Unit Size
Quantity
Add to cart
Additional ordering information
Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
ShippingStandard overnight for United States, inquire for international
Request quotation
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
UNSPSC12352200

OverviewpdfSDSpdfProtocol


Nicotinamide adenine dinucleotide (NAD+) and nicotinamide adenine dinucleotide phosphate (NADP+) are two important cofactors found in cells. NADH is the reduced form of NAD+, and NAD+ is the oxidized form of NADH. It forms NADP with the addition of a phosphate group to the 2' position of the adenyl nucleotide through an ester linkage. NADP is used in anabolic biological reactions, such as fatty acid and nucleic acid synthesis, which require NADPH as a reducing agent. In chloroplasts, NADP is an oxidizing agent important in the preliminary reactions of photosynthesis. The NADPH produced by photosynthesis is then used as reducing power for the biosynthetic reactions in the Calvin cycle of photosynthesis. The traditional NAD/NADH and NADP/NADPH assays are done by monitoring of NADH or NADPH absorption at 340 nm. This method suffers low sensitivity and high interference since the assay is done in the UV range that requires expensive quartz microplate. This Amplite® NADP/NADPH Assay Kit provides a convenient method for sensitive detection of NADP and NADPH. The enzymes in the system specifically recognize NADP/NADPH in an enzyme cycling reaction. There is no need to purify NADP/NADPH from sample mix. The enzyme cycling reaction significantly increases detection sensitivity.

Platform


Absorbance microplate reader

Absorbance575 ± 5 nm
Recommended plateClear bottom

Components


Example protocol


AT A GLANCE

Protocol Summary
  1. Prepare NADPH standards or test samples (50 µL)
  2. Add NADP/NADPH working solution (50 µL)
  3. Incubate at room temperature for 15 minutes – 2 hours
  4. Monitor the absorbance intensity at 575 ± 5 nm
Important      Thaw one of each kit component at room temperature before starting the experiment.

CELL PREPARATION

For guidelines on cell sample preparation, please visit https://www.aatbio.com/resources/guides/cell-sample-preparation.html

PREPARATION OF STOCK SOLUTIONS

Unless otherwise noted, all unused stock solutions should be divided into single-use aliquots and stored at -20 °C after preparation. Avoid repeated freeze-thaw cycles.

NADPH standard solution (1 mM)
Add 200 µL of 1X PBS buffer into the vial of NADPH Standard (Component C) to make 1 mM (1 nmol/µL) NADPH standard solution.

PREPARATION OF STANDARD SOLUTION

For convenience, use the Serial Dilution Planner:
https://www.aatbio.com/tools/serial-dilution/15260


NADPH standard
Add 10 µL of 1 mM (1 nmol/µL) NADPH standard solution to 990 µL 1X PBS buffer to generate 10 µM (10 pmol/µL) NADPH standard solution. Take 10 µM NADPH standard solution to perform 1:3 serial dilutions in 1X PBS buffer to get serially diluted NADPH standards (NS7 - NS1). Note: Diluted NADPH standard solution is unstable and should be used within 4 hours.

PREPARATION OF WORKING SOLUTION

Add 10 mL of NADPH Sensor Buffer (Component B) into the bottle of NADP/NADPH Recycling Enzyme Mix (Component A) and mix well to make NADP/NADPH working solution.
Note     This NADP/NADPH working solution is enough for two 96-well plates.

SAMPLE EXPERIMENTAL PROTOCOL

Table 1.Layout of NADPH standards and test samples in a white wall clear bottom 96-well microplate. NS= NADPH Standards (NS1 - NS7, 0.003 to 3 µM) , BL=Blank Control, TS=Test Samples.
BLBLTSTS
NS1NS1......
NS2NS2......
NS3NS3
NS4NS4
NS5NS5
NS6NS6
NS7NS7
Table 2. Reagent composition for each well. High concentration of NADPH (e.g., >100 µM, final concentration) may cause reduced signal due to the over oxidation of NADPH sensor.
WellVolumeReagent
NS1 - NS750 µLSerial Dilutions (0.003 to 3 µM)
BL50 µL1X PBS buffer
TS50 µLtest sample
  1. Prepare NADPH standards (NS), blank controls (BL), and test samples (TS) according to the layout provided in Tables 1 and 2. For a 384-well plate, use 25 µL of reagent per well instead of 50 µL.
    Note     Prepare cells or tissue samples as desired.
  2. Add 50 µL of NADP/NADPH working solution to each well of NADPH standard, blank control, and test samples to make the total NADPH assay volume of 100 µL/well. For a 384-well plate, add 25 µL of NADP/NADPH working solution into each well instead, for a total volume of 50 µL/well.
  3. Incubate the reaction at room temperature for 15 minutes to 2 hours, protected from light.
  4. Monitor the absorbance increase with an absorbance plate reader at 575 ± 5 nm or at the absorbance ratio of ~570 nm to ~605 nm to increase assay sensitivity.
    Note     For NADP/NADPH ratio measurements, kit 15263 is recommended. For cell based NADP/NADPH measurements, ReadiUse™ mammalian cell lysis buffer *5X* (cat #20012) is recommended to use for lysing the cells.
