Amplite® Fluorimetric Caspase 3/7 Assay Kit *Red Fluorescence*

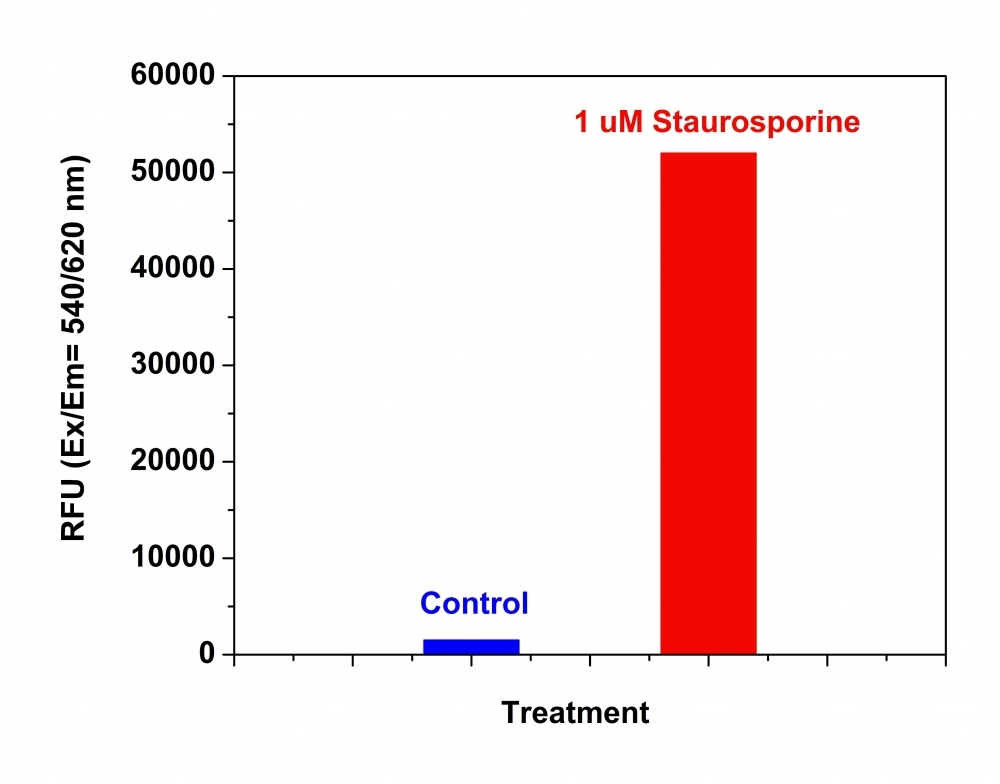

Detection of Caspase 3/7 Activities in Jurkat cells. Jurkat cells were seeded on the same day at 200,000 cells/90 uL/well in a Costar black wall/clear bottom 96-well plate. The cells were treated with staurosporine at the final concentration of 1 uM for 5 hours while the untreated cells were used as control. The caspase 3/7 assay solution (100 uL/well) was added and incubated at room temperature for 1 hour. The fluorescence intensity was measured at Ex/Em = 540/620 nm with FlexStation fluorescence microplate reader (Molecular Devices).
Detection of Caspase 3/7 Activities in Jurkat cells. Jurkat cells were seeded on the same day at 200,000 cells/90 uL/well in a Costar black wall/clear bottom 96-well plate. The cells were treated with staurosporine at the final concentration of 1 uM for 5 hours while the untreated cells were used as control. The caspase 3/7 assay solution (100 uL/well) was added and incubated at room temperature for 1 hour. The fluorescence intensity was measured at Ex/Em = 540/620 nm with FlexStation fluorescence microplate reader (Molecular Devices).
Detection of Caspase 3/7 Activities in Jurkat cells. Jurkat cells were seeded on the same day at 200,000 cells/90 uL/well in a Costar black wall/clear bottom 96-well plate. The cells were treated with staurosporine at the final concentration of 1 uM for 5 hours while the untreated cells were used as control. The caspase 3/7 assay solution (100 uL/well) was added and incubated at room temperature for 1 hour. The fluorescence intensity was measured at Ex/Em = 540/620 nm with FlexStation fluorescence microplate reader (Molecular Devices).
Ordering information
Price
Catalog Number
Unit Size
Quantity
Add to cart
Additional ordering information
Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
ShippingStandard overnight for United States, inquire for international
Request quotation
Spectral properties
Excitation (nm)532
Emission (nm)619
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
UNSPSC12352200

OverviewpdfSDSpdfProtocol


Excitation (nm)
532
Emission (nm)
619
Caspases play important roles in apoptosis and cell signaling. The activation of caspase-3 (CPP32/apopain) is important for the initiation of apoptosis. Caspase 3 is also identified as a drug-screening target. Caspase 3 has substrate selectivity for the peptide sequence Asp-Glu-Val-Asp (DEVD). This Amplite® Caspase-3 Assay Kit uses Z-DEVD-ProRed™ as the fluorogenic indicator for assaying caspase-3 activity. Cleavage of R110 peptides by caspases generates strongly red fluorescent ProRed™ that can be monitored fluorimetrically at ~620 nm with excitation of ~530 nm. Z-DEVD-ProRed™ is recognized as the most sensitive red fluorogenic caspase 3/7 substrate. This kit can be used to continuously measure the activities of caspase-3 in cell extracts and purified enzyme preparations using a fluorescence microplate reader or fluorometer. It can also be used with flow cytometry for analyzing cell apoptosis and the activities of caspases 3 and 7.

Platform


Fluorescence microplate reader

Excitation535 nm
Emission620 nm
Cutoff610 nm
Recommended plateSolid black

Components


Example protocol


AT A GLANCE

Protocol summary

  1. Prepare cells with test compounds
  2. Add equal volume of caspase 3/7 working solution
  3. Incubate at room temperature for 1 hour
  4. Monitor fluorescence intensity at Ex/Em = 535/620 nm

Important notes
Thaw Component A, B, C (if desired, Component D) at room temperature before use.

PREPARATION OF STOCK SOLUTION

Unless otherwise noted, all unused stock solutions should be divided into single-use aliquots and stored at -20 °C after preparation. Avoid repeated freeze-thaw cycles.

1. Z-DEVD-ProRed™ stock solution (200X):
Add 65 µL of DMSO (not provided) into the vial of Component A.

2. (Optional) Caspase 3/7 Inhibitor Ac-DEVD-CHO stock solution (1 mM):
Add 100 µL of DMSO directly to the vial of Ac-DEVD-CHO (Component D). This inhibitor can be used to confirm the correlation between fluorescence signal intensity and caspase 3/7-like protease activities.

PREPARATION OF WORKING SOLUTION

Add 50 μL of 200X Z-DEVD-ProRed™ stock solution and 100 μL of 1M DTT solution (Component C) into 10 mL Assay Buffer (Component B) and mix well.



Note: 50 μL of the 200X Z-DEVD-ProRed™ stock solution is enough for 100 assays using a reaction volume of 100 μL per assay.

For guidelines on cell sample preparation, please visit
https://www.aatbio.com/resources/guides/cell-sample-preparation.html

SAMPLE EXPERIMENTAL PROTOCOL

  1. Treat cells by adding 10 µL of 10X test compounds (96-well plate) or 5 µL of 5X test compounds (384-plate) into PBS or desired buffer. For blank wells (medium without the cells), add the same amount of compound buffer.

  2. Incubate the cell plates in an incubator for a desired period of time (3 - 5 hours for Jurkat cells treated with staurosporine) to induce apoptosis.

  3. Add 100 µL/well (96-well plate) or 25 µL/well (384-well plate) of caspase 3/7 working solution.

  4. Incubate the plate at room temperature for at least 1 hour, kept from light. Note: If desired, add 1 µL of the 1 mM stock solution of the caspase 3/7 Inhibitor Ac-DEVD-CHO into selected samples 10 minutes before adding the caspase 3/7 assay working solution at room temperature to confirm the caspase 3/7-like activities.

  5. Monitor the fluorescence intensity at Ex/Em = 535/620 nm (cut off at 610 nm) with either top or bottom read mode. Note: Sometimes, bottom read gives better signal to background ratio, centrifuge cell plate (especially for the nonadherent cells) at 800 rpm for 2 minutes (brake off) if using bottom read mode.
