Annexin V-iFluor® 488 conjugate
Annexins are a family of proteins that bind to phospholipid membranes in the presence of calcium. Annexin V is a valuable tool for studying cell apoptosis. It is used as a probe to detect cells which have expressed phosphatidylserine on the cell surface, a feature found in apoptosis as well as other forms of cell death. There are a variety of parameters that can be used for monitoring cell viability. Annexin V-dye conjugates are widely used to monitor cell apoptosis through measuring the translocation of phosphatidylserine (PS). In apoptosis, PS is transferred to the outer leaflet of the plasma membrane. The appearance of phosphatidylserine on the cell surface is a universal indicator of the initial/intermediate stages of cell apoptosis and can be detected before morphological changes can be observed. This fluorescent Annexin V conjugate has spectral properties similar to Alexa Fluor® 488 (Alexa Fluor® 488 is the trademark of Invitrogen) and FITC.

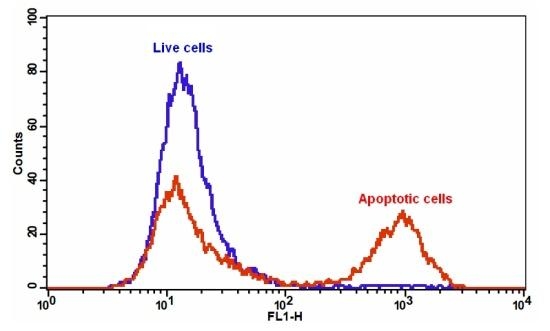

The detection of binding activity of Annexin V-iFluor® 488 and phosphatidylserine in Jurkat cells. Jurkat cells were treated without (Blue) or with 20 µM camptothecin (Red) in a 37 °C, 5% CO2 incubator for 4-5 hours, and then dye loaded with Annexin V-iFluor® 488 for 30 minutes. The fluorescence intensity of Annexin V-iFluor® 488 was measured with a FACSCalibur (Becton Dickinson) flow cytometer using the FL1 channel.
The detection of binding activity of Annexin V-iFluor® 488 and phosphatidylserine in Jurkat cells. Jurkat cells were treated without (Blue) or with 20 µM camptothecin (Red) in a 37 °C, 5% CO2 incubator for 4-5 hours, and then dye loaded with Annexin V-iFluor® 488 for 30 minutes. The fluorescence intensity of Annexin V-iFluor® 488 was measured with a FACSCalibur (Becton Dickinson) flow cytometer using the FL1 channel.
protocol
Protocol
sds
SDS
COA
CatalogSize
Price
Quantity
20071100 tests
Price

Physical properties
Molecular weight~36000
SolventWater
Spectral properties
Correction factor (260 nm)0.21
Correction factor (280 nm)0.11
Extinction coefficient (cm -1 M -1)
75000
1
Excitation (nm)491
Emission (nm)516
Quantum yield
0.9
1
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC12352200
Instrument settings
Flow cytometer
Excitation488 nm laser
Emission530/30 nm filter
Instrument specification(s)FITC channel
Fluorescence microscope
ExcitationFITC filter set
EmissionFITC filter set
Recommended plateBlack wall/clear bottom
Documents
Protocol
Safety Data Sheet
Certificate of Analysis
