APC-iFluor® 720 Tandem
Ordering information
| Price | |
| Catalog Number | |
| Unit Size | |
| Quantity |
Additional ordering information
| Telephone | 1-800-990-8053 |
| Fax | 1-800-609-2943 |
| sales@aatbio.com | |
| International | See distributors |
| Bulk request | Inquire |
| Custom size | Inquire |
| Shipping | Standard overnight for United States, inquire for international |
Physical properties
| Solvent | Water |
Spectral properties
| Extinction coefficient (cm -1 M -1) | 700000 |
| Excitation (nm) | 651 |
| Emission (nm) | 748 |
Storage, safety and handling
| H-phrase | H303, H313, H333 |
| Hazard symbol | XN |
| Intended use | Research Use Only (RUO) |
| R-phrase | R20, R21, R22 |
| Storage | Refrigerated (2-8 °C); Minimize light exposure |
Related products
| APC-iFluor® 750-streptavidin conjugate |
| Overview |  SDSProtocol |
Extinction coefficient (cm -1 M -1) 700000 | Excitation (nm) 651 | Emission (nm) 748 |
Tandem dyes are a unique class of fluorescent molecules that consist of two different covalently linked fluorophores, a donor (e.g. PE or APC) and a longer-wavelength emitting fluorescence acceptor (e.g. Texas Red, Cy5, Cy7, iFluor® 594 or iFluor® 750). APC-iFluor® 720 is a new unique tandem color for multicolor applications, in particular, for designing spectral flow cytometric panels. It has been validated with Cytek’s Aurora flow cytometer. Its primary absorption peak is at 651 nm with emission peak at ~740 nm. It is one of the brightest NIR fluorophores that can be used with flow cytometry and fluorescence imaging applications.
Spectrum
Open in Advanced Spectrum Viewer
Spectral properties
| Extinction coefficient (cm -1 M -1) | 700000 |
| Excitation (nm) | 651 |
| Emission (nm) | 748 |
Product Family
| Name | Excitation (nm) | Emission (nm) | Extinction coefficient (cm -1 M -1) |
| APC-iFluor® 700 Tandem | 651 | 710 | 700000 |
| APC-iFluor® 750 Tandem | 651 | 776 | 700000 |
| APC-iFluor® 800 Tandem | 651 | 819 | 700000 |
| APC-iFluor® 710 Tandem | 651 | 747 | 700000 |
| APC-iFluor®A7 Tandem | 651 | 782 | 700000 |
| APC-iFluor® 740 Tandem | 651 | 764 | 700000 |
| APC-iFluor® 770 Tandem | 780 | 800 | 700000 |
| APC-iFluor® 780 Tandem | 787 | 812 | 700000 |
| PE-iFluor® 720 Tandem | 565 | 750 | 1960000 |
Images

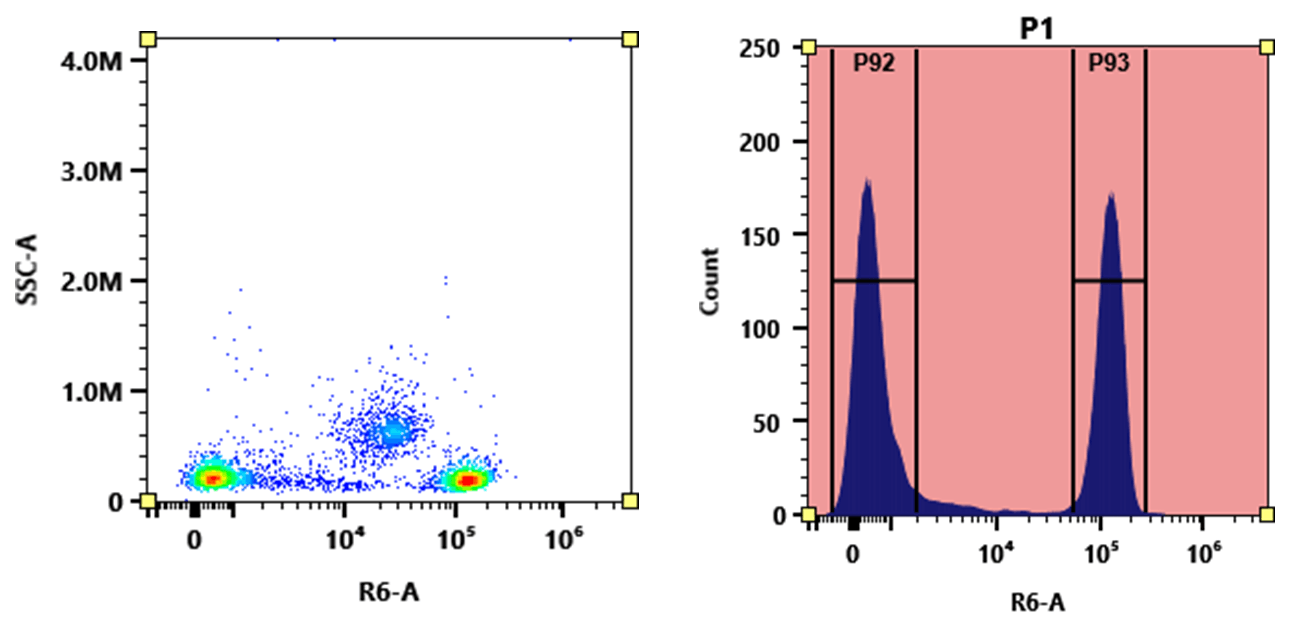

Figure 1. Flow cytometry analysis of PBMC stained with APC-iFluor® 720 anti-human CD4 *SK3* conjugate. The fluorescence signal was monitored using an Aurora spectral flow cytometer in the APC-iFluor® 720 specific R6-A channel.
References
View all 6 references: Citation Explorer
iCoreDrop: A robust immune monitoring spectral cytometry assay with six open channels for biomarker flexibility.
Authors: Jensen, Holly A and Kim, Jeong
Journal: Cytometry. Part A : the journal of the International Society for Analytical Cytology (2022)
Authors: Jensen, Holly A and Kim, Jeong
Journal: Cytometry. Part A : the journal of the International Society for Analytical Cytology (2022)
Comparison between photostability of Alexa Fluor 448 and Alexa Fluor 647 with conventional dyes FITC and APC by flow cytometry.
Authors: Rai, S and Bhardwaj, U and Misra, A and Singh, S and Gupta, R
Journal: International journal of laboratory hematology (2018): e52-e54
Authors: Rai, S and Bhardwaj, U and Misra, A and Singh, S and Gupta, R
Journal: International journal of laboratory hematology (2018): e52-e54
Dual-Color Fluorescence Imaging of EpCAM and EGFR in Breast Cancer Cells with a Bull's Eye-Type Plasmonic Chip.
Authors: Izumi, Shota and Yamamura, Shohei and Hayashi, Naoko and Toma, Mana and Tawa, Keiko
Journal: Sensors (Basel, Switzerland) (2017)
Authors: Izumi, Shota and Yamamura, Shohei and Hayashi, Naoko and Toma, Mana and Tawa, Keiko
Journal: Sensors (Basel, Switzerland) (2017)
[Changes of monocyte and monocyte-platelet aggregates in different subgroups of thrombotic events in patients with acute myocardial infarction during PCI].
Authors: Wang, Sheng and Sun, Cuifang and Liao, Wang and Wu, Zhongwei and Wang, Yudai and Huang, Xiuxian and Lu, Sijia and Dong, Xiaoli and Shuai, Fujie and Li, Bin
Journal: Xi bao yu fen zi mian yi xue za zhi = Chinese journal of cellular and molecular immunology (2017): 959-965
Authors: Wang, Sheng and Sun, Cuifang and Liao, Wang and Wu, Zhongwei and Wang, Yudai and Huang, Xiuxian and Lu, Sijia and Dong, Xiaoli and Shuai, Fujie and Li, Bin
Journal: Xi bao yu fen zi mian yi xue za zhi = Chinese journal of cellular and molecular immunology (2017): 959-965
Antigen processing of glycoconjugate vaccines; the polysaccharide portion of the pneumococcal CRM(197) conjugate vaccine co-localizes with MHC II on the antigen processing cell surface.
Authors: Lai, Zengzu and Schreiber, John R
Journal: Vaccine (2009): 3137-44
Authors: Lai, Zengzu and Schreiber, John R
Journal: Vaccine (2009): 3137-44
Investigating the role of Natural Killer T-cells in Gram negative infections of patients with type 2 diabetes mellitus.
Authors: Karagianni, P and Polyzos, S A and Bougiouklis, D and Tsapas, A and Paletas, K
Journal: Hippokratia : 231-4
Authors: Karagianni, P and Polyzos, S A and Bougiouklis, D and Tsapas, A and Paletas, K
Journal: Hippokratia : 231-4
