APC-XFD700 Tandem

Ordering information

Price
Catalog Number
Unit Size
Quantity

Add to cart

Additional ordering information

Telephone	1-800-990-8053
Fax	1-800-609-2943
Email	sales@aatbio.com
International	See distributors
Bulk request	Inquire
Custom size	Inquire
Shipping	Standard overnight for United States, inquire for international

Physical properties

Solvent

Water

Spectral properties

Absorbance (nm)	651
Extinction coefficient (cm ^-1 M ^-1)	700000
Excitation (nm)	651
Emission (nm)	707

Storage, safety and handling

H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
Storage	Refrigerated (2-8 °C); Minimize light exposure
UNSPSC	12171501

Direct upgrades

Overview SDS Protocol

Upgrade: APC-iFluor® 700 Tandem

Absorbance (nm)

651

Extinction coefficient (cm ^-1 M ^-1)

700000

Excitation (nm)

651

Emission (nm)

707

Allophycocyanin (APC) is a phycobiliprotein with an extremely high absorptivity and a high quantum efficiency. It is a protein which can be easily linked to antibodies and other proteins by conventional protein cross-linking techniques without altering its spectral characteristics. Its strong absorption at 633 nm and 647 nm makes the APC tandem one of the best fluorophores used with a red laser in flow cytometry applications. Compared to the commonly used APC-Alexa Fluor® 700, APC-XFD 700 gives significantly improved stain index for certain CD antibodies than APC-Alexa Fluor® 700 tandem under the same conditions. Its primary absorption peak is at 651 nm with emission peak at ~710 nm. Due to their similar spectral properties, APC-XFD 700 Tandem-labeled antibodies can be used to replace the corresponding APC-Alexa Fluor® 700 antibody conjugates.

Spectrum

Open in Advanced Spectrum Viewer

Spectral properties

Absorbance (nm)	651
Extinction coefficient (cm ^-1 M ^-1)	700000
Excitation (nm)	651
Emission (nm)	707

Product Family

Name	Excitation (nm)	Emission (nm)	Extinction coefficient (cm ^-1 M ^-1)
APC-Cy7 Tandem	651	779	700000
APC-XFD750 Tandem	651	776	700000

Images

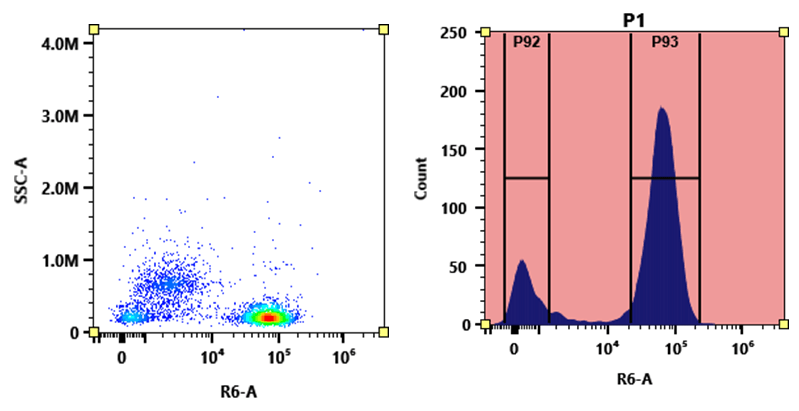

Figure 1. Flow cytometry analysis of PBMC stained with APC-XFD700 anti-human CD4 *SK3* conjugate. The fluorescence signal was monitored using an Aurora spectral flow cytometer in the APC-XFD700 specific R6-A channel.

References

View all 8 references: Citation Explorer

Multiplexed non-invasive tumor imaging of glucose metabolism and receptor-ligand engagement using dark quencher FRET acceptor.
Authors: Rudkouskaya, Alena and Sinsuebphon, Nattawut and Ochoa, Marien and Chen, Sez-Jade and Mazurkiewicz, Joseph E and Intes, Xavier and Barroso, Margarida
Journal: Theranostics (2020): 10309-10325

Performance of optoacoustic and fluorescence imaging in detecting deep-seated fluorescent agents.
Authors: Chen, Zhenyue and Deán-Ben, Xosé Luís and Gottschalk, Sven and Razansky, Daniel
Journal: Biomedical optics express (2018): 2229-2239

An enzymatically-sensitized sequential and concentric energy transfer relay self-assembled around semiconductor quantum dots.
Authors: Samanta, Anirban and Walper, Scott A and Susumu, Kimihiro and Dwyer, Chris L and Medintz, Igor L
Journal: Nanoscale (2015): 7603-14

Noninvasive and quantitative assessment of in vivo fetomaternal interface angiogenesis using RGD-based fluorescence.
Authors: Keramidas, M and Lavaud, J and Sergent, F and Hoffmann, P and Brouillet, S and Feige, J-J and Coll, J-L and Alfaidy, N
Journal: BioMed research international (2014): 309082

Multicolor detection of rare tumor cells in blood using a novel flow cytometry-based system.
Authors: Watanabe, Masaru and Uehara, Yuri and Yamashita, Namiko and Fujimura, Yuu and Nishio, Kaori and Sawada, Takeshi and Takeda, Kazuo and Koizumi, Fumiaki and Koh, Yasuhiro
Journal: Cytometry. Part A : the journal of the International Society for Analytical Cytology (2014): 206-13

Intraoperative near-infrared image-guided surgery for peritoneal carcinomatosis in a preclinical experimental model.
Authors: Keramidas, M and Josserand, V and Righini, C A and Wenk, C and Faure, C and Coll, J L
Journal: The British journal of surgery (2010): 737-43

Homogeneous TR-FRET high-throughput screening assay for calcium-dependent multimerization of sorcin.
Authors: Appelblom, Heidi and Nurmi, Jussi and Soukka, Tero and Pasternack, Michael and Penttilä, Kai E and Lövgren, Timo and Niemelä, Pauliina
Journal: Journal of biomolecular screening (2007): 842-8

Analysis of hollow-core photonic bandgap fibers for evanescent wave biosensing.
Authors: Sun, Jian and Chan, Chi-Chiu and Zhang, Yi-Fan and Shum, Ping
Journal: Journal of biomedical optics : 054048
