Cal-520®, potassium salt
Ordering information
Price | |
Catalog Number | |
Unit Size | |
Quantity |
Additional ordering information
Telephone | 1-800-990-8053 |
Fax | 1-800-609-2943 |
sales@aatbio.com | |
International | See distributors |
Bulk request | Inquire |
Custom size | Inquire |
Shipping | Standard overnight for United States, inquire for international |
Physical properties
Dissociation constant (Kd, nM) | 320 |
Molecular weight | 921.08 |
Solvent | Water |
Spectral properties
Excitation (nm) | 492 |
Emission (nm) | 515 |
Quantum yield | 0.751 |
Storage, safety and handling
Certificate of Origin | Download PDF |
H-phrase | H303, H313, H333 |
Hazard symbol | XN |
Intended use | Research Use Only (RUO) |
R-phrase | R20, R21, R22 |
Storage | Freeze (< -15 °C); Minimize light exposure |
UNSPSC | 12352200 |
Overview | SDSProtocol |
See also: Calcium Indicators, Multi-Photon Microscopy
Molecular weight 921.08 | Dissociation constant (Kd, nM) 320 | Excitation (nm) 492 | Emission (nm) 515 | Quantum yield 0.751 |
Cal-520® provides a robust homogeneous fluorescence-based assay tool for detecting intracellular calcium mobilization. Cal-520® AM is a new fluorogenic calcium-sensitive dye with a significantly improved signal to noise ratio and intracellular retention compared to the existing green calcium indicators (such as Fluo-3 AM and Fluo-4 AM). Cells expressing a GPCR or calcium channel of interest that signals through calcium can be preloaded with Cal-520® AM which can cross cell membrane. Once inside the cell, the lipophilic blocking groups of Cal-520™ AM are cleaved by esterases, resulting in a negatively charged fluorescent dye that stays inside cells. Its fluorescence is greatly enhanced upon binding to calcium. When cells stimulated with agonists, the receptor signals the release of intracellular calcium, which significantly increase the fluorescence of Cal-520®. The characteristics of its long wavelength, high sensitivity, and >100 times fluorescence enhancement, make Cal-520® AM an ideal indicator for the measurement of cellular calcium. The high S/N ratio and better intracellular retention make the Cal-520® calcium assay a robust tool for evaluating GPCR and calcium channel targets as well as for screening their agonists and antagonists. Cal-520® sodium or potassium salt is the hydrolyzed salt of Cal-520® AM in cells. It selectively binds to calcium ion, and has the fluorescence that is strongly dependent on calcium concentration.
Calculators
Common stock solution preparation
Table 1. Volume of Water needed to reconstitute specific mass of Cal-520®, potassium salt to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.
0.1 mg | 0.5 mg | 1 mg | 5 mg | 10 mg | |
1 mM | 108.568 µL | 542.841 µL | 1.086 mL | 5.428 mL | 10.857 mL |
5 mM | 21.714 µL | 108.568 µL | 217.136 µL | 1.086 mL | 2.171 mL |
10 mM | 10.857 µL | 54.284 µL | 108.568 µL | 542.841 µL | 1.086 mL |
Molarity calculator
Enter any two values (mass, volume, concentration) to calculate the third.
Mass (Calculate) | Molecular weight | Volume (Calculate) | Concentration (Calculate) | Moles | ||||
/ | = | x | = |
Spectrum
Open in Advanced Spectrum Viewer
Spectral properties
Excitation (nm) | 492 |
Emission (nm) | 515 |
Quantum yield | 0.751 |
Product Family
Name | Excitation (nm) | Emission (nm) | Quantum yield |
Cal-520®, sodium salt | 492 | 515 | 0.751 |
Cal-520FF™, potassium salt | 492 | 515 | 0.751 |
Cal-520N™, potassium salt | 492 | 515 | 0.751 |
Cal-590™, potassium salt | 574 | 588 | 0.621 |
Cal-630™, potassium salt | 609 | 626 | 0.371 |
Calbryte™ 520, potassium salt | 493 | 515 | 0.751 |
Cal-500™, potassium salt | 388 | 482 | 0.481 |
Cal-670™, potassium salt | 667 | 680 | - |
Cal-770™, potassium salt | 758 | 783 | - |
Show More (1) |
Images

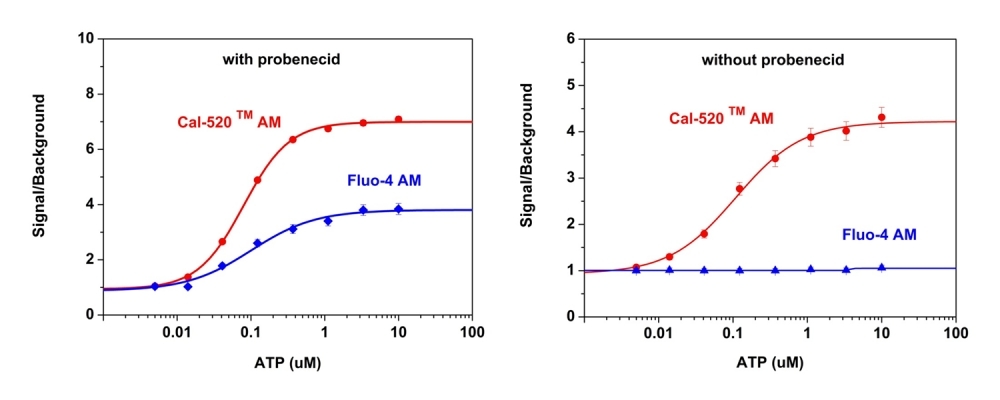

Figure 1. ATP-stimulated calcium responses of endogenous P2Y receptor in CHO-K1 cells incubated with Cal-520™ AM (red curve), or Fluo-4 AM (blue curve) respectively with (left) or without probenecid (right) under the same conditions. CHO-K1 cells were seeded overnight at 50,000 cells per 100 µL per well in a Costar black wall/clear bottom 96-well plate. 100 µL of 5 µM Fluo-4 AM or Cal 520™ AM in HHBS (with or without 2.5 mm probenecid) was added into the cells, and the cells were incubated at 37 °C for 1 hour. ATP (50 μL/well) was added using FlexSation to achieve the final indicated concentrations.
