Calbryte™-520XL, potassium salt

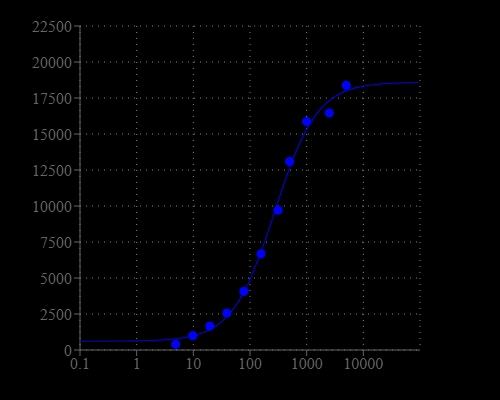

Ca2+ dependent fluorescence emission of Calbryte™-520XL indicator (Ex/Em = 490/525 nm).
Ca2+ dependent fluorescence emission of Calbryte™-520XL indicator (Ex/Em = 490/525 nm).
Ordering information
Price ()
Catalog Number20645
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Physical properties
Dissociation constant (Kd, nM)300000
Molecular weight876.94
SolventWater
Spectral properties
Excitation (nm)493
Emission (nm)515
Quantum yield0.751
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC12352200

OverviewpdfSDSpdfProtocol


Molecular weight
876.94
Dissociation constant (Kd, nM)
300000
Excitation (nm)
493
Emission (nm)
515
Quantum yield
0.751
Calbryte 520XL, potassium salt is a new fluorescent and cell-impermeable calcium indicator with extremely low affinity. It has Kd ~300 uM, which is the similar to the well-known Rhod 5N, but much more stable than Rhod-5N. Calbryte 520XL produces bright fluorescence signal in the presence of calcium ion in high concentration. It has the identical excitation and emission wavelength as Fluo-4, thus the same Fluo-4 assay settings can be readily applied to Calbryte 520XL-based calcium assays.

Calculators


Common stock solution preparation

Table 1. Volume of Water needed to reconstitute specific mass of Calbryte™-520XL, potassium salt to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM114.033 µL570.164 µL1.14 mL5.702 mL11.403 mL
5 mM22.807 µL114.033 µL228.066 µL1.14 mL2.281 mL
10 mM11.403 µL57.016 µL114.033 µL570.164 µL1.14 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Excitation (nm)493
Emission (nm)515
Quantum yield0.751
