Calcein Orange™ diacetate

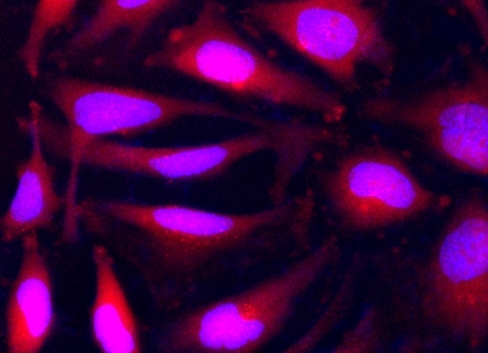

Image of Live HeLa cells stained with Calcein Orange™ diacetate (Cat#22009). Cell nuclei were stained with Hoechst 33342 (Blue, Cat#17535).<br> <br>
Image of Live HeLa cells stained with Calcein Orange™ diacetate (Cat#22009). Cell nuclei were stained with Hoechst 33342 (Blue, Cat#17535).<br> <br>
Fluorescence image of HeLa cells stained with Calcein Orange™ diacetate in a Costar black wall/clear bottom 96-well plate.
Ordering information
Price ()
Catalog Number22009
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Physical properties
Molecular weight877.24
SolventDMSO
Spectral properties
Excitation (nm)531
Emission (nm)545
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC12352200

OverviewpdfSDSpdfProtocol


Molecular weight
877.24
Excitation (nm)
531
Emission (nm)
545
Calcein AM is one of the most popular fluorescent probes used for labeling and monitoring cellular functions of live cells. However, the single color of Calcein AM makes it impossible to use this valuable reagent in the multicolor applications. For example, it is impossible to use Calcein AM in combination of GFP-tranfacted cells due to the same color to GFP. To address this color limitation of Calcein AM, we have developed Calcein Orange™, Calcein Red™ and Calcein Red™. These new Calcein AM analogs enable the multicolor labeling and functional analysis of live cells in combination with Calcein AM. Non-fluorescent Calcein Orange™ diaceate can easily get into live cells and hydrolyzes to generate strongly fluorescent Calcein Orange™ dye. AAT Bioquest also offers Calcein Orange™ as a reference dye to Calcein Orange™ diacetate.

Platform


Flow cytometer

Excitation488/532 nm laser
Emission575/26 nm filter
Instrument specification(s)PE channel

Fluorescence microscope

ExcitationTRITC filter set
EmissionTRITC filter set
Recommended plateBlack wall/clear bottom

Fluorescence microplate reader

Excitation520
Emission550
Cutoff530
Recommended plateSolid black

Example protocol


PREPARATION OF STOCK SOLUTIONS

Unless otherwise noted, all unused stock solutions should be divided into single-use aliquots and stored at -20 °C after preparation. Avoid repeated freeze-thaw cycles.

Calcein Orange™ Diacetate Stock Solution
Prepare a 2 to 5 mM stock solution of Calcein Orange™ diacetate in high-quality, anhydrous DMSO.
Note     The nonionic detergent Pluronic® F-127 can be used to increase the aqueous solubility of AM esters. In the staining buffer, the final Pluronic® F-127 concentration should be approximately 0.02%. A variety of Pluronic® F-127 products can be purchased from AAT Bioquest. Avoid long-term storage of AM esters in the presence of Pluronic® F-127.

PREPARATION OF WORKING SOLUTION

Calcein Orange™ Diacetate Working Solution
Prepare a Calcein Orange™ diacetate working solution of 1 to 10 µM in the buffer of your choice (e.g., Hanks and Hepes buffer). For most cell lines, Calcein Orange™ diacetate at the final concentration of 4 to 5 µM is recommended. The exact concentration of indicators required for cell loading must be determined empirically.
Note     If your cells contain organic anion-transporters, probenecid (1–2.5 mM) or sulfinpyrazone (0.1–0.25 mM) may be added to the working solution to reduce leakage of the de-esterified indicators.

SAMPLE EXPERIMENTAL PROTOCOL

  1. Prepare cells for imaging.
  2. Remove the cell culture medium and wash cells once with serum-free buffer to remove any remaining media.
    Note     Serum in cell culture media may contain esterase activity, which can increase background interference.
  3. Add Calcein Orange™ diacetate working solution to the culture.
  4. Incubate cells at 37 °C for 30 to 60 minutes.
  5. Replace the dye working solution with HHBS or buffer of your choice (containing an anion transporter inhibitor, such as 1 mM probenecid, if applicable) to remove any excess probes.
  6. Measure the fluorescence intensity using either a fluorescence microscope equipped with a TRITC filter set, a flow cytometer equipped with a 575/26 nm filter (PE channel), or a fluorescence plate reader at Ex/Em = 520/550 nm cutoff 530 nm.

Calculators


Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of Calcein Orange™ diacetate to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM113.994 µL569.969 µL1.14 mL5.7 mL11.399 mL
5 mM22.799 µL113.994 µL227.988 µL1.14 mL2.28 mL
10 mM11.399 µL56.997 µL113.994 µL569.969 µL1.14 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Excitation (nm)531
Emission (nm)545
