Cell Meter™ Cell Viability Assay Kit *Blue Fluorescence*

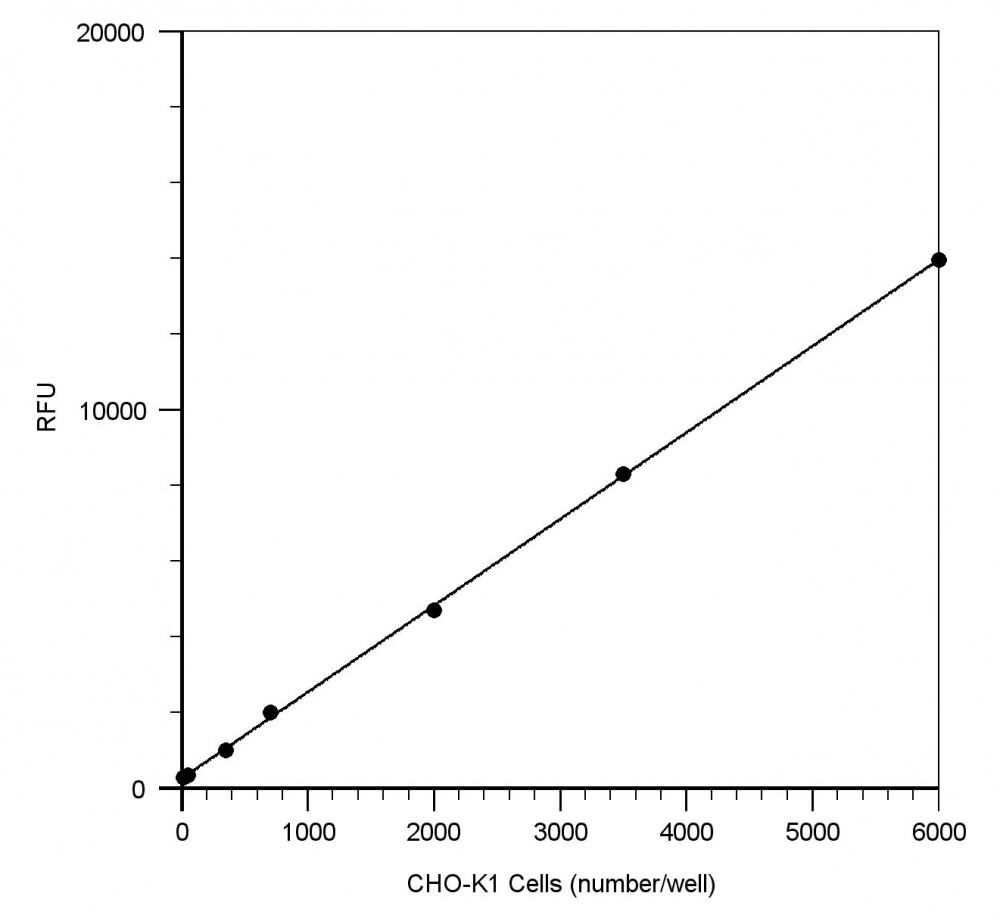

CHO-K1 cell number response was measured with Cell Meter™ Cell Viability Assay Kit. CHO-K1 cells at 0 to 5,000 cells/well/100 µL were seeded overnight in a Costar black wall/clear bottom 96-well plate. The cells were incubated with 100 µL/well of CytoCalcein Blue, AM dye-working solution for 1 hour at room temperature. The fluorescence intensity was measured at Ex/Em = 360/450 nm with NOVOstar instrument (from BMG Labtech). The fluorescence intensity was linear (R<sup>2</sup>=1) to the cell number as indicated.
CHO-K1 cell number response was measured with Cell Meter™ Cell Viability Assay Kit. CHO-K1 cells at 0 to 5,000 cells/well/100 µL were seeded overnight in a Costar black wall/clear bottom 96-well plate. The cells were incubated with 100 µL/well of CytoCalcein Blue, AM dye-working solution for 1 hour at room temperature. The fluorescence intensity was measured at Ex/Em = 360/450 nm with NOVOstar instrument (from BMG Labtech). The fluorescence intensity was linear (R<sup>2</sup>=1) to the cell number as indicated.
CHO-K1 cell number response was measured with Cell Meter™ Cell Viability Assay Kit. CHO-K1 cells at 0 to 5,000 cells/well/100 µL were seeded overnight in a Costar black wall/clear bottom 96-well plate. The cells were incubated with 100 µL/well of CytoCalcein Blue, AM dye-working solution for 1 hour at room temperature. The fluorescence intensity was measured at Ex/Em = 360/450 nm with NOVOstar instrument (from BMG Labtech). The fluorescence intensity was linear (R<sup>2</sup>=1) to the cell number as indicated.
Ordering information
Price ()
Catalog Number22785
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
UNSPSC12352200

OverviewpdfSDSpdfProtocol


Our Cell Meter™ assay kits are a set of tools for monitoring cell viability. There are a variety of parameters that can be used for monitoring cell viability. This kit uses a proprietary dye that gets enhanced fluorescence upon entering into live cells. The dye is a hydrophobic compound that easily permeates intact live cells. The hydrolysis of the weakly fluorescent substrate by intracellular esterases generates a strongly fluorescent hydrophilic product that is well-retained in the cell cytoplasm. The esterase activity is proportional to the number of viable cells, and thus directly related to the fluorescence intensity of the product generated from the esterase-catalyzed hydrolysis of the fluorogenic substrate. Cells grown in black-walled plates can be stained and quantified in less than two hours. The assay is more robust than the tetrazolium salt or Alarmar Blue™-based assays. It can be readily adapted for high-throughput assays in a wide variety of fluorescence platforms such as microplate assays, immunocytochemistry and flow cytometry. It is useful for a variety of studies, including cell adhesion, chemotaxis, multidrug resistance, cell viability, apoptosis and cytotoxicity. The kit provides all the essential components with an optimized cell-labeling protocol. It is suitable for proliferating and non-proliferating cells, and can be used for both suspension and adherent cells. Using 100 uL of reagents per well in a 96-well format, this kit provides sufficient reagents to perform 500 assays. Using 25 uL of reagents per well in a 384-well format, this kit provides sufficient reagents to perform 2,000 assays.

Platform


Fluorescence microplate reader

Excitation360 nm
Emission450 nm
Cutoff420 nm
Recommended plateBlack wall/clear bottom
Instrument specification(s)Bottom read mode

Components


Component A: CytoCalcein™ Blue, AM5 vials, lyophilized
Component B: DMSO1 vial (200 µL)
Component C: Assay Buffer1 bottle (50 mL)

Example protocol


AT A GLANCE

Protocol summary

  1. Prepare cells with test compounds
  2. Add the same volume of CytoCalcein™ Blue, AM working solution (100 µL/well/96-well plate or 25 µL/well/384-well plate)
  3. Incubate at room temperature or 37°C for 1 hour
  4. Monitor fluorescence intensity (bottom read mode) at Ex/Em = 360/450 nm (Cutoff = 420 nm)

Important notes
Thaw one of each kit component at room temperature before starting the experiment.

PREPARATION OF STOCK SOLUTION

Unless otherwise noted, all unused stock solutions should be divided into single-use aliquots and stored at -20 °C after preparation. Avoid repeated freeze-thaw cycles.

1. CytoCalcein™ Blue, AM stock solution:
Add 20 µL of DMSO (Component B) into the vial of CytoCalcein™ Blue, AM (Component A), and mix well to make CytoCalcein™ Blue, AM stock solution. Note: 20 µL of CytoCalcein™ Blue, AM stock solution is enough for one plate. Protect from light. For storage, seal tubes tightly.

PREPARATION OF WORKING SOLUTION

Add the whole content (20 µL) of CytoCalcein™ Blue, AM stock solution into 10 mL of Assay Buffer (Component C), and mix well to make CytoCalcein™ Blue, AM working solution. This CytoCalcein™ Blue, AM working solution is stable for at least 2 hours at room temperature. Note: If the cells such as CHO cells contain organic-anion transporters which promote the leakage of the fluorescent dye over time, a probenecid stock solution should be prepared and added to the loading buffer at a final in-well working concentration ranging from 1 to 2.5 mM. Aliquot and store the unused probenecid stock solution at ≤ -20 oC.

For guidelines on cell sample preparation, please visit
https://www.aatbio.com/resources/guides/cell-sample-preparation.html

SAMPLE EXPERIMENTAL PROTOCOL

  1. Treat cells with test compounds as desired. Note: It is not necessary to wash cells before adding compounds. However, if tested compounds are serum sensitive, growth medium and serum factors can be aspirated away before adding compounds. Add 100 µL/well (96-well plate) and 25 µL/well (384-well plate) of 1X Hank’s salt solution and 20 mM Hepes buffer (HHBS) or the buffer of your choice after aspiration. Alternatively, cells can be grown in a serum-free media.

  2. Add 100 µL/well (96-well plate) or 25 µL/well (384-well plate) of CytoCalcein™ Blue, AM working solution.

  3. Incubate the plate at room temperature or 37°C for 1 hour, protected from light. (The incubation time could be from 15 minutes to overnight. We got the optimal results with the incubation time less than 4 hours). Note: The appropriate incubation time depends on the individual cell type and cell concentration used. Optimize the incubation time for each experiment. Note: DO NOT wash the cells after loading. Note: For non-adherent cells, it is recommended to centrifuge cell plates at 800 rpm for 2 minutes with brake off after incubation.

  4. Monitor the fluorescence intensity with a fluorescence plate reader (bottom read mode) at Ex/Em = 360/450 nm (Cutoff = 420 nm).
