Cell Meter™ Fluorimetric Live Cell Cycle Assay Kit Green Fluorescence Optimized for Flow Cytometry

Ordering information

Price
Catalog Number
Unit Size
Quantity

Add to cart

Additional ordering information

Telephone	1-800-990-8053
Fax	1-800-609-2943
Email	sales@aatbio.com
International	See distributors
Bulk request	Inquire
Custom size	Inquire
Shipping	Standard overnight for United States, inquire for international

Request quotation

Spectral properties

Excitation (nm)	503
Emission (nm)	527

Storage, safety and handling

H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
UNSPSC	12352200

Alternative formats

Cell Meter™ Fluorimetric Live Cell Cycle Assay Kit *Red Fluorescence Optimized for Flow Cytometry*

Cell Meter™ Fluorimetric Live Cell Cycle Assay Kit *Optimized for 405 nm Violet Laser Excitation*

Overview SDS Protocol

Excitation (nm)

503

Emission (nm)

527

Our Cell Meter™ assay kits are a set of tools for monitoring cell viability and proliferation. There are a variety of parameters that can be used for monitoring cell viability and proliferation. In normal cells, DNA density changes depending on whether the cell is growing, dividing, resting, or performing its ordinary functions. The progression of the cell cycle is controlled by a complex interplay among various cell cycle regulators. These regulators activate transcription factors, which bind to DNA and turn on or off the production of proteins that result in cell division. Any misstep in this regulatory cascade causes abnormal cell proliferation which underlies many pathological conditions, such as tumor formation. Potential applications for live-cell studies are in the determination of cellular DNA content and cell cycle distribution for the detection of variations in growth patterns, for monitoring apoptosis, and for evaluating tumor cell behavior and suppressor gene mechanisms. This particular kit is designed to monitor cell cycle progression and proliferation using our proprietary Nuclear Green™ LCS1 in live, permeabilized and fixed cells. The percentage of cells in a given sample that are in G0/G1, S and G2/M phases, as well as the cells in the sub-G1 phase prior to apoptosis can be determined by flow cytometry. Cells stained with Nuclear Green™ LCS1 can be monitored with a flow cytometer (FL1 channel).

Platform

Flow cytometer

Excitation	488 nm laser
Emission	530/30 nm filter
Instrument specification(s)	FITC channel

Components

Example protocol

AT A GLANCE

Protocol Summary

Prepare cells with test compounds at a density of 5 × 10⁵ to 1 × 10⁶ cells/mL
Add 2.5 µL of 200X Nuclear Green™ LCS1 into 0.5 mL of cell solution
Incubate at 37°C, 5% CO₂ incubator for 30 - 60 minutes
Analyze cells with a flow cytometer using 530/30 nm filter (FITC channel)

Important Thaw all the components at room temperature before starting the experiment.

CELL PREPARATION

For guidelines on cell sample preparation, please visit https://www.aatbio.com/resources/guides/cell-sample-preparation.html

SAMPLE EXPERIMENTAL PROTOCOL

For each sample, prepare cells in 0.5 mL of warm medium or buffer of your choice at a density of 5 × 10⁵ to 1 × 10⁶ cells/mL.
Note Each cell line should be evaluated on an individual basis to determine the optimal cell density for apoptosis induction.
Treat cells with test compounds for a desired period of time to induce apoptosis or other cell cycle functions.
Add 2.5 µL of 200X Nuclear Green™ LCS1 (Component A) into the treated cells.
Incubate the cells in a 37°C, 5% CO₂ incubator for 30 to 60 minutes.
Note For adherent cells, gently lift the cells with 0.5 mM EDTA to keep the cells intact, and wash the cells once with serum-containing media prior to incubation with Nuclear Green™ LCS1. The appropriate incubation time depends on the individual cell type and cell concentration used. Optimize the incubation time for each experiment. It is not necessary to fix the cells before DNA staining since the Nuclear Green™ LCS1 is cell-permeable.
Optional: Centrifuge the cells at 1000 rpm for 4 minutes, and then re-suspend cells in 0.5 mL of assay buffer (Component B) or the buffer of your choice.
Monitor the fluorescence intensity using a flow cytometer using 530/30 nm filter (FITC channel). Gate on the cells of interest, excluding debris.

Spectrum

Open in Advanced Spectrum Viewer

Spectral properties

Excitation (nm)	503
Emission (nm)	527

Product Family

Name	Excitation (nm)	Emission (nm)
Cell Meter™ Fluorimetric Live Cell Cycle Assay Kit Red Fluorescence Optimized for Flow Cytometry	542	580

Images

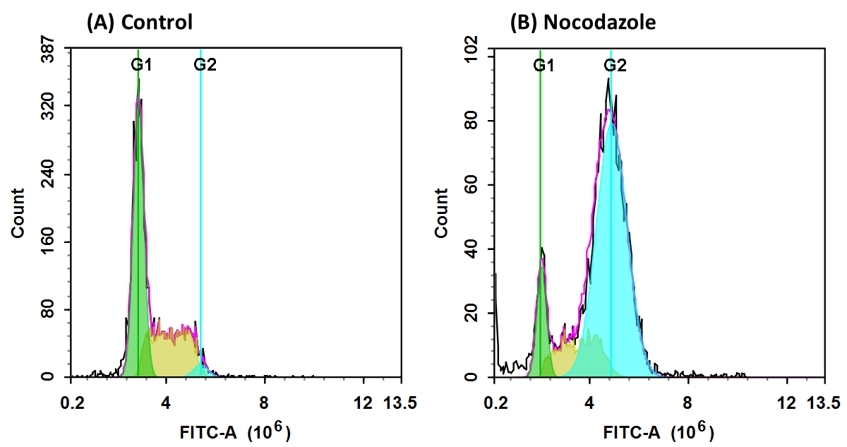

Figure 1. DNA profile in growing and nocodazole treated Jurkat cells. Jurkat cells were treated without (A) or with 100 ng/ml Nocodazole (B) in a 37 °C, 5% CO2 incubator for 24 hours, and then dye loaded with Nuclear Green™ LCS1 for 30 minutes. The fluorescence intensity of Nuclear Green™ LCS1 was measured with ACEA NovoCyte flow cytometer with the channel of FITC. In growing Jurkat cells (A), nuclear stained with Nuclear Green™ LCS1 shows G1, S, and G2 phases. In Nocodazole treated G2 arrested cells (B), frequency of G2 cells increased dramatically and G1, S phase frequency decreased significantly.
