Cell Meter™ Mitochondrion Membrane Potential Assay Kit *Red Fluorescence Optimized for Flow Cytometry*

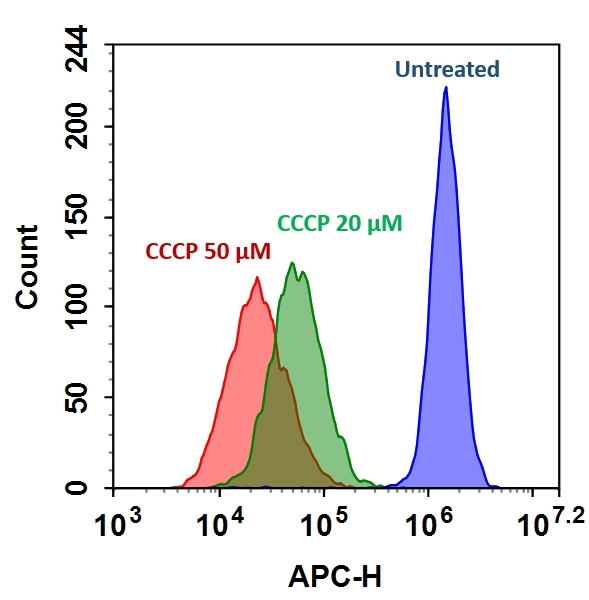

The decrease in fluorescence intensity of MitoTell™ Red in response to CCCP treatment in Jurkat cells. Jurkat cells were loaded with MitoTell™ Red alone (Blue) or in the presence of 20 μM (Green) or 50 μM CCCP (Red) for 30 minutes. The fluorescence intensity of MitoTell™ Red was measured using ACEA NovoCyte flow cytometer at APC channel.
The decrease in fluorescence intensity of MitoTell™ Red in response to CCCP treatment in Jurkat cells. Jurkat cells were loaded with MitoTell™ Red alone (Blue) or in the presence of 20 μM (Green) or 50 μM CCCP (Red) for 30 minutes. The fluorescence intensity of MitoTell™ Red was measured using ACEA NovoCyte flow cytometer at APC channel.
Ordering information
Price ()
Catalog Number22806
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Spectral properties
Excitation (nm)613
Emission (nm)631
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
UNSPSC12352200

OverviewpdfSDSpdfProtocol


Excitation (nm)
613
Emission (nm)
631
Our Cell Meter™ assay kits are a set of tools for monitoring cell viability. There are a variety of parameters that can be used. This particular kit is designed to detect cell apoptosis by measuring the loss of the mitochondrial membrane potential (MMP). The collapse of MMP coincides with the opening of the mitochondrial permeability transition pores, leading to the release of cytochrome C into the cytosol, which in turn triggers other downstream events in the apoptotic cascade. Our Cell Meter™ Mitochondrial Membrane Potential Assay Kit provides all the essential components with an optimized assay method. This fluorimetric assay uses our proprietary cationic MitoTell™ Red for the detection of apoptosis in cells with the loss of MMP. In normal cells, the red fluorescence intensity is increased when MitoTell™ Red is accumulated in the mitochondria. However, in apoptotic cells, the fluorescence intensity of MitoTell™ Red decreases following the collapse of MMP. Cells stained with MitoTell™ Red can be visualized with a flow cytometer at APC or Cy5 channel. The kit is optimized for screening apoptosis activators and inhibitors with a flow cytometer.

Platform


Flow cytometer

Excitation640 nm laser
Emission660/20 nm filter
Instrument specification(s)APC channel

Components


Component A: 500X MitoTell™ Red in DMSOVial (100 µL)
Component B: Assay BufferBottle (50 mL)

Example protocol


AT A GLANCE

Protocol summary

  1. Prepare cells with test compounds at the density of 5 × 105 to 1 × 106 cells/mL
  2. Add 1 µL of 500X MitoTell™ Red into 0.5 mL of cell solution
  3. Incubate the cells in a 37 °C, 5% CO2 incubator for 15 - 30 minutes
  4. Pellet the cells, and resuspend the cells in 0.5 mL of assay buffer
  5. Analyze cells using flow cytometer with APC or Cy5 channel

Important notes
Thaw all the kit components at room temperature before starting the experiment.

SAMPLE EXPERIMENTAL PROTOCOL

  1. For each sample, prepare cells in 0.5 mL of warm medium or buffer of your choice at the density of 5×105 to 1×106 cells/mL. Note: Each cell line should be evaluated on an individual basis to determine the optimal cell density for apoptosis induction.

  2. Treat cells with test compounds for a desired period of time to induce apoptosis, and set up parallel control experiments. Note: We treated Jurkat cells with 20µM CCCP for 15 min at 37ºC to change the mitochondrial membrane potential. See Figure 1 for details. CCCP or FCCP can be added simultaneously with MitoTell™ Red. To get the best result, titration of the CCCP or FCCP may be required for each individual cell line.

  3. Add 1 µL of 500X MitoTell™ Red (Component A) into the treated cells.

  4. Incubate the cells in a 37 °C, 5% CO2 incubator for 15 to 30 minutes. Note: For adherent cells, gently lift the cells with 0.5 mM EDTA to keep the cells intact and wash the cells once with serum-containing media prior to the incubation with MitoTell™ Red.

  5. Centrifuge the cells at 800 rpm for 4 minutes, and then re-suspend cells in 0.5 mL of Assay Buffer (Component B) or buffer of your choice.

  6.  Monitor the fluorescence intensity using a flow cytometer wih APC or Cy5 channel. Gate on the cells of interest, excluding debris.

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Excitation (nm)613
Emission (nm)631
