Cell Meter™ Mitochondrion Membrane Potential Assay Kit *Red Fluorescence Optimized for Microplate Reader*
Ordering information
Price | |
Catalog Number | |
Unit Size | |
Quantity |
Additional ordering information
Telephone | 1-800-990-8053 |
Fax | 1-800-609-2943 |
sales@aatbio.com | |
Quotation | Request |
International | See distributors |
Shipping | Standard overnight for United States, inquire for international |
Spectral properties
Excitation (nm) | 613 |
Emission (nm) | 631 |
Storage, safety and handling
H-phrase | H303, H313, H333 |
Hazard symbol | XN |
Intended use | Research Use Only (RUO) |
R-phrase | R20, R21, R22 |
UNSPSC | 12352200 |
Alternative formats
Related products
Overview | ![]() ![]() |
Excitation (nm) 613 | Emission (nm) 631 |
Our Cell Meter™ assay kits are a set of tools for monitoring cell viability. There are a variety of parameters that can be used. This particular kit is designed to detect cell apoptosis by measuring the loss of the mitochondrial membrane potential (MMP). The collapse of MMP coincides with the opening of the mitochondrial permeability transition pores, leading to the release of cytochrome C into the cytosol, which in turn triggers other downstream events in the apoptotic cascade. Our Cell Meter™ Mitochondrial Membrane Potential Assay Kit provides all the essential components with an optimized assay method. This fluorimetric assay uses our proprietary cationic MitoTell™ Red for the detection of apoptosis in cells with the loss of MMP. In normal cells, the red fluorescence intensity is increased when MitoTell™ Red is accumulated in the mitochondria. However, in apoptotic cells, the fluorescence intensity of MitoTell™ Red decreases following the collapse of MMP. Cells stained with MitoTell™ Red can be either visualized with a fluorescence microscope Cy5 channel, or with a fluorescence microplate reader. The kit is optimized for screening apoptosis activators and inhibitors with a fluorescence microplate reader. And the assay can be performed in a convenient 96-well and 384-well fluorescence microtiter-plate format without a wash step.
Platform
Fluorescence microplate reader
Excitation | 610 nm |
Emission | 650 nm |
Cutoff | 630 nm |
Recommended plate | Black wall/clear bottom |
Instrument specification(s) | Bottom read mode |
Components
Example protocol
AT A GLANCE
Protocol summary
- Prepare cells
- Add test compounds
- Add MitoTell™ Red working solution (100 µL/well/ 96-well plate or 25 µL/well/384-well plate)
- Incubate the plate in a 5% CO2, 37°C incubator for 30 minutes
- Add Assay Buffer B (50 µL/well/96-well plate or 12.5 µL/well/384-well plate)
- Monitor the fluorescence increase (bottom read mode) at Ex/Em = 610/650 nm (Cutoff = 630 nm) or fluorescence microscope with Cy5 filter
Important notes
Thaw all the kit components at room temperature before starting the experiment.
PREPARATION OF WORKING SOLUTION
Add 50 µL of 200X MitoTell™ Red (Component A) into 10 mL of Assay Buffer A (Component B) and mix well to make MitoTell™ Red working solution. Protect from light.
For guidelines on cell sample preparation, please visit
https://www.aatbio.com/resources/guides/cell-sample-preparation.html
SAMPLE EXPERIMENTAL PROTOCOL
- Treat cells with test compounds for a desired period of time to induce apoptosis, and set up parallel control experiments. Note: We treated HeLa cells with 20 µM CCCP for 15 minutes to change the mitochondrial membrane potential. See Figure 1 for details. CCCP or FCCP can be added simultaneously with MitoTell™ Red. To get the best result, titration of the CCCP or FCCP may be required for each individual cell line.
- Add 100 µL/well/96-well plate or 25 µL/well/384-well plate of MitoTell™ Red working solution into the cell plate.
- Incubate the plate at 37ºC for 15 - 30 minutes, protected from light. Note: The appropriate incubation time depends on the individual cell type and cell concentration used. Optimize the incubation time for each experiment.
- Add 50 µL/well/96-well plate or 12.5 µL/well/384-well plate of Assay Buffer B (Component C) into the cell plate. Note: DO NOT wash the cells after loading. For non-adherent cells, it is recommended to centrifuge cell plates at 800 rpm for 2 minutes with brake off after adding Assay Buffer B (Component C).
- Monitor the fluorescence intensity with a fluorescence microplate reader (bottom read mode) at Ex/Em = 610/650 nm (Cutoff = 630 nm) 10 to 30 minutes after adding Assay Buffer B (Component C) or observe the fluorescence signal under a fluorescence microscope with Cy5 filter set.
Images

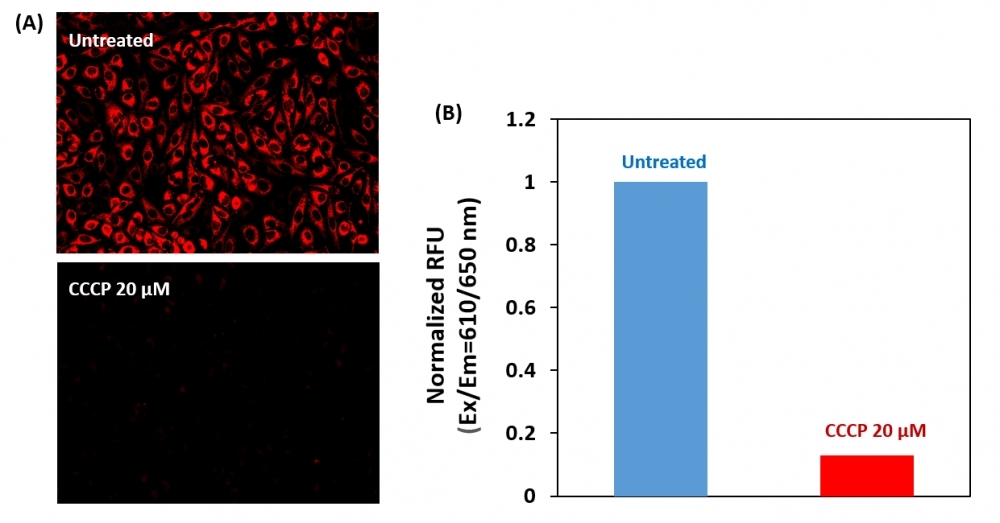

Figure 1. Hela cells were dye-loaded with MitoTell™ Red alone or in the presence of 20 μM CCCP for 30 minutes. The fluorescence intensity of MitoTell™ Red was measured 5 minutes after adding Assay Buffer B (Component C) using (A) a fluorescence microscope with Cy5 filter set or (B) FlexStation microplate reader at Ex/Em = 610/650 nm (Cutoff = 630 nm, bottom read mode).
