Cell Meter™ Phosphatidylserine Apoptosis Assay Kit *Deep Red Fluorescence Optimized for Microplate Readers*

OverviewpdfSDSpdfProtocol


Our Cell Meter™ assay kits are a set of tools for monitoring cell viability. There are a variety of parameters that can be used for monitoring cell viability. This particular kit is designed to monitor cell apoptosis through measuring the translocation of phosphatidylserine (PS). In apoptosis, PS is transferred to the outer leaflet of the plasma membrane. The appearance of phosphatidylserine on the cell surface is a universal indicator of the initial/intermediate stages of cell apoptosis and can be detected before morphological changes can be observed. This kit uses a fluorescent sensor that specifically binds PS. Our proprietary Apopxin™ PS sensor used in this kit is small molecule-based PS sensor. It has red fluorescence upon binding to membrane PS. It can be used in the formats of microplate, microscope and flow cytometer while most of other commercial apoptosis assay kits are only used with either microscope or flow cytometry platform.

Platform


Fluorescence microplate reader

Excitation650 nm
Emission680 nm
Cutoff665 nm
Recommended plateBlack wall/clear bottom
Instrument specification(s)Bottom read mode

Components


Component A: Apopxin™ Deep Red (100X Stock Solution)1 vial (100 µL/vial)
Component B: Assay Buffer (4 °C)1 bottle (10 mL)

Example protocol


AT A GLANCE

Protocol summary

  1. Prepare cells with test compounds (100 µL/well/96-well plate or 25 µL/well/384-well plate)
  2. Add equal volume of Apopxin™ Deep Red working solution
  3. Incubate at room temperature for 1 hour
  4. Monitor fluorescence intensity (bottom read mode) at Ex/Em = 650/680 nm (Cutoff = 665 nm) or fluorescence microscope with Cy5 filter

Important notes
Warm Assay Buffer (Component B) at room temperature before starting the experiment.

PREPARATION OF WORKING SOLUTION

Add 10 μL of Apopxin™ Deep Red (Component A) into 1 mL of Assay Buffer (Component B) and mix well to make Apopxin™ Deep Red working solution. Note: 100 μL of Apopxin™ Deep Red working solution is enough for one well. Prepare fresh before use.

For guidelines on cell sample preparation, please visit
https://www.aatbio.com/resources/guides/cell-sample-preparation.html

SAMPLE EXPERIMENTAL PROTOCOL

  1. Treat cells with test compounds by adding 10 µL/well (96-well plate) or 2.5 µL/well (384-well plate) of 10X test compound stock solution into PBS or the desired buffer. For blank wells (medium without the cells), add the same amount of compound buffer.

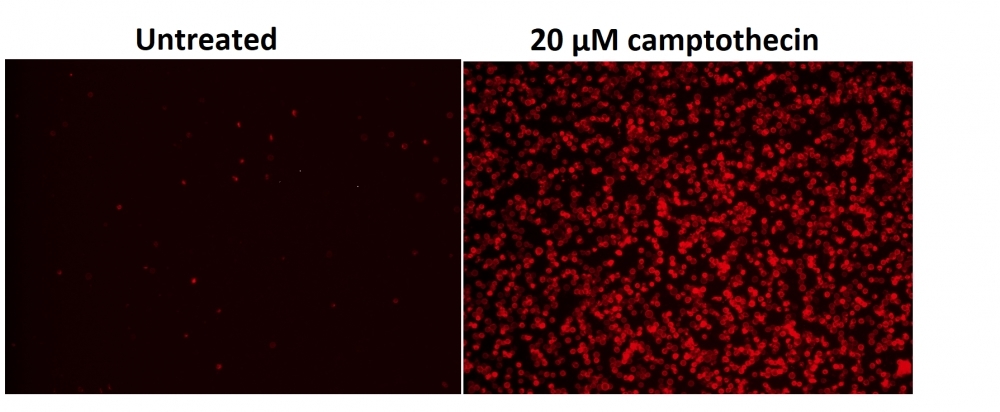

  2. Incubate the cell plate in a 5% CO2, 37°C incubator for a desired period of time (4 - 6 hours for Jurkat cells treated with camptothecin) to induce apoptosis.

  3. Add 100 µL/well (96-well plate) or 25 µL/well (384-well plate) of Apopxin™ Deep Red working solution into each well.

  4. Incubate the cell plate at room temperature for at least 1 hour, protected from light.

  5. Centrifuge cell plate (especially for non-adherent cells) at 800 rpm for 2 minutes (brake off).

  6. Monitor the fluorescence intensity with a fluorescence microplate reader (bottom read mode) at Ex/Em = 650/680 nm (Cutoff = 665 nm) or image cells using a fluorescence microscope with Cy5® filter.

Citations


View all 6 citations: Citation Explorer
ROR1 regulates chemo resistance in Breast Cancer via modulation of drug efflux pump ABCB1
Authors: Norman, Fultang and Abhinav, Illendula and Jianhuang, Lin and Pandey, Manoj K and Zachary, Klase and Bela, Peethambaran
Journal: Scientific Reports (Nature Publisher Group) (2020)
Integrin $\beta$3 inhibits hypoxia-induced apoptosis in cardiomyocytes
Authors: Su, Yifan and Tian, Hua and Wei, Lijiang and Fu, Guohui and Sun, Ting
Journal: Acta Biochimica et Biophysica Sinica (2018): 658--665
Tumor-selective mitochondrial network collapse induced by atmospheric gas plasma-activated medium.
Authors: Saito, Kosuke and Asai, Tomohiko and Fujiwara, Kyoko and Sahara, Junki and Koguchi, Haruhisa and Fukuda, Noboru and Suzuki-Karasaki, Miki and Soma, Masayoshi and Suzuki-Karasaki, Yoshihiro
Journal: Oncotarget (2016)
Physiological effects of the herbicide glyphosate on the cyanobacterium Microcystis aeruginosa
Authors: Wu, Liang and Qiu, Zhihao and Zhou, Ya and Du, Yuping and Liu, Chaonan and Ye, Jing and Hu, Xiaojun
Journal: Aquatic Toxicology (2016): 72--79
Inhibition of malignant phenotypes of human osteosarcoma cells by a gene silencer, a pyrrole--imidazole polyamide, which targets an E-box motif
Authors: Taniguchi, Masashi and Fujiwara, Kyoko and Nakai, Yuji and Ozaki, Toshinori and Koshikawa, Nobuko and Toshio, Kojima and Kataba, Motoaki and Oguni, Asako and Matsuda, Hiroyuki and Yoshida, Yukihiro and others, undefined
Journal: FEBS open bio (2014): 328--334
