Helixyte™ Green Fluorimetric ssDNA Quantitation Kit *Optimized for Microplate Readers*

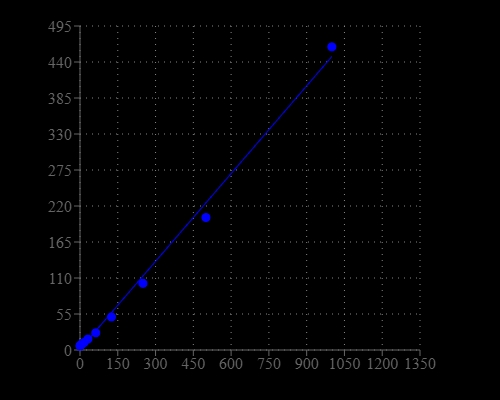

The ssDNA dose response was measured with Amplite® Fluorimetric ssDNA Quantitation Kit in a 96-well solid black plate.
The ssDNA dose response was measured with Amplite® Fluorimetric ssDNA Quantitation Kit in a 96-well solid black plate.
Ordering information
Price ()
Catalog Number17623
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Spectral properties
Excitation (nm)498
Emission (nm)519
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
UNSPSC12171501

OverviewpdfSDSpdfProtocol


Excitation (nm)
498
Emission (nm)
519
Helixyte™ Green Fluorimetric ssDNA Quantitation Kit is designed to measure single-stranded DNA in an easy and accurate format. The kit has all the essential reagents, including Helixyte™ Green ssDNA reagent, dilution buffer, and prediluted DNA standards. Helixyte™ Green ssDNA reagent is a sensitive fluorescent nucleic acid probe for quantifying oligonucleotides and single-stranded DNA (ssDNA) in solution. It enables researchers to quantify as little as 100 pg/mL oligonucleotide or ssDNA. This sensitivity exceeds that achieved with absorbance methods by more than 10,000-fold. With this kit, as little as 1 ng/mL oligonucleotide or ssDNA might be detected. A few ssDNAs were quantified with this kit, including M13 and ϕX174 viral DNA and denatured calf thymus DNA that had similar sensitivity. Their detection limits were not significantly interfered by the common contaminants in nucleic acid preparations, including salts, urea, ethanol, chloroform, detergents, proteins, ATP, nucleotides and short oligonucleotides of six bases. However, double-stranded DNA (dsDNA) and RNA do interfere with the assay as Helixyte™ Green ssDNA reagent binds to dsDNA and RNA to generate additional fluorescence signal. Helixyte™ Green Fluorimetric ssDNA Quantitation Kit is optimized for quantifying dsDNA with a fluorescence microplate reader.

Platform


Fluorescence microplate reader

Excitation490 nm
Emission525 nm
Cutoff515 nm
Recommended plateSolid black

Components


Component A: Helixyte™ Green ssDNA1 vial (200 µL)
Component B: Assay Buffer1 bottle (50 mL)
Component C: ssDNA Standard30 µL (100 µg/mL)

Example protocol


AT A GLANCE

Protocol summary
  1. Add 100 µL of ssDNA Standards or test samples
  2. Add 100 µL of Helixyte™ Green ssDNA working solution
  3. Incubate at RT for 5-10 minutes
  4. Monitor the fluorescence intensity at Ex/Em=490/525 nm

Important
The following protocol is an example of quantifying the ssDNA using Helixyte™ Green ssDNA. Allow all the components to warm to room temperature before opening. No data are available on the mutagenicity or toxicity of Helixyte™ Green ssDNA stain. Because this reagent binds to nucleic acids, it should be treated as a potential mutagen and handled with appropriate care. The DMSO stock solution should be handled with particular caution as DMSO is known to facilitate the entry of organic molecules into tissues.

PREPARATION OF STANDARD SOLUTION

For convenience, use the Serial Dilution Planner:
https://www.aatbio.com/tools/serial-dilution/


ssDNA Standard solution
Add 10 uL of 100 ug/mL ssDNA Standard solution (Component C) to 190 uL of Assay Buffer (Component B) to get a 5 ug/mL standards solution, then perform 1:3 dilutions to obtain serially diluted ssDNA standards (SS2-SS7).

PREPARATION OF WORKING SOLUTION

Helixyte™ Green ssDNA working solution
Prepare the Helixyte™ Green ssDNA working solution by adding 100 μL of Helixyte™ Green ssDNA (Component A) into 10 mL of Assay Buffer (Component B). Protect the working solution from light by covering it with foil or placing it in the dark.
Note     It’s recommended to prepare the working solution in a plastic container rather than a glass container, as the dye may adsorb to the glass surface. For best results, this solution should be used within a few hours after the dilution.
Note     10 mL of working solution is enough for one 96-well plate.

SAMPLE EXPERIMENTAL PROTOCOL

Table 1.The layout of ssDNA Standards and test samples in a solid black 96-well microplate. SS= ssDNA Standards (SS1 - SS7, 1667 to 2.3 ng/mL); BL=Blank Control; TS=Test Samples
BL BL TS TS
SS1 SS1
SS2 SS2
SS3 SS3
SS4 SS4
SS5 SS5
SS6 SS6
SS7 SS7
Table 2.The reagent composition for each well.
Well Volume Reagent
SS1-SS7 100 µL Serial dilutions ( 1667 to 2.3 ng/mL)
BL 100 µL Assay Buffer
TS 100 µL Sample
  1. Prepare ssDNA Standards (NS), blank controls (BL), and test samples (TS) according to the layout provided in Tables 1 and 2. For a 384-well plate, use 25 µL of reagent per well instead of 100 µL.
  2. Add 100 µL of the Helixyte™ Green ssDNA working solution to each well of ssDNA Standards, blank control, and test samples to make the assay volume of 200 µL/well. For a 384-well plate, add 25 µL of the Helixyte™ Green ssDNA working solution into each well instead, to get a total volume of 50 µL/well.
  3. Incubate the reaction at room temperature for 5 to 10 minutes, protected from light.
  4. Monitor the fluorescence increase with a fluorescence microplate reader at Ex/Em = 490/525 nm (cut off at 515 nm).

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Excitation (nm)498
Emission (nm)519
