iFluor® 594 TCO

The tetrazine-trans-cyclooctene (TCO) ligation constitutes a non-toxic biomolecule labeling method of unparalleled speed. A tetrazine-functionalized molecule reacts with a TCO-functionalized molecule, forming a stable conjugate via a dihydropyrazine moiety. This has gained popularity due to its extremely fast kinetics. iFluor® 594-TCO can be readily used to label tetrazine-modified biological molecules for fluorescence imaging and other fluorescence-based biochemical analysis.

Ordering information

Price
Catalog Number
Unit Size
Quantity

Add to cart

Additional ordering information

Telephone	1-800-990-8053
Fax	1-800-609-2943
Email	sales@aatbio.com
Quotation	Request
International	See distributors
Shipping	Standard overnight for United States, inquire for international

Physical properties

Molecular weight	1045.11
Solvent	DMSO

Spectral properties

Absorbance (nm)	587
Correction Factor (260 nm)	0.05
Correction Factor (280 nm)	0.04
Extinction coefficient (cm ^-1 M ^-1)	180000¹
Excitation (nm)	588
Emission (nm)	604
Quantum yield	0.53¹

Storage, safety and handling

H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
Storage	Freeze (< -15 °C); Minimize light exposure
UNSPSC	12171501

Overview SDS Protocol

Molecular weight

1045.11

Absorbance (nm)

587

Correction Factor (260 nm)

0.05

Correction Factor (280 nm)

0.04

Extinction coefficient (cm ^-1 M ^-1)

180000¹

Excitation (nm)

588

Emission (nm)

604

Quantum yield

0.53¹

The tetrazine-trans-cyclooctene (TCO) ligation constitutes a non-toxic biomolecule labeling method of unparalleled speed. A tetrazine-functionalized molecule reacts with a TCO-functionalized molecule, forming a stable conjugate via a dihydropyrazine moiety. This has gained popularity due to its extremely fast kinetics. AAT Bioquest offers a group of tetrazine- and TCO-containing dyes for exploring various biological systems that can use this powerful click reaction. iFluor® 594-TCO can be readily used to label tetrazine-modified biological molecules for fluorescence imaging and other fluorescence-based biological applications. The conjugates prepared with iFluor® 594 dye have spectral properties almost identical to the popular Cy3.5 and Alexa Fluor® 594. In most cases, antibody conjugates prepared with iFluor® 594 tend to have lower background than the spectrally similar dye conjugates, such as Cy3.5 and Alexa Fluor® 594 (Alexa Fluor® is the trademark of Invitrogen).

Calculators

Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of iFluor® 594 TCO to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

	0.1 mg	0.5 mg	1 mg	5 mg	10 mg
1 mM	95.684 µL	478.419 µL	956.837 µL	4.784 mL	9.568 mL
5 mM	19.137 µL	95.684 µL	191.367 µL	956.837 µL	1.914 mL
10 mM	9.568 µL	47.842 µL	95.684 µL	478.419 µL	956.837 µL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)		Molecular weight		Volume (Calculate)		Concentration (Calculate)		Moles
	/		=		x		=

Spectrum

Open in Advanced Spectrum Viewer

Spectral properties

Absorbance (nm)	587
Correction Factor (260 nm)	0.05
Correction Factor (280 nm)	0.04
Extinction coefficient (cm ^-1 M ^-1)	180000¹
Excitation (nm)	588
Emission (nm)	604
Quantum yield	0.53¹

Product Family

Name	Excitation (nm)	Emission (nm)	Extinction coefficient (cm ^-1 M ^-1)	Quantum yield	Correction Factor (260 nm)	Correction Factor (280 nm)
iFluor® 594 maleimide	588	604	180000¹	0.53¹	0.05	0.04
iFluor® 594 Styramide Superior Replacement for Alexa Fluor 594 tyramide	588	604	180000¹	0.53¹	0.05	0.04
iFluor® 594 Tyramide	588	604	180000¹	0.53¹	0.05	0.04
iFluor® 488 TCO	491	516	75000¹	0.9¹	0.21	0.11
iFluor® 555 TCO	557	570	100000¹	0.64¹	0.23	0.14
iFluor® 647 TCO	656	670	250000¹	0.25¹	0.03	0.03
iFluor® 594 Tetrazine	588	604	180000¹	0.53¹	0.05	0.04

Images

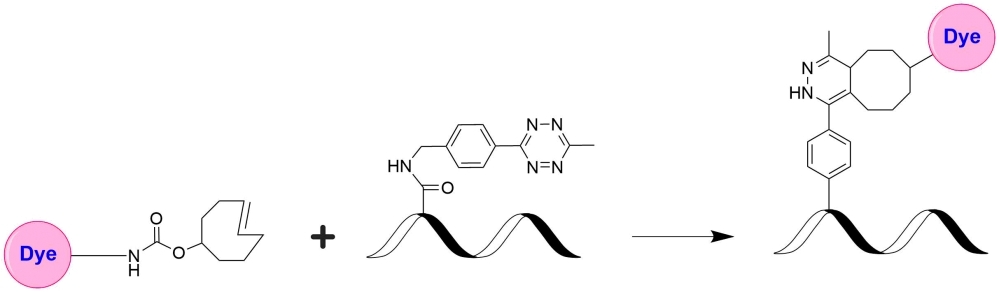

Figure 1. The tetrazine-trans-cyclooctene (TCO) ligation constitutes a non-toxic biomolecule labeling method of unparalleled speed. A tetrazine-functionalized molecule reacts with a TCO-functionalized molecule, forming a stable conjugate via a dihydropyrazine moiety. This has gained popularity due to its extremely fast kinetics. iFluor® 594-TCO can be readily used to label tetrazine-modified biological molecules for fluorescence imaging and other fluorescence-based biochemical analysis.
