iFluor® 647 amine

AAT Bioquest's iFluor® dyes are optimized for labeling proteins, particularly antibodies. These dyes are bright, photostable, and have minimal quenching on proteins. They can be well excited by the major laser lines of fluorescence instruments (e.g., 350, 405, 488, 555, and 633 nm). iFluor® 647 dyes have fluorescence excitation and emission maxima of ~656 nm and ~670 nm respectively. iFluor® 647 family has spectral properties essentially identical to those of Cy5®. Compared to Cy5® probes, iFluor® 647 reagents have much stronger fluorescence and higher photostability. Their fluorescence is pH-independent from pH 3 to 11. These spectral characteristics make this new dye family an excellent alternative to Cy5® and Alexa Fluor® 647 (Cy5® and Alexa Fluor® are the trademarks of GE Health Care and Invitrogen). iFluor® 647 amine is stable and used for modifying carbonyl groups (e.g., aldehyde and carboxy groups).

Calculators

Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of iFluor® 647 amine to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM97.94 µL489.702 µL979.403 µL4.897 mL9.794 mL
5 mM19.588 µL97.94 µL195.881 µL979.403 µL1.959 mL
10 mM9.794 µL48.97 µL97.94 µL489.702 µL979.403 µL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

Spectrum

Product family

NameExcitation (nm)Emission (nm)Extinction coefficient (cm -1 M -1)Quantum yieldCorrection Factor (260 nm)Correction Factor (280 nm)
iFluor® 350 amine3454502000010.9510.830.23
iFluor® 405 amine4034273700010.9110.480.77
iFluor® 488 amine4915167500010.910.210.11
iFluor® 555 amine55757010000010.6410.230.14
iFluor® 660 amine66367825000010.2610.070.08
iFluor® 680 amine68470122000010.2310.0970.094
iFluor® 700 amine69071322000010.2310.090.04
iFluor® 710 amine71673915000010.6010.120.07
iFluor® 750 amine75777927500010.1210.0440.039
iFluor® 790 amine78781225000010.1310.10.09
iFluor® 647 Styramide *Superior Replacement for Alexa Fluor 647 tyramide*65667025000010.2510.030.03
iFluor® 647 Tyramide65667025000010.2510.030.03
iFluor® 647 TCO65667025000010.2510.030.03
iFluor® 647 Tetrazine65667025000010.2510.030.03
Show More (5)

Citations

View all 25 citations: Citation Explorer
Circ\_001653 alleviates sepsis associated-acute kidney injury by recruiting BUD13 to regulate KEAP1/NRF2/HO-1 signaling pathway
Authors: Li, Xinxin and Zhou, Wei and Chen, Jianjun and Zhou, Liangliang and Li, Yingbing and Wu, Xufeng and Peng, Xia
Journal: Journal of Inflammation (2024): 1--13
Novel immunogenic cell death inducer combined with autophagy inhibitor to amplify photodynamic synergistic immunotherapy for triple-negative breast cancer
Authors: Yuan, Gankun and Yang, Ruyue and Wen, Wenjing and Wei, Zhaoyi and Song, Meiru and Zhang, Lingyang and Hou, Kun and Liang, Gaofeng
Journal: (2024)
The tandem CD33-CLL1 CAR-T as an approach to treat acute myeloid leukemia: The tandem CLL1/CD33 CAR-T to treat AML
Authors: Wang, Huiru and Feng, Shanglong and Zhu, Yanliang and Zhang, Yafeng and Zhou, Ziwei and Nian, Zhigang and Lu, Xueqin and Peng, Peng and Wu, Shu and Zhou, Li
Journal: Blood Transfusion (2024)
Cryo-shocked tumor cells deliver CRISPR-Cas9 for lung cancer regression by synthetic lethality
Authors: Liu, Feng and Xin, Minhang and Feng, Huiheng and Zhang, Wentao and Liao, Ziyan and Sheng, Tao and Wen, Ping and Wu, Qing and Liang, Tingxizi and Shi, Jiaqi and others,
Journal: Science Advances (2024): eadk8264
Comparing the Malignant Properties of Parental and a knock-in version of HCT116 cell line expressing the CDK2-mutant of eukaryotic Elongation Factor 2 (eEF2)
Authors: Y{\"u}ksel, B{\"u}{\c{s}}ra and T{\"u}rkel, Nezaket and {\c{S}}ahin, Fikrettin and DENIZ, ASLI AYSEN HIZLI
Journal: (2024)

References

View all 49 references: Citation Explorer
Visualizing dengue virus through Alexa Fluor labeling
Authors: Zhang S, Tan HC, Ooi EE.
Journal: J Vis Exp. (2011)
Simultaneous detection of virulence factors from a colony in diarrheagenic Escherichia coli by a multiplex PCR assay with Alexa Fluor-labeled primers
Authors: Kuwayama M, Shigemoto N, Oohara S, Tanizawa Y, Yamada H, Takeda Y, Matsuo T, Fukuda S.
Journal: J Microbiol Methods (2011): 119
Neuroanatomical basis of clinical joint application of "Jinggu" (BL 64, a source-acupoint) and "Dazhong" (KI 4, a Luo-acupoint) in the rat: a double-labeling study of cholera toxin subunit B conjugated with Alexa Fluor 488 and 594
Authors: Cui JJ, Zhu XL, Ji CF, Jing XH, Bai WZ.
Journal: Zhen Ci Yan Jiu (2011): 262
Fluorescent "Turn-on" system utilizing a quencher-conjugated peptide for specific protein labeling of living cells
Authors: Arai S, Yoon SI, Murata A, Takabayashi M, Wu X, Lu Y, Takeoka S, Ozaki M.
Journal: Biochem Biophys Res Commun (2011): 211
Sequential ordering among multicolor fluorophores for protein labeling facility via aggregation-elimination based beta-lactam probes
Authors: Sadhu KK, Mizukami S, Watanabe S, Kikuchi K.
Journal: Mol Biosyst (2011): 1766
Page updated on December 1, 2024

Ordering information

Price
Unit size
Catalog Number1074
Quantity
Add to cart

Additional ordering information

Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
Technical SupportContact us
Purchase orderSend to sales@aatbio.com
ShippingStandard overnight for United States, inquire for international
Request quotation

Physical properties

Molecular weight

1021.03

Solvent

DMSO

Spectral properties

Correction Factor (260 nm)

0.03

Correction Factor (280 nm)

0.03

Correction Factor (656 nm)

0.0793

Extinction coefficient (cm -1 M -1)

2500001

Excitation (nm)

656

Emission (nm)

670

Quantum yield

0.251

Storage, safety and handling

H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22

Storage

Freeze (< -15 °C); Minimize light exposure
UNSPSC12171501

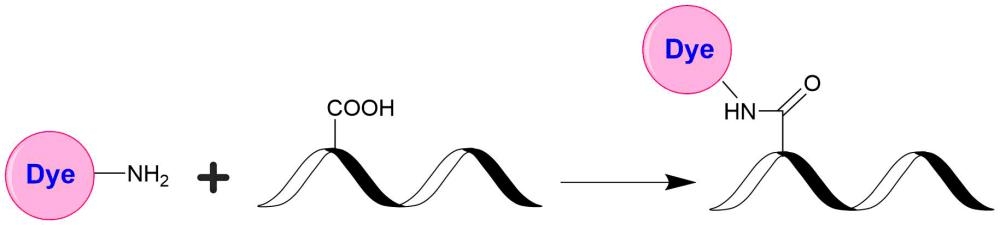

Fluorescent dye amines are the most popular tool for conjugating dyes to a target compound with a carbonyl group (e.g., aldehyde, carboxylic acid or activated carboxy group such as NHS ester).
Fluorescent dye amines are the most popular tool for conjugating dyes to a target compound with a carbonyl group (e.g., aldehyde, carboxylic acid or activated carboxy group such as NHS ester).
Fluorescent dye amines are the most popular tool for conjugating dyes to a target compound with a carbonyl group (e.g., aldehyde, carboxylic acid or activated carboxy group such as NHS ester).
