LysoBrite™ Green

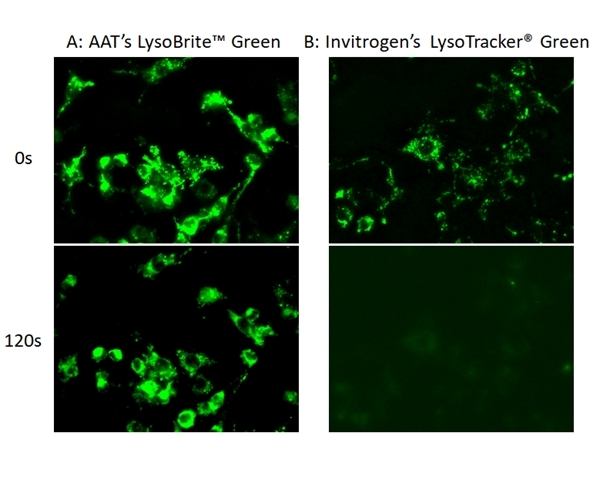

Images of HeLa cells stained with A: AAT’s LysoBrite ™ Green, B: Invitrogen’s LysoTracker® Green DND-26 in a Costar black wall/clear bottom 96-well plate. Samples were continuously illuminated for 120 seconds, and the signals were compared before and after the exposure by using a Keyence fluorescence microscope.
Images of HeLa cells stained with A: AAT’s LysoBrite ™ Green, B: Invitrogen’s LysoTracker® Green DND-26 in a Costar black wall/clear bottom 96-well plate. Samples were continuously illuminated for 120 seconds, and the signals were compared before and after the exposure by using a Keyence fluorescence microscope.
Ordering information
Price ()
Catalog Number22643
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Physical properties
Molecular weight453.34
SolventDMSO
Spectral properties
Excitation (nm)501
Emission (nm)510
Storage, safety and handling
Certificate of OriginDownload PDF
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC12352200

OverviewpdfSDSpdfProtocol


Molecular weight
453.34
Excitation (nm)
501
Emission (nm)
510
Lysosomes are cellular organelles which contain acid hydrolase enzymes to break up waste materials and cellular debris. Lysosomes digest excess or worn-out organelles, food particles, and engulfed viruses or bacteria. The membrane around a lysosome allows the digestive enzymes to work at pH 4.5. The interior of the lysosomes is acidic (pH 4.5-4.8) compared to the slightly alkaline cytosol (pH 7.2). The lysosome maintains this pH differential by pumping protons from the cytosol across the membrane via proton pumps and chloride ion channels. LysoBrite™ Green selectively accumulates in lysosomes probably via the lysosome pH gradient. The lysotropic indicator is a hydrophobic compound that easily permeates intact live cells, and trapped in lysosomes after it gets into cells. Its fluorescence is significantly enhanced upon entering lysosomes. This key feature significantly reduces its staining background and makes it useful for a variety of studies, including cell adhesion, chemotaxis, multidrug resistance, cell viability, apoptosis and cytotoxicity. It is suitable for proliferating and non-proliferating cells, and can be used for both suspension and adherent cells.

Calculators


Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of LysoBrite™ Green to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM220.585 µL1.103 mL2.206 mL11.029 mL22.058 mL
5 mM44.117 µL220.585 µL441.17 µL2.206 mL4.412 mL
10 mM22.058 µL110.292 µL220.585 µL1.103 mL2.206 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Excitation (nm)501
Emission (nm)510

Product family


NameExcitation (nm)Emission (nm)
LysoBrite™ Blue434480
LysoBrite™ Orange543565
LysoBrite™ Red576596
LysoBrite™ Deep Red597619
LysoBrite™ NIR636651

Citations


View all 6 citations: Citation Explorer
Microencapsulated Multi-functionalized Graphene Oxide Equipped With Chloroquine for Efficient and Sustained Sirna Delivery
Authors: Imani, Rana and Prakash, Satya and Vali, Hojatollah and Presley, John F and Faghihi, Shahab
Journal: (2021)
Polyethylene glycol and octaarginine n dual-functionalized nano-graphene oxide: An optimization for efficient nucleic acids delivery
Authors: Imani, Rana and Prakash, Satya and Vali, Hojatollah and Faghihi, Shahab
Journal: Biomaterials Science (2018)
Autophagy proteins are not universally required for phagosome maturation
Authors: Cemma, Marija and Grinstein, Sergio and Brumell, John H
Journal: Autophagy (2016): 1440--1446
Differential detection of tumor cells using a combination of cell rolling, multivalent binding, and multiple antibodies
Authors: Myung, Ja Hye and Gajjar, Khyati A and Chen, Jihua and Molokie, Robert E and Hong, Seungpyo
Journal: Analytical chemistry (2014): 6088--6094
Versatile fabrication of nanoscale sol--gel bioactive glass particles for efficient bone tissue regeneration
Authors: Lei, Bo and Chen, Xiaofeng and Han, Xue and Zhou, Jiaan
Journal: Journal of Materials Chemistry (2012): 16906--16913
Aptamer and IR820 Dual-Functionalized Carbon Dots for Targeted Cancer Therapy against Hypoxic Tumors Based on an 808 nm Laser-Triggered Three-Pathway Strategy
Authors: Liu, Rongjun and Zhang, Liangliang and Zhao, Jingjin and Luo, Zhihui and Huang, Yong and Zhao, Shulin
Journal: Advanced Therapeutics : 1800041

References


View all 26 references: Citation Explorer
Requirements, features, and performance of high content screening platforms
Authors: Gough AH, Johnston PA.
Journal: Methods Mol Biol (2007): 41
A pharmaceutical company user's perspective on the potential of high content screening in drug discovery
Authors: Hoffman AF, Garippa RJ.
Journal: Methods Mol Biol (2007): 19
Optimizing the integration of immunoreagents and fluorescent probes for multiplexed high content screening assays
Authors: Giuliano KA., undefined
Journal: Methods Mol Biol (2007): 189
Past, present, and future of high content screening and the field of cellomics
Authors: Taylor DL., undefined
Journal: Methods Mol Biol (2007): 3
High-content fluorescence-based screening for epigenetic modulators
Authors: Martinez ED, Dull AB, Beutler JA, Hager GL.
Journal: Methods Enzymol (2006): 21
Application of laser-scanning fluorescence microplate cytometry in high content screening
Authors: Bowen WP, Wylie PG.
Journal: Assay Drug Dev Technol (2006): 209
High-content screening of known G protein-coupled receptors by arrestin translocation
Authors: Hudson CC, Oakley RH, Sjaastad MD, Loomis CR.
Journal: Methods Enzymol (2006): 63
Evaluation of a high-content screening fluorescence-based assay analyzing the pharmacological modulation of lipid homeostasis in human macrophages
Authors: Werner T, Liebisch G, Gr and l M, Schmitz G.
Journal: Cytometry A (2006): 200
Automated high content screening for phosphoinositide 3 kinase inhibition using an AKT 1 redistribution assay
Authors: Wolff M, Haasen D, Merk S, Kroner M, Maier U, Bordel S, Wiedenmann J, Nienhaus GU, Valler M, Heilker R.
Journal: Comb Chem High Throughput Screen (2006): 339
High concordance of drug-induced human hepatotoxicity with in vitro cytotoxicity measured in a novel cell-based model using high content screening
Authors: O'Brien P J, Irwin W, Diaz D, Howard-Cofield E, Krejsa CM, Slaughter MR, Gao B, Kaludercic N, Angeline A, Bernardi P, Brain P, Hougham C.
Journal: Arch Toxicol (2006): 580
