Metal Fluor™ Zn-520, Potassium Salt

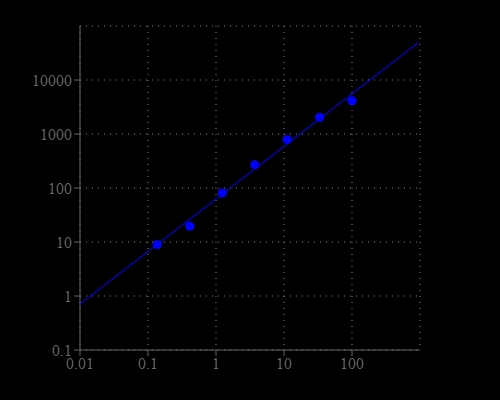

Zinc Chloride dose response was measured on a 96-well black plate with the Amplite® Fluorimetric Zinc Quantitation Kit.
Zinc Chloride dose response was measured on a 96-well black plate with the Amplite® Fluorimetric Zinc Quantitation Kit.
Zinc Chloride dose response was measured on a 96-well black plate with the Amplite® Fluorimetric Zinc Quantitation Kit.
Ordering information
Price
Catalog Number
Unit Size
Quantity
Add to cart
Additional ordering information
Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
ShippingStandard overnight for United States, inquire for international
Request quotation
Physical properties
Molecular weight607.69
SolventWater
Spectral properties
Excitation (nm)493
Emission (nm)516
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC12352200

OverviewpdfSDSpdfProtocol


Molecular weight
607.69
Excitation (nm)
493
Emission (nm)
516
Metal Fluor™ Zn-520 is designed for detection of higher zinc ion concentrations that are present in synaptic vesicles and released in response to electrical stimulation or excitotoxic agonists (0.05-50 µM) with minimal interfering calcium sensitivity. Metal Fluor™ Zn-520 has shown great fluorescence enhancement upon binding zinc ion (>250 folds). This cell-impermeant zinc ion indicator is useful for detecting extracellular zinc ion.

Calculators


Common stock solution preparation

Table 1. Volume of Water needed to reconstitute specific mass of Metal Fluor™ Zn-520, Potassium Salt to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM164.558 µL822.788 µL1.646 mL8.228 mL16.456 mL
5 mM32.912 µL164.558 µL329.115 µL1.646 mL3.291 mL
10 mM16.456 µL82.279 µL164.558 µL822.788 µL1.646 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Excitation (nm)493
Emission (nm)516

Images


Citations


View all 1 citations: Citation Explorer
Mitochondrial Dysfunction and Antioxidation Dyshomeostasis-Enhanced Tumor Starvation Synergistic Chemotherapy Achieved using a Metal--Organic Framework-Based Nano-Enzyme Reactor
Authors: Huo, Taotao and Leilei chen, and Nie, Huifang and Li, Wenshuai and Lin, Chenteng and Akhtar, Muhammad and Huang, Rongqin
Journal: ACS Applied Materials \& Interfaces (2022)

References


View all 8 references: Citation Explorer
Zinquin identifies subcellular compartmentalization of zinc in cortical neurons. Relation to the trafficking of zinc and the mitochondrial compartment
Authors: Colvin RA, Laskowski M, Fontaine CP.
Journal: Brain Res (2006): 1
S-Nitroso compounds interfere with zinc probing by Zinquin
Authors: Jansen S, Arning J, Dulcks T, Beyersmann D.
Journal: Anal Biochem (2004): 145
Coordination and fluorescence of the intracellular Zn2+ probe [2-methyl-8-(4-toluenesulfonamido)-6-quinolyloxy]acetic acid (Zinquin A) in ternary Zn2+ complexes
Authors: Hendrickson KM, Geue JP, Wyness O, Lincoln SF, Ward AD.
Journal: J Am Chem Soc (2003): 3889
Fluorescent detection of Zn(2+)-rich vesicles with Zinquin: mechanism of action in lipid environments
Authors: Snitsarev V, Budde T, Stricker TP, Cox JM, Krupa DJ, Geng L, Kay AR.
Journal: Biophys J (2001): 1538
The synthesis and fluorescent properties of analogues of the zinc(II) specific fluorophore zinquin ester
Authors: Kimber MC, Mahadevan IB, Lincoln SF, Ward AD, Tiekink ER.
Journal: J Org Chem (2000): 8204
Changes in distribution of labile zinc in mouse spermatozoa during maturation in the epididymis assessed by the fluorophore Zinquin
Authors: Zalewski PD, Jian X, Soon LL, Breed WG, Seamark RF, Lincoln SF, Ward AD, Sun FZ.
Journal: Reprod Fertil Dev (1996): 1097
Measurement of zinc in hepatocytes by using a fluorescent probe, zinquin: relationship to metallothionein and intracellular zinc
Authors: Coyle P, Zalewski PD, Philcox JC, Forbes IJ, Ward AD, Lincoln SF, Mahadevan I, Rofe AM.
Journal: Biochem J (1994): 781
Flux of intracellular labile zinc during apoptosis (gene-directed cell death) revealed by a specific chemical probe, Zinquin
Authors: Zalewski PD, Forbes IJ, Seamark RF, Borlinghaus R, Betts WH, Lincoln SF, Ward AD.
Journal: Chem Biol (1994): 153
