MitoLite™ NIR FX690

Ordering information

Price
Catalog Number
Unit Size
Quantity

Add to cart

Additional ordering information

Telephone	1-800-990-8053
Fax	1-800-609-2943
Email	sales@aatbio.com
International	See distributors
Bulk request	Inquire
Custom size	Inquire
Shipping	Standard overnight for United States, inquire for international

Physical properties

Molecular weight	N/A
Solvent	DMSO

Spectral properties

Excitation (nm)	658
Emission (nm)	691

Storage, safety and handling

H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
Storage	Freeze (< -15 °C); Minimize light exposure
UNSPSC	12352200

Overview SDS Protocol

Molecular weight

N/A

Excitation (nm)

658

Emission (nm)

691

Mitochondria are membrane-enclosed organelles found in most eukaryotic cells. Mitochondria generate most of the cellular supply of ATP. In addition to supplying cellular energy, mitochondria are involved in a range of other processes, such as signaling, cellular differentiation, cell death, as well as the control of the cell cycle and cell growth. Mitochondria have been implicated in several human diseases, including mitochondrial disorders and cardiac dysfunction, and may play a role in the aging process. Mitolite™ NIR FX690 is designed to label mitochondria in live cells with near infrared fluorescence. It selectively accumulates in mitochondria probably via the mitochondrial membrane potential gradient. It is an ideal choice for imaging live cells and tissues where low background, and high signal-to-noise ratio is critical. This fluorescent mitochondrial indicator is retained in mitochondria for a long time since it carries a cell-retaining group. This key feature significantly increases the staining efficiency. It is useful for a variety of studies, including cell adhesion, chemotaxis, multidrug resistance, cell viability, apoptosis and cytotoxicity.

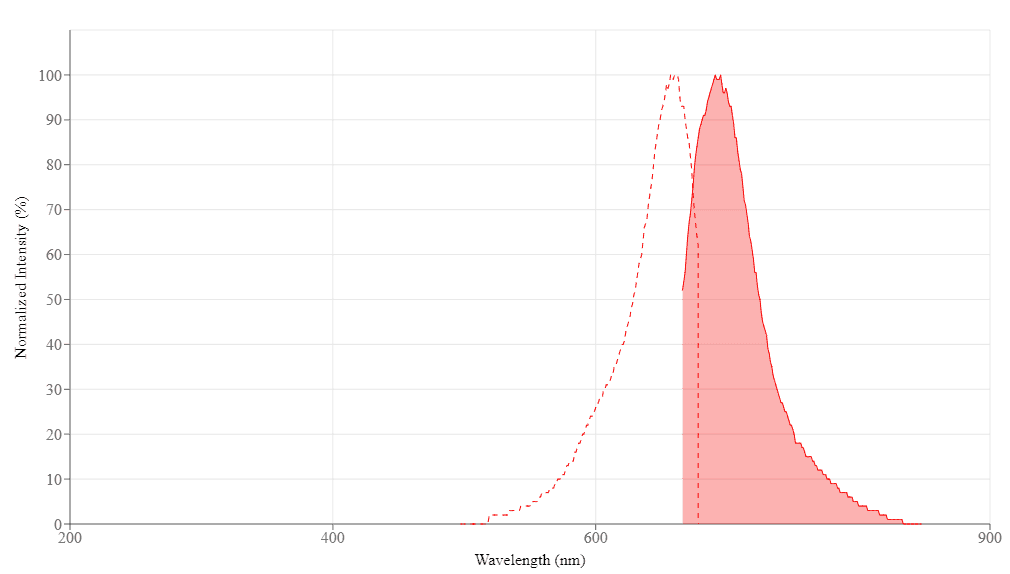

Spectrum

Open in Advanced Spectrum Viewer

Spectral properties

Excitation (nm)	658
Emission (nm)	691

Images

Figure 1. Fluorescence images of HeLa cells stained with MitoLite™ NIR FX690 using fluorescence microscope with a Cy5 filter set (Red). After fixation, the cells were labeled with F-actin dye iFluor® 488-Phalloidin (Cat#23115, Green) and counterstained with Nuclear Blue™ DCS1 (Cat#17548, Blue).

Citations

View all 4 citations: Citation Explorer

Co-delivery of VP-16 and Bcl-2-targeted antisense on PEG-grafted oMWCNTs for synergistic in vitro anti-cancer effects in non-small and small cell lung cancer
Authors: Heger, Zbynek and Polanska, Hana and Krizkova, Sona and Balvan, Jan and Raudenska, Martina and Dostalova, Simona and Moulick, Amitava and Masarik, Michal and Adam, Vojtech
Journal: Colloids and Surfaces B: Biointerfaces (2017): 131--140

Inhibition of heme oxygenase-1 enhances the chemosensitivity of laryngeal squamous cell cancer Hep-2 cells to cisplatin
Authors: Lv, Xin and Song, Dong-mei and Niu, Ying-hao and Wang, Bao-shan
Journal: Apoptosis (2016): 489--501

Effective two-photon excited photodynamic therapy of xenograft tumors sensitized by water-soluble bis (arylidene) cycloalkanone photosensitizers
Authors: Zou, Qianli and Zhao, Hongyou and Zhao, Yuxia and Fang, Yanyan and Chen, Defu and Ren, Jie and Wang, Xiaopu and Wang, Ying and Gu, Ying and Wu, Feipeng
Journal: Journal of medicinal chemistry (2015): 7949--7958

Melatonin promotes adipogenesis and mitochondrial biogenesis in 3T3-L1 preadipocytes
Authors: Kato, Hisashi and Tanaka, Goki and Masuda, Shinya and Ogasawara, Junetsu and Sakurai, Takuya and Kizaki, Takako and Ohno, Hideki and Izawa, Tetsuya
Journal: Journal of Pineal Research (2015): 267--275

References

View all 70 references: Citation Explorer

Quantification of carbonylated proteins in rat skeletal muscle mitochondria using capillary sieving electrophoresis with laser-induced fluorescence detection
Authors: Feng J, Arriaga EA.
Journal: Electrophoresis (2008): 475

Calcium, mitochondria and apoptosis studied by fluorescence measurements
Authors: Roy SS, Hajnoczky G.
Journal: Methods (2008): 213

Fluorescence imaging of mitochondria in yeast
Authors: Swayne TC, Gay AC, Pon LA.
Journal: Methods Mol Biol (2007): 433

A fluorescence assay for peptide translocation into mitochondria
Authors: Martinez-Caballero S, Peixoto PM, Kinnally KW, Campo ML.
Journal: Anal Biochem (2007): 76

Fast electrophoretic analysis of individual mitochondria using microchip capillary electrophoresis with laser induced fluorescence detection
Authors: Duffy CF, MacCraith B, Diamond D, O'Kennedy R, Arriaga EA.
Journal: Lab Chip (2006): 1007

Discrimination of depolarized from polarized mitochondria by confocal fluorescence resonance energy transfer
Authors: Elmore SP, Nishimura Y, Qian T, Herman B, Lemasters JJ.
Journal: Arch Biochem Biophys (2004): 145

A fluorescence-based technique for screening compounds that protect against damage to brain mitochondria
Authors: Kristian T, Fiskum G.
Journal: Brain Res Brain Res Protoc (2004): 176

Determination of the cardiolipin content of individual mitochondria by capillary electrophoresis with laser-induced fluorescence detection
Authors: Fuller KM, Duffy CF, Arriaga EA.
Journal: Electrophoresis (2002): 1571

Fluorescence imaging of metabolic responses in single mitochondria
Authors: Nakayama S, Sakuyama T, Mitaku S, Ohta Y.
Journal: Biochem Biophys Res Commun (2002): 23

Visualisation of mitochondria in living neurons with single- and two-photon fluorescence laser microscopy
Authors: Dedov VN, Cox GC, Roufogalis BD.
Journal: Micron (2001): 653
