NED Dye qPCR Calibration Solution *10,000X*
Ordering information
Price | |
Catalog Number | |
Unit Size | |
Quantity |
Additional ordering information
Telephone | 1-800-990-8053 |
Fax | 1-800-609-2943 |
sales@aatbio.com | |
International | See distributors |
Bulk request | Inquire |
Custom size | Inquire |
Shipping | Standard overnight for United States, inquire for international |
Physical properties
Molecular weight | N/A |
Solvent | Water |
Spectral properties
Absorbance (nm) | 544 |
Extinction coefficient (cm -1 M -1) | 740001 |
Excitation (nm) | 545 |
Emission (nm) | 567 |
Storage, safety and handling
H-phrase | H303, H313, H333 |
Hazard symbol | XN |
Intended use | Research Use Only (RUO) |
R-phrase | R20, R21, R22 |
Storage | Freeze (< -15 °C); Minimize light exposure |
Overview | SDSProtocol |
See also: Real-Time PCR (qPCR)
Molecular weight N/A | Absorbance (nm) 544 | Extinction coefficient (cm -1 M -1) 740001 | Excitation (nm) 545 | Emission (nm) 567 |
Real-time thermal cyclers require calibration to generate a spectral profile for the fluorescence signal. Since instruments can differ in fluorescence detection sensitivity, the concentrations needed to calibrate any dye, such as NED, will depend on the device used. The AAT Bioquest NED dye qPCR Calibration Solution supplied as a 10,000X concentrate is compatible with a wide variety of qPCR instruments, including the ABI7500 Fast, QuantStudio™, and ViiA™ 7 systems. Calibration and verification should be run every six months or as needed. Please refer to the instrument maintenance guide for complete instructions on use.
Example protocol
SAMPLE EXPERIMENTAL PROTOCOL
This generic protocol is suitable for the ABI7500 FAST qPCR instrument. For complete instructions on use, refer to the maintenance guide for your instrument.
Prepare a NED calibration plate:
- Prepare a NED Dye qPCR Calibration working solution by mixing 1 µL of the 10,000X NED Dye qPCR Calibration Solution with 10 mL of nuclease-free water or qPCR buffer. Note the final dye concentration must be optimized based on the calibration requirements for your instrument. Refer to the manufacturer’s maintenance guide for detailed instructions.
- Add 20 µL of the NED Dye qPCR Calibration working solution to all wells of a reaction plate. Note the volume may vary depending on your instrument. Refer to the manufacturer’s maintenance guide for detailed instructions.
- Seal the plate with an optical adhesive cover.
- Centrifuge the plate for 2 minutes at < 1500 rpm.
- Check that the liquid in each well of the plate is at the bottom of the well. If not, centrifuge the plate again at a slightly higher rpm and for a longer period of time.
- For detailed calibration instructions, refer to the maintenance guide for your instrument.

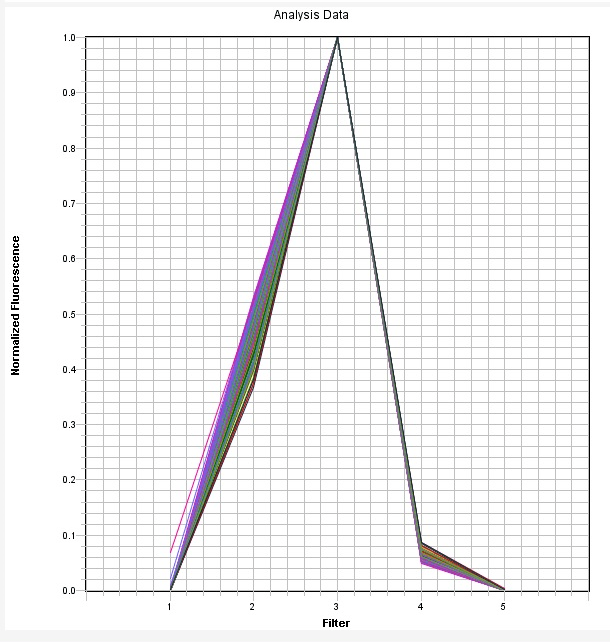

Spectrum
Open in Advanced Spectrum Viewer
Spectral properties
Absorbance (nm) | 544 |
Extinction coefficient (cm -1 M -1) | 740001 |
Excitation (nm) | 545 |
Emission (nm) | 567 |
Product Family
Name | Excitation (nm) | Emission (nm) | Extinction coefficient (cm -1 M -1) |
NED Dye qPCR Calibration Plate *Optimized for ABI7500 Fast 96-Well* | 545 | 567 | 740001 |
VIC Dye qPCR Calibration Solution *10,000X* | 526 | 543 | - |
FAM Dye qPCR Calibration Solution *10,000X* | 493 | 517 | 83000 |
Cy5 Dye qPCR Calibration Solution *10,000X* | 651 | 670 | 2500001 |
ROX Dye qPCR Calibration Solution *10,000X* | 578 | 595 | - |
