PE-iFluor® 610 Tandem

Top) Spectral pattern was generated using a 4-laser spectral cytometer. Spatially offset lasers (355 nm, 405 nm, 488 nm, and 640 nm) were used to create four distinct emission profiles, then, when combined, yielded the overall spectral signature. Bottom) Flow cytometry analysis of whole blood cells stained with PE/iFluor® 610 anti-human CD4 *SK3* conjugate. The fluorescence signal was monitored using an Aurora flow cytometer in the PE/iFluor® 610 specific B6-A channel.

Ordering information

Price
Catalog Number
Unit Size
Quantity

Add to cart

Additional ordering information

Telephone	1-800-990-8053
Fax	1-800-609-2943
Email	sales@aatbio.com
Quotation	Request
International	See distributors
Shipping	Standard overnight for United States, inquire for international

Physical properties

Solvent

Water

Spectral properties

Absorbance (nm)	565
Extinction coefficient (cm ^-1 M ^-1)	1960000
Excitation (nm)	565
Emission (nm)	625

Storage, safety and handling

H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
Storage	Refrigerated (2-8 °C); Minimize light exposure
UNSPSC	12171501

Overview SDS Protocol

Absorbance (nm)

565

Extinction coefficient (cm ^-1 M ^-1)

1960000

Excitation (nm)

565

Emission (nm)

625

PE-iFluor® 610 Tandem is a new color used in flow cytometry. Its primary absorption peak is at 565 nm with emission peak at ~630 nm. It has been validated with a spectral flow cytometer. PE-iFluor® 610 Tandem gives a significantly distinct color compared to the commonly used PE-Texas Red Tandem. AAT Bioquest offer the largest number of colors for conventional and spectral flow cytometry applications, including iFluor®, mFluor™ small organic dyes and a variety of their tandems.

Spectrum

Open in Advanced Spectrum Viewer

Spectral properties

Absorbance (nm)	565
Extinction coefficient (cm ^-1 M ^-1)	1960000
Excitation (nm)	565
Emission (nm)	625

Product Family

Name	Excitation (nm)	Emission (nm)	Extinction coefficient (cm ^-1 M ^-1)
PE-iFluor® 700 Tandem	565	708	1960000
PE-iFluor® 647 Tandem	565	666	1960000
PE-iFluor® 750 Tandem	565	778	1960000
PE-iFluor® 710 Tandem	565	747	1960000
PE-iFluor® 594 Tandem	565	606	1960000
PE-iFluor® 660 Tandem	565	695	1960000
PE-iFluor™ 597 Tandem	565	612	-
PE-iFluor™ 740 Tandem	565	767	1960000
PE-iFluor™ 720 Tandem	565	750	1960000
PE-iFluor™ 770 Tandem	565	795	1960000
Show More (1)

Images

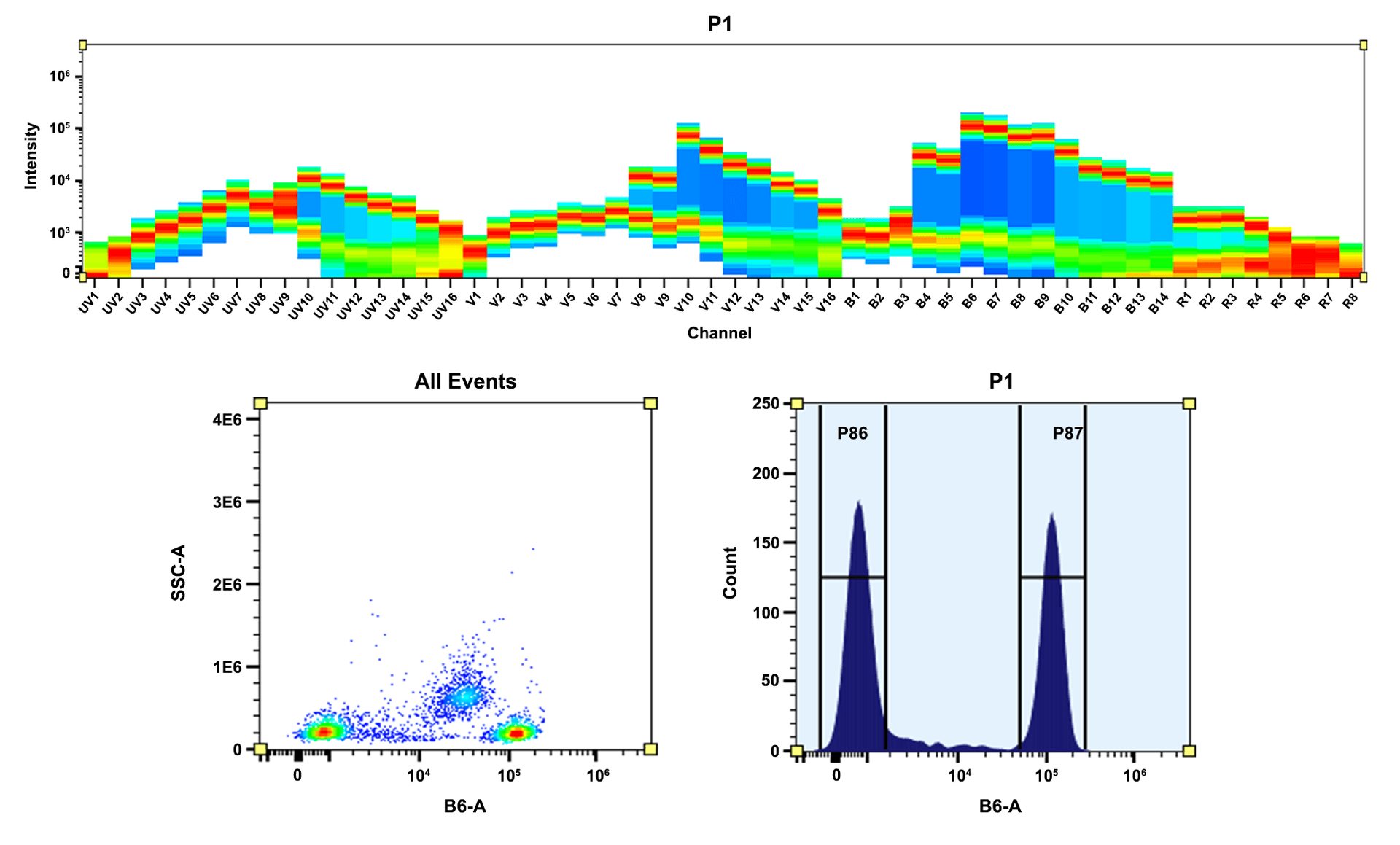

Figure 1. Top) Spectral pattern was generated using a 4-laser spectral cytometer. Spatially offset lasers (355 nm, 405 nm, 488 nm, and 640 nm) were used to create four distinct emission profiles, then, when combined, yielded the overall spectral signature. Bottom) Flow cytometry analysis of whole blood cells stained with PE/iFluor® 610 anti-human CD4 *SK3* conjugate. The fluorescence signal was monitored using an Aurora flow cytometer in the PE/iFluor® 610 specific B6-A channel.

References

View all 8 references: Citation Explorer

Orange juice and its major polyphenol hesperidin consumption do not induce immunomodulation in healthy well-nourished humans.
Authors: Perche, Olivier and Vergnaud-Gauduchon, Juliette and Morand, Christine and Dubray, Claude and Mazur, Andrzej and Vasson, Marie-Paule
Journal: Clinical nutrition (Edinburgh, Scotland) (2014): 130-5

Flow cytometry can diagnose classical hodgkin lymphoma in lymph nodes with high sensitivity and specificity.
Authors: Fromm, Jonathan R and Thomas, Anju and Wood, Brent L
Journal: American journal of clinical pathology (2009): 322-32

Optimization of three- and four-color multiparameter DNA analysis in lymphoma specimens.
Authors: Plander, M and Brockhoff, G and Barlage, S and Schwarz, S and Rothe, G and Knuechel, R
Journal: Cytometry. Part A : the journal of the International Society for Analytical Cytology (2003): 66-74

Multiparameter cytokine-specific affinity matrix assay for the determination of frequencies and phenotype of antigen-reactive T cells.
Authors: Mathioudakis, George and Coder, David and Fefer, Alexander
Journal: Journal of immunological methods (2002): 37-42

Conjugation of fluorochromes to monoclonal antibodies.
Authors: Holmes, K L and Lantz, L M and Russ, W
Journal: Current protocols in cytometry (2001): Unit 4.2

A strategy for multiple immunophenotyping by image cytometry: model studies using latex microbeads labeled with seven streptavidin-bound fluorochromes.
Authors: Gothot, A and Grosdent, J C and Paulus, J M
Journal: Cytometry (1996): 214-25

CUBIC: a three-dimensional colored projection of Consort 30 generated trivariate flow cytometric data.
Authors: Greimers, R and Rongy, A M and Schaaf-Lafontaine, N and Boniver, J
Journal: Cytometry (1991): 570-8

Concomitant delineation of surface Ig, B-cell differentiation antigens, and HLADR on lymphoid proliferations using three-color immunocytometry.
Authors: Segal, G H and Edinger, M G and Owen, M and McNealis, M and Lopez, P and Perkins, A and Linden, M D and Fishleder, A J and Stoler, M H and Tubbs, R R
Journal: Cytometry (1991): 350-9
