PE-iFluor® 710 Tandem

Flow cytometry analysis of PBMC stained with PE-iFluor® 710 anti-human CD4 *SK3* conjugate. The fluorescence signal was monitored using an Aurora flow cytometer in the PE-iFluor® 710 specific B12-A channel.

The fluorescence intensity of PE-iFluor® 710 anti-human CD4 *SK3* conjugate at different concentrations in the range of 0.03125 to 0.5 µg. Results showed that the fluorescence intensity of the CD conjugates remained nearly consistent.

Ordering information

Price
Catalog Number
Unit Size
Quantity

Add to cart

Additional ordering information

Telephone	1-800-990-8053
Fax	1-800-609-2943
Email	sales@aatbio.com
Quotation	Request
International	See distributors
Shipping	Standard overnight for United States, inquire for international

Physical properties

Solvent

Water

Spectral properties

Absorbance (nm)	566
Extinction coefficient (cm ^-1 M ^-1)	1960000
Excitation (nm)	565
Emission (nm)	747

Storage, safety and handling

H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
Storage	Refrigerated (2-8 °C); Minimize light exposure
UNSPSC	12171501

Overview SDS Protocol

Absorbance (nm)

566

Extinction coefficient (cm ^-1 M ^-1)

1960000

Excitation (nm)

565

Emission (nm)

747

PE-iFluor® 710 Tandem is a new color used in flow cytometry. Its primary absorption peak is at 565 nm with emission peak at ~740 nm. It has been validated with a spectral flow cytometer. PE-iFluor® 710 Tandem gives a significantly improved staining index than the corresponding PE-Alexa Fluor™ 700 Tandem. It is optimized to provide a new unique color for spectral flow cytometry. AAT Bioquest offer the largest number of colors for conventional and spectral flow cytometry applications, including iFluor®, mFluor™ small organic dyes and a variety of their tandems.

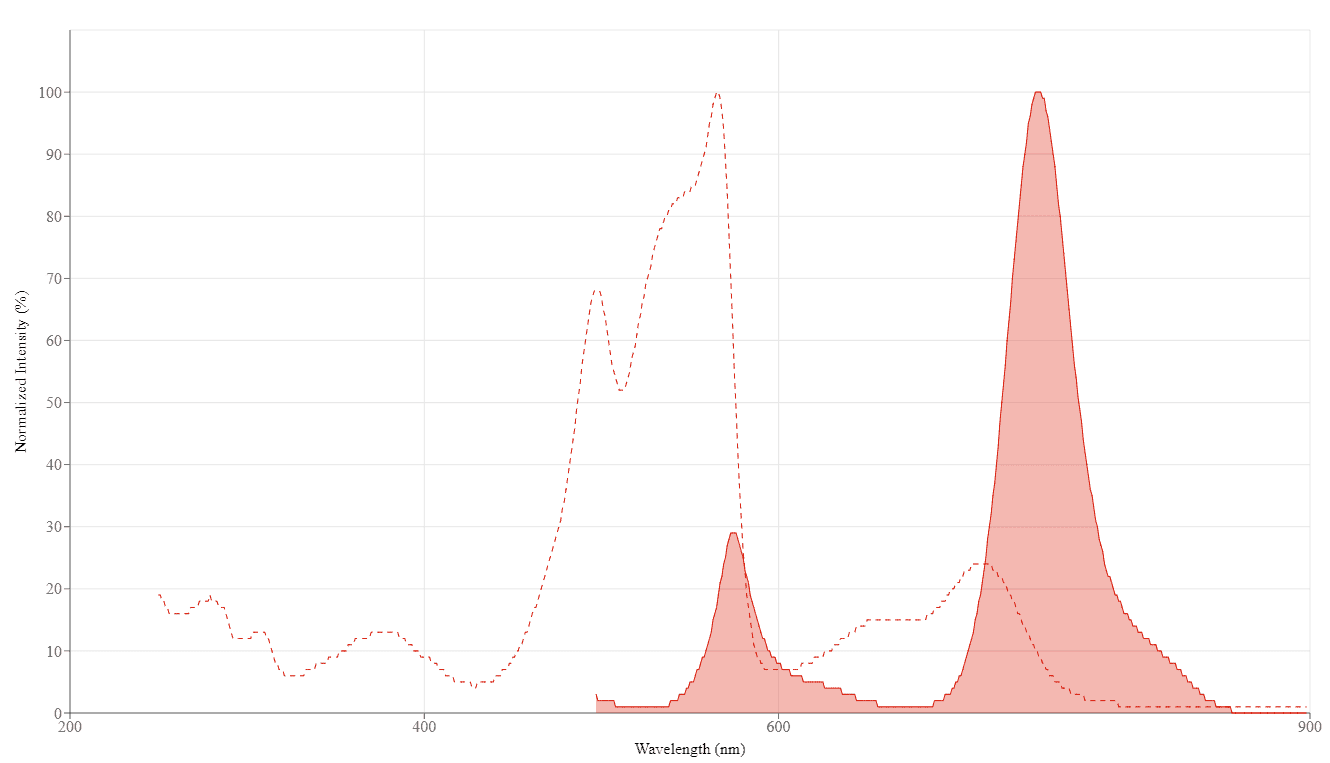

Spectrum

Open in Advanced Spectrum Viewer

Spectral properties

Absorbance (nm)	566
Extinction coefficient (cm ^-1 M ^-1)	1960000
Excitation (nm)	565
Emission (nm)	747

Product Family

Name	Excitation (nm)	Emission (nm)	Extinction coefficient (cm ^-1 M ^-1)
PE-iFluor® 700 Tandem	565	708	1960000
PE-iFluor® 610 Tandem	565	625	1960000
PE-iFluor® 647 Tandem	565	666	1960000
PE-iFluor® 750 Tandem	565	778	1960000
PE-iFluor® 594 Tandem	565	606	1960000
PE-iFluor® 660 Tandem	565	695	1960000
PE-iFluor™ 597 Tandem	565	612	-
PE-iFluor™ 740 Tandem	565	767	1960000
PE-iFluor™ 720 Tandem	565	750	1960000
PE-iFluor™ 770 Tandem	565	795	1960000
APC-iFluor® 710 Tandem	651	747	700000
Show More (2)

Images

Figure 1. Flow cytometry analysis of PBMC stained with PE-iFluor® 710 anti-human CD4 *SK3* conjugate. The fluorescence signal was monitored using an Aurora flow cytometer in the PE-iFluor® 710 specific B12-A channel.

Figure 2. The fluorescence intensity of PE-iFluor® 710 anti-human CD4 *SK3* conjugate at different concentrations in the range of 0.03125 to 0.5 µg. Results showed that the fluorescence intensity of the CD conjugates remained nearly consistent.

References

View all 10 references: Citation Explorer

A job for quantum dots: use of a smartphone and 3D-printed accessory for all-in-one excitation and imaging of photoluminescence.
Authors: Petryayeva, Eleonora and Algar, W Russ
Journal: Analytical and bioanalytical chemistry (2016): 2913-25

Light tolerance of R-phycoerythrin and a tandem conjugate observed by single molecule recrossing events.
Authors: Burrows, Sean M and Patel, Payal and Pappas, Dimitri
Journal: Applied spectroscopy (2009): 709-15

Flow cytometric immunophenotyping including Bcl-2 detection on fine needle aspirates in the diagnosis of reactive lymphadenopathy and non-Hodgkin's lymphoma.
Authors: Laane, Edward and Tani, Edneia and Björklund, Elisabet and Elmberger, Göran and Everaus, Hele and Skoog, Lambert and Porwit-MacDonald, Anna
Journal: Cytometry. Part B, Clinical cytometry (2005): 34-42

Validation of a flow cytometric assay detecting in vitro basophil activation for the diagnosis of muscle relaxant allergy.
Authors: Abuaf, N and Rajoely, B and Ghazouani, E and Levy, D A and Pecquet, C and Chabane, H and Leynadier, F
Journal: The Journal of allergy and clinical immunology (1999): 411-8

A strategy for multiple immunophenotyping by image cytometry: model studies using latex microbeads labeled with seven streptavidin-bound fluorochromes.
Authors: Gothot, A and Grosdent, J C and Paulus, J M
Journal: Cytometry (1996): 214-25

Single-laser three-color immunolabeling of a histological section by laser scanning microscopy: application to senile plaque-related structures in post-mortem human brain tissue.
Authors: Uchihara, T and Kondo, H and Akiyama, H and Ikeda, K
Journal: The journal of histochemistry and cytochemistry : official journal of the Histochemistry Society (1995): 103-6

Application of a flow cytometric method using autofluorescence and a tandem fluorescent dye to analyze human alveolar macrophage surface markers.
Authors: Viksman, M Y and Liu, M C and Schleimer, R P and Bochner, B S
Journal: Journal of immunological methods (1994): 17-24

CUBIC: a three-dimensional colored projection of Consort 30 generated trivariate flow cytometric data.
Authors: Greimers, R and Rongy, A M and Schaaf-Lafontaine, N and Boniver, J
Journal: Cytometry (1991): 570-8

Single laser flow cytometric detection of lymphocytes binding three antibodies labelled with fluorescein, phycoerythrin and a novel tandem fluorochrome conjugate.
Authors: Festin, R and Björkland, A and Tötterman, T H
Journal: Journal of immunological methods (1990): 69-78

R-phycoerythrin-cyanine 5 tandem discerns CD72 polymorphism.
Authors: Doucet, M and Soussi, N and Crain-Denoyelle, A M and Gendron, M C and Sanchez, P
Journal: Immunogenetics : 307-14
