Protonex™ Green 500-E. coli Conjugate
The Protonex™ Green 500–E. coli Conjugate is a ready-to-use, pH-sensitive fluorescent tool for monitoring phagocytosis and intracellular acidification processes in live cells.
  • pH-activated Fluorescence: Non-fluorescent at neutral pH and becomes strongly fluorescent in acidic compartments such as phagosomes and phagolysosomes
  • E. coli-based Targeting: E. coli particles serve as biologically relevant substrates that mimic bacterial infection and are efficiently recognized by phagocytes
  • Multipurpose Reagent: Suitable for incorporation into custom assay workflows for microscopy, flow cytometry, or plate-based readouts

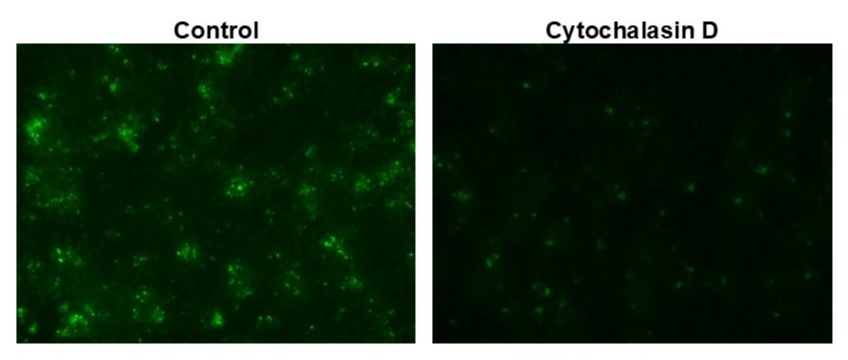

Examination of phagocytosis in RAW 264.7 cells using Protonex™ Green 500-E. coli Conjugate (Cat #21174). RAW 264.7 cells were incubated with Cytochalasin D (to inhibit phagocytosis) followed by incubation with Protonex™ Green 500-E. coli Conjugate for 60 minutes. The images were acquired using Keyence fluorescence microscope.
Examination of phagocytosis in RAW 264.7 cells using Protonex™ Green 500-E. coli Conjugate (Cat #21174). RAW 264.7 cells were incubated with Cytochalasin D (to inhibit phagocytosis) followed by incubation with Protonex™ Green 500-E. coli Conjugate for 60 minutes. The images were acquired using Keyence fluorescence microscope.
CatalogSize
Price
Quantity
21174100 Tests
Price

Physical properties

Solvent
Spectral properties

Extinction coefficient (cm -1 M -1)
4000
Excitation (nm)445
Emission (nm)503
Storage, safety and handling

H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageRefrigerated (2-8 °C); Minimize light exposure
Instrument settings

Fluorescence microscope
ExcitationFITC
EmissionFITC
Recommended plateBlack wall/clear bottom

Fluorescence microplate reader
Excitation460nm
Emission530nm
Recommended plateBlack wall/clear bottom
Instrument specification(s)Bottom read mode
