ReadiUse™ Preactivated APC-Cy5.5 Tandem

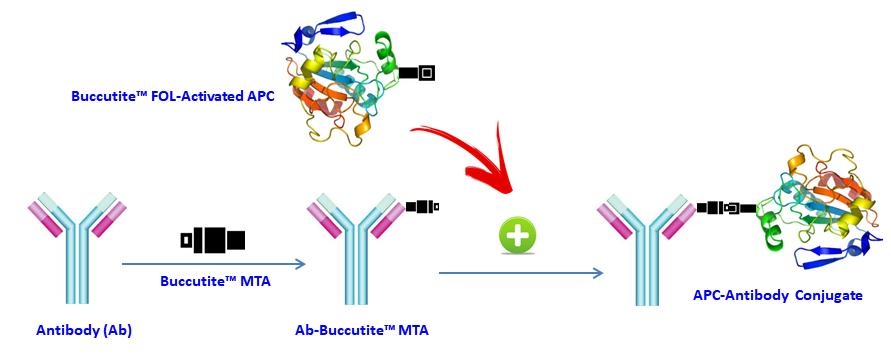

Our preactivated APC-Cy5.5 was premodified with our Buccutite™ FOL (provided). Your antibody (or other proteins) is modified with our Buccutite™ MTA (provided as free sample) to give MTA-modified protein (such as antibody). The MTA-modified protein readily reacts with FOL-modified APC-Cy5.5 (provided) to give the desired APC-Cy5.5-antibody conjugate in much higher yield than the SMCC chemistry. In addition our preactivated APC-Cy5.5 reacts with MTA-modified biopolymers at much lower concentrations than the SMCC chemistry.
Our preactivated APC-Cy5.5 was premodified with our Buccutite™ FOL (provided). Your antibody (or other proteins) is modified with our Buccutite™ MTA (provided as free sample) to give MTA-modified protein (such as antibody). The MTA-modified protein readily reacts with FOL-modified APC-Cy5.5 (provided) to give the desired APC-Cy5.5-antibody conjugate in much higher yield than the SMCC chemistry. In addition our preactivated APC-Cy5.5 reacts with MTA-modified biopolymers at much lower concentrations than the SMCC chemistry.
Ordering information
Price ()
Catalog Number2586
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Physical properties
Molecular weight105000
Spectral properties
Extinction coefficient (cm -1 M -1)700000
Excitation (nm)656
Emission (nm)700
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
UNSPSC12171501
Related products
ReadiUse™ Preactivated APC-iFluor® 700 Tandem
ReadiUse™ Preactivated APC-iFluor® 750 Tandem
ReadiUse™ Preactivated PE-iFluor® 647 Tandem
ReadiUse™ Preactivated PE-iFluor® 750 Tandem
ReadiUse™ ABTS Substrate Solution *Optimized for ELISA Assays with HRP Conjugates*
ReadiUse™ TMB Substrate Solution *Optimized for ELISA Assays with HRP Conjugates*
ReadiUse™ hydrogen peroxide solution *50 mM calibrated and stabilized solution*
ReadiUse™ Preactivated HRP NHS ester
ReadiUse™ NADPH Regenerating Kit
ReadiUse™ NADP Regenerating Kit
ReadiUse™ TCA Deproteinization Sample Preparation Kit
ReadiUse™ microscope mounting solution
ReadiUse™ 4% formaldehyde fixation solution
ReadiUse™ mammalian cell lysis buffer *5X*
ReadiUse™ probenecid, sodium salt *Water-soluble*
ReadiUse™ probenecid *25 mM stabilized aqueous solution*
ReadiUse™ CFSE [5-(and 6)-Carboxyfluorescein diacetate, succinimidyl ester] *CAS 150347-59-4*
ReadiUse™ Preactivated PE
ReadiUse™ Preactivated APC
ReadiUse™ Preactivated PE-Cy5 Tandem
ReadiUse™ Preactivated PE-Cy7 Tandem
ReadiUse™ Preactivated PE-Texas Red Tandem
ReadiUse™ Preactivated APC-Cy7 Tandem
ReadiUse™ TCEP removal solution
ReadiUse™ WST-8 *50 mM aqueous solution*
ReadiUse™ Rapid Luminometric ATP Assay Kit
ReadiUse™ PE [R-Phycoerythrin] *Ammonium Sulfate-Free*
ReadiUse™ CL-APC [Cross linked-Allophycocyanin] *Ammonium Sulfate-Free*
ReadiUse™ Preactivated PE-iFluor® 594 Tandem
ReadiUse™ Cell Detaching Buffer
ReadiUse™ DRAQ5 Staining Solution *5 mM in Water*
ReadiUse™ Staurosporine * 1 mM DMSO stock solution*
ReadiUse™ Bio-Gel P-6 spin column
ReadiUse™ bacterial cell lysis buffer *5X*
ReadiUse™ 10% Triton X-100 *Hydrogen Peroxide-and Carbonyl-Free*
ReadiUse™ Preactivated PE-iFluor® 700 Tandem
ReadiUse™ dNTP Mix *10 mM*
ReadiUse™ Viral RNA Lysis Buffer
ReadiUse™ Tyramide (TSA)/Styramide (PSA) Optimized Reaction Buffer
ReadiUse™ Preactivated PerCP
ReadiUse™ Preactivated PE-iFluor® 660 Tandem
ReadiUse™ 10KD Spin Filter
ReadiUse™ Preactivated APC-iFluor® 800 Tandem
ReadiUse™ 1 Kb Plus DNA Ladder
ReadiUse™ GeneRuler 1 kb DNA Ladder
ReadiUse™ 100 bp DNA Ladder
ReadiUse™ ddNTP Terminator Mix *10 mM*
ReadiUse™ dNTP Mix Set *10 mM PCR Grade*
ReadiUse™ Preactivated HRP maleimide
ReadiUse™ Stayright™ Purple *HRP Chromogen Premixed with Hydrogen Peroxide*
ReadiUse™ Disposable PD-10 Desalting Column
ReadiUse™ Preactivated APC Maleimide [Activated Allophycocyanin]
ReadiUse™ Preactivated PE Maleimide [Activated R-Phycoerythrin]
ReadiUse™ 6-Color Human TBNK Antibody Kit *Dry Reagent Format*
ReadiUse™ MTS Reagent *50 mM aqueous solution*
ReadiUse™ Preactivated PE-Texas Red Maleimide
ReadiUse™ Preactivated PE-Cy5 Maleimide
ReadiUse™ Preactivated PE-Cy5.5 Maleimide
ReadiUse™ Preactivated PE-Cy7 Maleimide
ReadiUse™ Preactivated APC-AF700 Maleimide
ReadiUse™ Preactivated APC-Cy7 Maleimide
ReadiUse™ Preactivated PerCP Maleimide
ReadiUse™ Preactivated PerCP-Cy5.5 Maleimide
ReadiUse™ Preactivated PerCP-Cy7 Maleimide
Show More (64)

OverviewpdfSDSpdfProtocol


Molecular weight
105000
Extinction coefficient (cm -1 M -1)
700000
Excitation (nm)
656
Emission (nm)
700
Allophycocyanin (APC) is a phycobiliprotein isolated from Spirulina sp., a blue-green alga. Like other phycobiliproteins, APC is fluorescent, with an extremely high absorptivity and a high quantum efficiency. It is a protein which can be easily linked to antibodies and other proteins by conventional protein cross-linking techniques without altering its spectral characteristics. APC-Cy5.5 is a popular color used in flow cytometry. Its primary absorption peak is at 651 nm with emission peak at~700 nm. AAT Bioquest offers this preactivated APC-Cy5.5 to facilitate the APC-Cy5.5 tandem conjugations to antibodies and other proteins such as streptavidin and other secondary reagents. Our preactivated APC-Cy5.5 tandem is ready to conjugate, giving much higher yield than the conventionally tedious SMCC-based conjugation chemistry. In addition, our preactivated APC-Cy5.5 tandem is conjugated to a protein via its amino group that is abundant in proteins while SMCC chemistry targets the thiol group that has to be regenerated by the reduction of antibodies.

Components


A: ReadiUse™ Preactivated APC-Cy5.5 Tandem1 vial (1 mg)
B: Buccutite™ MTA1 vial (100 µg)
C: Spin Desalting ColumnNot Included

Example protocol


SAMPLE EXPERIMENTAL PROTOCOL

Preparation of pre-activated antibody with Buccutite™ MTA
  1. Reconstitute Buccutite™ MTA in DMSO at ~10 mg/mL.
    Note     Please store unused Buccutite™ MTA at -20 °C and could be used up to two freeze and thaw cycles.
  2. Prepare target antibody (Ab) in pH = 8.5 - 9.0 buffer at concentration above 1 mg/mL.
  3. Add Buccutite™ MTA to Ab solution at the ratio of 8 - 10 µg Buccutite™ MTA/100 µg Ab.
  4. Mix well and react at room temperature for 60 minutes, rotating during the reaction.
  5. Purify the reaction mixture with desalting column to remove unreacted Buccutite™ MTA and exchange buffer to PBS or buffer of your choice.
  6. Collect the Buccutite™ MTA-activated Ab, and estimate the concentration by 70% yield of the original starting amount.

Conjugation with pre-activated APC-Cy5.5
  1. Reconstitute pre-activated APC-Cy5.5 in 100 µL ddH2O to 10 mg/mL.
    Note     Reconstituted pre-activated APC-Cy5.5 could be stored at 4 °C for one month, kept from light.
  2. Add APC-Cy5.5 directly to MTA-activated target Ab solution at the ratio of 130 µg APC-Cy5.5/100 µg MTA-activated Ab.
  3. Rotate the mixture for 60 minutes at room temperature.
  4. The Ab/APC-Cy5.5 conjugates are now ready to use.
    Note      The antibody conjugate should be stored at > 0.5 mg/mL in the presence of a carrier protein (e.g., 0.1% bovine serum albumin) and 0.02% - 0.05% sodium azide. The Ab/APC-Cy5.5 conjugates solution could be stored at 4 °C for up to two months, and kept from light.
  5. (Optional) Ab/APC-Cy5.5 conjugates could be further purified through size exclusion chromatography to get best performance.

Calculators


Common stock solution preparation

Table 1. Volume of appropriate solvent needed to reconstitute specific mass of ReadiUse™ Preactivated APC-Cy5.5 Tandem to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM952.381 nL4.762 µL9.524 µL47.619 µL95.238 µL
5 mM190.476 nL952.381 nL1.905 µL9.524 µL19.048 µL
10 mM95.238 nL476.19 nL952.381 nL4.762 µL9.524 µL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Extinction coefficient (cm -1 M -1)700000
Excitation (nm)656
Emission (nm)700

Product family


NameExcitation (nm)Emission (nm)Extinction coefficient (cm -1 M -1)
ReadiUse™ Preactivated PE-Cy5.5 Tandem5666711960000
ReadiUse™ Preactivated PerCP-Cy5.5 Tandem489679350000
ReadiUse™ Preactivated APC-Cy5.5 Maleimide656700700000
