ReadiUse™ Preactivated PE-iFluor® 660 Tandem

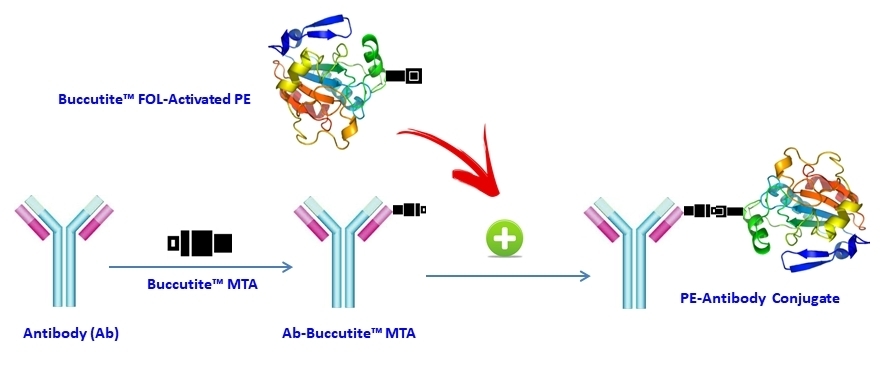

Our preactivated PE-iFluor® 660 Tandem was premodified with our Buccutite™ FOL (provided). Your antibody (or other proteins) is modified with our Buccutite™ MTA (provided as free sample) to give MTA-modified protein (such as antibody). The MTA-modified protein readily reacts with FOL-modified PE-iFluor® 660 Tandem (provided) to give the desired PE-iFluor® 660 Tandem-antibody conjugate in much higher yield than the SMCC chemistry. In addition our preactivated PE-iFluor® 660 Tandem reacts with MTA-modified biopolymers at much lower concentrations than the SMCC chemistry.
Our preactivated PE-iFluor® 660 Tandem was premodified with our Buccutite™ FOL (provided). Your antibody (or other proteins) is modified with our Buccutite™ MTA (provided as free sample) to give MTA-modified protein (such as antibody). The MTA-modified protein readily reacts with FOL-modified PE-iFluor® 660 Tandem (provided) to give the desired PE-iFluor® 660 Tandem-antibody conjugate in much higher yield than the SMCC chemistry. In addition our preactivated PE-iFluor® 660 Tandem reacts with MTA-modified biopolymers at much lower concentrations than the SMCC chemistry.
Ordering information
Price ()
Catalog Number2579
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Spectral properties
Absorbance (nm)566
Extinction coefficient (cm -1 M -1)1960000
Excitation (nm)566
Emission (nm)695
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
UNSPSC12171501
Related products
ReadiUse™ Preactivated APC-iFluor® 700 Tandem
ReadiUse™ Preactivated APC-iFluor® 750 Tandem
ReadiUse™ ABTS Substrate Solution *Optimized for ELISA Assays with HRP Conjugates*
ReadiUse™ TMB Substrate Solution *Optimized for ELISA Assays with HRP Conjugates*
ReadiUse™ hydrogen peroxide solution *50 mM calibrated and stabilized solution*
ReadiUse™ Preactivated HRP NHS ester
ReadiUse™ NADPH Regenerating Kit
ReadiUse™ NADP Regenerating Kit
ReadiUse™ TCA Deproteinization Sample Preparation Kit
ReadiUse™ microscope mounting solution
ReadiUse™ 4% formaldehyde fixation solution
ReadiUse™ mammalian cell lysis buffer *5X*
ReadiUse™ probenecid, sodium salt *Water-soluble*
ReadiUse™ probenecid *25 mM stabilized aqueous solution*
ReadiUse™ CFSE [5-(and 6)-Carboxyfluorescein diacetate, succinimidyl ester] *CAS 150347-59-4*
ReadiUse™ Preactivated PE
ReadiUse™ Preactivated APC
ReadiUse™ Preactivated PE-Cy5 Tandem
ReadiUse™ Preactivated PE-Cy5.5 Tandem
ReadiUse™ Preactivated PE-Cy7 Tandem
ReadiUse™ Preactivated PE-Texas Red Tandem
ReadiUse™ Preactivated APC-Cy5.5 Tandem
ReadiUse™ Preactivated APC-Cy7 Tandem
ReadiUse™ TCEP removal solution
ReadiUse™ WST-8 *50 mM aqueous solution*
ReadiUse™ Rapid Luminometric ATP Assay Kit
ReadiUse™ PE [R-Phycoerythrin] *Ammonium Sulfate-Free*
ReadiUse™ CL-APC [Cross linked-Allophycocyanin] *Ammonium Sulfate-Free*
ReadiUse™ Cell Detaching Buffer
ReadiUse™ DRAQ5 Staining Solution *5 mM in Water*
ReadiUse™ Staurosporine * 1 mM DMSO stock solution*
ReadiUse™ Bio-Gel P-6 spin column
ReadiUse™ bacterial cell lysis buffer *5X*
ReadiUse™ 10% Triton X-100 *Hydrogen Peroxide-and Carbonyl-Free*
ReadiUse™ dNTP Mix *10 mM*
ReadiUse™ Viral RNA Lysis Buffer
ReadiUse™ Tyramide (TSA)/Styramide (PSA) Optimized Reaction Buffer
ReadiUse™ Preactivated PerCP
ReadiUse™ Preactivated PerCP-Cy5.5 Tandem
ReadiUse™ 10KD Spin Filter
ReadiUse™ Preactivated APC-iFluor® 800 Tandem
ReadiUse™ 1 Kb Plus DNA Ladder
ReadiUse™ GeneRuler 1 kb DNA Ladder
ReadiUse™ 100 bp DNA Ladder
ReadiUse™ ddNTP Terminator Mix *10 mM*
ReadiUse™ dNTP Mix Set *10 mM PCR Grade*
ReadiUse™ Preactivated HRP maleimide
ReadiUse™ Stayright™ Purple *HRP Chromogen Premixed with Hydrogen Peroxide*
ReadiUse™ Disposable PD-10 Desalting Column
ReadiUse™ Preactivated APC Maleimide [Activated Allophycocyanin]
ReadiUse™ Preactivated PE Maleimide [Activated R-Phycoerythrin]
ReadiUse™ 6-Color Human TBNK Antibody Kit *Dry Reagent Format*
ReadiUse™ MTS Reagent *50 mM aqueous solution*
ReadiUse™ Preactivated PE-Texas Red Maleimide
ReadiUse™ Preactivated PE-Cy5 Maleimide
ReadiUse™ Preactivated PE-Cy5.5 Maleimide
ReadiUse™ Preactivated PE-Cy7 Maleimide
ReadiUse™ Preactivated APC-AF700 Maleimide
ReadiUse™ Preactivated APC-Cy5.5 Maleimide
ReadiUse™ Preactivated APC-Cy7 Maleimide
ReadiUse™ Preactivated PerCP Maleimide
ReadiUse™ Preactivated PerCP-Cy5.5 Maleimide
ReadiUse™ Preactivated PerCP-Cy7 Maleimide
Show More (63)

OverviewpdfSDSpdfProtocol


Absorbance (nm)
566
Extinction coefficient (cm -1 M -1)
1960000
Excitation (nm)
566
Emission (nm)
695
R-Phycoerythrin (PE) is isolated from red algae. Its primary absorption peak is at 565 nm with secondary peaks at 496 and 545 nm. Our RPE-iFluor® 660 Tandem is an excellent color for multicolor analysis of multiple targets with flow cytometry. It has a unique emission located between the emission Cy5 and that of Cy5.5, providing a new color for spectral flow cytometry. ReadiUse™ Preactivated PE-iFluor® 660 Tandem is an activated PE protein, and can be easily conjugated to antibodies with much higher conjugation yield than the conventional PE.

Components


A: ReadiUse™ Preactivated PE-iFluor® 660 Tandem1 vial (1 mg)
B: Buccutite™ MTA1 vial (100 µg)
C: Spin Desalting ColumnNot Included

Example protocol


AT A GLANCE

Important      PE-iFluor™ 660 Tandem was premodified with our Buccutite™ FOL. Your antibody (or other proteins) is modified with our Buccutite™ MTA to give MTA-modified protein. The MTA-modified protein readily reacts with FOL-modified PE-iFluor™ 660 Tandem (provided) to give the desired PE-iFluor™ 660 Tandem-antibody conjugate.

SAMPLE EXPERIMENTAL PROTOCOL

Preparation of pre-activated Antibody with Buccutite™ MTA
  1. Reconstitute Buccutite™ MTA in DMSO at ~10 mg/mL.
    Note     Store unused MTA at -20 °C; it can be used for up to two freeze and thaw cycles.
  2. Prepare target antibody (Ab) in pH = 8.5 - 9.0 buffer at a concentration above 1 mg/ml.
  3. Add the MTA to Ab solution at the ratio of 8 - 10 µg MTA/100 µg Ab.
  4. Mix well and react at room temperature for 60 minutes, rotating during the reaction.
  5. Purify the reaction mixture with a desalting column to remove any unreacted MTA. Exchange the buffer to PBS or another buffer of your choice.
  6. Collect the MTA-activated Ab. Estimate the concentration by 70% yield of the original starting amount.

Conjugate with Pre-activated PE-iFluor™ 660 Tandem
  1. Reconstitute pre-activated PE-iFluor™ 660 Tandem in 100 µL ddH2O to 10 mg/mL.
    Note     Reconstituted pre-activated PE-iFluor™ 660 Tandem is not stable and can not be stored for more than one month.
  2. Add pre-activated PE-iFluor™ 660 Tandem directly to MTA-activated target Ab solution at the ratio of 300 µg PE-iFluor™ 660 Tandem/100 µg MTA-activated Ab.
  3. Rotate the mixture for 1 - 2 hours at room temperature.
  4. The Ab/PE--iFluor™ 660 Tandem conjugates are now ready to use.
    Note     The antibody conjugate should be stored at >0.5 mg/mL in the presence of a carrier protein (e.g., 0.1% bovine serum albumin) and 0.02-0.05% sodium azide.
    Note     The Ab/PE-iFluor™ 660 Tandem can be stored at 4 °C for two months.
  5. Optional: Ab/PE-iFluor™ 660 Tandem can be further purified through size exclusion chromatography to get better performance.

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Absorbance (nm)566
Extinction coefficient (cm -1 M -1)1960000
Excitation (nm)566
Emission (nm)695

Product family


NameExcitation (nm)Emission (nm)Extinction coefficient (cm -1 M -1)
ReadiUse™ Preactivated PE-iFluor® 647 Tandem5696661960000
ReadiUse™ Preactivated PE-iFluor® 750 Tandem566778-
ReadiUse™ Preactivated PE-iFluor® 594 Tandem5666061960000
ReadiUse™ Preactivated PE-iFluor® 700 Tandem5667081960000
