ReadiUse™ Preactivated PE-Texas Red Maleimide

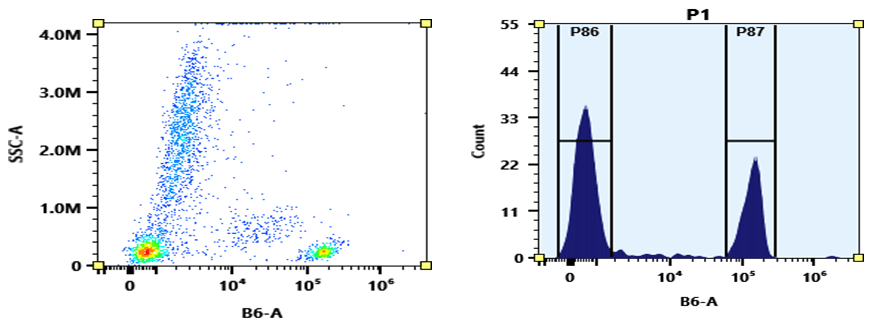

Flow cytometry analysis of whole blood stained with PE-Texas Red anti-human CD4 *SK3* conjugate. The fluorescence signal was monitored using an Aurora flow cytometer in the PE-Texas Red specific B6-A channel.
Flow cytometry analysis of whole blood stained with PE-Texas Red anti-human CD4 *SK3* conjugate. The fluorescence signal was monitored using an Aurora flow cytometer in the PE-Texas Red specific B6-A channel.
Ordering information
Price ()
Catalog Number2716
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Physical properties
Molecular weightN/A
SolventWater
Spectral properties
Extinction coefficient (cm -1 M -1)1960000
Excitation (nm)567
Emission (nm)615
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageRefrigerated (2-8 °C); Minimize light exposure
Related products
ReadiUse™ Preactivated APC-iFluor® 700 Tandem
ReadiUse™ Preactivated APC-iFluor® 750 Tandem
ReadiUse™ Preactivated PE-iFluor® 647 Tandem
ReadiUse™ Preactivated PE-iFluor® 750 Tandem
ReadiUse™ ABTS Substrate Solution *Optimized for ELISA Assays with HRP Conjugates*
ReadiUse™ TMB Substrate Solution *Optimized for ELISA Assays with HRP Conjugates*
ReadiUse™ hydrogen peroxide solution *50 mM calibrated and stabilized solution*
ReadiUse™ Preactivated HRP NHS ester
ReadiUse™ NADPH Regenerating Kit
ReadiUse™ NADP Regenerating Kit
ReadiUse™ TCA Deproteinization Sample Preparation Kit
ReadiUse™ microscope mounting solution
ReadiUse™ 4% formaldehyde fixation solution
ReadiUse™ mammalian cell lysis buffer *5X*
ReadiUse™ probenecid, sodium salt *Water-soluble*
ReadiUse™ probenecid *25 mM stabilized aqueous solution*
ReadiUse™ CFSE [5-(and 6)-Carboxyfluorescein diacetate, succinimidyl ester] *CAS 150347-59-4*
ReadiUse™ Preactivated PE
ReadiUse™ Preactivated APC
ReadiUse™ Preactivated PE-Cy5 Tandem
ReadiUse™ Preactivated PE-Cy5.5 Tandem
ReadiUse™ Preactivated PE-Cy7 Tandem
ReadiUse™ Preactivated APC-Cy5.5 Tandem
ReadiUse™ Preactivated APC-Cy7 Tandem
ReadiUse™ TCEP removal solution
ReadiUse™ WST-8 *50 mM aqueous solution*
ReadiUse™ Rapid Luminometric ATP Assay Kit
ReadiUse™ PE [R-Phycoerythrin] *Ammonium Sulfate-Free*
ReadiUse™ CL-APC [Cross linked-Allophycocyanin] *Ammonium Sulfate-Free*
ReadiUse™ Preactivated PE-iFluor® 594 Tandem
ReadiUse™ Cell Detaching Buffer
ReadiUse™ DRAQ5 Staining Solution *5 mM in Water*
ReadiUse™ Staurosporine * 1 mM DMSO stock solution*
ReadiUse™ Bio-Gel P-6 spin column
ReadiUse™ bacterial cell lysis buffer *5X*
ReadiUse™ 10% Triton X-100 *Hydrogen Peroxide-and Carbonyl-Free*
ReadiUse™ Preactivated PE-iFluor® 700 Tandem
ReadiUse™ dNTP Mix *10 mM*
ReadiUse™ Viral RNA Lysis Buffer
ReadiUse™ Tyramide (TSA)/Styramide (PSA) Optimized Reaction Buffer
ReadiUse™ Preactivated PerCP
ReadiUse™ Preactivated PerCP-Cy5.5 Tandem
ReadiUse™ Preactivated PE-iFluor® 660 Tandem
ReadiUse™ 10KD Spin Filter
ReadiUse™ Preactivated APC-iFluor® 800 Tandem
ReadiUse™ 1 Kb Plus DNA Ladder
ReadiUse™ GeneRuler 1 kb DNA Ladder
ReadiUse™ 100 bp DNA Ladder
ReadiUse™ ddNTP Terminator Mix *10 mM*
ReadiUse™ dNTP Mix Set *10 mM PCR Grade*
ReadiUse™ Preactivated HRP maleimide
ReadiUse™ Stayright™ Purple *HRP Chromogen Premixed with Hydrogen Peroxide*
ReadiUse™ Disposable PD-10 Desalting Column
ReadiUse™ Preactivated APC Maleimide [Activated Allophycocyanin]
ReadiUse™ Preactivated PE Maleimide [Activated R-Phycoerythrin]
ReadiUse™ 6-Color Human TBNK Antibody Kit *Dry Reagent Format*
ReadiUse™ MTS Reagent *50 mM aqueous solution*
ReadiUse™ Preactivated PE-Cy5 Maleimide
ReadiUse™ Preactivated PE-Cy5.5 Maleimide
ReadiUse™ Preactivated PE-Cy7 Maleimide
ReadiUse™ Preactivated APC-AF700 Maleimide
ReadiUse™ Preactivated APC-Cy5.5 Maleimide
ReadiUse™ Preactivated APC-Cy7 Maleimide
ReadiUse™ Preactivated PerCP Maleimide
ReadiUse™ Preactivated PerCP-Cy5.5 Maleimide
ReadiUse™ Preactivated PerCP-Cy7 Maleimide
Show More (66)

OverviewpdfSDSpdfProtocol


Molecular weight
N/A
Extinction coefficient (cm -1 M -1)
1960000
Excitation (nm)
567
Emission (nm)
615
PE-Texas Red is a popular tandem color used in flow cytometry. Its primary absorption peak is at 565 nm with emission peak at 600 nm. AAT Bioquest offers this preactivated PE-Texas Red maleimide to facilitate the PE-Texas Red tandem conjugations to antibodies and other proteins such as streptavidin and other secondary reagents. It is prepared from the commonly used crosslinker SMCC. Our preactivated PE-Texas Red maleimide is ready to conjugate the reduced antibodies and other thiol-containing biomolecules.

Example protocol


SAMPLE EXPERIMENTAL PROTOCOL

Reduction of IgG
  1. Prepare a fresh solution of 1.0 M DTT (15.4 mg/100 µL) in distilled water.  Antibody solutions should be at 2 mg/mL or higher for best results. The reduction can be carried out in different buffers for example: MES, phosphate, and TRIS buffers (pH range 6 to 8). The antibody should be concentrated if less than 2 mg/mL.
  2. Add 2 µL of 1.0 M DTT stock per 100 µL of antibody solution and mix well. Let the antibody solution stand at room temp for 30 minutes without additional mixing (to minimize reoxidation of cysteines to cystines).
  3. Purify the reduced antibody over a desalting column pre-equilibrated with 50 mM MES Buffer (pH=6.0-6.5) with 2 mM EDTA. (Desalting column:  https://www.aatbio.com/products/readiuse-bio-gel-p-6-spin-column?unit=60500)
  4. Measure the Antibody concentration with Nanodrop. (Con. (mg/ml)= A280nm/1.4) Note: The reduced antibody is not stable; the conjugation reaction needs to be carried out the conjugation as soon as possible after purification.

Conjugate with ReadiUse™ Preactivated PE-Texas Red Maleimide
  1. Reconstitute ReadiUse™ Preactivated PE-Texas Red Maleimide in 100 µL ddH2O to 10 mg/mL. Note: Reconstituted ReadiUse™ Preactivated PE-Texas Red Maleimide are stable at 4 °C for one week, please kept it from light.
  2. Add reduced antibody to pre-activated PE-Texas Red directly to at the ratio of 250-300 µg PE-Texas Red /100 µg reduced antibody.
  3. Rotate the mixture for 60-120 mins at room temperature.
  4. After 60 minutes, block the free sulfhydryls on the antibody.
  5. Prepare a fresh solution of 10 mg/mL NEM in DMSO; add 3.4 µL per mg of antibody and rotate for 20 minutes at room temperature.

Purification
  1. Antibody/PE-Texas Red conjugate could be further purified through size exclusion chromatography to get best performance. Note: The Antibody/PE-Texas Red conjugate solution is recommended to be stored at 2~8 °C and kept from light.

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Extinction coefficient (cm -1 M -1)1960000
Excitation (nm)567
Emission (nm)615

Product family


NameExcitation (nm)Emission (nm)Extinction coefficient (cm -1 M -1)
ReadiUse™ Preactivated PE-Texas Red Tandem5676151960000

References


View all 8 references: Citation Explorer
Orange juice and its major polyphenol hesperidin consumption do not induce immunomodulation in healthy well-nourished humans.
Authors: Perche, Olivier and Vergnaud-Gauduchon, Juliette and Morand, Christine and Dubray, Claude and Mazur, Andrzej and Vasson, Marie-Paule
Journal: Clinical nutrition (Edinburgh, Scotland) (2014): 130-5
Flow cytometry can diagnose classical hodgkin lymphoma in lymph nodes with high sensitivity and specificity.
Authors: Fromm, Jonathan R and Thomas, Anju and Wood, Brent L
Journal: American journal of clinical pathology (2009): 322-32
Optimization of three- and four-color multiparameter DNA analysis in lymphoma specimens.
Authors: Plander, M and Brockhoff, G and Barlage, S and Schwarz, S and Rothe, G and Knuechel, R
Journal: Cytometry. Part A : the journal of the International Society for Analytical Cytology (2003): 66-74
Multiparameter cytokine-specific affinity matrix assay for the determination of frequencies and phenotype of antigen-reactive T cells.
Authors: Mathioudakis, George and Coder, David and Fefer, Alexander
Journal: Journal of immunological methods (2002): 37-42
Conjugation of fluorochromes to monoclonal antibodies.
Authors: Holmes, K L and Lantz, L M and Russ, W
Journal: Current protocols in cytometry (2001): Unit 4.2
A strategy for multiple immunophenotyping by image cytometry: model studies using latex microbeads labeled with seven streptavidin-bound fluorochromes.
Authors: Gothot, A and Grosdent, J C and Paulus, J M
Journal: Cytometry (1996): 214-25
CUBIC: a three-dimensional colored projection of Consort 30 generated trivariate flow cytometric data.
Authors: Greimers, R and Rongy, A M and Schaaf-Lafontaine, N and Boniver, J
Journal: Cytometry (1991): 570-8
Concomitant delineation of surface Ig, B-cell differentiation antigens, and HLADR on lymphoid proliferations using three-color immunocytometry.
Authors: Segal, G H and Edinger, M G and Owen, M and McNealis, M and Lopez, P and Perkins, A and Linden, M D and Fishleder, A J and Stoler, M H and Tubbs, R R
Journal: Cytometry (1991): 350-9
