Tide Fluor™ 2 alkyne [TF2 alkyne]

Photostability analysis of Tide Fluor™ 2 and FITC.

Click chemistry is a method for attaching a probe or substrate of interest to a specific biomolecule, a process called bioconjugation. The possibility of attaching fluorophores and other reporter molecules has made click chemistry a very powerful tool for identifying, locating, and characterizing both old and new biomolecules. The classic click reaction is the copper-catalyzed reaction of an azide with an alkyne to form a 5-membered heteroatom ring, this reaction is commonly called Cu(I)-Catalyzed Azide-Alkyne Cycloaddition (CuAAC).

Ordering information

Price
Catalog Number
Unit Size
Quantity

Add to cart

Additional ordering information

Telephone	1-800-990-8053
Fax	1-800-609-2943
Email	sales@aatbio.com
International	See distributors
Bulk request	Inquire
Custom size	Inquire
Shipping	Standard overnight for United States, inquire for international

Request quotation

Physical properties

Molecular weight	752.61
Solvent	DMSO

Spectral properties

Correction Factor (280 nm)	0.09
Extinction coefficient (cm ^-1 M ^-1)	75000
Excitation (nm)	503
Emission (nm)	525
Quantum yield	0.9

Storage, safety and handling

H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
Storage	Freeze (< -15 °C); Minimize light exposure
UNSPSC	12171501

Alternative formats

Tide Fluor™ 2 azide [TF2 azide]

Overview SDS Protocol

Molecular weight

752.61

Correction Factor (280 nm)

0.09

Extinction coefficient (cm ^-1 M ^-1)

75000

Excitation (nm)

503

Emission (nm)

525

Quantum yield

0.9

Tide Fluor™ 2 (TF2) family has the spectral properties similar to those of fluoresceins and Alexa Fluor® 488 (Alexa Fluor® is the trademark of Invitrogen). TF2 phosphoramidite enables the oligo labeling with the similar spectral properties and photostability of Alexa Fluor® 488 using the well established phosphoramidite chemistry. Compared to fluoresceins TF2 family has much stronger fluorescence and higher photostability. Additionally their fluorescence is pH-independent from pH 3 to 11. These characteristics make this new dye family a superior alternative to fluoresceins. TF2-labeled peptides and nucleotides exhibit much stronger fluorescence and higher photostability than the ones labeled with FITC or FAM. In addition, TF2 is an excellent replacement for the expensive Alexa Fluor® 488 due to their similar spectral properties, pH dependence and photostability. In pairing with our Tide Quencher™ 2 (TQ2), a variety of FRET peptides and nucleotides can be developed for detecting proteases and molecular beacons with enhanced sensitivity and stability. This TF2 product is reactive to azides, and useful for click chemistry.

Calculators

Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of Tide Fluor™ 2 alkyne [TF2 alkyne] to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

	0.1 mg	0.5 mg	1 mg	5 mg	10 mg
1 mM	132.871 µL	664.355 µL	1.329 mL	6.644 mL	13.287 mL
5 mM	26.574 µL	132.871 µL	265.742 µL	1.329 mL	2.657 mL
10 mM	13.287 µL	66.435 µL	132.871 µL	664.355 µL	1.329 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)		Molecular weight		Volume (Calculate)		Concentration (Calculate)		Moles
	/		=		x		=

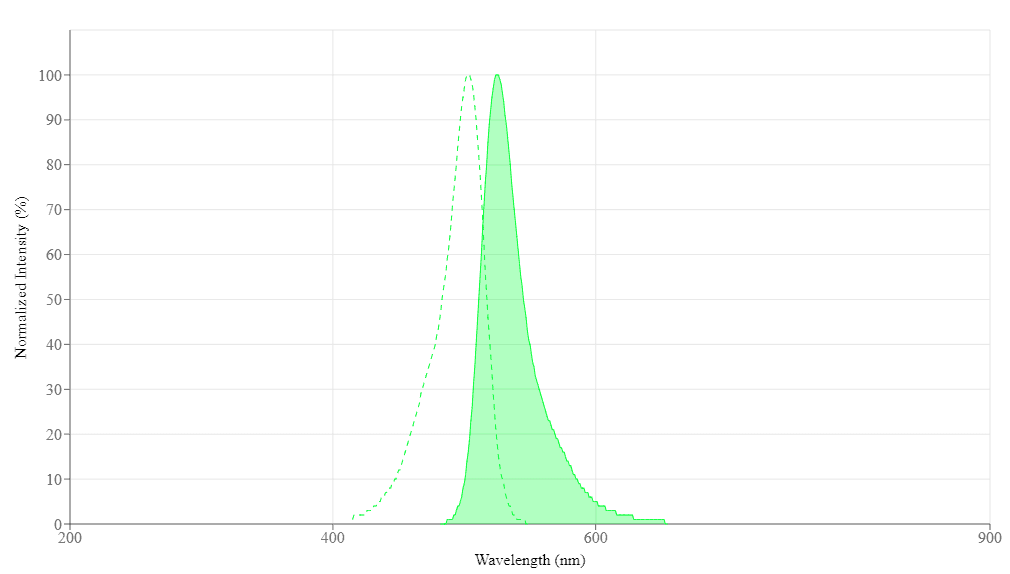

Spectrum

Open in Advanced Spectrum Viewer

Spectral properties

Correction Factor (280 nm)	0.09
Extinction coefficient (cm ^-1 M ^-1)	75000
Excitation (nm)	503
Emission (nm)	525
Quantum yield	0.9

Product Family

Name	Excitation (nm)	Emission (nm)	Extinction coefficient (cm ^-1 M ^-1)	Correction Factor (280 nm)
Tide Fluor™ 1 alkyne [TF1 alkyne]	341	448	20000	0.187
Tide Fluor™ 2 acid [TF2 acid] Superior replacement for fluorescein	503	525	75000	0.09
Tide Fluor™ 2 amine [TF2 amine] Superior replacement for fluorescein	503	525	75000	0.09
Tide Fluor™ 2 maleimide [TF2 maleimide] Superior replacement for fluorescein	503	525	75000	0.09
Tide Fluor™ 3 alkyne [TF3 alkyne]	554	578	75000¹	0.179
Tide Fluor™ 5WS alkyne [TF5WS alkyne]	649	664	250000	0.027
Tide Fluor™ 4 alkyne [TF4 alkyne]	578	602	90000	0.436
Tide Fluor™ 6WS alkyne [TF6WS alkyne]	682	701	220000	0.101
Tide Fluor™ 7WS alkyne [TF7WS alkyne]	756	780	275000	0.049
Tide Fluor™ 8WS alkyne [TF8WS alkyne] Near Infrared Emission	785	801	250000	0.109
Tide Quencher™ 2 alkyne [TQ2 alkyne]	-	-	21000	0.12
Show More (2)

Images

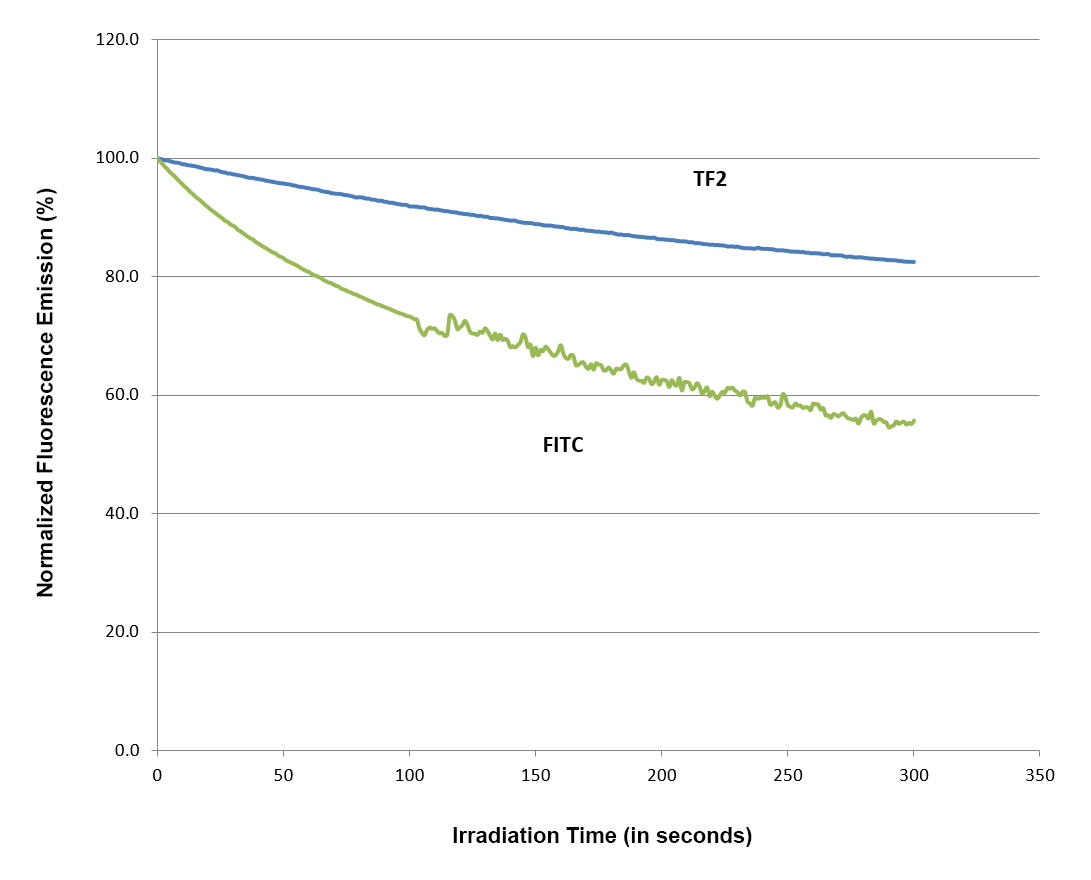

Figure 1. Photostability analysis of Tide Fluor™ 2 and FITC.

Figure 2. Click chemistry is a method for attaching a probe or substrate of interest to a specific biomolecule, a process called bioconjugation. The possibility of attaching fluorophores and other reporter molecules has made click chemistry a very powerful tool for identifying, locating, and characterizing both old and new biomolecules. The classic click reaction is the copper-catalyzed reaction of an azide with an alkyne to form a 5-membered heteroatom ring, this reaction is commonly called Cu(I)-Catalyzed Azide-Alkyne Cycloaddition (CuAAC).

Citations

View all 8 citations: Citation Explorer

Intraocular Delivery of a Collagen Mimetic Peptide Repairs Retinal Ganglion Cell Axons in Chronic and Acute Injury Models
Authors: Ribeiro, Marcio and McGrady, Nolan R and Baratta, Robert O and Del Buono, Brian J and Schlumpf, Eric and Calkins, David J
Journal: International Journal of Molecular Sciences (2022): 2911

A mechanistic model to predict effects of cathepsin B and cystatin C on β-amyloid aggregation and degradation
Authors: Perlenfein, Tyler J and Murphy, Regina M
Journal: Journal of Biological Chemistry (2017): jbc--M117

Real-Time Detection of a Self-Replicating RNA Enzyme
Authors: Olea, Charles and Joyce, Gerald F
Journal: Molecules (2016): 1310

Maternal serum glycosylated fibronectin as a point-of-care biomarker for assessment of preeclampsia
Authors: Rasanen, Juha and Quinn, Matthew J and Laurie, Amber and Bean, Eric and Roberts, Charles T and Nagalla, Srinivasa R and Gravett, Michael G
Journal: American journal of obstetrics and gynecology (2015): 82--e1

Development of Multi-Parametric/Multimodal Spectroscopy Apparatus for Characterization of Functional Interfaces
Authors: Zhou, Lang and Arugula, Mary and Easley, Christopher J and Shannon, Curtis and Simonian, Aleks and r, undefined
Journal: ECS Transactions (2015): 9--16

Array of biodegradable microrafts for isolation and implantation of living, adherent cells
Authors: Wang, Yuli and Phillips, Colleen N and Herrera, Gabriela S and Sims, Christopher E and Yeh, Jen Jen and Allbritton, Nancy L
Journal: RSC advances (2013): 9264--9272

Development of SNAP-Tag Fluorogenic Probes for Wash-Free Fluorescence Imaging
Authors: Sun, Xiaoli and Zhang, Aihua and Baker, Brenda and Sun, Luo and Howard, Angela and Buswell, John and Maurel, Damien and Masharina, Anastasiya and Johnsson, Kai and Noren, Christopher J and others, undefined
Journal: ChemBioChem (2011): 2217--2226

FERRAMENTAS PARA ESTUDO DA BIOLOGIA DE GPCRS (G-PROTEIN COUPLED RECEPTORS)
Authors: Soriani, Frederico Marianetti and Russo, Remo Castro
