TMRE [Tetramethylrhodamine ethyl ester] *CAS#: 115532-52-0*

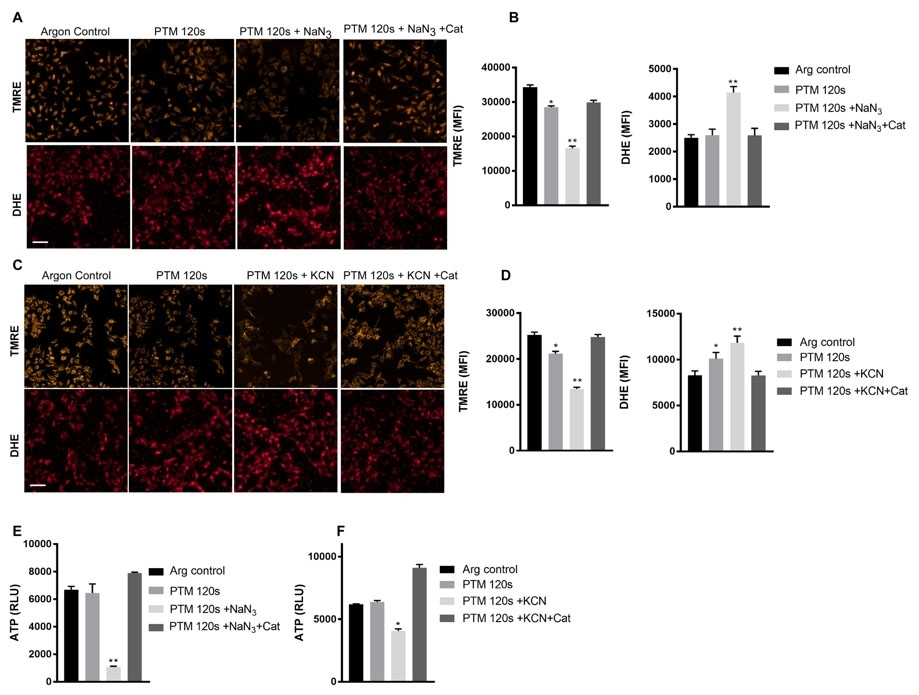

<strong>CcO inhibition and PTM induce mitochondrial dysfunction. </strong>(A) Mitochondrial membrane potential enumerated by TMRE dye uptake and cellular superoxide levels by nuclear DHE staining in B16F10 cells following 3&thinsp;h treatment with NaN<sub>3</sub>. (B) Quantification of fluorescence intensity from (A). (C) Mitochondrial membrane potential enumerated by TMRE dye uptake and cellular superoxide levels by nuclear DHE staining in B16F10 cells following 3&thinsp;h treatment with KCN. (D) Quantification of fluorescence intensity from (C,E) Cellular ATP levels following 2&thinsp;h treatment with NaN<sub>3</sub> and PTM. (F) Cellular ATP levels following 2&thinsp;h treatment with KCN and PTM. Scale bar: 100&thinsp;&micro;m Data are mean&thinsp;+&thinsp;SEM from three independent experiments. Source: <strong>Cytochrome C oxidase Inhibition and Cold Plasma-derived Oxidants Synergize in Melanoma Cell Death Induction</strong> by Gandhirajan et al., <em>Scientific Reports</em>, Aug. 2018.
<strong>CcO inhibition and PTM induce mitochondrial dysfunction. </strong>(A) Mitochondrial membrane potential enumerated by TMRE dye uptake and cellular superoxide levels by nuclear DHE staining in B16F10 cells following 3&thinsp;h treatment with NaN<sub>3</sub>. (B) Quantification of fluorescence intensity from (A). (C) Mitochondrial membrane potential enumerated by TMRE dye uptake and cellular superoxide levels by nuclear DHE staining in B16F10 cells following 3&thinsp;h treatment with KCN. (D) Quantification of fluorescence intensity from (C,E) Cellular ATP levels following 2&thinsp;h treatment with NaN<sub>3</sub> and PTM. (F) Cellular ATP levels following 2&thinsp;h treatment with KCN and PTM. Scale bar: 100&thinsp;&micro;m Data are mean&thinsp;+&thinsp;SEM from three independent experiments. Source: <strong>Cytochrome C oxidase Inhibition and Cold Plasma-derived Oxidants Synergize in Melanoma Cell Death Induction</strong> by Gandhirajan et al., <em>Scientific Reports</em>, Aug. 2018.
<strong>CcO inhibition and PTM induce mitochondrial dysfunction. </strong>(A) Mitochondrial membrane potential enumerated by TMRE dye uptake and cellular superoxide levels by nuclear DHE staining in B16F10 cells following 3&thinsp;h treatment with NaN<sub>3</sub>. (B) Quantification of fluorescence intensity from (A). (C) Mitochondrial membrane potential enumerated by TMRE dye uptake and cellular superoxide levels by nuclear DHE staining in B16F10 cells following 3&thinsp;h treatment with KCN. (D) Quantification of fluorescence intensity from (C,E) Cellular ATP levels following 2&thinsp;h treatment with NaN<sub>3</sub> and PTM. (F) Cellular ATP levels following 2&thinsp;h treatment with KCN and PTM. Scale bar: 100&thinsp;&micro;m Data are mean&thinsp;+&thinsp;SEM from three independent experiments. Source: <strong>Cytochrome C oxidase Inhibition and Cold Plasma-derived Oxidants Synergize in Melanoma Cell Death Induction</strong> by Gandhirajan et al., <em>Scientific Reports</em>, Aug. 2018.
Gallery Image 2
Ordering information
Price
Catalog Number
Unit Size
Quantity
Add to cart
Additional ordering information
Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
ShippingStandard overnight for United States, inquire for international
Request quotation
Physical properties
Molecular weight514.95
SolventDMSO
Spectral properties
Correction Factor (260 nm)0.27
Correction Factor (280 nm)0.03
Excitation (nm)552
Emission (nm)574
Storage, safety and handling
Certificate of OriginDownload PDF
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC12352200
Related products
Rhodamine 700 *CAS 63561-42-2*
Rhodamine 800 *CAS 137993-41-0*
Rhodamine B *CAS 81-88-9*
Rhodamine 6G *CAS 989-38-8*
Sulforhodamine 101, sodium salt
Sulforhodamine B *CAS 3520-42-1*
Sulforhodamine G *CAS 5873-16-5*
Rhodamine 101 Inner Salt *CAS 116450-56-7*
Rhodamine 101 Chloride Salt *CAS 64339-18-0*
Sulforhodamine 101 sodium salt *CAS 465544-24-5*
Rhodamine 110 *CAS 13558-31-1*
5-CR110 [5-Carboxyrhodamine 110] *Single isomer*
6-CR110 [6-Carboxyrhodamine 110] *Single isomer*
5(6)-CR6G [5-(and 6)-Carboxyrhodamine 6G]
5-CR6G [5-Carboxyrhodamine 6G] *Single isomer*
6-CR6G [6-Carboxyrhodamine 6G] *Single isomer*
5(6)-CR6G, SE [5-(and 6)-Carboxyrhodamine 6G, succinimidyl ester] *Mixed isomers*
6-CR6G, SE [6-Carboxyrhodamine 6G, succinimidyl ester] *Single isomer*
5(6)-Carboxyrhodamine 6G cadaverine
5(6)-Carboxyrhodamine 6G ethylenediamine
5-CR6G, SE [5-Carboxyrhodamine 6G, succinimidyl ester] *Single isomer*
5(6)-TAMRA [5(6)-Carboxytetramethylrhodamine] *CAS 98181-63-6*
5-TAMRA [5-Carboxytetramethylrhodamine] *CAS 91809-66-4*
6-TAMRA [6-Carboxytetramethylrhodamine] *CAS 91809-67-5*
5(6)-TAMRA, SE [5-(and-6)-Carboxytetramethylrhodamine, succinimidyl ester] *CAS 246256-50-8*
5-TAMRA, SE [5-Carboxytetramethylrhodamine, succinimidyl ester] *CAS#: 150810-68-7*
6-TAMRA, SE [6-Carboxytetramethylrhodamine, succinimidyl ester] *CAS#: 150810-69-8*
5(6)-ROX [5-(and 6)-Carboxy-X-rhodamine] *CAS 198978-94-8*
5-ROX [5-Carboxy-X-rhodamine] *CAS 216699-35-3*
6-ROX [6-Carboxy-X-rhodamine] *CAS 194785-18-7*
5(6)-ROX, SE [5-(and-6)-Carboxy-X-rhodamine, succinimidyl ester] *Mixed isomers*
5-ROX, SE [5-Carboxy-X-rhodamine, succinimidyl ester] *CAS 209734-74-7*
6-ROX, SE [6-Carboxy-X-rhodamine, succinimidyl ester] *CAS#: 216699-36-4*
5(6)-TRITC [Tetramethylrhodamine-5-(and-6)-isothiocyanate] *CAS 95197-95-8*
5(6)-TAMRA Maleimide [Tetramethylrhodamine-5-(and-6)-maleimide] *Mixed isomers*
5-TRITC [Tetramethylrhodamine-5-isothiocyanate] *CAS 80724-19-2*
6-TRITC [Tetramethylrhodamine-6-isothiocyanate] *CAS 80724-20-5*
6-TAMRA Maleimide [Tetramethylrhodamine-6-maleimide] *CAS 174568-68-4*
5-TAMRA Maleimide [Tetramethylrhodamine-5-maleimide] *CAS 154480-30-5*
Lissamine Rhodamine B Sulfonyl Chloride [Sulforhodamine B sulfonyl chloride] *CAS 62796-29-6*
Sulforhodamine 101 sulfonyl chloride [Texas Red®] *CAS 82354-19-6*
SRB-VAD-FMK [Sulforhodamine B-VAD-FMK]
Dihydrorhodamine 123 *CAS 109244-58-8*
Tetramethylrhodamine-dUTP *1 mM in Tris Buffer (pH 7.5)*
Rhodamine 123 *CAS 62669-70-9*
Rhodamine B, hexyl ester, perchlorate
TMRM [Tetramethylrhodamine methyl ester] *CAS#: 115532-50-8*
Phalloidin-Tetramethylrhodamine Conjugate
5-dR6G [5-Carboxy-4,7-dichlororhodamine 6G]
6-dR6G [6-Carboxy-4,7-dichlororhodamine 6G]
5-dR110 [5-Carboxy-4,7-dichlororhodamine 110]
6-dR110 [6-Carboxy-4,7-dichlororhodamine 110]
Bis-L-Aspartic acid Beta-rhodamine 110
Bis-Arg-rhodamine 110
Sulforhodamine 101 *CAS 60311-02-6*
5-Carboxyrhodamine 6G maleimide
Rhodamine aldehyde [5-TAMRA aldehyde]
Show More (47)

OverviewpdfSDSpdfProtocol


CAS
115532-52-0
Molecular weight
514.95
Correction Factor (260 nm)
0.27
Correction Factor (280 nm)
0.03
Excitation (nm)
552
Emission (nm)
574
Positively charged rhodamine dyes (such as rhodamine esters and rosamines) are selectively localized in mitochondria, thus they are widely used for labeling mitochondria of live cells. Like JC-1, TMRM and TMRE are widely used for measuring mitochondrial membrane potential besides their selective mitochondrial staining. These two particular rhodamine esters stain mitochondria orange in fluorescence. Their spectral properties are similar to those of TRITC, making the use of TMRM and TMRE quite convenient. TMRE is slightly more hydrophobic than TMRM.

Calculators


Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of TMRE [Tetramethylrhodamine ethyl ester] *CAS#: 115532-52-0* to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM194.194 µL970.968 µL1.942 mL9.71 mL19.419 mL
5 mM38.839 µL194.194 µL388.387 µL1.942 mL3.884 mL
10 mM19.419 µL97.097 µL194.194 µL970.968 µL1.942 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Correction Factor (260 nm)0.27
Correction Factor (280 nm)0.03
Excitation (nm)552
Emission (nm)574

Images


Citations


View all 18 citations: Citation Explorer
Tetraarsenic tetrasulfide triggers ROS-induced apoptosis and ferroptosis in B-cell acute lymphoblastic leukaemia by targeting HK2
Authors: Bai, Wenke and Liu, Diandian and Cheng, Qianyi and Yang, Xingge and Zhu, Liwen and Qin, Lijun and Fang, Jianpei
Journal: Translational Oncology (2024): 101850
Novel meriolin derivatives activate the mitochondrial apoptosis pathway in the presence of antiapoptotic Bcl-2
Authors: Wesselborg, Sebastian and Schmitt, Laura and Hinxlage, Ilka and Drie{\ss}en, Daniel and Flores-Romero, Hector Dr and Skowron, Margaretha and Sekeres, Marlena and Hoppe, Julia and Krings, Karina and Peter, Christoph and others,
Journal: (2023)
Ipatasertib exhibits anti-tumorigenic effects and enhances sensitivity to paclitaxel in endometrial cancer in vitro and in vivo
Authors: O'Donnell, Jillian and Zhao, Ziyi and Buckingham, Lindsey and Hao, Tianran and Suo, Hongyan and Zhang, Xin and Fan, Yali and John, Catherine and Deng, Boer and Shen, Xiaochang and others,
Journal: International Journal of Oncology (2023): 1--14
BNIP3 (BCL2 interacting protein 3) regulates pluripotency by modulating mitochondrial homeostasis via mitophagy
Authors: Liu, Kun and Zhao, Qian and Sun, Hongyan and Liu, Lei and Wang, Chaoqun and Li, Zheng and Xu, Youqing and Wang, Liang and Zhang, Lin and Zhang, Honghai and others,
Journal: Cell death \& disease (2022): 1--8
The mycotoxin viriditoxin induces leukemia-and lymphoma-specific apoptosis by targeting mitochondrial metabolism
Authors: Stuhldreier, Fabian and Schmitt, Laura and Lenz, Thomas and Hinxlage, Ilka and Zimmermann, Marcel and Wollnitzke, Philipp and Schliehe-Diecks, Julian and Liu, Yang and J{\"a}ger, Paul and Geyh, Stefanie and others,
Journal: Cell Death \& Disease (2022): 1--17
Metformin dampens cisplatin cytotoxicity on leukemia cells after incorporation into cubosomal nanoformulation
Authors: Saber, Mona M and Al-mahallawi, Abdulaziz M and Stork, Bj{\"o}rn
Journal: Biomedicine \& Pharmacotherapy (2021): 112140
The amino acid metabolism is essential for evading physical plasma-induced tumour cell death
Authors: Gandhirajan, Rajesh Kumar and Meyer, Dorothee and Sagwal, Sanjeev Kumar and Weltmann, Klaus-Dieter and von Woedtke, Thomas and Bekeschus, Sander
Journal: British journal of cancer (2021): 1854--1863
Cytotoxicity, mitochondrial impairment, DNA damage and associated mechanisms induced by tris (1, 3-dichloro-2-propyl) phosphate and tris (2-butoxyethyl) phosphate in A549 cells
Authors: Yuan, Shengwu and Ma, Mei and Zhu, Xiaoshan and Han, Yingnan and Rao, Kaifeng and Wang, Zijian
Journal: Science of The Total Environment (2021): 147668
PINK1-mediated mitophagy maintains pluripotency through optineurin
Authors: Wang, Chaoqun and Liu, Kun and Cao, Jiani and Wang, Liang and Zhao, Qian and Li, Zheng and Zhang, Honghai and Chen, Quan and Zhao, Tongbiao
Journal: Cell Proliferation (2021): e13034
Ronin governs the metabolic capacity of the embryonic lineage for post-implantation development
Authors: Salewskij, Kirill and Gross-Thebing, Theresa and Ing-Simmons, Elizabeth and Duethorn, Binyamin and Rieger, Bettina and Fan, Rui and Chen, Rui and Govindasamy, Niraimathi and Brinkmann, Heike and Kremer, Ludmila and others,
Journal: EMBO reports (2021): e53048

References


View all 73 references: Citation Explorer
CRYAB and HSPB2 deficiency increases myocyte mitochondrial permeability transition and mitochondrial calcium uptake
Authors: Kadono T, Zhang XQ, Srinivasan S, Ishida H, Barry WH, Benjamin IJ.
Journal: J Mol Cell Cardiol (2006): 783
Dystrophin is a possible end-target of ischemic preconditioning against cardiomyocyte oncosis during the early phase of reperfusion
Authors: Kyoi S, Otani H, Hamano A, Matsuhisa S, Akita Y, Fujiwara H, Hattori R, Imamura H, Kamihata H, Iwasaka T.
Journal: Cardiovasc Res (2006): 354
Adaphostin and other anticancer drugs quench the fluorescence of mitochondrial potential probes
Authors: Le SB, Holmuhamedov EL, Narayanan VL, Sausville EA, Kaufmann SH.
Journal: Cell Death Differ (2006): 151
Evaluation of the reactivity of apoptosis markers before and after cryopreservation in cord blood CD34(+) cells
Authors: Greco NJ, Seetharaman S, Kurtz J, Lee WR, Moroff G.
Journal: Stem Cells Dev (2006): 124
Overexpression of inducible heat shock protein 70 and its mutants in astrocytes is associated with maintenance of mitochondrial physiology during glucose deprivation stress
Authors: Ouyang YB, Xu LJ, Sun YJ, Giffard RG.
Journal: Cell Stress Chaperones (2006): 180
Fatty acid ethyl esters cause pancreatic calcium toxicity via inositol trisphosphate receptors and loss of ATP synthesis
Authors: Criddle DN, Murphy J, Fistetto G, Barrow S, Tepikin AV, Neoptolemos JP, Sutton R, Petersen OH.
Journal: Gastroenterology (2006): 781
NECA at reperfusion limits infarction and inhibits formation of the mitochondrial permeability transition pore by activating p70S6 kinase
Authors: Forster K, Paul I, Solenkova N, Staudt A, Cohen MV, Downey JM, Felix SB, Krieg T.
Journal: Basic Res Cardiol (2006): 319
Serofendic acid, a neuroprotective substance derived from fetal calf serum, inhibits mitochondrial membrane depolarization and caspase-3 activation
Authors: Kume T, Taguchi R, Katsuki H, Akao M, Sugimoto H, Kaneko S, Akaike A.
Journal: Eur J Pharmacol (2006): 69
High concordance of drug-induced human hepatotoxicity with in vitro cytotoxicity measured in a novel cell-based model using high content screening
Authors: O'Brien P J, Irwin W, Diaz D, Howard-Cofield E, Krejsa CM, Slaughter MR, Gao B, Kaludercic N, Angeline A, Bernardi P, Brain P, Hougham C.
Journal: Arch Toxicol (2006): 580
Mitochondrial Ca2+ uptake during simulated ischemia does not affect permeability transition pore opening upon simulated reperfusion
Authors: Ruiz-Meana M, Garcia-Dorado D, Miro-Casas E, Abellan A, Soler-Soler J.
Journal: Cardiovasc Res (2006): 715
