XFD555 amine

Product Image
Product Image
Gallery Image 1
Ordering information
Price
Catalog Number
Unit Size
Quantity
Add to cart
Additional ordering information
Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
ShippingStandard overnight for United States, inquire for international
Request quotation
Physical properties
Molecular weight1103.10
SolventDMSO
Spectral properties
Correction Factor (260 nm)0.08
Correction Factor (280 nm)0.08
Extinction coefficient (cm -1 M -1)155000
Excitation (nm)553
Emission (nm)568
Quantum yield0.11
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
Direct upgrades
iFluor® 555 amine
Alternative formats
XFD555 acid
Related products
XFD488 azide *Same Structure to Alexa Fluor™ 488 azide*
XFD488 alkyne *Same Structure to Alexa Fluor™ 488 alkyne*
XFD488 NHS Ester *Same Structure to Alexa Fluor™ 488 NHS Ester*
XFD488 C5 Maleimide *Same Structure to Alexa Fluor™ 488 C5 Maleimide*
XFD350 NHS Ester *Same Structure to Alexa Fluor™ 350 NHS Ester*
XFD532 NHS Ester *Same Structure to Alexa Fluor™ 532 NHS Ester*
XFD594 NHS Ester *Same Structure to Alexa Fluor™ 594 NHS Ester*
XFD350 C5 Maleimide *Same Structure to Alexa Fluor™ 350 C5 Maleimide*
XFD532 C5 Maleimide *Same Structure to Alexa Fluor™ 532 C5 Maleimide*
XFD594 C5 Maleimide *Same Structure to Alexa Fluor™ 594 C5 Maleimide*
XFD488 Hydroxylamine *Same Structure to Alexa Fluor™ 488 Hydroxylamine*
XFD350 goat anti-mouse IgG (H+L) *Cross Adsorbed, XFD350 Same Structure to Alexa Fluor™ 350*
XFD488 goat anti-mouse IgG (H+L) *Cross Adsorbed, XFD488 Same Structure to Alexa Fluor™ 488*
XFD594 goat anti-mouse IgG (H+L) *Cross Adsorbed, XFD594 Same Structure to Alexa Fluor™ 594*
XFD350 goat anti-rabbit IgG (H+L) *Cross Adsorbed, XFD350 Same Structure to Alexa Fluor™ 350*
XFD488 goat anti-rabbit IgG (H+L) *Cross Adsorbed, XFD488 Same Structure to Alexa Fluor™ 488*
XFD594 goat anti-rabbit IgG (H+L) *Cross Adsorbed, XFD594 Same Structure to Alexa Fluor™ 594*
XFD350-streptavidin conjugate *XFD350 Same Structure to Alexa Fluor™ 350*
XFD488-streptavidin conjugate *XFD488 Same Structure to Alexa Fluor™ 488*
XFD594-streptavidin conjugate *XFD594 Same Structure to Alexa Fluor™ 594*
XFD350 Phalloidin *XFD350 Same Structure to Alexa Fluor™ 350*
XFD488 Phalloidin *XFD488 Same Structure to Alexa Fluor™ 488*
XFD594 Phalloidin *XFD594 Same Structure to Alexa Fluor™ 594*
XFD532 acid *Same Structure to Alexa Fluor™ 532 acid*
XFD488 acid *Same Structure to Alexa Fluor™ 488 acid*
XFD488 tyramide reagent *Same Structure to Alexa Fluor™ 488 tyramide*
XFD546 tyramide reagent *Same Structure to Alexa Fluor™ 546 tyramide*
XFD594 tyramide reagent *Same Structure to Alexa Fluor™ 594 tyramide*
XFD488 NHS Ester-UltraPure Grade *XFD488 Same Structure to Alexa Fluor™ 488*
XFD555 NHS Ester *Same Structure to Alexa Fluor™ 555 NHS Ester*
XFD647 NHS Ester *Same Structure to Alexa Fluor™ 647 NHS Ester*
XFD680 NHS Ester *Same Structure to Alexa Fluor™ 680 NHS Ester*
XFD700 NHS Ester *Same Structure to Alexa Fluor™ 700 NHS Ester*
XFD750 NHS Ester *Same Structure to Alexa Fluor™ 750 NHS Ester*
XFD647 C2 Maleimide *Same Structure to Alexa Fluor™ 647 C2 Maleimide*
XFD546 NHS Ester *Same Structure to Alexa Fluor™ 546 NHS Ester*
XFD568 NHS Ester *Same Structure to Alexa Fluor™ 568 NHS Ester*
XFD350 tyramide reagent *Same Structure to Alexa Fluor™ 350 tyramide*
XFD568 tyramide reagent *Same Structure to Alexa Fluor™ 568 tyramide*
XFD350 acid *Same Structure to Alexa Fluor™ 350 acid*
XFD546 acid *Same Structure to Alexa Fluor™ 546 acid*
XFD568 acid *Same Structure to Alexa Fluor™ 568 acid*
XFD488 tetrazine *Same Structure to Alexa Fluor™ 488 tetrazine*
XFD488 aldehyde *Same Structure to Alexa Fluor™ 488 aldehyde*
XFD™488-dUTP *1 mM in Tris Buffer (pH 7.5)*
XFD514 acid
XFD514 NHS Ester *Same Structure to Alexa Fluor™ 514 NHS Ester*
XFD514 tyramide
XFD532 tyramide
XFD647 Azide
XFD647 Alkyne
XFD488 TCO
XFD647 acid
XFD750 acid
XFD700 acid
XFD647 Phalloidin *equivalent to Alexa Fluor® 647 phalloidin*
XFD405 NHS Ester [equivalent to Alexa Fluor™ 405 NHS Ester]
Show More (47)

OverviewpdfSDSpdfProtocol


Molecular weight
1103.10
Correction Factor (260 nm)
0.08
Correction Factor (280 nm)
0.08
Extinction coefficient (cm -1 M -1)
155000
Excitation (nm)
553
Emission (nm)
568
Quantum yield
0.11
XFD555 amine is the same molecule to the Alexa Fluor® 555 amine (Alexa Fluor® is the trademark of ThermoFisher). It is a cyanine dye with bright yellow-fluorescence optimal for labeling antibodies. XFD555 dye is water soluble and pH-insensitive from pH 4 to 10. The amine of XFD555 is a versatile carbonyl-reactive form for conjugating this fluorophore to peptides and other biological molecules.

Calculators


Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of XFD555 amine to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM90.654 µL453.268 µL906.536 µL4.533 mL9.065 mL
5 mM18.131 µL90.654 µL181.307 µL906.536 µL1.813 mL
10 mM9.065 µL45.327 µL90.654 µL453.268 µL906.536 µL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

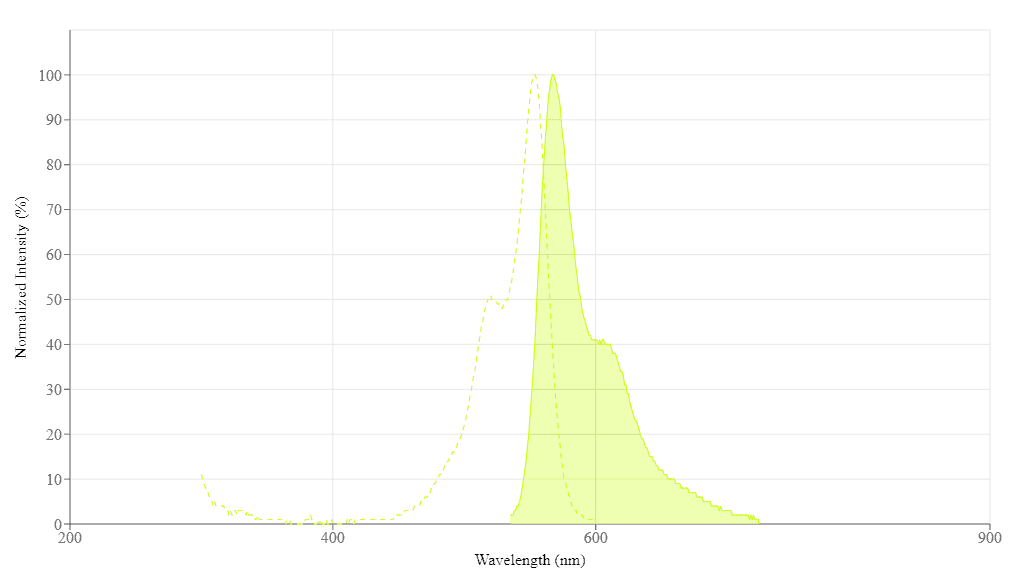

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Correction Factor (260 nm)0.08
Correction Factor (280 nm)0.08
Extinction coefficient (cm -1 M -1)155000
Excitation (nm)553
Emission (nm)568
Quantum yield0.11

Product Family


NameExcitation (nm)Emission (nm)Extinction coefficient (cm -1 M -1)Quantum yieldCorrection Factor (280 nm)
XFD488 amine *Same Structure to Alexa Fluor™ 488 amine*499520710000.9210.11
XFD594 amine *Same Structure to Alexa Fluor™ 594 amine*590618900000.6610.56
XFD532 amine534553810000.6110.09
XFD568 amine579603880000.6910.46
XFD647 amine6506712700000.3310.03
XFD750 amine7527762900000.1210.04
ICG amine789813230000-0.076
