Live or Dead Cell Viability Assays

Parameters that define cell viability, such as plasma membrane integrity, mitochondrial membrane potential (ΔΨm), and intracellular esterase activity, can collectively be used to differentiate live and dead cell populations, determine cell vitality, and screen for compound cytotoxicity. These parameters form the basis for strategies such as our Live or Dead™ Cell Viability Assays, which combine two fluorescent reagents - a live cell esterase substrate and a cell-impermeable DNA binding dye - to yield two-color discrimination of the live and dead cells within a sample population. Live or Dead™ assays can be used to examine eukaryotic cells and bacteria by fluorescence microscopy, flow cytometry, or fluorometry.





Principle of Live or Dead™ Cell Viability Assays


AAT Bioquest Live or Dead™ Cell Viability Assay Kits are based on the simultaneous determination of live and dead cells using two fluorescent probes. Live cells are identified using either a calcein acetoxymethyl (AM) derivative or a mitochondrial membrane potential probe, while dead cells are labeled using a cell-impermeable DNA binding dye. The calcein AM derivatives are non-fluorescent esterase substrates that readily diffuses across intact cell membranes and permeate into live cells. Once inside, non-specific intracellular esterases hydrolyze the substrate into a fluorescent byproduct trapping it within the cell. The fluorescence signal emitted by the substrate is an indicator of live cells having esterase activity and an intact membrane. Alternatively, mitochondrial membrane potential probes can also be used to distinguish live cells. These membrane-permeant, cationic dyes passively diffuse across the plasma membrane and accumulate within the mitochondria of healthy cells generating significant fluorescence. In contrast, dead cells that have lost their ΔΨm will exclude the dye, and no signal will be observed. The cell-impermeable DNA binding dye, which binds selectively and with a high affinity to DNA, can only penetrate the compromised membranes of dead cells and will fluoresce significantly upon binding to nucleic acids. Healthy live cells with intact cell membranes, however, will exclude the dye from entering the cell, resulting in a negative signal. Because the determination of cell viability depends on these physical properties, cytotoxic events that do not affect these parameters may not be accurately assessed using these methods.



Live or Dead™ Assays for Eukaryotic Cells


Live or Dead™ Cell Viability Assay Kit *Green/Red Dual Fluorescence*



Imaging Assay of Live or Dead™ Cell Viability. 90% viability cells (Live cells), 0% viability cells (Fixed cells), and the mixture of two cells (Live/Fixed=50/50) were analyzed with Live or Dead™ Cell Viability Assay Kit and imaged in FITC and TRITC channels with a fluorescence microscope.)
The Live or Dead™ Cell Viability Assay Kit *Green/Red Dual Fluorescence* is a quick and easy assay for accurately determining cell viability and cytotoxicity in eukaryotic cells. The kit features two probes - CytoCalcein™ Green and propidium iodide - that can be added simultaneously to the sample for two-color fluorescence discrimination of live and dead cells without any wash steps. CytoCalcein™ Green is a fluorogenic esterase substrate that labels live cells exhibiting esterase activity with green fluorescence. At the same time, propidium iodide is a membrane-impermeant nucleic acid stain that labels dead cells with red fluorescence. The kit can be easily adapted for high-throughput assays in a wide variety of fluorescence platforms, including fluorescence microplate readers, imaging systems, and flow cytometer, and is compatible with 3D-cell culture models, spheroids, adherent cells, non-adherent cells, and certain tissues. Compared to alternative methods for assessing cell viability, such as trypan blue exclusion assays or chromium-release assays, the Live or Dead™ Cell Viability assay is significantly safer, more cost-effective, and more sensitive at defining cytotoxic events.

Advantages of Live or Dead™ Cell Viability Assay Kit *Green/Red Dual Fluorescence*

  • Stable and selective two-color differential staining of live and dead cell populations
  • A quick and simple one-step staining procedure allows for both probes to be added simultaneously
  • No-wash format makes it ideal for high-throughput screening applications
  • Suitable for detection by fluorescence microscopy, flow cytometry, and fluorescence-based microplate assays
  • Compatible with adherent and non-adherent cells

Live or Dead™ Cell Viability Assay Kit *Red/Blue Dual Fluorescence*

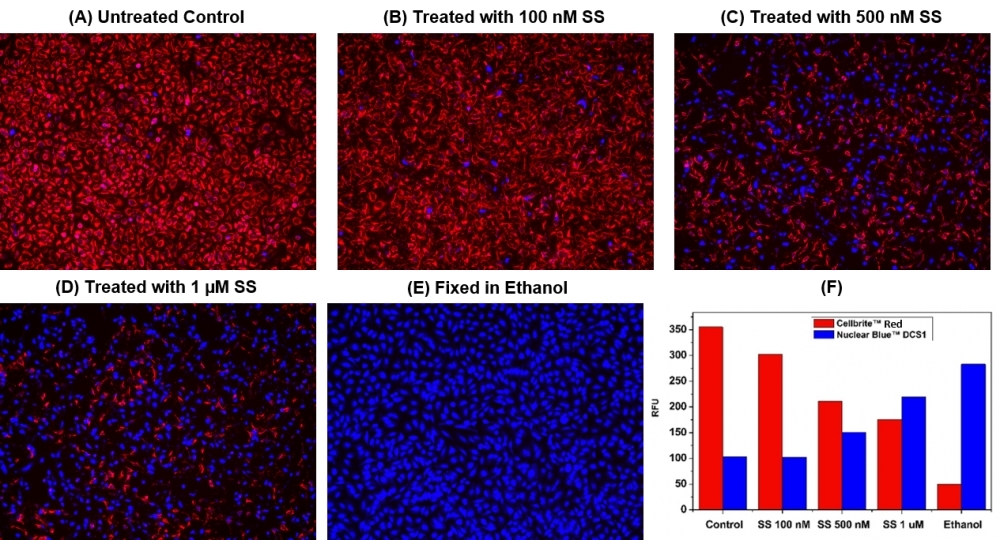

Fluorescence images of HeLa cells labeled with Live or Dead™ Cell Viability Assay Kit *Dual Fluorescence* (Cat#22788). HeLa cells at 100,000 cells/well/100 µL were seeded overnight in a 96-well black wall/clear bottom plate. Cells were treated with 0-1 µM staurosporine (SS) at 37°C for 4 hours (A-D) or fixed in ethanol (E), then incubated with the dye-loading solution for 1 hour. The fluorescence signal was measured using a fluorescence microscope with Texas Red or Cy5 filter for viable cells (Red) and DAPI filter for necrotic cells (Blue), respectively. (F) The corresponding fluorescence signal was measured using a FlexStation® microplate reader (Molecular Devices) with bottom read mode at Ex/Em= 610/650 (cutoff=630 nm, Red) and Ex/Em=360/450 (cutoff=420 nm, Blue), respectively.
The Live or Dead™ Cell Viability Assay Kit *Red/Blue Dual Fluorescence* is a convenient assay for determining cell viability and cytotoxicity based on membrane integrity and mitochondrial membrane potential activity. The kit features two probes - Cellbrite™ Red and Nuclear Blue™ DCS1 - that can be added simultaneously to the sample for two-color fluorescence determination of live and dead cells. Cellbrite™ Red stains living cells with active mitochondria red, while the membrane-impermeable DNA dye Nuclear Blue™ DCS1 stains dead cells blue. It can be easily adapted for high-throughput assays in a wide variety of fluorescence platforms, such as fluorescence microplate assays, immunocytochemistry, imaging, and flow cytometry, and is compatible with 3D-cell culture models, spheroids, adherent cells, and non-adherent cells.


Table 1. Selection guide for Live or Dead™ Cell Viability Assays for eukaryotic cells.

Kit
Probes
Ex/Em (nm)
Em Colors
Applications
Unit Size
Cat No.
Live or Dead™ Cell Viability Assay Kit *Green/Red Dual Fluorescence*CytoCalcein™ Green
Propidium Iodide
494/514
537/618
Green (Live)
Red (Dead)
FC, FM or MA¹200 Tests22789
Live or Dead™ Cell Viability Assay Kit *Green/Red Dual Fluorescence*CytoCalcein™ Green
Propidium Iodide
494/514
537/618
Green (Live)
Red (Dead)
FC, FM or MA¹1000 Tests22760
Live or Dead™ Cell Viability Assay Kit *Red/Blue Dual Fluorescence*Cellbrite™ Red
Nuclear Blue™ DCS1
613/631
348/469
Red (Live)
Blue (Dead)
FC, FM or MA¹200 Tests22788
  1. FC = flow cytometry; FM = fluorescence microscopy; MA = microplate assay



Live or Dead™ Assay for Bacteria


MycoLight™ Fluorescence Live/Dead Bacterial Imaging Kit



A mixed population of live and dead Bacillus subtilis was stained with MycoLight™ Fluorescence Live/Dead Bacterial Imaging Kit. Live bacteria with active intracellular esterase showed green fluorescence, while 70% alcohol-killed dead bacteria with compromised membranes showed red fluorescence.
The MycoLight™ Fluorescence Live/Dead Bacterial Imaging Kit provides a quick and easy method to discriminate live and dead bacteria in suspension or immobilized on filter membranes. The kit comprises two probes - MycoLight™ 520 and propidium iodide - that can be added simultaneously to the bacterial sample without any wash steps, making it amenable for high-throughput screening. MycoLight™ 520 is a membrane-permeant fluorogenic esterase substrate that passively diffuses across the plasma membrane of bacteria and stains live bacteria bright green. In contrast, propidium iodide, which can only penetrate the compromised membranes of dead bacteria, labels dead bacteria with red fluorescence. Thus, with an appropriate mixture of the MycoLight™ 520 and propidium iodide stains, live bacteria with intact cell membranes emits green fluorescence and is analyzed using standard fluorescein filter sets, whereas dead bacteria with damaged membranes give red fluorescence and are analyzed using standard TRITC filter sets.


Table 2. MycoLight™ Fluorescence Live/Dead Bacterial Imaging Kits for bacteria.

Kit
Probes
Ex/Em (nm)
Em Colors
Applications
Unit Size
Cat No.
MycoLight™ Fluorescence Live/Dead Bacterial Imaging KitMycoLight™ 520
Propidium Iodide
488/530
537/618
Green (Live)
Red (Dead)
FM¹100 Tests22789
  1. FM = fluorescence microscopy



Live or Dead™ Fixable Assays for Flow Cytometry


The ability to discriminate and exclude dead cells from live cells enables cleaner separation and identification of cell populations. It greatly enhances assay accuracy and eliminates undesirable artifacts and false positives caused by the nonspecific binding of various reagents to dead cells. To distinguish live and dead cell populations from flow cytometry readouts, AAT Bioquest offers a broad range of Live or Dead™ Fixable Dead Cell Staining Kits. Labeling is stable, robust, and compatible with fixatives and permeabilization buffers allowing for further analysis of intracellular targets.

Live or Dead™ Fixable Dead Cell Staining Kits


Live or Dead™ Fixable Dead Cell Staining Kits employ membrane-impermeant amine-reactive dyes to differentiate live and dead cells during flow cytometry. The dyes provided in each kit can readily permeate compromised membranes of dead cells and covalently bind to both intracellular and extracellular amine-containing proteins resulting in intense fluorescence. While on live cells, the fluorescence signal is negligible as cell surface amine-groups are only available to react with the dye. The difference in signal intensity between live and dead cell populations is significant, making it easy to exclude dead cells from analysis. Cells labeled using Live or Dead™ Fixable Dead Cell Staining Kits can be fixed, permeabilized, and probed for intracellular immunophenotyping or other multiparameter staining experiments. AAT Bioquest offers 10 Live or Dead™ Fixable Dead Cell Staining Kits designed for efficient excitation by major excitation sources, including the 350, 405, 488, 532, 561, 633, and 647 nm laser lines, and emit in common channels. These kits are exceptional tools for preserving fluorescent images of particular cells and can also be used for fluorescence microscope demonstrations.

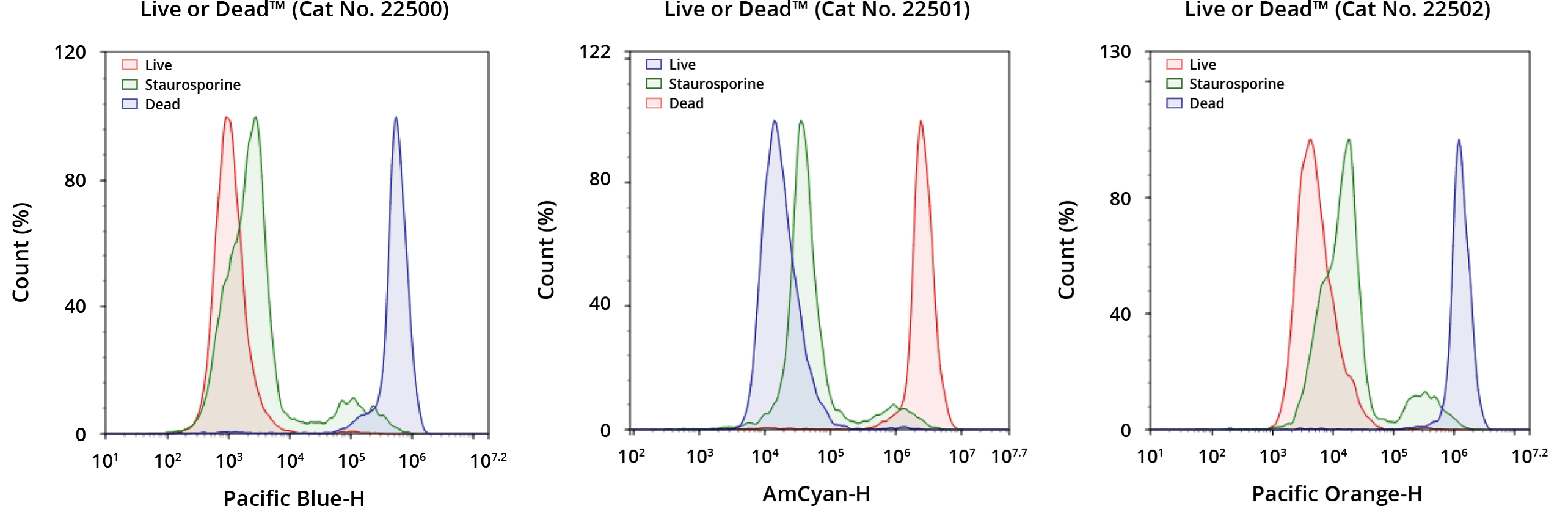

Detection of Jurkat cell viability by Live or Dead™ Fixable Dead Cell Staining Kits. Jurkat cells were treated, stained, and then fixed in 3.7% formaldehyde and analyzed by flow cytometry.



Table 3. Live or Dead™ Fixable Dead Cell Staining kits for live/dead cell analysis during flow cytometry

Kit
Laser (nm)
Ex/Em (nm)
Multiplex
Fixable
Unit Size
Cat No.
Live or Dead™ Fixable Dead Cell Staining Kit *Blue Fluorescence*UV (350 nm)353/442YesYes200 Tests22600
Live or Dead™ Fixable Dead Cell Staining Kit *Blue Fluorescence with 405 nm Excitation*Violet (405 nm)410/450YesYes200 Tests22500
Live or Dead™ Fixable Dead Cell Staining Kit *Green Fluorescence with 405 nm Excitation*Violet (405 nm)408/512YesYes200 Tests22501
Live or Dead™ Fixable Dead Cell Staining Kit *Green Fluorescence*Blue (488 nm)498/521YesYes200 Tests22601
Live or Dead™ Fixable Dead Cell Staining Kit *Orange Fluorescence with 405 nm Excitation*Violet (405 nm)398/550YesYes200 Tests22502
Live or Dead™ Fixable Dead Cell Staining Kit *Orange Fluorescence*Green/Yellow (532/561 nm)547/573YesYes200 Tests22602
Live or Dead™ Fixable Dead Cell Staining Kit *Red Fluorescence*Yellow (561 nm)583/603YesYes200 Tests22603
Live or Dead™ Fixable Dead Cell Staining Kit *Red Fluorescence Optimized for Flow Cytometry*Blue/Green (488/532 nm)523/617YesYes200 Tests22599
Live or Dead™ Fixable Dead Cell Staining Kit *Red Fluorescence Optimized for Flow Cytometry*Red (635 nm)649/660YesYes200 Tests22604
Live or Dead™ Fixable Dead Cell Staining Kit *Red Fluorescence Optimized for Flow Cytometry*Red (635 nm)749/775YesYes200 Tests22605



Product Ordering Information




Table 4. Live or Dead™ Viability Assays for various cell types.

Product
Unit Size
Cat No.
Live or Dead™ Cell Viability Assay Kit *Green/Red Dual Fluorescence*200 Tests22789
Live or Dead™ Cell Viability Assay Kit *Green/Red Dual Fluorescence*1000 Tests22760
Live or Dead™ Cell Viability Assay Kit *Red/Blue Dual Fluorescence*200 Tests22788
Live or Dead™ Fixable Dead Cell Staining Kit *Blue Fluorescence with 405 nm Excitation*200 Tests22500
Live or Dead™ Fixable Dead Cell Staining Kit *Green Fluorescence with 405 nm Excitation*200 Tests22501
Live or Dead™ Fixable Dead Cell Staining Kit *Orange Fluorescence with 405 nm Excitation*200 Tests22502
Live or Dead™ Fixable Dead Cell Staining Kit *Red Fluorescence Optimized for Flow Cytometry*200 Tests22599
Live or Dead™ Fixable Dead Cell Staining Kit *Blue Fluorescence*200 Tests22600
Live or Dead™ Fixable Dead Cell Staining Kit *Green Fluorescence*200 Tests22601
Live or Dead™ Fixable Dead Cell Staining Kit *Orange Fluorescence*200 Tests22602
