JC-1 [5,5,6,6-Tetrachloro-1,1,3,3-tetraethylbenzimidazolylcarbocyanine iodide] *CAS#: 3520-43-2*

Chemical structure for JC-1 [5,5,6,6-Tetrachloro-1,1,3,3-tetraethylbenzimidazolylcarbocyanine iodide] *CAS#: 3520-43-2*
Chemical structure for JC-1 [5,5,6,6-Tetrachloro-1,1,3,3-tetraethylbenzimidazolylcarbocyanine iodide] *CAS#: 3520-43-2*
Ordering information
Price ()
Catalog Number22200
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Physical properties
Molecular weight652.23
SolventDMSO
Spectral properties
Extinction coefficient (cm -1 M -1)1950001
Excitation (nm)515
Emission (nm)530
Storage, safety and handling
Certificate of OriginDownload PDF
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC12352200

OverviewpdfSDSpdfProtocol


CAS
3520-43-2
Molecular weight
652.23
Extinction coefficient (cm -1 M -1)
1950001
Excitation (nm)
515
Emission (nm)
530
JC-1 is widely used for determining mitochondrial membrane potential with flow cytometry. It is capable of entering selectively into mitochondria, and changes reversibly its color from green to orange as membrane potentials increase (over values of about 80-100 mV). This property is due to the reversible formation of JC-1 aggregates upon membrane polarization that causes shifts in emitted light from 530 nm (i.e., emission of JC-1 monomeric form) to 590 nm (i.e., emission of J-aggregate). When excited at 490 nm, the color of JC-1 changes reversibly from green to greenish orange as the mitochondrial membrane becomes more polarized. Both colors can be detected using the filters commonly mounted in all flow cytometers, so that green emission can be analyzed in fluorescence channel 1 (FL1) and greenish orange emission in channel 2 (FL2). The main advantage of the use of JC-1 is that it can be both qualitative, considering the shift from green to orange fluorescence emission, and quantitative, considering the pure fluorescence intensity, which can be detected in both FL1 and FL2 channels. Besides its wide use with flow cytometry, it is also used in fluorescence imaging. We have developed a protocol to use it in fluorescence microplate platform. Although JC-1 is widely used in many labs, its poor water solubility makes it hard to use for some applications. Our JC-10 has much better water solubility than JC-1, and in some cell lines JC-10 has even superior performance to JC-1. Interestingly the performance of JC-10 is quite cell line-dependent.

Platform


Flow cytometer

Excitation488 nm laser
Emission530/30 nm, 575/26 nm filter
Instrument specification(s)FITC, PE channel

Fluorescence microscope

Excitation490 nm
Emission525 nm (590 nm for ratio analysis)
Recommended plateBlack wall/clear bottom
Instrument specification(s)FITC and TRITC filters

Fluorescence microplate reader

Excitation490 nm
Emission525 nm (590 nm for ratio analysis)
Recommended plateSolid black

Calculators


Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of JC-1 [5,5,6,6-Tetrachloro-1,1,3,3-tetraethylbenzimidazolylcarbocyanine iodide] *CAS#: 3520-43-2* to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM153.32 µL766.601 µL1.533 mL7.666 mL15.332 mL
5 mM30.664 µL153.32 µL306.64 µL1.533 mL3.066 mL
10 mM15.332 µL76.66 µL153.32 µL766.601 µL1.533 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

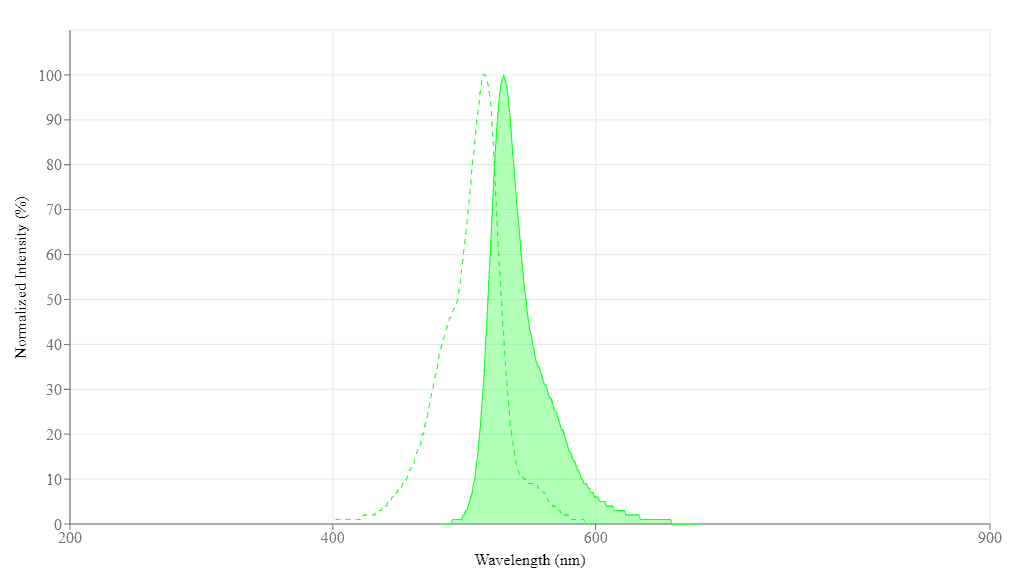

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Extinction coefficient (cm -1 M -1)1950001
Excitation (nm)515
Emission (nm)530
