mFluor™ 510-VAD-FMK

Chemical structure for mFluor™ 510-VAD-FMK
Chemical structure for mFluor™ 510-VAD-FMK
Ordering information
Price ()
Catalog Number13476
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Physical properties
Molecular weight708.19
SolventDMSO
Spectral properties
Absorbance (nm)410
Correction Factor (260 nm)0.464
Correction Factor (280 nm)0.366
Extinction coefficient (cm -1 M -1)250001
Excitation (nm)412
Emission (nm)505
Quantum yield0.861
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC12352200
Related products
mFluor™ Violet 450 SE
mFluor™ Violet 510 SE
mFluor™ Violet 540 SE
mFluor™ Blue 570 SE
mFluor™ Green 620 SE
mFluor™ Yellow 630 SE
mFluor™ Red 700 SE
mFluor™ Red 780 SE
mFluor™ Red 780 amine
mFluor™ Violet 450-VAD-FMK
mFluor™ Violet 450-streptavidin conjugate
mFluor™ Violet 510-streptavidin conjugate
mFluor™ Violet 540-streptavidin conjugate
mFluor™ Blue 570-streptavidin conjugate
mFluor™ Green 620-streptavidin conjugate
mFluor™ Yellow 630-streptavidin conjugate
mFluor™ Red 700-streptavidin conjugate
mFluor™ Red 780-streptavidin conjugate
mFluor™ Violet 450-dUTP *1 mM in Tris Buffer (pH 7.5)*
mFluor™ Violet 450 acid
mFluor™ Violet 510 acid
mFluor™ Violet 540 acid
mFluor™ Blue 570 acid
mFluor™ Green 620 acid
mFluor™ Yellow 630 acid
mFluor™ Red 700 acid
mFluor™ Violet 500 SE
mFluor™ UV375 SE
mFluor™ Red 780 acid
mFluor™ UV460 SE
mFluor™ Blue 630 SE
mFluor™ Blue 660 SE
mFluor™ Violet 610 SE
mFluor™ Green 630 SE
mFluor™ Blue 580 SE
mFluor™ Blue 590 SE
mFluor™ Blue 620 SE
mFluor™ Red 780 Maleimide
mFluor™ Violet 550 SE
mFluor™ Violet 505 SE
mFluor™ Violet 590 SE
mFluor™ Violet 545 SE
mFluor™ UV420 SE
mFluor™ UV455 SE
mFluor™ UV520 SE
mFluor™ UV540 SE
mFluor™ UV610 SE
mFluor™ Violet 450 Azide
mFluor™ Violet 450 maleimide
mFluor™ UV 375 Biotin Conjugate
mFluor™ UV 460 Biotin Conjugate
mFluor™ Violet 500 Biotin Conjugate
mFluor™ Violet 540 Biotin Conjugate
mFluor™ Red 780 Biotin Conjugate
mFluor™ Violet 530 SE
mFluor™ Violet 530 maleimide
Ac-DEVD-AFC *CAS 201608-14-2*
Ac-DEVD-AMC *CAS 169332-61-0*
Ac-DEVD-CHO *CAS 169332-60-9*
Ac-DEVD-pNA *CAS 189950-66-1*
FITC-C6-DEVD-FMK
Ac-IETD-AFC *CAS 211990-57-7*
Ac-IETD-AMC
Ac-IETD-CHO *CAS 191338-86-0*
Z-IETD-pNA *CAS 219138-21-3*
Z-DEVD-AFC
Z-DEVD-AMC
Z-DEVD-pNA
Z-IETD-AFC *CAS 219138-02-0*
(Z-DEVD)2-R110
(Ac-IETD)2-R110
Z-DEVD-ProRed™ 620
Z-IETD-ProRed™ 620
FAM-VAD-FMK
TF4-VAD-FMK
SRB-VAD-FMK [Sulforhodamine B-VAD-FMK]
TF3-DEVD-FMK
Z-VAD-FMK
Z-DEVD-FMK
Z-IETD-FMK
Ac-VAD-CHO [Caspase Inhibitor II]
Show More (81)

OverviewpdfSDSpdfProtocol


Molecular weight
708.19
Absorbance (nm)
410
Correction Factor (260 nm)
0.464
Correction Factor (280 nm)
0.366
Extinction coefficient (cm -1 M -1)
250001
Excitation (nm)
412
Emission (nm)
505
Quantum yield
0.861
FAM-VAD is a green fluorescent cell-permeable polycaspase inhibitor to target caspases 1, 2, 3, 6, 8, 9, or 10. Once inside the cell, the inhibitor binds covalently to the active caspase, which produces a green fluorescence. When added to a population of cells, the FAM-VAD-FMK probe enters each cell and covalently binds to a reactive cysteine residue that resides on the large subunit of the active caspase heterodimer, thereby inhibiting further enzymatic activity. The bound labeled reagent is retained within the cell, while any unbound reagent will diffuse out of the cell and is washed away. The green fluorescent signal is a direct measure of the amount of active caspase present in the cell at the time the reagent was added. Cells that contain the bound labeled reagent can be analyzed by 96-well plate-based fluorometry, fluorescence microscopy, or flow cytometry. The probe has the spectral properties similar to BD Horizon™ V500, thus the filter set of BD Horizon™ V500 can be conveniently used with a flow cytometer or microscope. This probe is particularly designed for the multicolor detection of caspases with a violet laser-equipped flow cytomer.

Example protocol


AT A GLANCE

Important notes

It is important to store at <-15 °C and should be stored in cool, dark place.

It can be used within 12 months from the date of receipt.

SAMPLE EXPERIMENTAL PROTOCOL

Following protocol only provides a guideline, and should be modified according to your specific needs.

General Solution Caspase Assays Using AMC, AFC, pNA, R110 and ProRed Substrates

  1. Prepare a 10 mM stock solution in DMSO.

  2. Prepare a 2X caspase substrate (50 µM) assay solution as the following: 50 µL substrate stock solution, 100 µL DTT (1M), 400 µL EDTA (100 mM), 10 mL Tris Buffer (20 mM), pH =7.4.

  3. Mix equal volume of the caspase standards or samples with 2X caspase substrate assay solution, and incubate the solutions at room temperature for at least 1 hour.

  4. Monitor the fluorescence using a fluorescence microplate reader, or absorbance using an absorbance microplate reader.

Cell Caspase Assays Using Cell-Permeable FMK Caspase Probes

  1. Prepare a 2-5 mM stock solution in DMSO.

  2. Treat cells as desired.

  3. Prepare a 2X permeable caspase substrate (20 µM) assay solution by diluting the DMSO stock solution (from Step 2.1) in Hanks with 20 mM Hepes buffer (HHBS).

  4. Mix equal volume of the treated cells with 2X caspase substrate assay solution (from Step 2.3), and incubate the cells in a 37°C, 5% CO2 incubator for at least1 hour.

  5. Wash the cells with HHBS for at least once.

  6. Monitor the fluorescence intensity by a flow cytometer, a fluorescence microscope or a fluorescence microplate reader.

Cell Caspase Assays Using Cell-Permeable FMK Caspase Probes (For #13470-13476 only)

  1. Prepare a 250X stock solution by adding 50 µL DMSO into the vial.

  2. Treat cells as desired.

  3. Add 250 X DMSO stock solution into the cell solution at a 1:250 ratio (such as 2 µL to 500 µL cells), and incubate the cells in a 37°C, 5% CO2 incubator for 1 hour.

  4. Wash the cells with HHBS for at least once.

  5. Monitor the fluorescence intensity by flow cytometer, fluorescence microscopy or fluorescent microplate reader.

Calculators


Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of mFluor™ 510-VAD-FMK to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM141.205 µL706.025 µL1.412 mL7.06 mL14.121 mL
5 mM28.241 µL141.205 µL282.41 µL1.412 mL2.824 mL
10 mM14.121 µL70.603 µL141.205 µL706.025 µL1.412 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

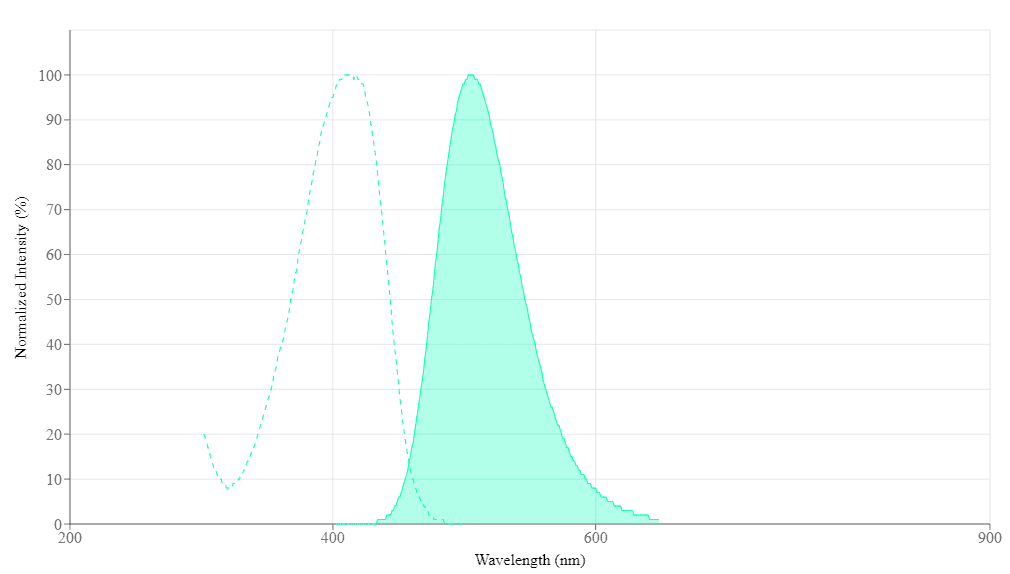

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Absorbance (nm)410
Correction Factor (260 nm)0.464
Correction Factor (280 nm)0.366
Extinction coefficient (cm -1 M -1)250001
Excitation (nm)412
Emission (nm)505
Quantum yield0.861

References


View all 26 references: Citation Explorer
Suppression of human T cell proliferation by the caspase inhibitors, z-VAD-FMK and z-IETD-FMK is independent of their caspase inhibition properties
Authors: Lawrence CP, Chow SC.
Journal: Toxicol Appl Pharmacol. (2012)
Inhibition of elicitation of allergic contact dermatitis by topical use of Z-VAD-FMK, a broad caspase inhibitor: experiment in mice
Authors: Li YY, Yan CL.
Journal: Zhonghua Yi Xue Za Zhi (2012): 1992
Structure of human caspase-6 in complex with Z-VAD-FMK: New peptide binding mode observed for the non-canonical caspase conformation
Authors: Muller I, Lamers MB, Ritchie AJ, Dominguez C, Munoz-Sanjuan I, Kiselyov A.
Journal: Bioorg Med Chem Lett (2011): 5244
Intracochlear perfusion of leupeptin and z-VAD-FMK: influence of antiapoptotic agents on gunshot-induced hearing loss
Authors: Abaamrane L, Raffin F, Schmerber S, Sendowski I.
Journal: Eur Arch Otorhinolaryngol (2011): 987
Plasmodium falciparum metacaspase PfMCA-1 triggers a z-VAD-fmk inhibitable protease to promote cell death
Authors: Meslin B, Beavogui AH, Fasel N, Picot S.
Journal: PLoS One (2011): e23867
Pretreatment with pancaspase inhibitor (Z-VAD-FMK) delays but does not prevent intraperitoneal heat-killed group B Streptococcus-induced preterm delivery in a pregnant mouse model
Authors: Equils O, Moffatt-Blue C, Ishikawa TO, Simmons CF, Ilievski V, Hirsch E.
Journal: Infect Dis Obstet Gynecol (2009): 749432
Attenuation of allergic contact dermatitis by Z-VAD-FMK, a broad caspase inhibitor: experiment with mice
Authors: Li YY, Yan CL, Xu W.
Journal: Zhonghua Yi Xue Za Zhi (2008): 3153
Bodipy-VAD-Fmk, a useful tool to study yeast peptide N-glycanase activity
Authors: Witte MD, Descals CV, de Lavoir SV, Florea BI, van der Marel GA, Overkleeft HS.
Journal: Org Biomol Chem (2007): 3690
Effects of caspase inhibitors (z-VAD-fmk, z-VDVAD-fmk) on Nile Red fluorescence pattern in 7-ketocholesterol-treated cells: investigation by flow cytometry and spectral imaging microscopy
Authors: Vejux A, Lizard G, Tourneur Y, Riedinger JM, Frouin F, Kahn E.
Journal: Cytometry A (2007): 550
Caspase inhibitor Z-VAD-FMK enhances the freeze-thaw survival rate of human embryonic stem cells
Authors: Heng BC, Clement MV, Cao T.
Journal: Biosci Rep (2007): 257
