ReadiUse™ DRAQ5 Staining Solution *5 mM in Water*

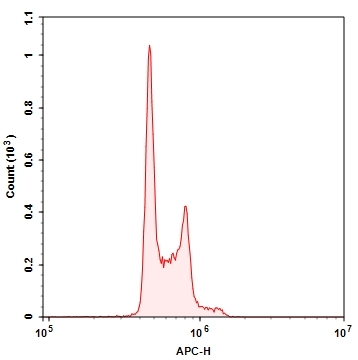

Live Cell Cycle analysis using DRAQ5. Jurkat cells were stained with 10uM DRAQ5 in growth medium for 15min, and analyzed with flow cytometer APC channel.
Live Cell Cycle analysis using DRAQ5. Jurkat cells were stained with 10uM DRAQ5 in growth medium for 15min, and analyzed with flow cytometer APC channel.
Chemical structure for ReadiUse™ DRAQ5 Staining Solution *5 mM in Water*.
Ordering information
Price ()
Catalog Number17558
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Physical properties
Molecular weight485.41
SolventWater
Spectral properties
Extinction coefficient (cm -1 M -1)220001
Excitation (nm)601
Emission (nm)699
Storage, safety and handling
H-phraseH303, H313, H340
Hazard symbolT
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R68
StorageDesiccated; Refrigerated (2-8 °C); Minimize light exposure
UNSPSC41116134
Related products
ReadiUse™ Preactivated APC-iFluor® 700 Tandem
ReadiUse™ Preactivated APC-iFluor® 750 Tandem
ReadiUse™ Preactivated PE-iFluor® 647 Tandem
ReadiUse™ Preactivated PE-iFluor® 750 Tandem
ReadiUse™ ABTS Substrate Solution *Optimized for ELISA Assays with HRP Conjugates*
ReadiUse™ TMB Substrate Solution *Optimized for ELISA Assays with HRP Conjugates*
ReadiUse™ hydrogen peroxide solution *50 mM calibrated and stabilized solution*
ReadiUse™ Preactivated HRP NHS ester
ReadiUse™ NADPH Regenerating Kit
ReadiUse™ NADP Regenerating Kit
ReadiUse™ TCA Deproteinization Sample Preparation Kit
ReadiUse™ microscope mounting solution
ReadiUse™ 4% formaldehyde fixation solution
ReadiUse™ mammalian cell lysis buffer *5X*
ReadiUse™ probenecid, sodium salt *Water-soluble*
ReadiUse™ probenecid *25 mM stabilized aqueous solution*
ReadiUse™ CFSE [5-(and 6)-Carboxyfluorescein diacetate, succinimidyl ester] *CAS 150347-59-4*
ReadiUse™ Preactivated PE
ReadiUse™ Preactivated APC
ReadiUse™ Preactivated PE-Cy5 Tandem
ReadiUse™ Preactivated PE-Cy5.5 Tandem
ReadiUse™ Preactivated PE-Cy7 Tandem
ReadiUse™ Preactivated PE-Texas Red Tandem
ReadiUse™ Preactivated APC-Cy5.5 Tandem
ReadiUse™ Preactivated APC-Cy7 Tandem
ReadiUse™ TCEP removal solution
ReadiUse™ WST-8 *50 mM aqueous solution*
ReadiUse™ Rapid Luminometric ATP Assay Kit
ReadiUse™ PE [R-Phycoerythrin] *Ammonium Sulfate-Free*
ReadiUse™ CL-APC [Cross linked-Allophycocyanin] *Ammonium Sulfate-Free*
ReadiUse™ Preactivated PE-iFluor® 594 Tandem
ReadiUse™ Cell Detaching Buffer
ReadiUse™ Staurosporine * 1 mM DMSO stock solution*
ReadiUse™ Bio-Gel P-6 spin column
ReadiUse™ bacterial cell lysis buffer *5X*
ReadiUse™ 10% Triton X-100 *Hydrogen Peroxide-and Carbonyl-Free*
ReadiUse™ Preactivated PE-iFluor® 700 Tandem
ReadiUse™ dNTP Mix *10 mM*
ReadiUse™ Viral RNA Lysis Buffer
ReadiUse™ Tyramide (TSA)/Styramide (PSA) Optimized Reaction Buffer
ReadiUse™ Preactivated PerCP
ReadiUse™ Preactivated PerCP-Cy5.5 Tandem
ReadiUse™ Preactivated PE-iFluor® 660 Tandem
ReadiUse™ 10KD Spin Filter
ReadiUse™ Preactivated APC-iFluor® 800 Tandem
ReadiUse™ 1 Kb Plus DNA Ladder
ReadiUse™ GeneRuler 1 kb DNA Ladder
ReadiUse™ 100 bp DNA Ladder
ReadiUse™ ddNTP Terminator Mix *10 mM*
ReadiUse™ dNTP Mix Set *10 mM PCR Grade*
ReadiUse™ Preactivated HRP maleimide
ReadiUse™ Stayright™ Purple *HRP Chromogen Premixed with Hydrogen Peroxide*
ReadiUse™ Disposable PD-10 Desalting Column
ReadiUse™ Preactivated APC Maleimide [Activated Allophycocyanin]
ReadiUse™ Preactivated PE Maleimide [Activated R-Phycoerythrin]
ReadiUse™ 6-Color Human TBNK Antibody Kit *Dry Reagent Format*
ReadiUse™ MTS Reagent *50 mM aqueous solution*
ReadiUse™ Preactivated PE-Texas Red Maleimide
ReadiUse™ Preactivated PE-Cy5 Maleimide
ReadiUse™ Preactivated PE-Cy5.5 Maleimide
ReadiUse™ Preactivated PE-Cy7 Maleimide
ReadiUse™ Preactivated APC-AF700 Maleimide
ReadiUse™ Preactivated APC-Cy5.5 Maleimide
ReadiUse™ Preactivated APC-Cy7 Maleimide
ReadiUse™ Preactivated PerCP Maleimide
ReadiUse™ Preactivated PerCP-Cy5.5 Maleimide
ReadiUse™ Preactivated PerCP-Cy7 Maleimide
Show More (67)

OverviewpdfSDSpdfProtocol


CAS
252903-95-0
Molecular weight
485.41
Extinction coefficient (cm -1 M -1)
220001
Excitation (nm)
601
Emission (nm)
699
DRAQ5™ is the trade name of 1,5-bis{[2-(di-methylamino) ethyl]amino}-4, 8-dihydroxyanthracene-9,10-dione (DRAQ-5™ is the trade mark of Biostatus Ltd). It is a far-red DNA stain for live or fixed cells, and it can be readily used for multiplexing with other fluorophores, such as cells expressing green fluorescent protein (GFP) fusion proteins. It is lipophilic and membrane permeable dye for live-cell and fixed-cell staining and quantitation of DNA content. It is also ideal for use alongside other fluorophore reporters for fluorescence microscopy or high-content screening (HCS). Due to its far-red excitation and emission, DRAQ-5 Stain can be multiplexed with many other fluorophores. It is commonly chosen to counterstain nuclei and measure DNA content in cell proliferation studies involving cells expressing green fluorescent protein (GFP) fusion proteins. DRAQ-5 is compatible with many existing protocols across a wide range of instrumentation platforms. AAT Bioquest offers this ready to use solution to facilitate your fluorescence imaging and flow cytometric tests.

Calculators


Common stock solution preparation

Table 1. Volume of Water needed to reconstitute specific mass of ReadiUse™ DRAQ5 Staining Solution *5 mM in Water* to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM206.011 µL1.03 mL2.06 mL10.301 mL20.601 mL
5 mM41.202 µL206.011 µL412.023 µL2.06 mL4.12 mL
10 mM20.601 µL103.006 µL206.011 µL1.03 mL2.06 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Extinction coefficient (cm -1 M -1)220001
Excitation (nm)601
Emission (nm)699

Citations


View all 7 citations: Citation Explorer
One-Step Seeding of Neural Stem Cells with Vitronectin-Supplemented Medium for High-Throughput Screening Assays
Authors: Dai, Sheng and Li, Rong and Long, Yan and Titus, Steve and Zhao, Jinghua and Huang, Ruili and Xia, Menghang and Zheng, Wei
Journal: Journal of Biomolecular Screening (2016): 1112--1124
DRAQ5 and Eosin ('D&E') as an Analog to Hematoxylin and Eosin for Rapid Fluorescence Histology of Fresh Tissues
Authors: Elfer, K. N., Sholl, A. B., Wang, M., Tulman, D. B., M and ava, S. H., Lee, B. R., Brown, J. Q.
Journal: PLoS One (2016): e0165530
Genome shuffling of the nonconventional yeast Pichia anomala for improved sugar alcohol production
Authors: Zhang, Guoqiang and Lin, Yuping and Qi, Xianni and Wang, Lixian and He, Peng and Wang, Qinhong and Ma, Yanhe
Journal: Microbial cell factories (2015): 1
Short exposure to the DNA intercalator DRAQ5 dislocates the transcription machinery and induces cell death
Authors: Richard, E., Causse, S., Spriet, C., Fourre, N., Trinel, D., Darzacq, X., V and enbunder, B., Heliot, L.
Journal: Photochem Photobiol (2011): 256-61
The use of DRAQ5 to monitor intracellular DNA in Escherichia coli by flow cytometry
Authors: Silva, F., Lourenco, O., Pina-Vaz, C., Rodrigues, A. G., Queiroz, J. A., Domingues, F. C.
Journal: J Fluoresc (2010): 907-14
Influence of the live cell DNA marker DRAQ5 on chromatin-associated processes
Authors: Mari, P. O., Verbiest, V., Sabbioneda, S., Gourdin, A. M., Wijgers, N., Dinant, C., Lehmann, A. R., Vermeulen, W., Giglia-Mari, G.
Journal: DNA Repair (Amst) (2010): 848-55

References


View all 1 references: Citation Explorer
A novel cell permeant and far red-fluorescing DNA probe, DRAQ5, for blood cell discrimination by flow cytometry
Authors: Smith PJ, Wiltshire M, Davies S, Patterson LH, Hoy T.
Journal: J Immunol Methods (1999): 131
