trFluor™ Tb-streptavidin conjugate

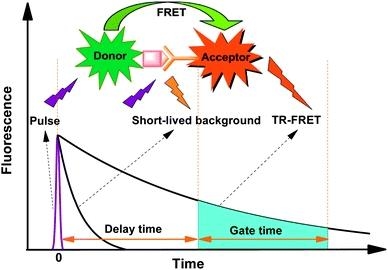

Time-resolved fluorescence energy transfer&nbsp;(TR-FRET) is the practical combination of&nbsp;time-resolved fluorometry (TRF)&nbsp;combined with&nbsp;F&ouml;rster resonance energy transfer&nbsp;(FRET) that offers a powerful tool for drug discovery researchers. TR-FRET combines the low&nbsp;background&nbsp;aspect of TRF with the&nbsp;homogeneous assay&nbsp;format of FRET. The resulting assay provides an increase in flexibility, reliability and sensitivity in addition to higher throughput and fewer false positive/false negative results. FRET involves two&nbsp;fluorophores, a donor (such as trFluor Eu and trFluor Tb) and an acceptor.&nbsp;Excitation of the donor by an energy source (e.g. flash lamp or laser) produces an energy transfer to the acceptor if the two are within a given proximity to each other. The acceptor in turn emits light at its characteristic wavelength. The FRET aspect of the technology is driven by several factors, including spectral overlap and the proximity of the fluorophores involved, wherein energy transfer occurs only when the distance between the donor and the acceptor is small enough. In practice, FRET systems are characterized by the&nbsp;F&ouml;rster's radius&nbsp;(R<sub>0</sub>): the distance between the fluorophores at which FRET efficiency is 50%. For many FRET parings, R<sub>0</sub>&nbsp;lies between 20 and 90 &Aring;, depending on the acceptor used and the spatial arrangements of the fluorophores within the assay.&nbsp;Through measurement of this energy transfer, interactions between&nbsp;biomolecules&nbsp;can be assessed by coupling each partner with a fluorescent label and detecting the level of energy transfer. Acceptor emission as a measure of energy transfer can be detected without needing to separate bound from unbound assay components (e.g. a filtration or wash step) resulting in reduced assay time and cost.
Time-resolved fluorescence energy transfer&nbsp;(TR-FRET) is the practical combination of&nbsp;time-resolved fluorometry (TRF)&nbsp;combined with&nbsp;F&ouml;rster resonance energy transfer&nbsp;(FRET) that offers a powerful tool for drug discovery researchers. TR-FRET combines the low&nbsp;background&nbsp;aspect of TRF with the&nbsp;homogeneous assay&nbsp;format of FRET. The resulting assay provides an increase in flexibility, reliability and sensitivity in addition to higher throughput and fewer false positive/false negative results. FRET involves two&nbsp;fluorophores, a donor (such as trFluor Eu and trFluor Tb) and an acceptor.&nbsp;Excitation of the donor by an energy source (e.g. flash lamp or laser) produces an energy transfer to the acceptor if the two are within a given proximity to each other. The acceptor in turn emits light at its characteristic wavelength. The FRET aspect of the technology is driven by several factors, including spectral overlap and the proximity of the fluorophores involved, wherein energy transfer occurs only when the distance between the donor and the acceptor is small enough. In practice, FRET systems are characterized by the&nbsp;F&ouml;rster's radius&nbsp;(R<sub>0</sub>): the distance between the fluorophores at which FRET efficiency is 50%. For many FRET parings, R<sub>0</sub>&nbsp;lies between 20 and 90 &Aring;, depending on the acceptor used and the spatial arrangements of the fluorophores within the assay.&nbsp;Through measurement of this energy transfer, interactions between&nbsp;biomolecules&nbsp;can be assessed by coupling each partner with a fluorescent label and detecting the level of energy transfer. Acceptor emission as a measure of energy transfer can be detected without needing to separate bound from unbound assay components (e.g. a filtration or wash step) resulting in reduced assay time and cost.
Time-resolved fluorescence energy transfer&nbsp;(TR-FRET) is the practical combination of&nbsp;time-resolved fluorometry (TRF)&nbsp;combined with&nbsp;F&ouml;rster resonance energy transfer&nbsp;(FRET) that offers a powerful tool for drug discovery researchers. TR-FRET combines the low&nbsp;background&nbsp;aspect of TRF with the&nbsp;homogeneous assay&nbsp;format of FRET. The resulting assay provides an increase in flexibility, reliability and sensitivity in addition to higher throughput and fewer false positive/false negative results. FRET involves two&nbsp;fluorophores, a donor (such as trFluor Eu and trFluor Tb) and an acceptor.&nbsp;Excitation of the donor by an energy source (e.g. flash lamp or laser) produces an energy transfer to the acceptor if the two are within a given proximity to each other. The acceptor in turn emits light at its characteristic wavelength. The FRET aspect of the technology is driven by several factors, including spectral overlap and the proximity of the fluorophores involved, wherein energy transfer occurs only when the distance between the donor and the acceptor is small enough. In practice, FRET systems are characterized by the&nbsp;F&ouml;rster's radius&nbsp;(R<sub>0</sub>): the distance between the fluorophores at which FRET efficiency is 50%. For many FRET parings, R<sub>0</sub>&nbsp;lies between 20 and 90 &Aring;, depending on the acceptor used and the spatial arrangements of the fluorophores within the assay.&nbsp;Through measurement of this energy transfer, interactions between&nbsp;biomolecules&nbsp;can be assessed by coupling each partner with a fluorescent label and detecting the level of energy transfer. Acceptor emission as a measure of energy transfer can be detected without needing to separate bound from unbound assay components (e.g. a filtration or wash step) resulting in reduced assay time and cost.
Ordering information
Price
Catalog Number
Unit Size
Quantity
Add to cart
Additional ordering information
Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
ShippingStandard overnight for United States, inquire for international
Request quotation
Physical properties
Molecular weight~52000
SolventWater
Spectral properties
Correction Factor (260 nm)0.942
Correction Factor (280 nm)0.797
Excitation (nm)333
Emission (nm)544
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC12352200
Related products
trFluor™ Eu succinimidyl ester *europium complex*
trFluor™ Eu maleimide *europium complex*
trFluor™ Tb succinimidyl ester
trFluor™ Tb maleimide
trFluor™ Eu goat anti-mouse IgG (H+L)
trFluor™ Tb goat anti-mouse IgG (H+L)
trFluor™ Eu goat anti-mouse IgG (H+L) *Cross Adsorbed*
trFluor™ Tb goat anti-mouse IgG (H+L) *Cross Adsorbed*
trFluor™ Eu goat anti-rabbit IgG (H+L)
trFluor™ Tb goat anti-rabbit IgG (H+L)
trFluor™ Eu goat anti-rabbit IgG (H+L) *Cross Adsorbed*
trFluor™ Tb goat anti-rabbit IgG (H+L) *Cross Adsorbed*
trFluor™ Eu-Cryptate succinimidyl ester
trFluor™ Eu donkey anti-goat IgG (H+L) *Cross Adsorbed*
trFluor™ Eu donkey anti-rat IgG (H+L) *Cross Adsorbed*
trFluor™ Eu DBCO *europium complex*
trFluor™ Eu Acceptor XL665
RPE-streptavidin conjugate
APC-streptavidin conjugate
PerCP-streptavidin conjugate
RPE-iFluor® 647-streptavidin conjugate
RPE-iFluor® 750-streptavidin conjugate
APC-iFluor® 750-streptavidin conjugate
FITC-streptavidin conjugate
Texas Red®-streptavidin conjugate
Cy3®-streptavidin conjugate
Cy5®-streptavidin conjugate
Cy7®-streptavidin conjugate
HRP-streptavidin conjugate
AP-streptavidin conjugate [Streptavidin-alkaline phosphatase conjugate]
mFluor™ Violet 450-streptavidin conjugate
mFluor™ Violet 510-streptavidin conjugate
mFluor™ Violet 540-streptavidin conjugate
mFluor™ Blue 570-streptavidin conjugate
mFluor™ Green 620-streptavidin conjugate
mFluor™ Yellow 630-streptavidin conjugate
mFluor™ Red 700-streptavidin conjugate
mFluor™ Red 780-streptavidin conjugate
iFluor® 350-streptavidin conjugate
iFluor® 405-streptavidin conjugate
iFluor® 488-streptavidin conjugate
iFluor® 514-streptavidin conjugate
iFluor® 532-streptavidin conjugate
iFluor® 555-streptavidin conjugate
iFluor® 594-streptavidin conjugate
iFluor® 633-streptavidin conjugate
iFluor® 647-streptavidin conjugate
iFluor® 680-streptavidin conjugate
iFluor® 700-streptavidin conjugate
iFluor® 750-streptavidin conjugate
iFluor® 546-streptavidin conjugate
iFluor® 568-streptavidin conjugate
XFD350-streptavidin conjugate *XFD350 Same Structure to Alexa Fluor™ 350*
XFD488-streptavidin conjugate *XFD488 Same Structure to Alexa Fluor™ 488*
XFD594-streptavidin conjugate *XFD594 Same Structure to Alexa Fluor™ 594*
RPE-Cy7-streptavidin conjugate
iFluor® 790-streptavidin conjugate
iFluor® 800-streptavidin conjugate
iFluor® 820-streptavidin conjugate
iFluor® 840-streptavidin conjugate
iFluor® 860-streptavidin conjugate
MegaWox™ polyHRP-Streptavidin Conjugate
RPE-Cy5-streptavidin conjugate
mFluor™ UV455-streptavidin conjugate
mFluor™ Violet 545-streptavidin conjugate
mFluor™ Violet 550-streptavidin conjugate
mFluor™ Violet 590-streptavidin conjugate
mFluor™ Violet 610-streptavidin conjugate
Show More (58)

OverviewpdfSDSpdfProtocol


Molecular weight
~52000
Correction Factor (260 nm)
0.942
Correction Factor (280 nm)
0.797
Excitation (nm)
333
Emission (nm)
544
Streptavidin conjugates are widely used together with a conjugate of biotin for specific detection of a variety of proteins, protein motifs, nucleic acids and other molecules since streptavidin has a very high binding affinity for biotin. This trFluor™ Tb-streptavidin conjugate comprises streptavidin (as the biotin-binding protein) with trFluor™ Tb covalently attached (as the time-resolved green fluorescent terbium label). It is commonly used as a second step reagent for indirect immunofluorescent staining, when used in conjunction with biotinylated primary antibodies. It is a very valuable tool for biotin-streptavidin-based biological assays and tests using TR-FRET platform. A variety of the complementary biotinylated reagents are available from numerous commercial vendors.

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Correction Factor (260 nm)0.942
Correction Factor (280 nm)0.797
Excitation (nm)333
Emission (nm)544

Product Family


NameExcitation (nm)Emission (nm)Extinction coefficient (cm -1 M -1)Correction Factor (260 nm)Correction Factor (280 nm)
trFluor™ Eu-streptavidin conjugate298617210000.9110.777
