XFD488 C5 Maleimide *Same Structure to Alexa Fluor™ 488 C5 Maleimide*
Ordering information
Price | |
Catalog Number | |
Unit Size | |
Quantity |
Additional ordering information
Telephone | 1-800-990-8053 |
Fax | 1-800-609-2943 |
sales@aatbio.com | |
International | See distributors |
Bulk request | Inquire |
Custom size | Inquire |
Shipping | Standard overnight for United States, inquire for international |
Physical properties
Molecular weight | 720.66 |
Solvent | DMSO |
Spectral properties
Correction Factor (260 nm) | 0.30 |
Correction Factor (280 nm) | 0.11 |
Extinction coefficient (cm -1 M -1) | 71000 |
Excitation (nm) | 499 |
Emission (nm) | 520 |
Quantum yield | 0.921 |
Storage, safety and handling
H-phrase | H303, H313, H333 |
Hazard symbol | XN |
Intended use | Research Use Only (RUO) |
R-phrase | R20, R21, R22 |
Storage | Freeze (< -15 °C); Minimize light exposure |
UNSPSC | 12171501 |
Related products
Overview | ![]() ![]() |
See also: Antibody and Protein Labeling
Molecular weight 720.66 | Correction Factor (260 nm) 0.30 | Correction Factor (280 nm) 0.11 | Extinction coefficient (cm -1 M -1) 71000 | Excitation (nm) 499 | Emission (nm) 520 | Quantum yield 0.921 |
XFD488 C5 Maleimide is the same molecule to the Alexa Fluor® 488 C5 Maleimide (Alexa Fluor® is the trademark of ThermoFisher). It is a bright green-fluorescent dye optimal for use with the 488 nm Argon laser. XFD488 dye is water soluble and pH-insensitive from pH 4 to pH 10. The C5 maleimide of XFD488 is the most convenient thiol-reactive form for conjugating this dye to a protein or antibody.
Calculators
Common stock solution preparation
Table 1. Volume of DMSO needed to reconstitute specific mass of XFD488 C5 Maleimide *Same Structure to Alexa Fluor™ 488 C5 Maleimide* to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.
0.1 mg | 0.5 mg | 1 mg | 5 mg | 10 mg | |
1 mM | 138.762 µL | 693.808 µL | 1.388 mL | 6.938 mL | 13.876 mL |
5 mM | 27.752 µL | 138.762 µL | 277.523 µL | 1.388 mL | 2.775 mL |
10 mM | 13.876 µL | 69.381 µL | 138.762 µL | 693.808 µL | 1.388 mL |
Molarity calculator
Enter any two values (mass, volume, concentration) to calculate the third.
Mass (Calculate) | Molecular weight | Volume (Calculate) | Concentration (Calculate) | Moles | ||||
/ | = | x | = |

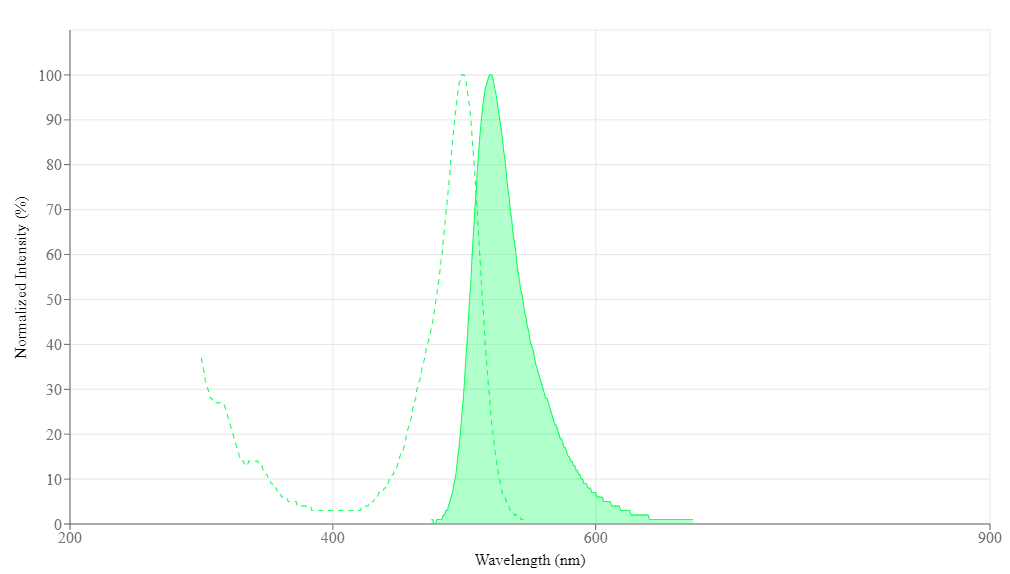

Spectrum
Open in Advanced Spectrum Viewer


Spectral properties
Correction Factor (260 nm) | 0.30 |
Correction Factor (280 nm) | 0.11 |
Extinction coefficient (cm -1 M -1) | 71000 |
Excitation (nm) | 499 |
Emission (nm) | 520 |
Quantum yield | 0.921 |
Product Family
Name | Excitation (nm) | Emission (nm) | Extinction coefficient (cm -1 M -1) | Quantum yield | Correction Factor (260 nm) | Correction Factor (280 nm) |
XFD350 C5 Maleimide *Same Structure to Alexa Fluor™ 350 C5 Maleimide* | 343 | 441 | 19000 | - | 0.25 | 0.19 |
XFD532 C5 Maleimide *Same Structure to Alexa Fluor™ 532 C5 Maleimide* | 534 | 553 | 81000 | 0.611 | 0.24 | 0.09 |
XFD594 C5 Maleimide *Same Structure to Alexa Fluor™ 594 C5 Maleimide* | 590 | 618 | 90000 | 0.661 | 0.43 | 0.56 |
EDANS C5 maleimide | 336 | 455 | 5900 | - | - | 0.107 |
Images

Figure 1. Fluorescent dye maleimides are the most popular tool for conjugating dyes to a peptide, protein, antibody, thiol-modified oligonucleotide, or nucleic acid through their SH group. Maleimides react readily with the thiol group of proteins, thiol-modified oligonucleotides, and other thiol-containing molecules under neutral conditions. The resulting dye conjugates are quite stable.
