Buccutite™ Bioconjugation Technology

Rapid Protein Crosslinking Method for Labeling and Modifying Antibodies

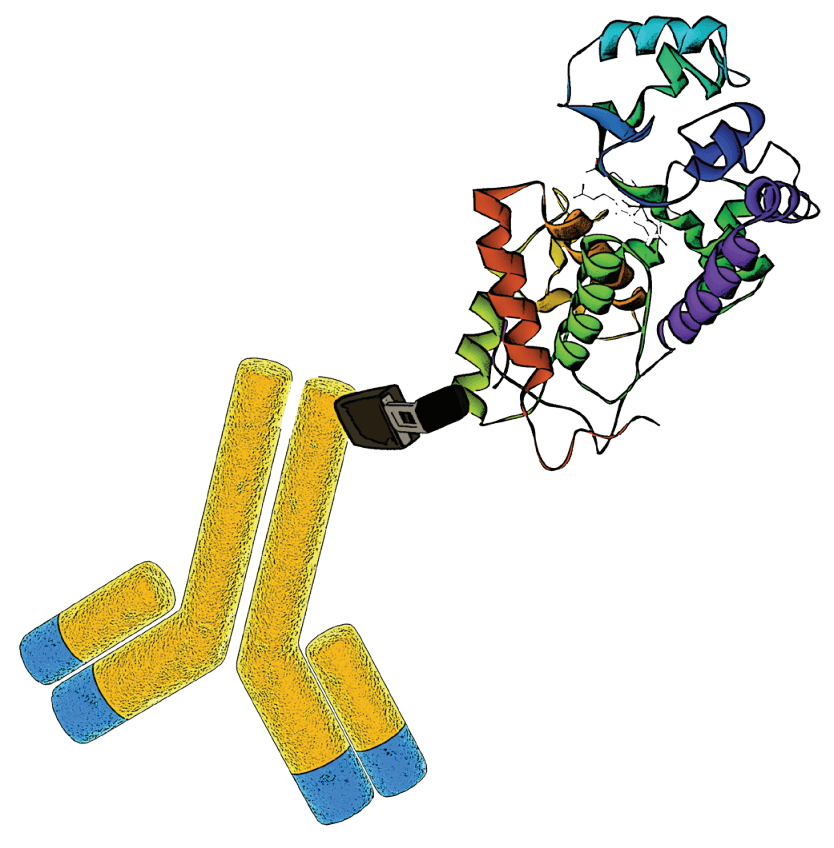

Crosslinking is a technique that chemically joins two or more proteins together, such as an antibody and an enzyme, by a covalent bond. Crosslinking reagents consist of reactive moieties that modify and attach to specific functional groups on proteins. A common approach for conjugating two biomolecules utilizes a small, heterobifunctional crosslinker called succinimidyl 4-(N-maleimidomethyl) cyclohexane1-carboxylate (SMCC). SMCC crosslinkers contain amine-reactive NHS ester moieties and thiol-reactive maleimide moieties to crosslink proteins. However, a drawback to this approach is the many experimental conditions that must be monitored to perform a successful conjugation. Difficulties associated with SMCC conjugations are maintenance of a narrow pH range, self-polymerization, and hydrolytic degradation of reactive moieties. To address these concerns, AAT Bioquest has developed an optimized and robust Buccutite™ crosslinking technique. Buccutite™ crosslinking technology provides a simplistic and efficient approach for conjugating proteins. It can be completed in half the time and with less stringent parameters yielding highly stable and easy to handle conjugated proteins.

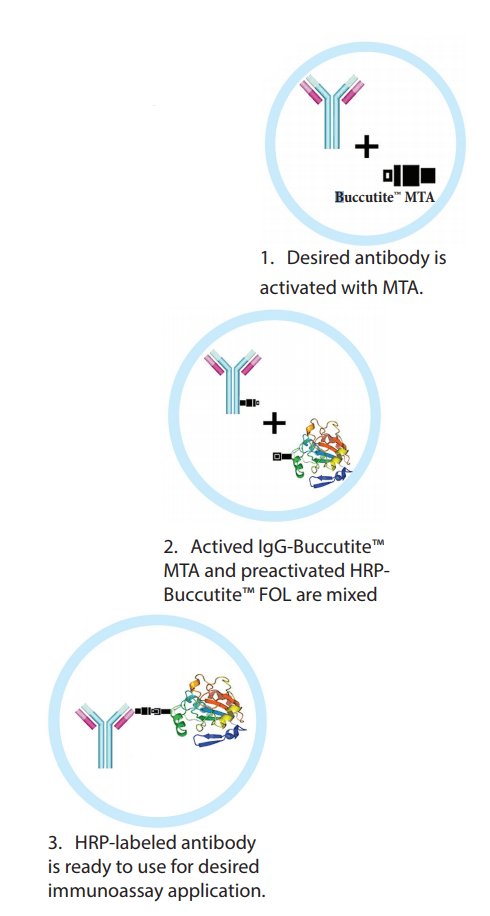

Buccutite™ Crosslinking Principles



Conjugate Proteins In 2 Simple Mixing Steps. No catalyst required





Buccutite™ vs SMCC



Total Operation Time:

  • Buccutite™: 2 Hours
  • SMCC Chemistry: 4-8 Hours

Minimum Sample Concentration

  • Buccutite™ Chemistry: ≥0.5 µg/µL
  • SMCC Chemistry: 0.5 - 5.0 µg/µL

Optimal Conjugation pH:

  • Buccutite™ Chemistry: 5 - 9
  • SMCC Chemistry: 7.0 - 7.5

Conjugation Yield

  • Buccutite™ Chemistry: 50-60 %
  • SMCC Chemistry: ≤ 30 %



Advantages



Buccutite™ conjugation can be run in a broad pH range of 5-9 and temperature.

Fast: Buccutite™ conjugation can be completed in 1-2 hours under extremely mild conjugation condutions. No purification step required with 25μg kits.

Robust: Buccutite™ conjugation can be run in a broad pH range of 5-9 and temperature.

Highly Stable: Buccutite™ linker-activated macromolecules are very stable, can be stored at 4ºC for more than 24 months.

High Yield: Buccutite™ conjugation gives much higher yield than other existing methods under the same conditions. Eliminating homo-crosslinking of proteins.

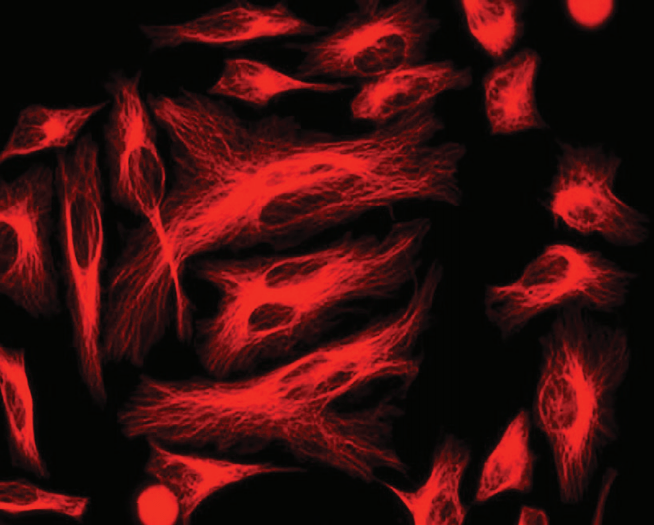

Tubulins were imaged with RPE- goat-anti-mouse IgG conjugate in HeLa cells. Tubulins were stained using mouse anti-α-tubulin antibody, and visualized with red fluorescent RPE-goat-antimouse IgG conjugate prepared by Buccutite™ crosslinking technology as described above.



AAT Bioquest’s Custom Bioconjugation Services



AAT Bioquest offers same-day custom conjugation of proteins or antibodies with a wide array of labels, such as biotin, HRP and over 20 fluorophores. Our services are designed to produce high-quality results with a fast turnaround. We take pride in supplying scientists with flexible tools that help expand their research needs.

Features of AAT Bioquest’s custom bioconjugation services include:

  • Guaranteed quality with 95% purity rating
  • Affordable price tiers that work with your budget
  • Scalable service with minimum order of 50 µg
  • Same day order fulfilment means your conjugate ships the day you order it

*NOTE: APC and PE custom conjugation services require 3 working days You may supply your own protein or antibody or chose from 3000+ monoclonal and polyclonal antibodies in our catalog. Contact us for a quote today, and let us put our expertise to work for you!



Product Ordering Information For Buccutite™ Labelling Kits



Cat. # Product Name Abs/Em (nm)
5503 Buccutite™ Peroxidase (HRP) Antibody Conjugation Kit *Optimized for Labeling 100 µg Protein* N/A
1313 Buccutite™ Rapid APC Antibody Labeling Kit *Microscale Optimized for Labeling 2w5 μg Antibody Per Reaction* 651/662
1311 Buccutite™ Rapid APC Antibody Labeling Kit *Microscale Optimized for Labeling 100 μg Antibody Per Reaction* 651/662
1322 Buccutite™ Rapid APC-Cy5 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 100 µg Antibody Per Reaction* 651/670
1350 Buccutite™ Rapid APC-Cy5.5 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 25 µg Antibody Per Reaction* 651/700
1320 Buccutite™ Rapid APC-Cy5.5 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 100 µg Antibody Per Reaction* 651/700
1351 Buccutite™ Rapid APC-Cy7 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 25 µg Antibody Per Reaction* 651/780
1321 Buccutite™ Rapid APC-Cy7 Tandem Antwibody Labeling Kit *Microscale Optimized for Labeling 100 µg Antibody Per Reaction* 651/780
1347 Buccutite™ Rapid APC-iFluor® 700 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 25 µg Antibody Per Reaction* 651/713
1319 Buccutite™ Rapid APC-iFluor® 700 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 100 µg Antibody Per Reaction* 651/713
1312 Buccutite™ Rapid PE Antibody Labeling Kit *Microscale Optimized for Labeling 25 μg Antibody Per Reaction* 565/575
1310 Buccutite™ Rapid PE Antibody Labeling Kit *Microscale Optimized for Labeling 100 μg Antibody Per Reaction* 565/575
1340 Buccutite™ Rapid PE-Cy5 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 25 µg Antibody Per Reaction* 565/670
1341 Buccutite™ Rapid PE-Cy5.5 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 25 µg Antibody Per Reaction* 565/700
1316 Buccutite™ Rapid PE-Cy5.5 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 100 µg Antibody Per Reaction* 565/700
1342 Buccutite™ Rapid PE-Cy7 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 25 µg Antibody Per Reaction* 565/700
1317 Buccutite™ Rapid PE-Cy7 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 100 µg Antibody Per Reaction* 565/780
1353 Buccutite™ Rapid PerCP Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 25 µg Antibody Per Reaction* 482/677
1325 Buccutite™ Rapid PerCP Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 100 µg Antibody Per Reaction* 482/677
1343 Buccutite™ Rapid PE-Texas Red Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 25 µg Antibody Per Reaction* 565/600
1318 Buccutite™ Rapid PE-Texas Red Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 100 µg Antibody Per Reaction* 565/600
1315 Buccutite™ Rapid Protein Crosslinking Kit *Microscale Optimized for Crosslinking 100 μg Antibody Per Reaction* N/A
