Exploring AAT Bioquest FastClick™ Reagents: A Versatile Solution for Bioorthogonal Labeling in Complex Biological Systems

Abstract

FastClick™ reagents, developed by AAT Bioquest, offer a transformative approach to copper-catalyzed azide-alkyne cycloaddition (CuAAC), enhancing both the reaction yield and speed under significantly milder conditions. Traditional CuAAC reactions often require high copper concentrations, which pose limitations in biological systems due to their cytotoxicity and capacity to disrupt cellular functions. Free copper ions can inhibit enzymatic activity, induce protein denaturation, cleave nucleic acid strands, and generate reactive oxygen species (ROS), thereby complicating their use in live-cell labeling and multiplexing applications. FastClick™ dyes address these challenges by integrating a copper-chelating ligand that stabilizes the Cu(I) oxidation state, dramatically accelerating the reaction kinetics while reducing the need for excessive copper concentrations. The innovative design incorporates a copper-chelating moiety into the picolyl azide structure, which localizes and concentrates Cu(I) at the reaction site, significantly increasing the effective copper ion availability and promoting rapid cycloaddition. Complementing this, the copper protectant not only serves as a chelator to limit free copper ions but also acts as a non-toxic reducing agent to prevent further Cu(I) oxidation and subsequent ROS production. FastClick™ dyes demonstrate exceptional compatibility with a broad spectrum of fluorophores, including phycobiliproteins (such as R-PE, APC, and their tandems), and fluorescent proteins like GFP and RFP, and are also suitable for multiplexed labeling with dye- or enzyme-conjugated antibodies. These reagents provide a robust solution for enhancing the precision and efficiency of CuAAC-based labeling strategies, making them ideally suited for complex biological applications while minimizing the detrimental effects traditionally associated with copper catalysis.

Introduction

Click chemistry is a powerful tool in bioconjugation, enabling highly specific, convenient, and biocompatible reactions between two chemical groups, known as click partners, that are not naturally found in biomolecules. This lack of interaction with native chemical groups, termed "bioorthogonality," ensures that click reactions will not interfere with the normal biochemical processes of living systems. The method is especially useful for conjugating molecules—even in complex biological environments—allowing for wide applications both in vitro and in vivo. These reactions have become invaluable for attaching natural compounds or xenobiotics to labels or supports, making them an all-purpose approach for generating probes for detection or purification purposes.

The Benefits of Click Chemistry

Click chemistry offers several distinct advantages that make it ideal for bioconjugations:

Simple to perform: It is modular and scalable.
Highly selective and versatile: It operates efficiently in aqueous conditions and across a wide range of pH values, without affecting biological systems.
High thermodynamic efficiency: With a reaction enthalpy greater than 84 kJ/mol, it yields high output and simplifies product purification.
Stereospecific: It can be chemo-, regio-, diastereo-, and enantio-selective, yielding physiologically stable products.
Green chemistry principles: The reactions adhere to eco-friendly practices, using non-toxic solvents and adhering to the concept of ‘atom economy.’

Introduced by Sharpless in 2001, click chemistry quickly revolutionized bioconjugation. Its first key reaction, the copper(I)-catalyzed azide-alkyne cycloaddition (CuAAC), brought together the azide and alkyne chemical groups to form a triazole ring. Despite its success, CuAAC presented challenges when applied to biological systems. Copper ions, essential for catalysis, could be cytotoxic and interfere with cellular functions, creating a demand for alternatives that maintained click chemistry’s efficiency without the drawbacks of copper.

The FastClick™ Dyes Solution for Low-Copper Click Reactions

FastClick™ dyes represents a major advancement in bioorthogonal chemistry, addressing the limitations of traditional copper-catalyzed azide-alkyne cycloaddition (CuAAC) reactions. By incorporating a copper-chelating picolyl azide structure, FastClick™ dyes facilitate highly efficient click reactions under much lower copper concentrations, minimizing cytotoxic effects and expanding their use in sensitive biological environments. This breakthrough is especially important for multiplexing applications and live-cell labeling, where elevated copper levels can interfere with enzyme activity, degrade proteins, and promote the formation of reactive oxygen species (ROS).

At the core of this innovation is Chelation Promoted Azide/Alkyne Conjugation (CPAAC), which enhances the interaction between azide and alkyne groups while limiting free copper in the system. This method incorporates advanced azide structures like picolyl azides, which are designed to improve copper binding at the reaction site. The result is significantly faster reaction kinetics and more efficient click chemistry, allowing for precise bioconjugation with minimal impact on cell viability.

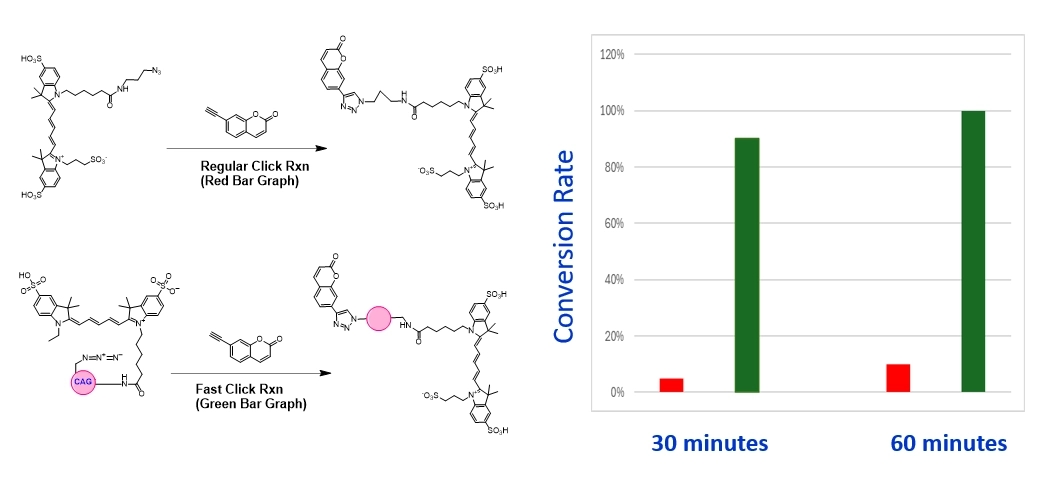

Fig. 1

The reaction (Green Bar) of FastClick™ Cy5 Azide with coumarin alkyne occurs under extremely mild conditions (e.g., [Azide] = 0.02 mM, [Alkyne] = 0.02 mM, [CuSO4] = 0.02 mM, [Sodium Ascorbate] = 5 mM, in 100 mM HEPES) under which the common Cy5 azide does not effectively react with the coumarin alkyne substrate.

Broad Applications in Biological Research

FastClick™ dyes are suitable for a wide range of biological applications, from live-cell imaging to proteomics. By allowing efficient labeling in low-copper environments, they enable researchers to perform real-time cellular studies with minimal disruption to the cell’s native processes. This makes FastClick™ dyes ideal for applications such as:

Live cell labeling - Minimal cytotoxicity allows real-time tracking of cellular processes.
Proteomic and metabolomics - FastClick™ facilitates the detection of alkyne-modified proteins and peptides in complex mixtures.
Multiplexing - The reduction in free copper ions ensures compatibility with multiple fluorescent labels, providing detailed insights into complex biological systems.

Conclusion

FastClick™ dyes have transformed the landscape of bioorthogonal chemistry by addressing the limitations of traditional click reactions. Their ability to perform efficient bioconjugations under low-copper conditions opens new avenues for biological research, particularly in applications that demand high precision, such as live-cell imaging and multiplexing assays. FastClick™ technology exemplifies the future of bioorthogonal reactions, merging efficiency, biocompatibility, and environmental sustainability into one robust platform for advanced bioconjugations.

References

Agard, N. J., Prescher, J. A., & Bertozzi, C. R. (2004). A strain-promoted 3+2 azide–alkyne cycloaddition for covalent modification of biomolecules in living systems. Journal of the American Chemical Society, 126(46), 15046-15047.
Hein, J. E., & Fokin, V. V. (2010). Copper-catalyzed azide-alkyne cycloaddition (CuAAC) and beyond: New reactivity of copper(I) acetylides. Chemical Society Reviews, 39(4), 1302-1315.
Lallana, E., Riguera, R., & Fernandez-Megia, E. (2011). Reliable and efficient procedures for the conjugation of biomolecules through Huisgen azide-alkyne cycloadditions. Angewandte Chemie International Edition, 50(39), 8794-8804.
Meldal, M., & Tornøe, C. W. (2008). Cu-catalyzed azide-alkyne cycloaddition. Chemical Reviews, 108(8), 2952-3015.
Tornøe, C. W., & Meldal, M. (2002). Peptidotriazoles on solid phase: [1,2,3]-triazoles by regiospecific copper(I)-catalyzed 1,3-dipolar cycloadditions of terminal alkynes to azides. The Journal of Organic Chemistry, 67(9), 3057-3064.
