XFD488 TCO
Ordering information
Price | |
Catalog Number | |
Unit Size | |
Quantity |
Additional ordering information
Telephone | 1-800-990-8053 |
Fax | 1-800-609-2943 |
sales@aatbio.com | |
International | See distributors |
Bulk request | Inquire |
Custom size | Inquire |
Shipping | Standard overnight for United States, inquire for international |
Physical properties
Molecular weight | 856.79 |
Solvent | DMSO |
Spectral properties
Correction Factor (260 nm) | 0.3 |
Correction Factor (280 nm) | 0.11 |
Extinction coefficient (cm -1 M -1) | 73000 |
Excitation (nm) | 499 |
Emission (nm) | 520 |
Quantum yield | 0.921 |
Storage, safety and handling
H-phrase | H303, H313, H333 |
Hazard symbol | XN |
Intended use | Research Use Only (RUO) |
R-phrase | R20, R21, R22 |
Storage | Freeze (< -15 °C); Minimize light exposure |
UNSPSC | 12171501 |
Direct upgrades
iFluor® 488 TCO |
Related products
Overview | SDSProtocol |
Upgrade: iFluor® 488 TCO
See also: Antibody and Protein Labeling
Molecular weight 856.79 | Correction Factor (260 nm) 0.3 | Correction Factor (280 nm) 0.11 | Extinction coefficient (cm -1 M -1) 73000 | Excitation (nm) 499 | Emission (nm) 520 | Quantum yield 0.921 |

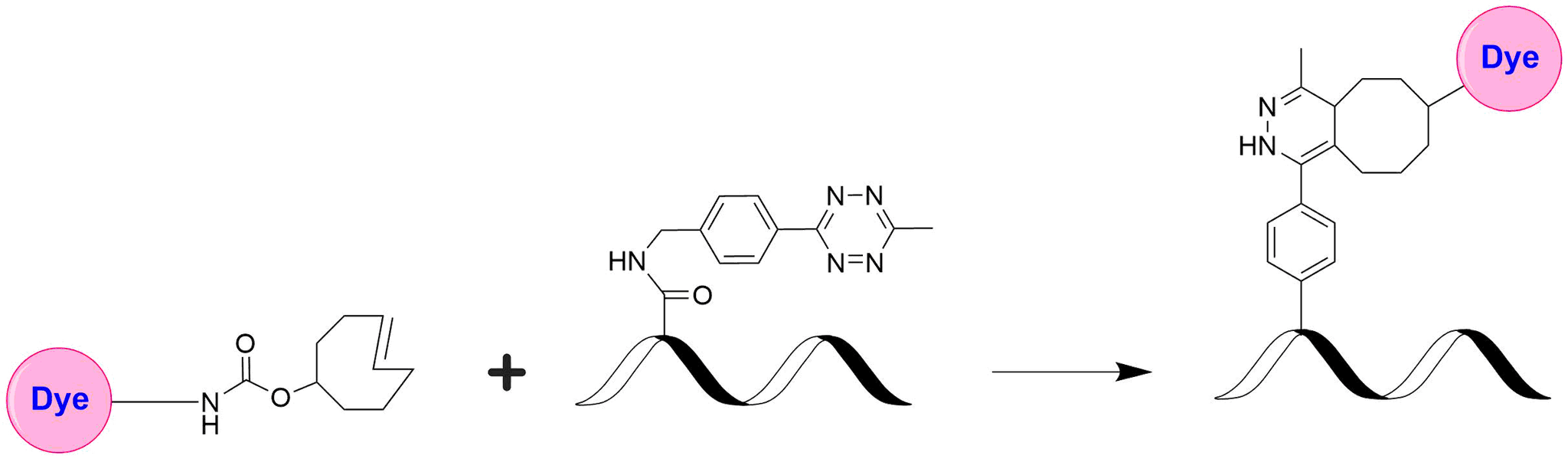

XFD488 contains the same fluorophore of Alexa Fluor® 488. It is a bright, green-fluorescent dye with excitation ideally suited for the 488 nm laser line. It is used for stable signal generation in imaging and flow cytometry. AF488 TCO demonstrates exceptionally fast reaction with tetrazines, the fastest kinetics ever reported for any biorthogonal reaction. It provides a convenient tool for making biological conjugates with tetrazine-modified substrates. The resulted conjugates provide the bright, green fluorescence of Alexa Fluor® 488 (Alexa Fluor® is the trademark of ThermoFisher Scientific).
Calculators
Common stock solution preparation
Table 1. Volume of DMSO needed to reconstitute specific mass of XFD488 TCO to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.
0.1 mg | 0.5 mg | 1 mg | 5 mg | 10 mg | |
1 mM | 116.715 µL | 583.574 µL | 1.167 mL | 5.836 mL | 11.671 mL |
5 mM | 23.343 µL | 116.715 µL | 233.429 µL | 1.167 mL | 2.334 mL |
10 mM | 11.671 µL | 58.357 µL | 116.715 µL | 583.574 µL | 1.167 mL |
Molarity calculator
Enter any two values (mass, volume, concentration) to calculate the third.
Mass (Calculate) | Molecular weight | Volume (Calculate) | Concentration (Calculate) | Moles | ||||
/ | = | x | = |
Spectrum
Open in Advanced Spectrum Viewer
Spectral properties
Correction Factor (260 nm) | 0.3 |
Correction Factor (280 nm) | 0.11 |
Extinction coefficient (cm -1 M -1) | 73000 |
Excitation (nm) | 499 |
Emission (nm) | 520 |
Quantum yield | 0.921 |
Product Family
Name | Excitation (nm) | Emission (nm) | Extinction coefficient (cm -1 M -1) | Quantum yield | Correction Factor (260 nm) | Correction Factor (280 nm) |
XFD488 azide *Same Structure to Alexa Fluor™ 488 azide* | 499 | 520 | 71000 | 0.921 | 0.30 | 0.11 |
XFD488 alkyne *Same Structure to Alexa Fluor™ 488 alkyne* | 499 | 520 | 71000 | 0.921 | 0.30 | 0.11 |
XFD488 Hydroxylamine *Same Structure to Alexa Fluor™ 488 Hydroxylamine* | 499 | 520 | 71000 | 0.921 | 0.30 | 0.11 |
XFD488 amine *Same Structure to Alexa Fluor™ 488 amine* | 499 | 520 | 71000 | 0.921 | 0.30 | 0.11 |
XFD488 Phalloidin *XFD488 Same Structure to Alexa Fluor™ 488* | 499 | 520 | 73000 | 0.921 | 0.3 | 0.11 |
XFD488 acid *Same Structure to Alexa Fluor™ 488 acid* | 499 | 520 | 71000 | 0.921 | 0.30 | 0.11 |
XFD488 tetrazine *Same Structure to Alexa Fluor™ 488 tetrazine* | 499 | 520 | 71000 | 0.921 | 0.30 | 0.11 |
XFD488 aldehyde *Same Structure to Alexa Fluor™ 488 aldehyde* | 499 | 520 | 71000 | 0.921 | 0.30 | 0.11 |
Cy3B TCO | 560 | 571 | 1200001 | 0.581 | 0.048 | 0.069 |
